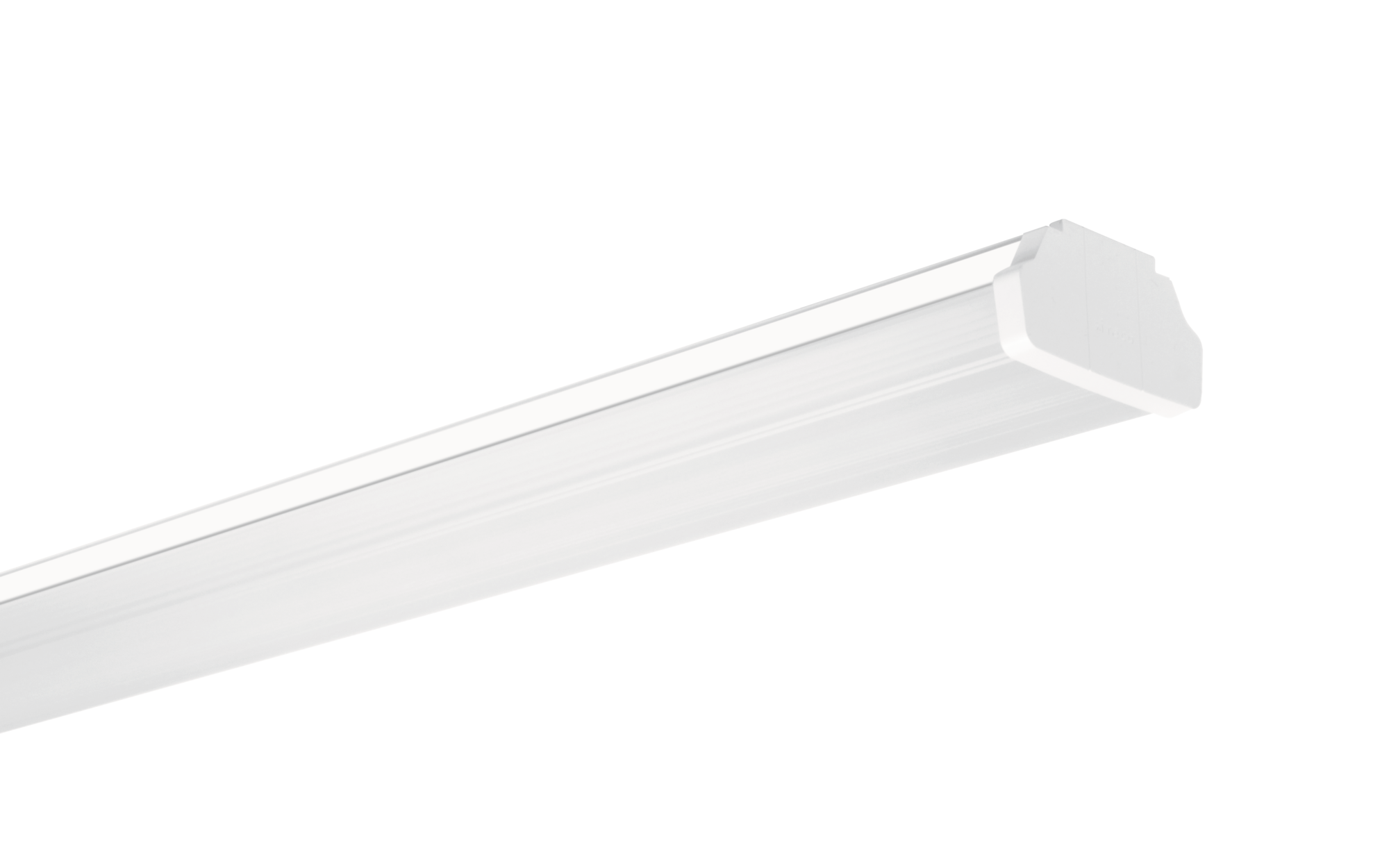

DUS® 31 HO, symmetric wide distribution, DUS® 31 HO, symmetric wide distribution, IP20, AC

Order No.: 53BD812C1V4105

Article luminaire insert
Product name DUS® 31 HO
Lamp LED
Rated luminous flux 10520lm
Luminous efficacy 165lm/W
Colour temperature 4000K
Colour rendering CRI > 80
P_nom begin service life 64
P_nom end service life 73
Service life 50000h (L100/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 1.9kg

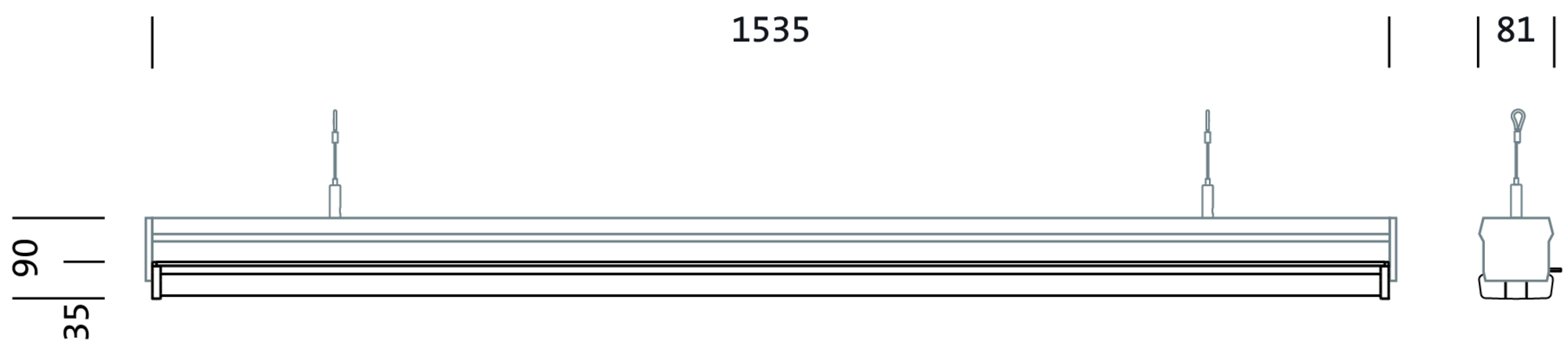

DUS® 31 HO, luminaire insert, of sheet steel, coil coated, white, length: 1.535mm, width: 81mm, height: 90mm, 5x system unit, system units: 307mm, LED rated luminous flux: 10.520lm, light colour: 840, control gear: ON/OFF Multilumen, CLOi, control gear: ECG Multilumen, with plug, 3-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 64W, end of service life: 73W, through-wiring accessed according to module size, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -35..+35°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece
