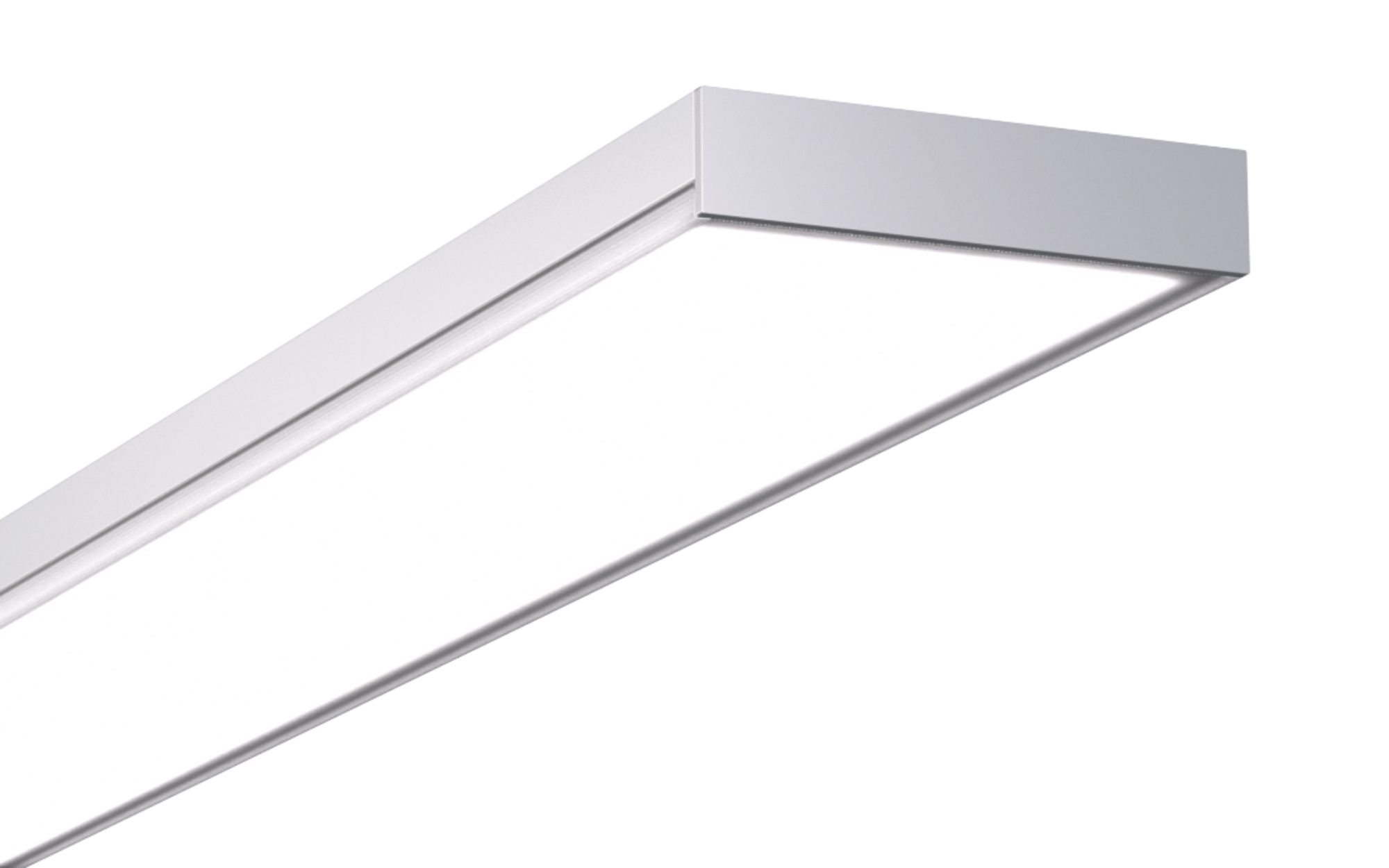

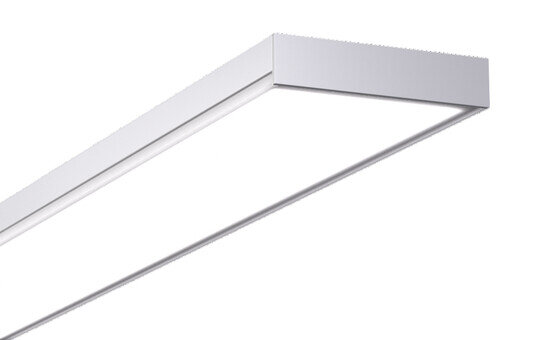

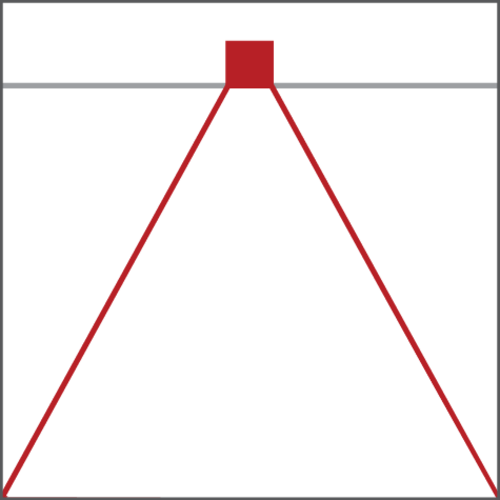

Apollon® 31 Surface, wide distribution, 90°, Light colour 840, DALI 2, metallic grey (RAL 9006)
Close
Article office luminaire
Product name Apollon® 31 Surface
Lamp LED
Rated luminous flux 4600lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 33W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK02
Weight 4.1kg

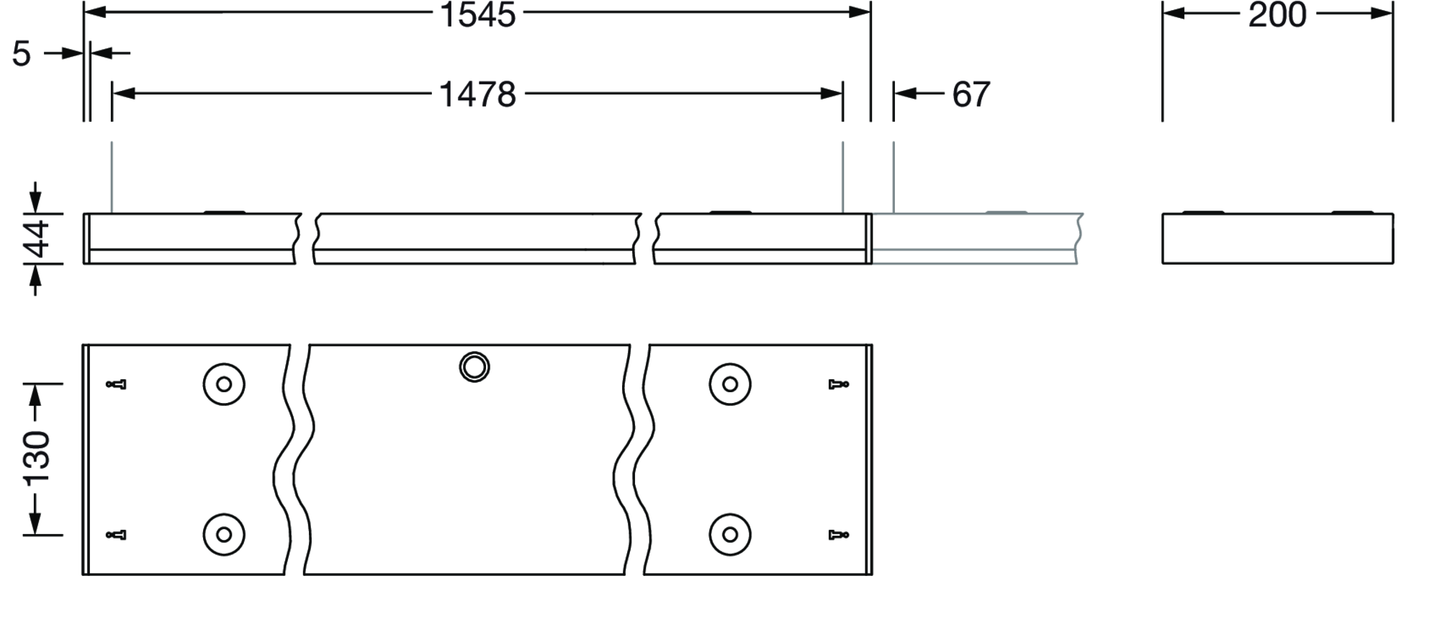

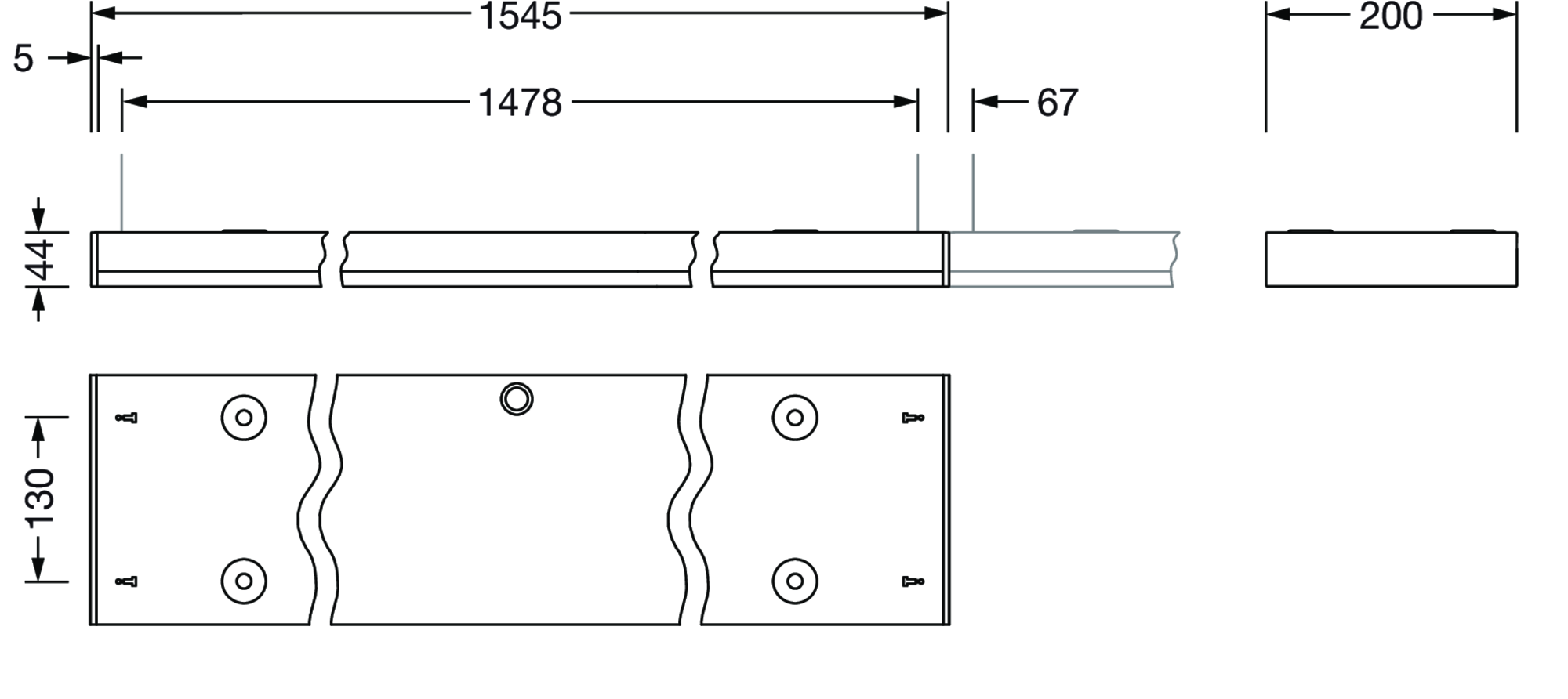

Apollon® 31 Surface, office luminaire, primary optical cover: micro prismatic cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.600lm, luminous efficacy: 139lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 33W, housing, of sheet steel, coil coated, metallic grey (RAL 9006), length: 1.545mm, width: 200mm, height: 44mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK02, permissible operating ambient temperature: -20..+40°C, standard: EN 60598-2-22, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

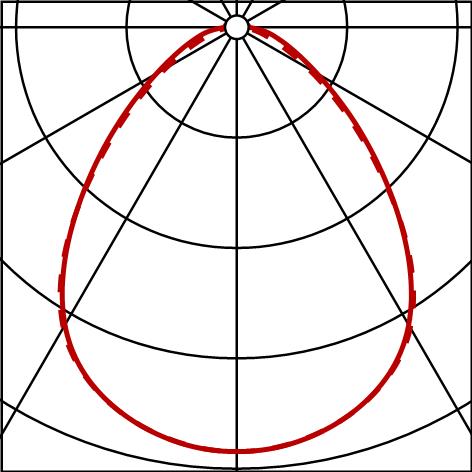

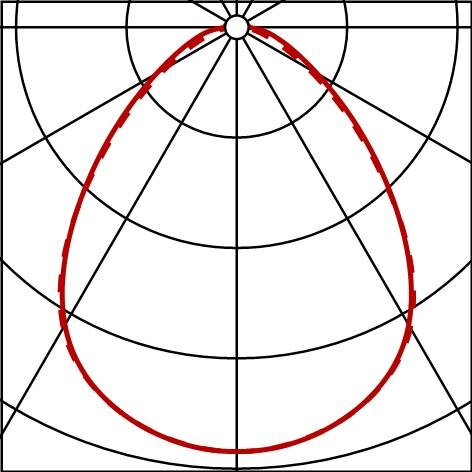

Photometric report / planning data
Apollon® 31 Surface
office luminaire, metallic grey (RAL 9006), DALI 2, 4600lm, 840, 1545x200mm, Connection: terminal
Lamps: 1x LED
Ordercode: 51MP26WD2441EA
