Apollon® 31

ProducttypesConfiguration & Datasheets

The pragmatic solution for office lighting

Apollon® 31 with square housing

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution, 90°; direct symmetric distribution, 120°
Net luminous flux 3800lm to 4000lm
Colour temperature 3000K; 4000K
Control ON/OFF; DALI 2
Protection rating IP20/IP40
Service life 50000h (L80/B50) at AT = 25°C

Specials

Apollon® 31 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Long-life replacement for traditional louvre solutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels

Configuration & Datasheets

Lighting effect

Beam angle

Colour temperature

Light colour

UGR

Rated luminous flux (lm)

Control

Ceiling system

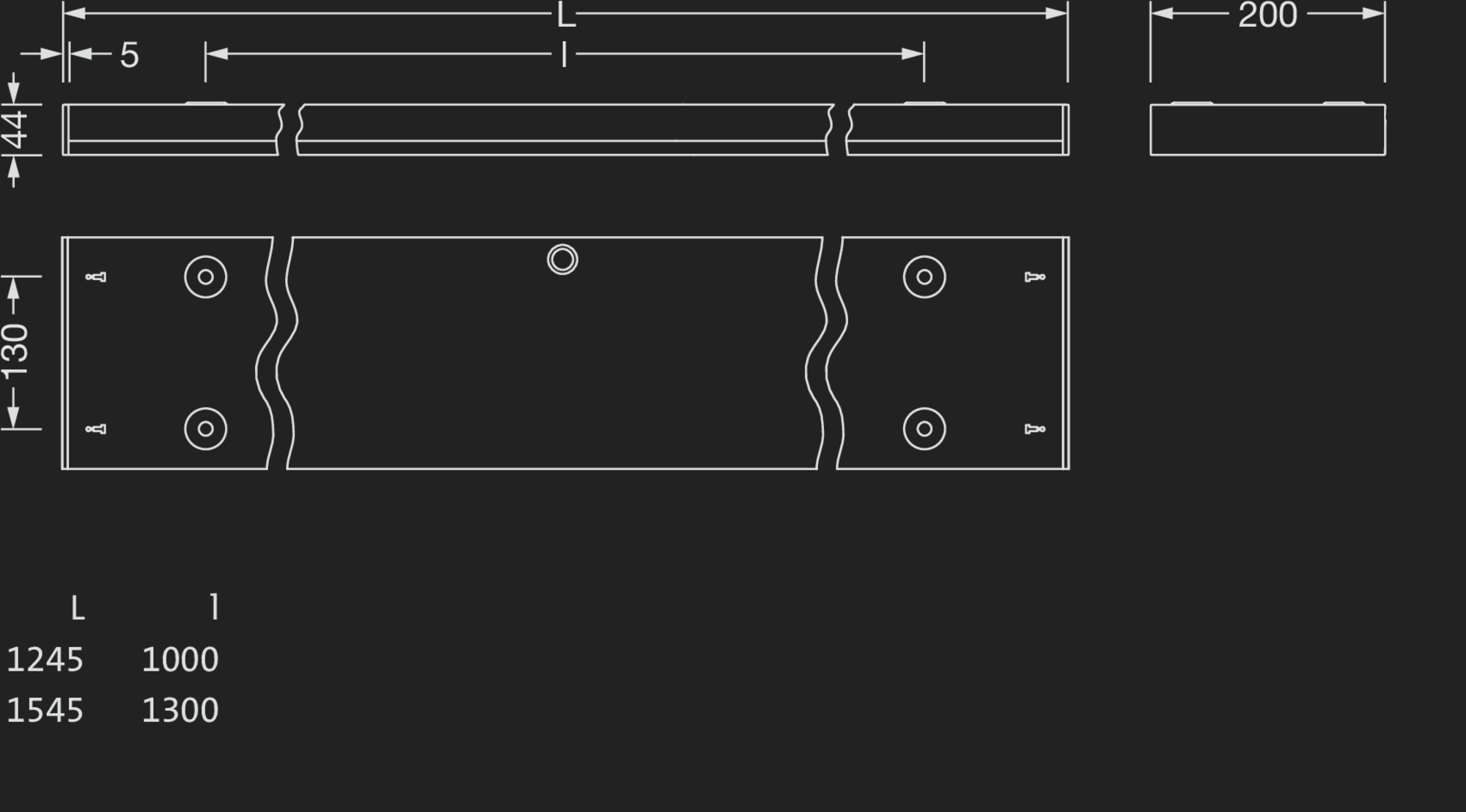

Dimension (mm)

  • lay-in mounting in system ceilings without recessing accessories; for installation in ceiling cutout and for other types of installation: please order mounting accessories separately
  • installing in ceiling cutout is only possible with the Module 625 luminaire; please order installation accessories matching the luminaire separately
  • please order mounting cable for module 600 luminaires separately for additional support of the luminaire in the ceiling cavity if required

Results

Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M600

Order No.: 51MP12W72341GTIN (EAN): 4058352451458
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 803800lm35W109lm/WON/OFF597x5972.4

Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, for M600

Order No.: 51MP12WD2441GTIN (EAN): 4058352451489
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W115lm/WDALI 2597x5972.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M600

Order No.: 51MP12W72441GTIN (EAN): 4058352451465
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W109lm/WON/OFF597x5972.4

Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M625

Order No.: 51MP11W72341GTIN (EAN): 4058352451373
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 803800lm35W109lm/WON/OFF622x6222.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625

Order No.: 51MP11W72441GTIN (EAN): 4058352451380
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W115lm/WON/OFF622x6222.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, for M625

Order No.: 51MP11WD2441GTIN (EAN): 4058352451403
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W115lm/WDALI 2622x6222.2

Apollon® 31 square, 120°, Light colour 840, ON/OFF, for M600

Order No.: 51MP12N72441GTIN (EAN): 4058352451427
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W115lm/WON/OFF597x5972.2

Apollon® 31 square, 120°, Light colour 840, DALI 2, for M625

Order No.: 51MP11ND2441GTIN (EAN): 4058352451366
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm35W115lm/WDALI 2622x6222.4

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, for M600

Order No.: 51MP12WD2341GTIN (EAN): 4058352451472
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 804000lm35W115lm/WDALI 2597x5973.2

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, for M625

Order No.: 51MP11WD2341GTIN (EAN): 4058352451397
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 803800lm35W109lm/WDALI 2622x6224.5

Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M600

Order No.: 51MP12W72341GTIN (EAN): 4058352451458

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load35W
Luminous efficacy109lm/W
ControlON/OFF
Dimension (mm)597x597
Wt. (kg)2.4

Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, for M600

Order No.: 51MP12WD2441GTIN (EAN): 4058352451489

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlDALI 2
Dimension (mm)597x597
Wt. (kg)2.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M600

Order No.: 51MP12W72441GTIN (EAN): 4058352451465

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy109lm/W
ControlON/OFF
Dimension (mm)597x597
Wt. (kg)2.4

Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M625

Order No.: 51MP11W72341GTIN (EAN): 4058352451373

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load35W
Luminous efficacy109lm/W
ControlON/OFF
Dimension (mm)622x622
Wt. (kg)2.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625

Order No.: 51MP11W72441GTIN (EAN): 4058352451380

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlON/OFF
Dimension (mm)622x622
Wt. (kg)2.2

Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, for M625

Order No.: 51MP11WD2441GTIN (EAN): 4058352451403

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlDALI 2
Dimension (mm)622x622
Wt. (kg)2.2

Apollon® 31 square, 120°, Light colour 840, ON/OFF, for M600

Order No.: 51MP12N72441GTIN (EAN): 4058352451427

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlON/OFF
Dimension (mm)597x597
Wt. (kg)2.2

Apollon® 31 square, 120°, Light colour 840, DALI 2, for M625

Order No.: 51MP11ND2441GTIN (EAN): 4058352451366

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlDALI 2
Dimension (mm)622x622
Wt. (kg)2.4

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, for M600

Order No.: 51MP12WD2341GTIN (EAN): 4058352451472

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load35W
Luminous efficacy115lm/W
ControlDALI 2
Dimension (mm)597x597
Wt. (kg)3.2

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, for M625

Order No.: 51MP11WD2341GTIN (EAN): 4058352451397

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load35W
Luminous efficacy109lm/W
ControlDALI 2
Dimension (mm)622x622
Wt. (kg)4.5

Optional accessory

ArticleY-wire suspension, with ceiling canopy, white, with fixing on luminaire side, with terminal, for ON/OFF versionPU2 pcs.Wt. (kg)0.3Order No.: 59MQ31000021GTIN (EAN): 4058352347867Show details
Articleconnection cable, 3-core, 0.75mm², L= 0.8m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90001LGTIN (EAN): 4039806139948Show details
Articleconnection cable, 3-core, 0.75mm², L= 1.4m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90002LGTIN (EAN): 4039806198839Show details
Articleconnection cable, 3-core, 0.75mm², L= 2m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90003LGTIN (EAN): 4039806507693Show details
ArticleY-wire suspension, with ceiling canopy, white, with fixing on luminaire side, with terminal, for DALI versionPU2 pcs.Wt. (kg)0.3Order No.: 59MQ32000021GTIN (EAN): 4058352347881Show details
Articleconnection cable, 5-core, 0.75mm², L= 1.4m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90005LGTIN (EAN): 4039806201935Show details
Articleconnection cable, 5-core, 0.75mm², L= 2m, with terminalPU1 pc.Wt. (kg)0.2Order No.: 5LF90006LGTIN (EAN): 4039806507709Show details
Articlesurface mounted housing, white, for luminaire M625PU1 pc.Wt. (kg)0.9Order No.: 59MQ21004021GTIN (EAN): 4058352465394Show details
Articlesurface mounted housing, white, for luminaire M600PU1 pc.Wt. (kg)1.2Order No.: 59MQ22005021GTIN (EAN): 4058352465424Show details
Articlesurface mounted housing, white, for luminaire M625PU1 pc.Wt. (kg)1.3Order No.: 59MQ21005021GTIN (EAN): 4058352465400Show details
Articlemounting cable, L= 1500mmPU1 pc.Wt. (kg)0.1Order No.: 59MQ91110GTIN (EAN): 4058352345344Show details
Articlerapid mounting bracket, for cut ceiling aperturesPU4 pcs.Wt. (kg)0.7Order No.: 5MQ90040XCGTIN (EAN): 4058352261927Show details
Articlemounting frame, for luminaire M600PU1 pc.Wt. (kg)0.7Order No.: 59MQ12005021GTIN (EAN): 4058352465332Show details
Articlemounting frame, for luminaire M625PU1 pc.Wt. (kg)0.7Order No.: 59MQ11005021GTIN (EAN): 4058352465325Show details
