Ordercode: 59US1HXMPC5A

Article sensor

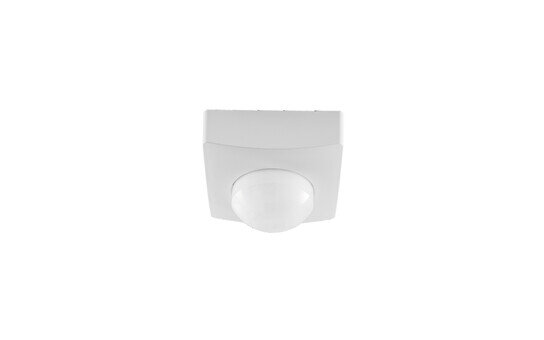

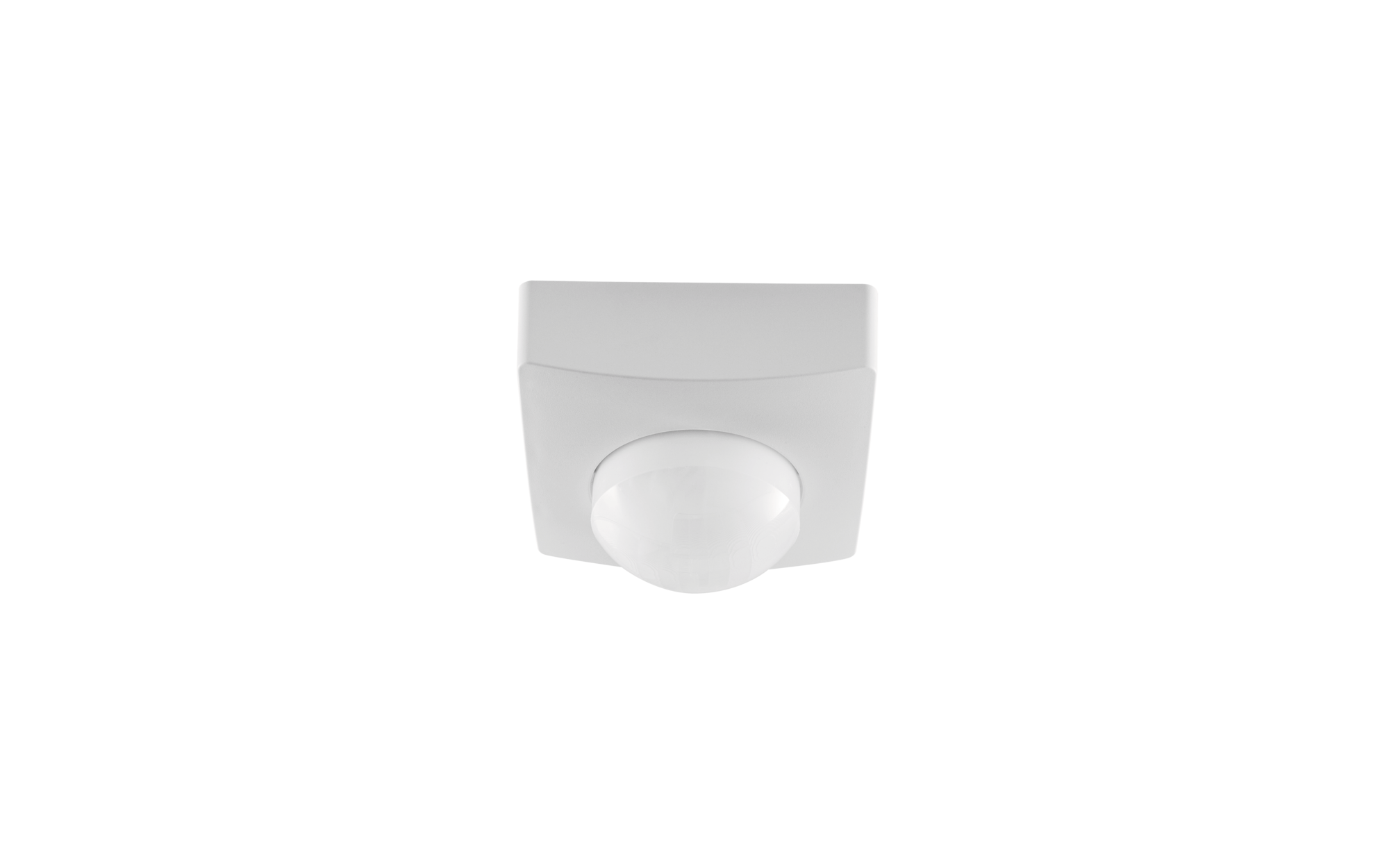

Product name Siteco Connect Sensor-Head
Weight 0.1kg

Siteco Connect Sensor-Head, Sensor-Head PC5-M, master,local controlinstallation type: slip-in mounting, installation location: on interface, of plastic, certification: CE, VDE, 1 x PIR movement sensor, 1 x light sensor, 1 x IR receiver, packaging unit: 1 piece

Product details


Key data

System family SITECO Connect
Product type sensor
Product name Siteco Connect Sensor-Head
Order No. 59US1HXMPC5A


Certificates, Standards

Temperature range (operation) -20..+50°C
Certification, designation CE, VDE


Material, Colour

housing plastic, white
Colour specification white


Mounting

Mounting method, mounting location slip-in mounting, on interface
Mounting height 4..14m

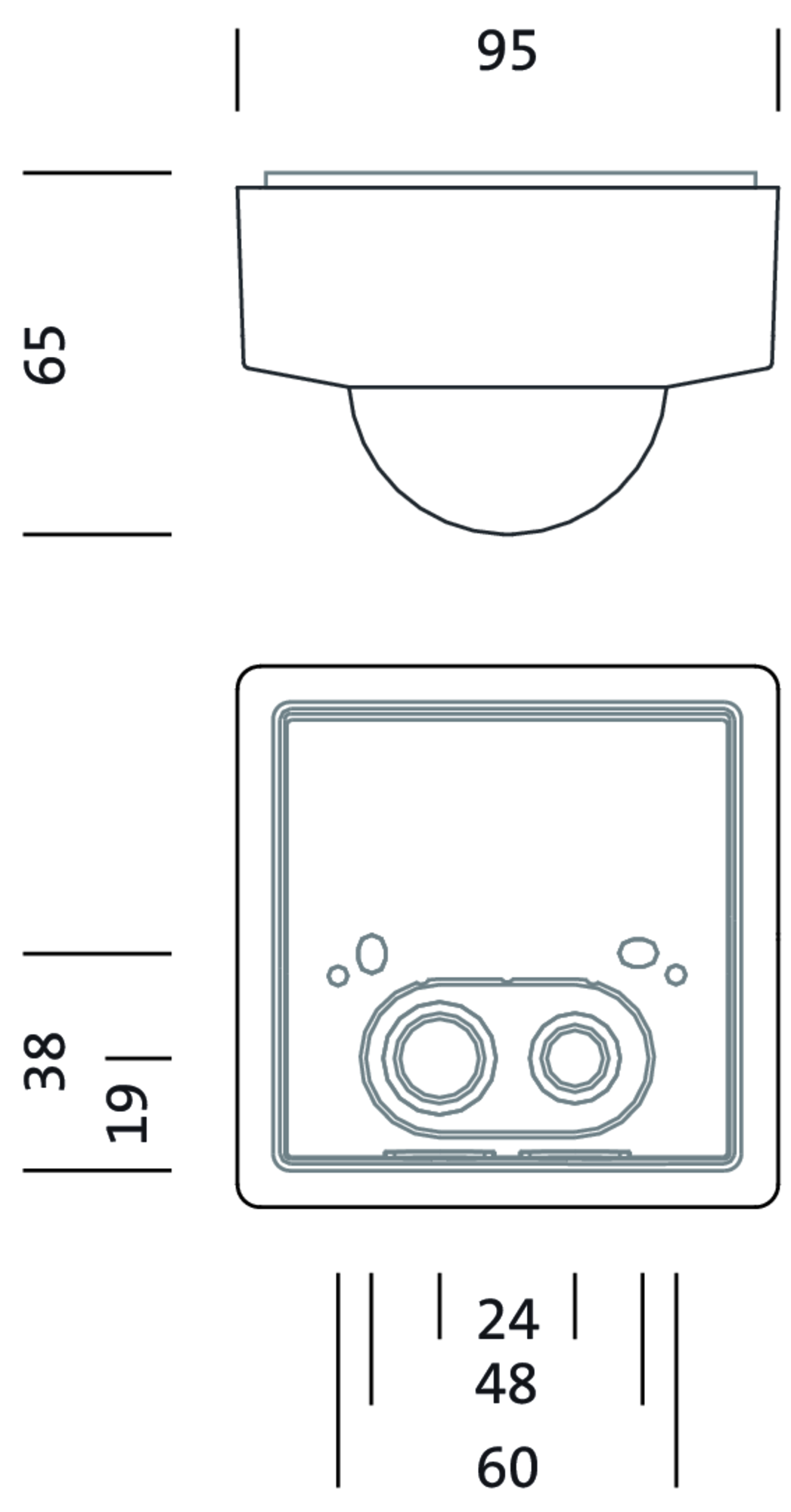

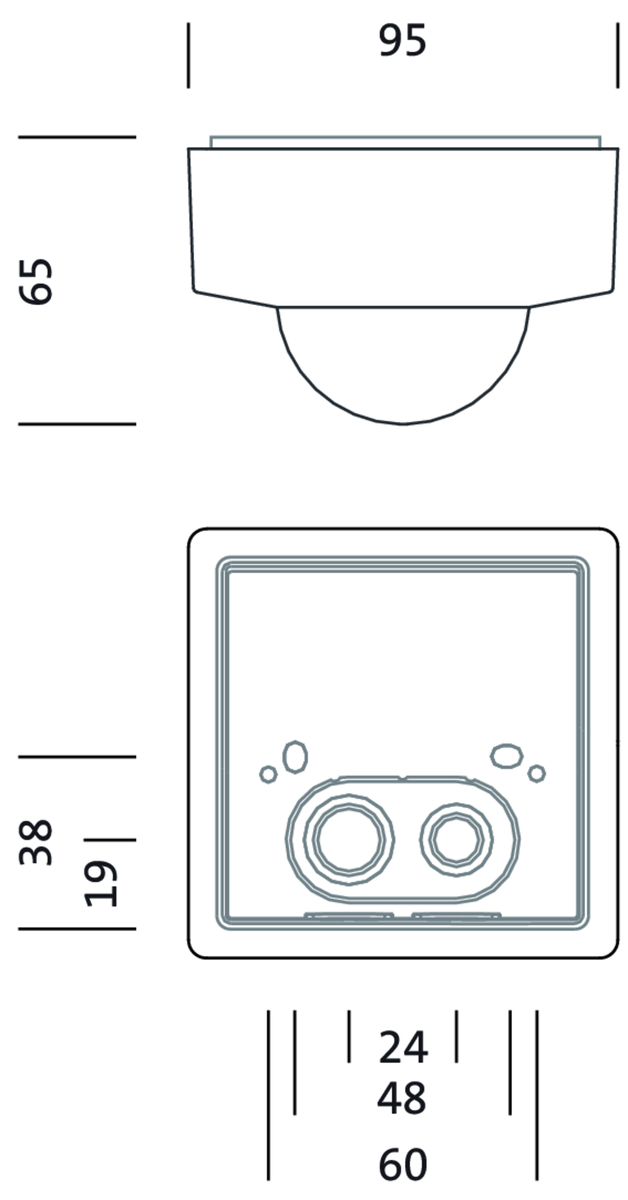

Dimensions, Weight

Length 95mm
Width 95mm
Height 65mm
Weight 0.1kg


Inputs

1x PIR movement sensor
Connection system connector

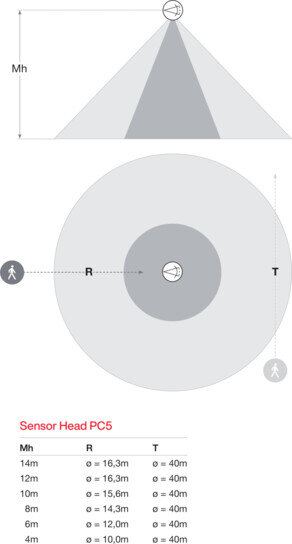

Detection range D max. 36m
Option 11 detection levels, 1416 switching zones
Feature detection range can be limited with shield, circular detection area

1x IR receiver
Feature IR receiver for programming with Smart Remote

System family
SITECO Connect

Product type
sensor

Product name
Siteco Connect Sensor-Head

Order No.
59US1HXMPC5A

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

housing
plastic, white

Colour specification
white

Mounting method, mounting location
slip-in mounting, on interface

Mounting height
4..14m

Length
95mm

Width
95mm

Height
65mm

Weight
0.1kg

1x PIR movement sensor

Connection
system connector

Detection range
D max. 36m

Option
11 detection levels, 1416 switching zones

Feature
detection range can be limited with shield, circular detection area

1x IR receiver

Feature
IR receiver for programming with Smart Remote
