DALI-2 terminal

Close
Order No.: 5LZ930200
Remember articleRemember article

Article control unit
Product name SITECO Connect 11
Protection rating IP20
Weight 0.1kg

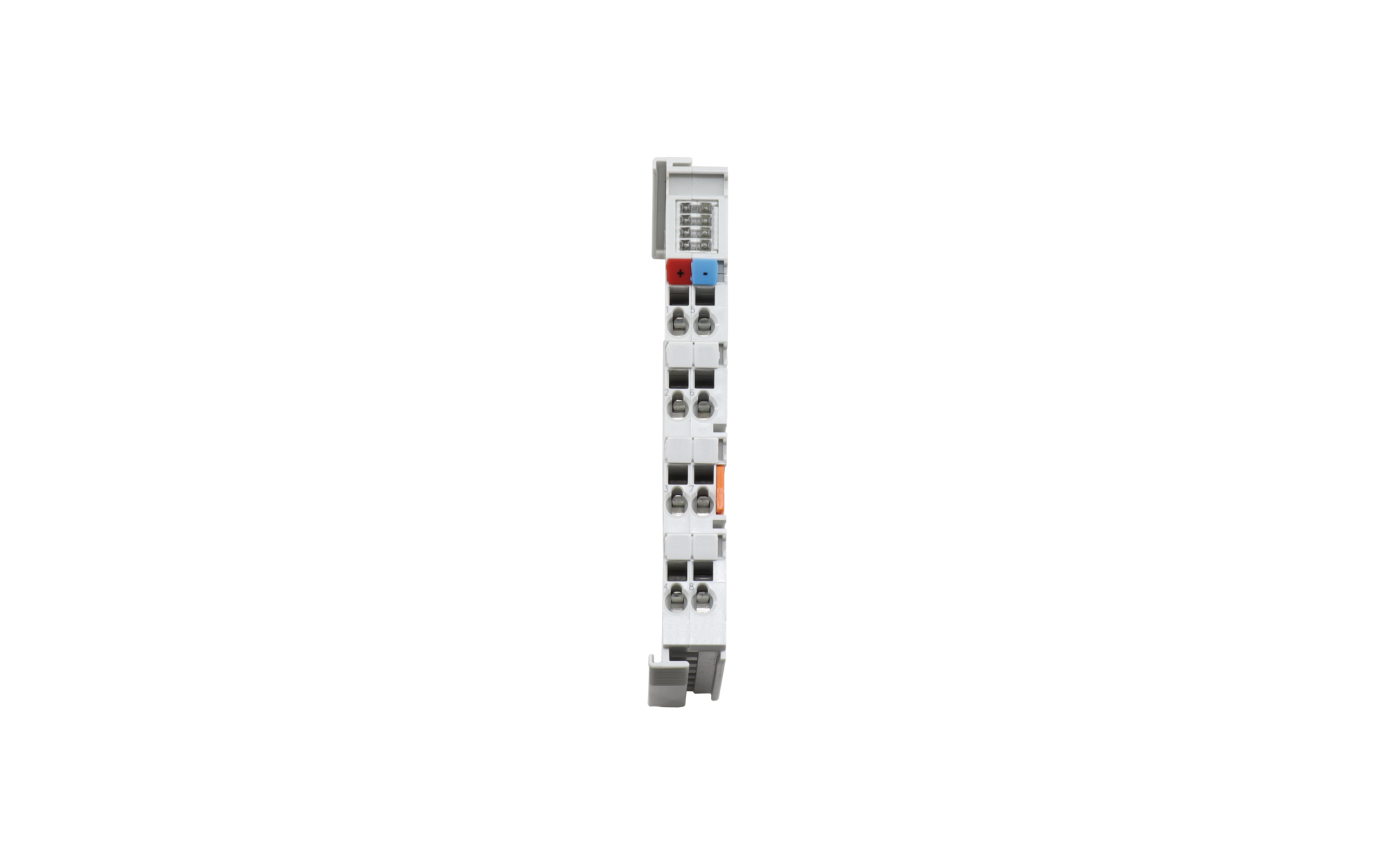

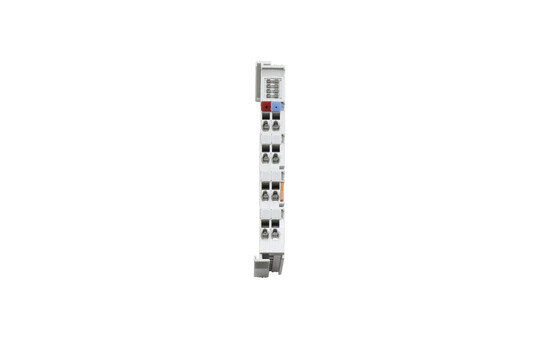

SITECO Connect 11DALI-2 terminal, central control - connection to lighting or building management, installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, certification: CE, voltage: 24V, voltage type: DC, 1 x K-Bus, 2 x digital switching contact, 1 x DALI-2, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11
Product type control unit
Product name SITECO Connect 11
Order No. 5LZ930200

Control

Certificates, Standards

Protection rating IP20
Temperature range (operation) 0..+55°C
Certification, designation CE

Material, Colour

Colour specification grey

Mounting

Mounting method, mounting location recessed, in an electrical distributor

Electrical connection

Nominal voltage 24V, DC

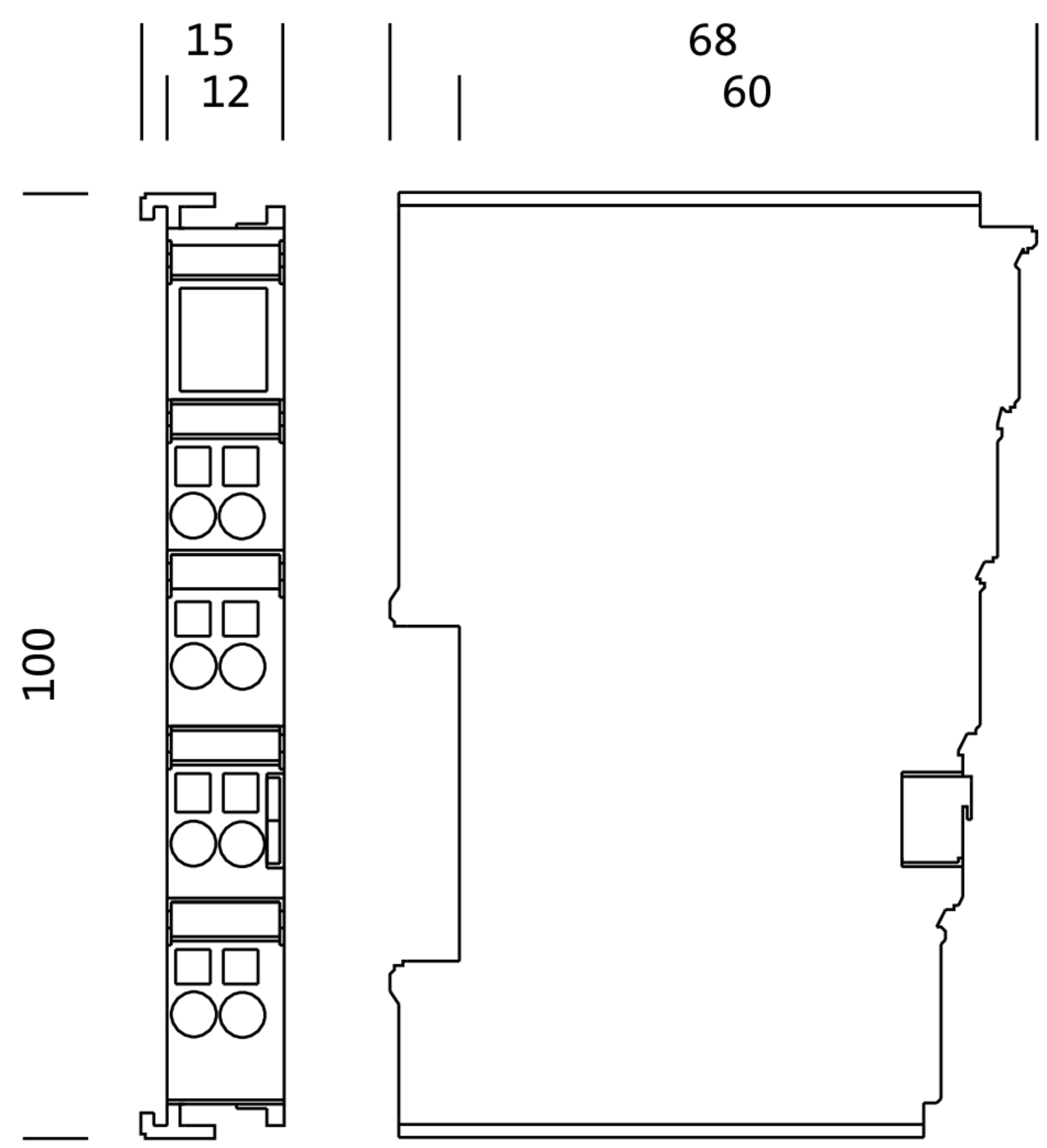

Dimensions, Weight

Length 100mm
Width 12mm
Height 68mm
Weight 0.1kg

Inputs

1x K-Bus
Option system current 55mA

2x digital switching contact
Option for easy commissioning

Outputs

1x DALI-2
Connection plug-in terminal, 2x 2-pole, max. 2.5mm²
Protocol according to current DALI-2 standard
Feature integrated power supply (250mA per DALI line)

System family
Siteco Connect 11

Product type
control unit

Product name
SITECO Connect 11

Order No.
5LZ930200

Protection rating
IP20

Temperature range (operation)
0..+55°C

Certification, designation
CE

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
24V, DC

Length
100mm

Width
12mm

Height
68mm

Weight
0.1kg

1x K-Bus

Option
system current 55mA

2x digital switching contact

Option
for easy commissioning

1x DALI-2

Connection
plug-in terminal, 2x 2-pole, max. 2.5mm²

Protocol
according to current DALI-2 standard

Feature
integrated power supply (250mA per DALI line)
