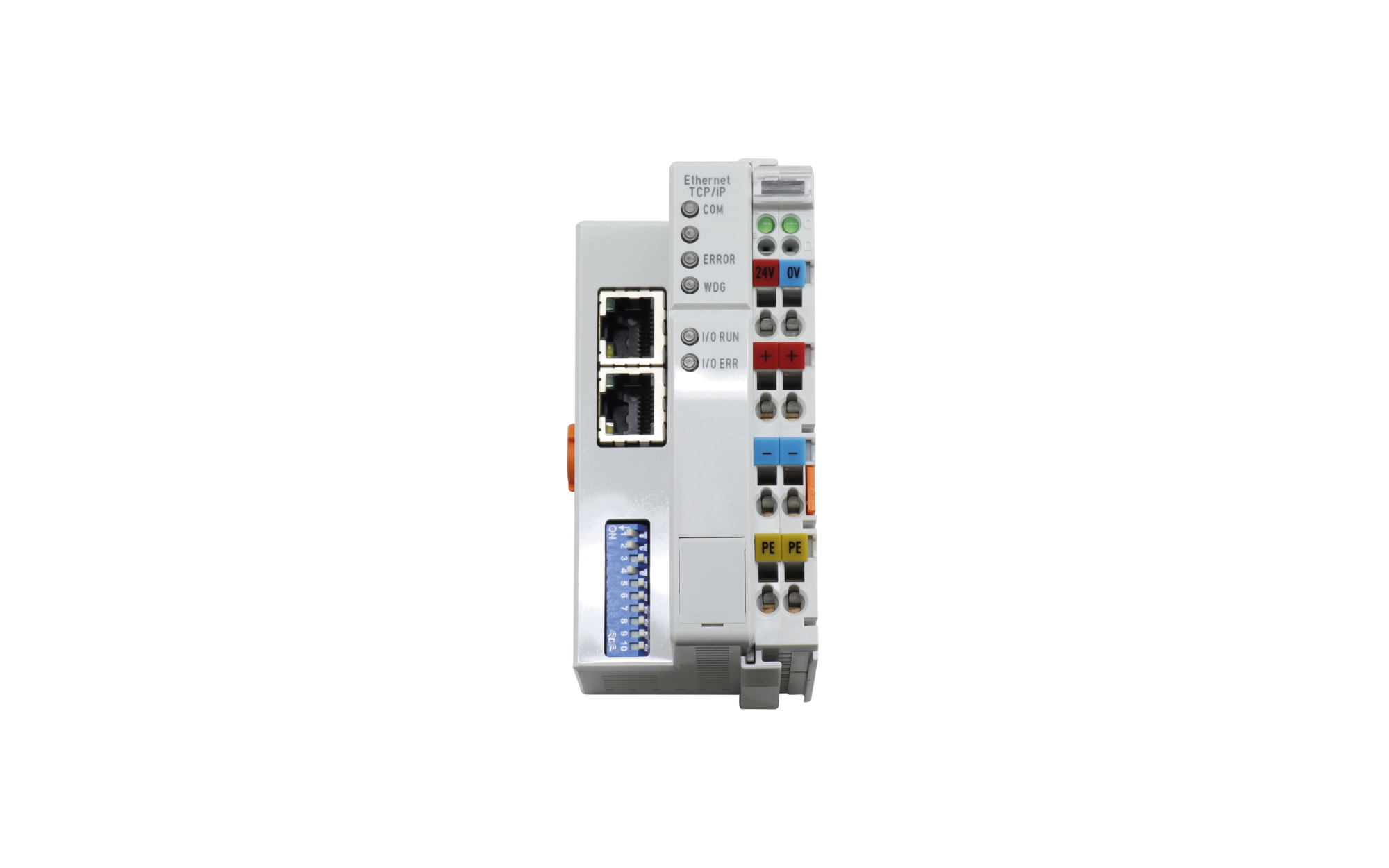

K-Bus coupler

Close
Order No.: 5LZ930206
Remember articleRemember article

Article control unit
Product name SITECO Connect 11
Protection rating IP20
Weight 0.1kg

SITECO Connect 11K-Bus coupler, central control - connection to lighting or building management, installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, certification: CE, voltage: 24V, voltage type: DC, 1 x K-Bus, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11
Product type control unit
Product name SITECO Connect 11
Order No. 5LZ930206

Certificates, Standards

Protection rating IP20
Temperature range (operation) -25..+60°C
Certification, designation CE

Material, Colour

Colour specification grey

Mounting

Mounting method, mounting location recessed, in an electrical distributor

Electrical connection

Nominal voltage 24V, DC

Dimensions, Weight

Length 100mm
Width 44mm
Height 68mm
Weight 0.1kg

Inputs

1x K-Bus
Option system current max. 500mA

System family
Siteco Connect 11

Product type
control unit

Product name
SITECO Connect 11

Order No.
5LZ930206

Protection rating
IP20

Temperature range (operation)
-25..+60°C

Certification, designation
CE

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
24V, DC

Length
100mm

Width
44mm

Height
68mm

Weight
0.1kg

1x K-Bus

Option
system current max. 500mA
