Order No.: 56TL1MDSD1B
Remember articleRemember article

Article sensor
Product name Licross®
Protection rating IP20
Weight 0.5kg

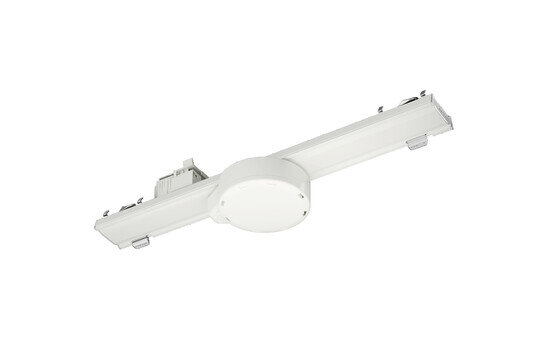

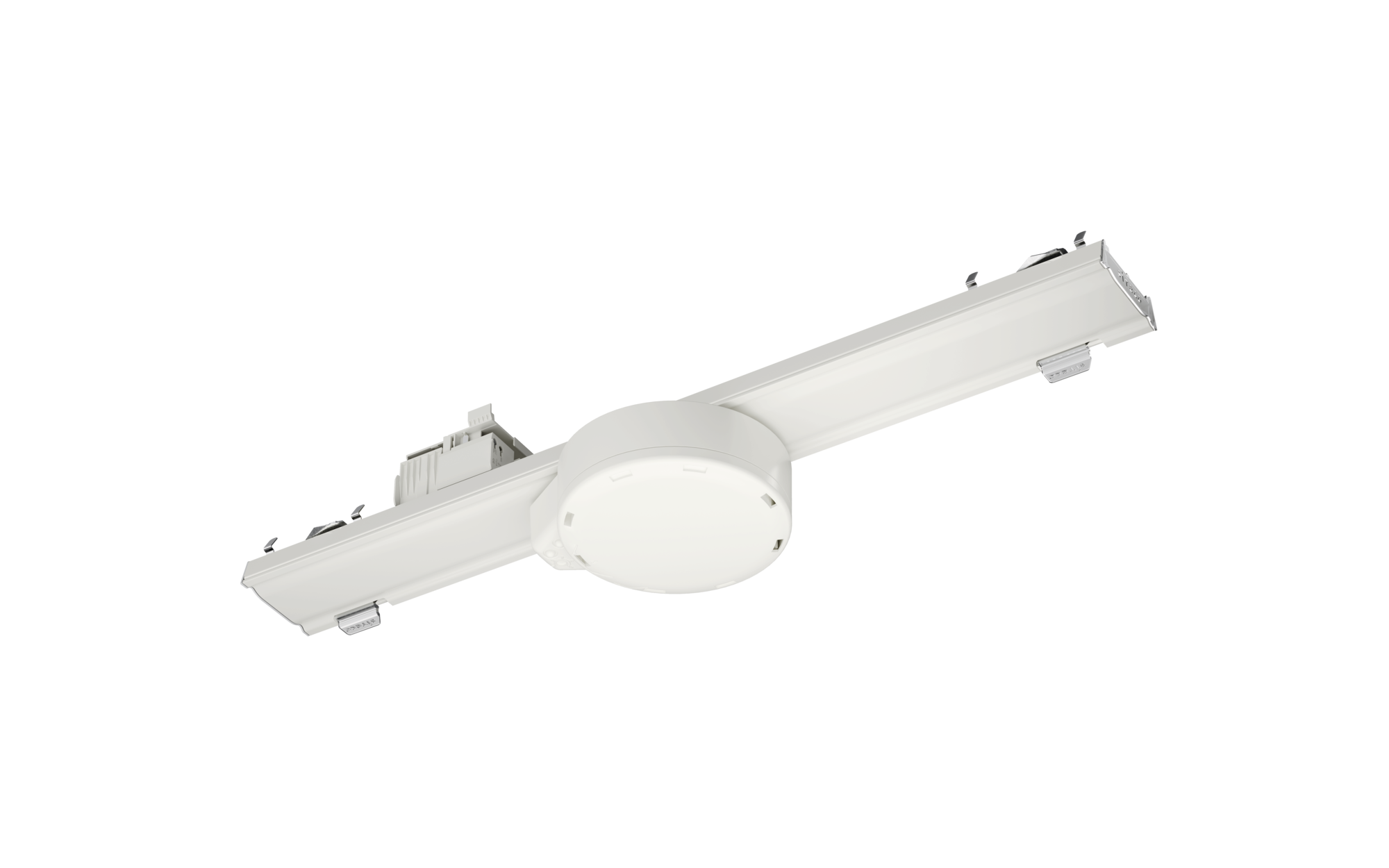

Licross®sensor D1, slave, central control - connection to lighting or building management, local control - self-sufficient standalone sensors, dimmable, installation type: recessed, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, voltage: 120..277V, voltage type: AC, 1 x light sensor, 1 x DALI-2, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family Siteco Connect 11, SITECO Connect 22
Product type sensor
Product name Licross®
Order No. 56TL1MDSD1B

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI 2, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) 0..+50°C
Certification, designation CE, UKCA

Material, Colour

sensor module sheet steel, coil coated, white
Colour specification white

Mounting

Mounting method, mounting location recessed, to the Licross® trunking rail
Mounting height 4..12m
Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 120..277V, 50/60Hz, AC

Dimensions, Weight

Length 500mm
Width 96mm
Height 97mm
Weight 0.5kg

Inputs

1x light sensor
Connection light sensor
Illuminance 20..800lx
Option usability at high altitudes

System family
Siteco Connect 11, SITECO Connect 22

Product type
sensor

Product name
Licross®

Order No.
56TL1MDSD1B

Supplement
internal wiring halogen-free

Control
DALI 2, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
0..+50°C

Certification, designation
CE, UKCA

sensor module
sheet steel, coil coated, white

Colour specification
white

Mounting method, mounting location
recessed, to the Licross® trunking rail

Mounting height
4..12m

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Nominal voltage
120..277V, 50/60Hz, AC

Length
500mm

Width
96mm

Height
97mm

Weight
0.5kg

1x light sensor

Connection
light sensor

Illuminance
20..800lx

Option
usability at high altitudes
