Article sensor
Product name SITECO Connect Wireless
Protection rating IP66
Weight 0.1kg

SITECO Connect WirelessSmart Plug Cellular Motion High, sensor, communication: local mesh radio network, EGPRS, NB-IoT NB2, LTE Cat M1, 5G, 4G, 2G, 2.4GHz, D4i type A, control: remote setup and operation, local setting and operation with USB stick, local setting and operation with smartphone app, manual, by time, by timer, by weekday, by AstroDim calendar, by daylight, by movement, via API, with radio clock, optionally via radio push button, sensor technology: 1 PIR movement sensor, daylight sensor, temperature sensor, inclination sensor, GPS, GNSS, GLONASS, GALILEO, The usage fees for remote access via web application and mobile communications (LTE CAT M1 / ​​NB IoT NB2 / EGPRS) are included in the scope of delivery with a term of 5 years. This individually extendable runtime starts when the device QR code is scanned into a system, Smart Interface below, Logarithmic DALI dimming curve preset. Can be switched to linear via software, installation type: screw fastening, installation location: to the luminaire, of plastic, voltage: 24V, voltage type: DC, PIR movement sensor, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA40EHC01


Control


Certificates, Standards

Protection rating IP66
Temperature range (operation) -40..+85°C
Standard according to Zhaga book 18
Certification, designation CE


Material, Colour

housing plastic, transparent, colour-backed, transparent
Colour specification transparent


Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 6..12m


Electrical connection

Nominal voltage 24V, DC


Dimensions, Weight

Weight 0.1kg


Inputs

PIR movement sensor

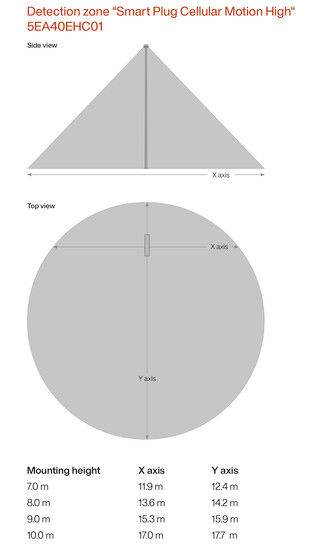

Detection range max. ø18m

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA40EHC01

Protection rating
IP66

Temperature range (operation)
-40..+85°C

Standard
according to Zhaga book 18

Certification, designation
CE

housing
plastic, transparent, colour-backed, transparent

Colour specification
transparent

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
6..12m

Nominal voltage
24V, DC

Weight
0.1kg

PIR movement sensor

Detection range
max. ø18m
