SITECO Connect Wireless, Mast Box Motion Traffic

Close
Order No.: 5EA3BER01
Remember articleRemember article

Article sensor
Product name SITECO Connect Wireless
Protection rating IP65
Weight 1.0kg

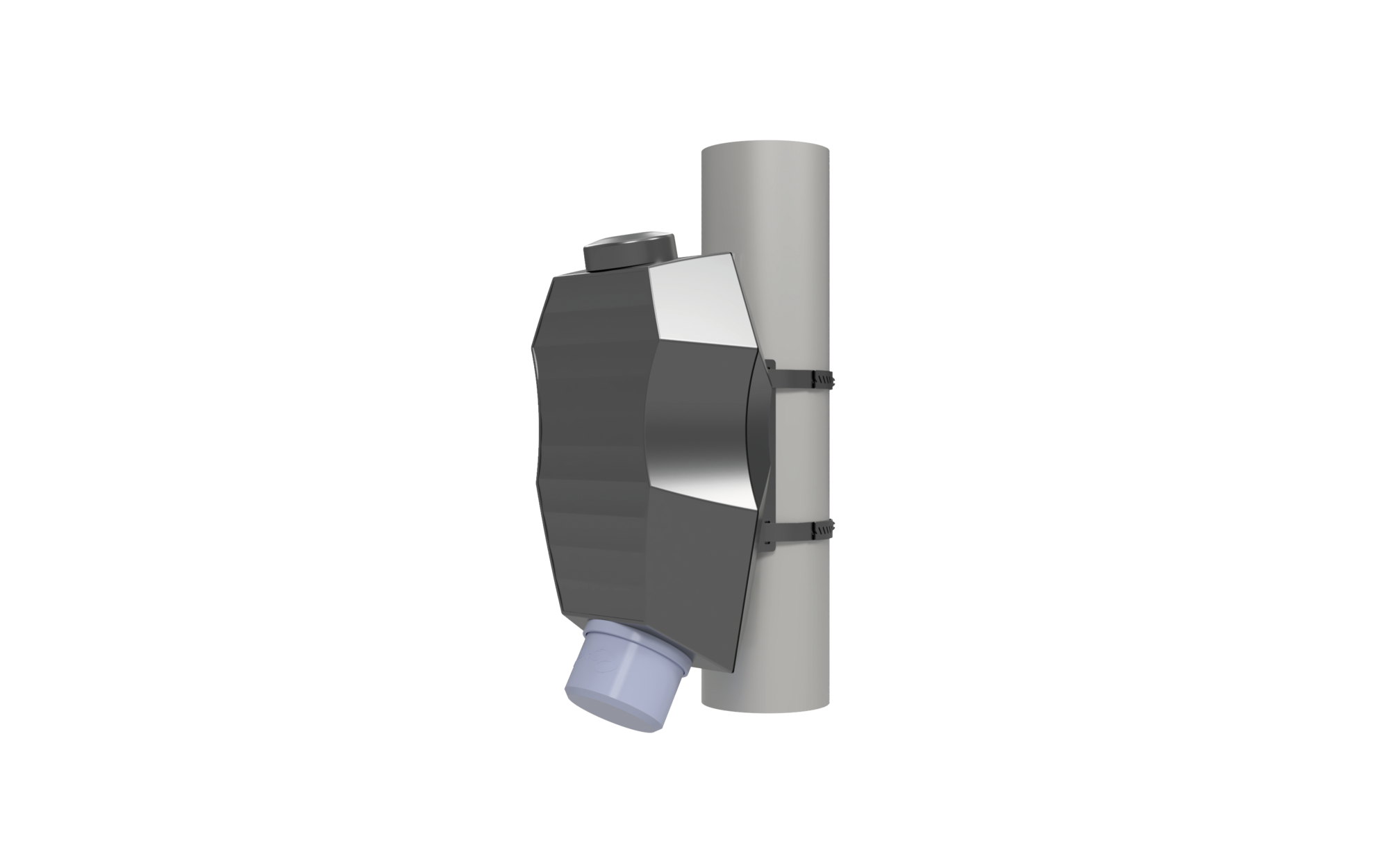

SITECO Connect WirelessMast Box Motion Traffic, sensor, communication: 2.4GHz, local mesh radio network, DALI, control: local setting and operation with USB stick, by movement, installation type: surface-mounted, installation location: to mast, of plastic, voltage: 230V, voltage type: AC, radar movement sensor, protection rating (complete): IP65, certification: CE, packaging unit: 1 piece, metal fastening straps not included in delivery

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA3BER01

Control

Certificates, Standards

Protection rating IP65
Temperature range (operation) -25..+80°C
Certification, designation CE

Material, Colour

housing plastic, dark grey
Colour specification dark grey

Mounting

Mounting method, mounting location surface-mounted, to mast
Mounting height 4..10m

Electrical connection

Nominal voltage 230V, AC

Dimensions, Weight

Length 240mm
Width 122mm
Weight 1.0kg

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA3BER01

Protection rating
IP65

Temperature range (operation)
-25..+80°C

Certification, designation
CE

housing
plastic, dark grey

Colour specification
dark grey

Mounting method, mounting location
surface-mounted, to mast

Mounting height
4..10m

Nominal voltage
230V, AC

Length
240mm

Width
122mm

Weight
1.0kg
