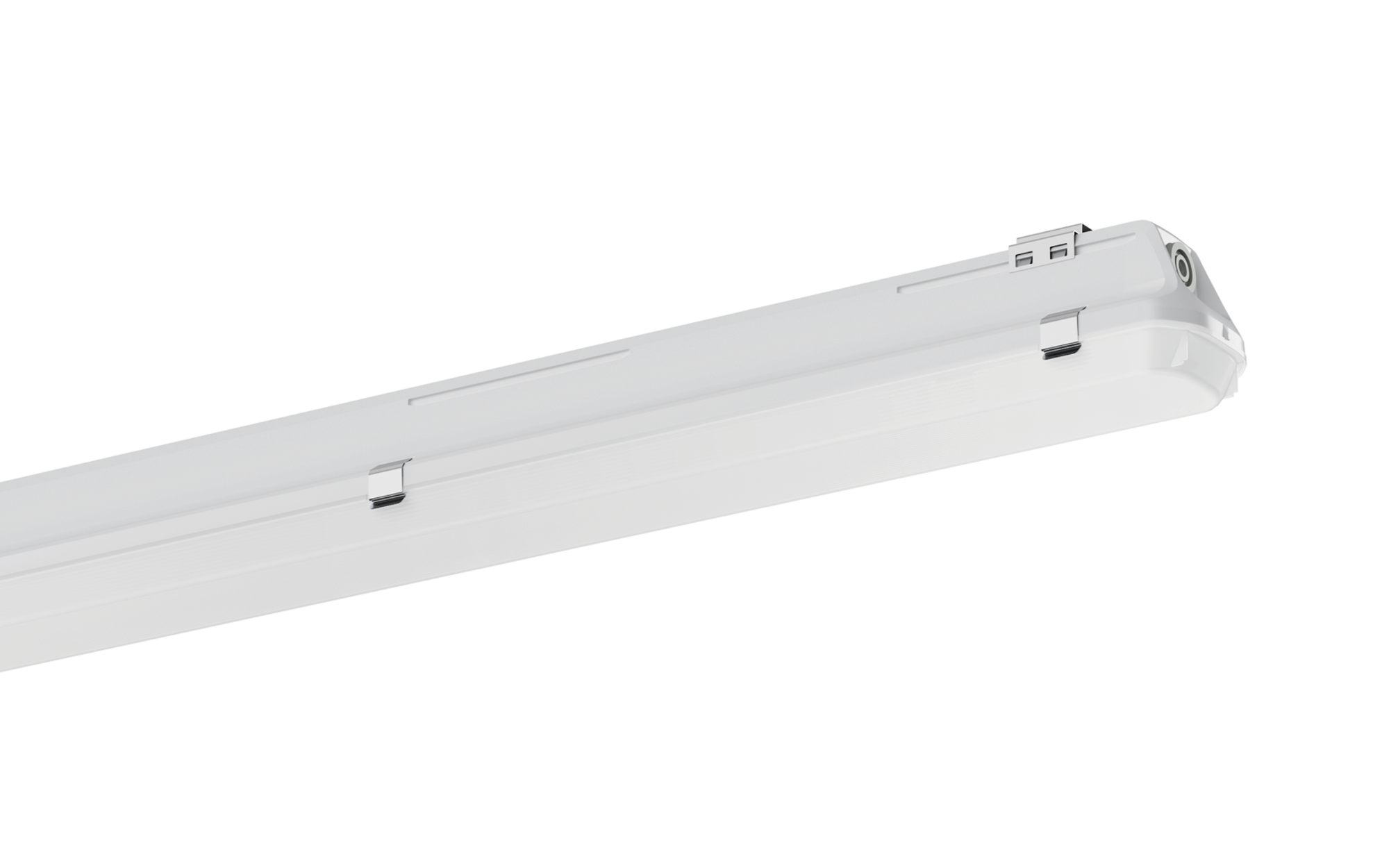

Monsun® 12, medium distribution, ON/OFF Multilumen, PMMA

Close
Ordercode: 51FP12MP480H
Remember productRemember product

Article damp-proof luminaire
Product name Monsun® 12
Lamp LED
Rated luminous flux 7990lm
Luminous efficacy 176lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 45W
Service life 50000h (L90/B50) at AT = 25°C, 70000h (L80/B50) at AT = 35°C
Protection rating IP66
Impact resistance IK04
Weight 2.5kg

Monsun® 12, damp-proof luminaire, chain hanger, primary light control with lens, primary optical cover: enclosure, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED rated luminous flux: 7.990 lm, light colour: 840, colour temperature: 4000K, control gear: ECG, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 45W, luminaire housing, of glass-fibre reinforced polyester, uncoated, bright grey, length: 1.590 mm, width: 90 mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK04, permissible ambient temperature for indoor applications: -35..+40°C, standard: EN 50419, EN 60598-2-1, no direct snow, no direct sun, no direct rain, for indoor or canopied outdoor use, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for animal farming (ammonia tested): for use in cowhouse, pig house, horse-stables... (not for use in poultry stables), AT max for animal farming = 40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type damp-proof luminaire
Product name Monsun® 12
Order No. 51FP12MP480H

Lighting technology

Light control lens
Cover enclosure
Beam angle medium distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with LED
Rated luminous flux 7990lm
Luminous efficacy 176lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 45W
Supplement halogen-free wiring, without flicker

Operating device

Control gear ECG
Control ON/OFF Multilumen

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK04
Protection symbol D
Temperature range (operation) -35..+40°C
Supplement corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, for animal farming (ammonia tested): for use in cowhouse, pig house, horse-stables... (not for use in poultry stables), AT max for animal farming = 40°C
Standard EN 50419, EN 60598-2-1
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger
Colour specification bright grey
clip for enclosure stainless steel (V2A)
Quantity 10 piece
ceiling mounting element stainless steel (V2A), ceiling mounting included
Quantity 2 piece
chain hanger stainless steel (V2A)
Quantity 2 piece
Cover enclosure of PMMA

Mounting

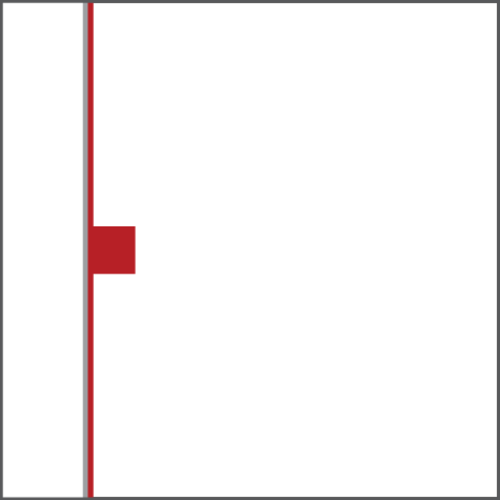

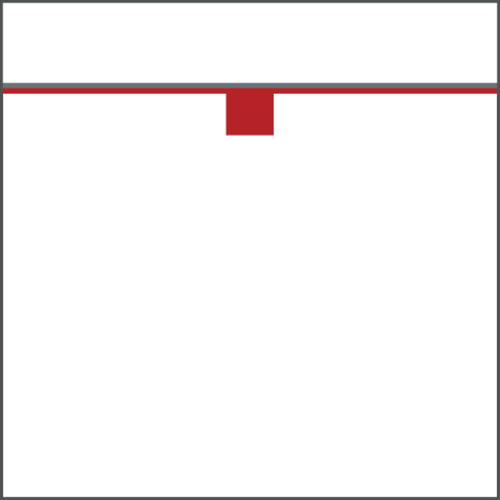

Mounting method, mounting location suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross® mounting rail
Arrangement single/continuous arrangement
Supplement luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Electrical connection

Connection terminal, 3-pole, max. 2.5mm²
Nominal voltage 220..240V, 50/60Hz, AC

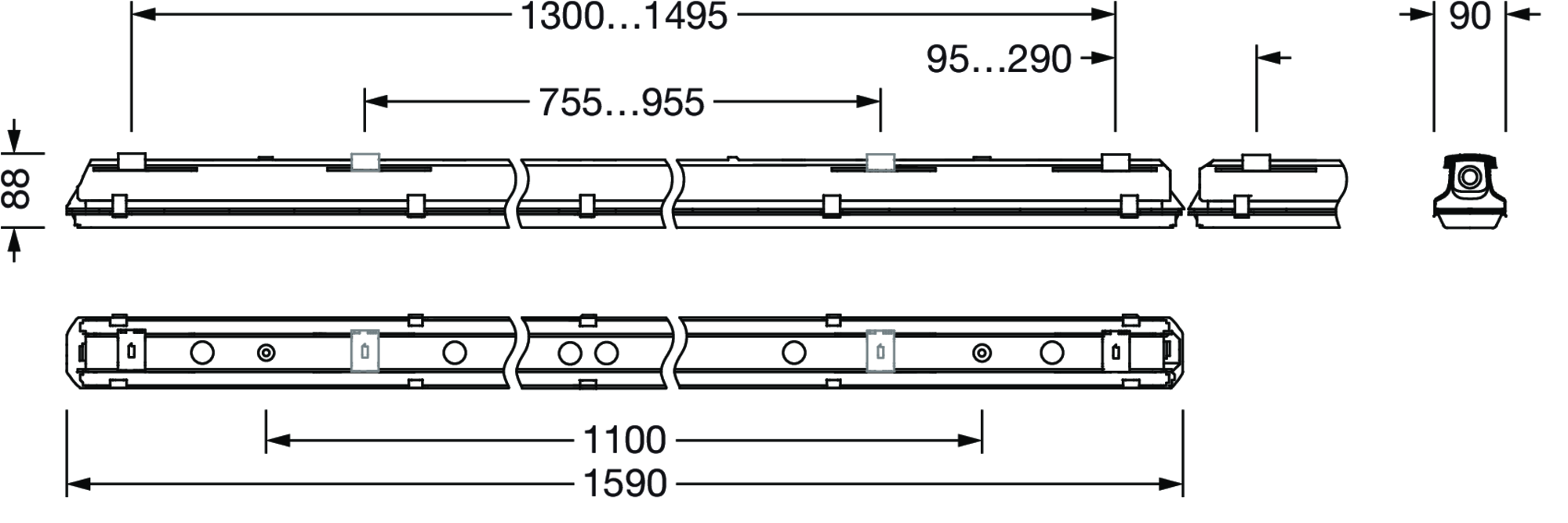

Dimensions, Weight

Length 1590mm
Width 90mm
Height 88mm
Weight 2.5kg

Service life

Rated service life 50000h (L90/B50) at AT = 25°C, 70000h (L80/B50) at AT = 35°C

Product type
damp-proof luminaire

Product name
Monsun® 12

Order No.
51FP12MP480H

Light control
lens

Cover
enclosure

Beam angle
medium distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
7990lm

Luminous efficacy
176lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
45W

Supplement
halogen-free wiring, without flicker

Control gear
ECG

Control
ON/OFF Multilumen

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK04

Protection symbol
D

Temperature range (operation)
-35..+40°C

Supplement
corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, for animal farming (ammonia tested): for use in cowhouse, pig house, horse-stables... (not for use in poultry stables), AT max for animal farming = 40°C

Standard
EN 50419, EN 60598-2-1

Certification, designation
CE, ENEC, VDE

luminaire housing
glass-fibre reinforced polyester, uncoated, bright grey, incl. chain hanger

Colour specification
bright grey

clip for enclosure
stainless steel (V2A)

Quantity
10 piece

ceiling mounting element
stainless steel (V2A), ceiling mounting included

Quantity
2 piece

chain hanger
stainless steel (V2A)

Quantity
2 piece

Cover
enclosure of PMMA

Mounting method, mounting location
suspended mounting, surface-mounted, horizontal mounting, vertical mounting, to the ceiling, to the wall, to the Licross® mounting rail

Arrangement
single/continuous arrangement

Supplement
luminaire includes fixing accessories for ceiling surface mounting; for other types of installation: please order mounting accessories separately

Connection
terminal, 3-pole, max. 2.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Length
1590mm

Width
90mm

Height
88mm

Weight
2.5kg

Rated service life
50000h (L90/B50) at AT = 25°C, 70000h (L80/B50) at AT = 35°C

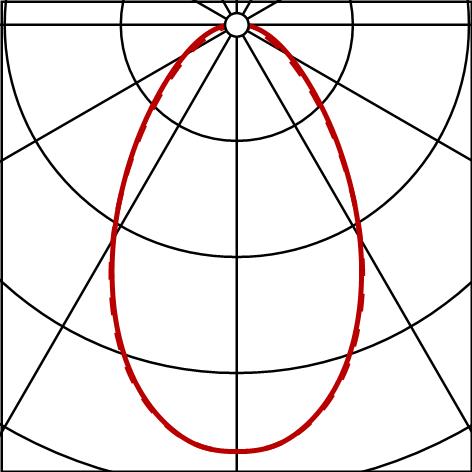

Photometric report / planning data

Photometric report / planning data

Monsun® 12
LED, ECG, enclosure, below, suspended mounting, surface-mounted, horizontal mounting, vertical mounting, L= 1590mm
Ordercode: 51FP12MP480H

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
2D symbol (DXF)
