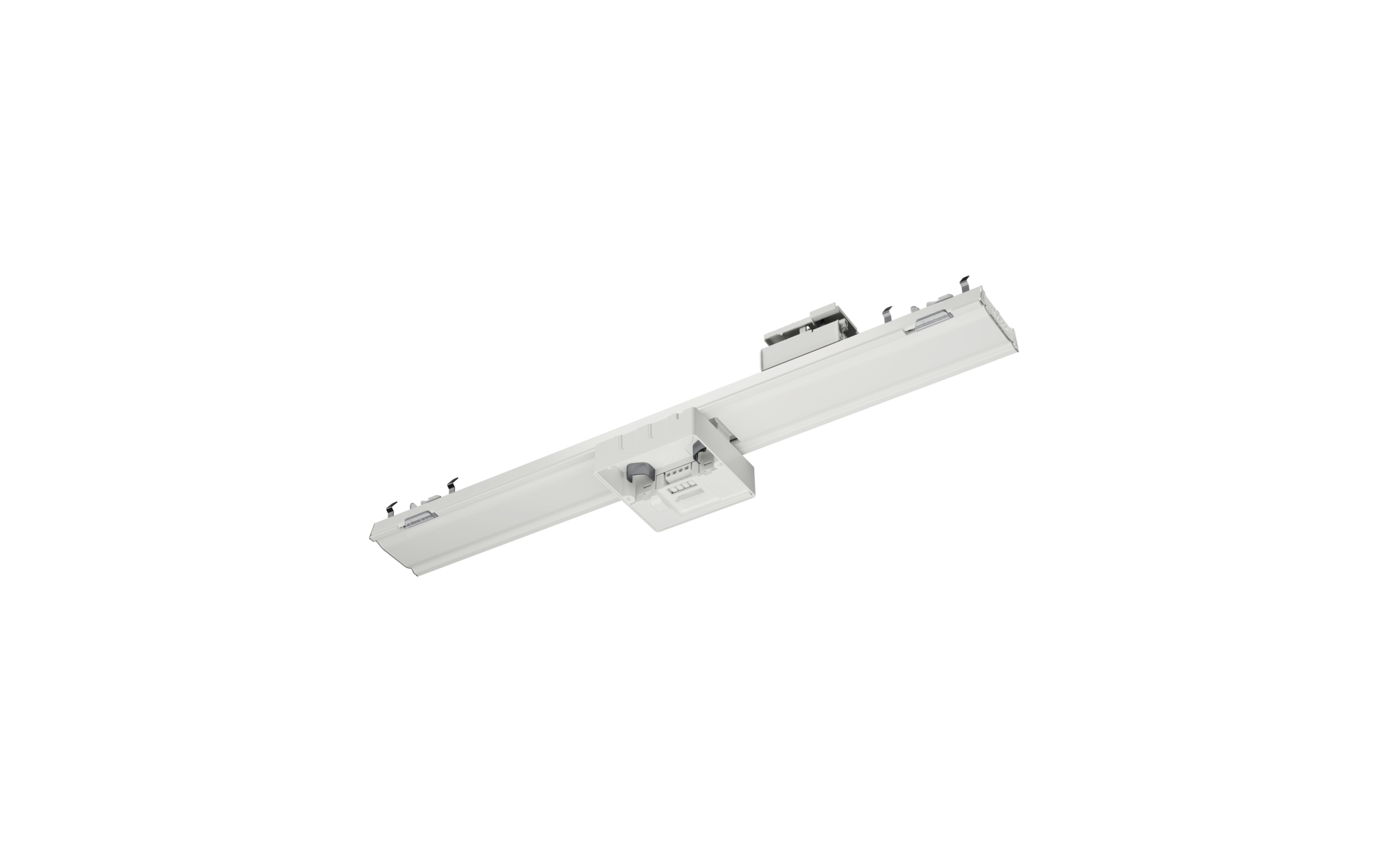

Licross® Interface, master, dimmable

Close
Order No.: 56TL1FCMA
Remember articleRemember article

Article base module
Product name Licross® Interface
Protection rating IP20
Weight 0.5kg

Licross® InterfaceInterface MD, master, local control - self-sufficient standalone sensors, dimmable, installation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, voltage: 230V, voltage type: AC, 1 x 1 x DALI, 1 x relay contact, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Logistic DALI
Product type base module
Product name Licross® Interface
Order No. 56TL1FCMA

Lamps

Supplement internal wiring halogen-free

Operating device

Control DALI, dimmable

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Temperature range (operation) -20..+50°C
Certification, designation CE, ENEC, VDE, UKCA

Material, Colour

trunking rail adapter set sheet steel, coil coated, white
Colour specification white

Mounting

Supplement only suitable for use in indoor areas

Electrical connection

Connection plug, 5-pole, with phase selection
Nominal voltage 230V, 50Hz, AC

Dimensions, Weight

Length 500mm
Width 96mm
Height 97mm
Weight 0.5kg

Outputs

1x DALI
Connection screw terminal, 2-pole, max. 1.5mm²
Feature DALI, master function, broadcast addressing, max. 30 DALI ECGs

System family
SITECO Connect 31 Logistic DALI

Product type
base module

Product name
Licross® Interface

Order No.
56TL1FCMA

Supplement
internal wiring halogen-free

Control
DALI, dimmable

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Temperature range (operation)
-20..+50°C

Certification, designation
CE, ENEC, VDE, UKCA

trunking rail adapter set
sheet steel, coil coated, white

Colour specification
white

Supplement
only suitable for use in indoor areas

Connection
plug, 5-pole, with phase selection

Nominal voltage
230V, 50Hz, AC

Length
500mm

Width
96mm

Height
97mm

Weight
0.5kg

1x DALI

Connection
screw terminal, 2-pole, max. 1.5mm²

Feature
DALI, master function, broadcast addressing, max. 30 DALI ECGs
