Licross® 11/21 for local control

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

sensor for shipping areas (2…4m)

Intro to Productfamily

Data

Equipment master; slave
Article Sensor-Head PC1-M; Sensor-Head PC1-S; Interface MS; Interface MD; Interface S

Specials

Multi-sensor for use in shipping areas
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Circular detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly

Configuration & Datasheets

Equipment

Supplement

  • when contacting DALI line 1, suitable from 7-core wiring upwards
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaption to on-site conditions via 90° rotatable sensor interface
  • each expansion sensor reduces the number of controllable ECGs by 3 pieces
  • a sensor unit consists of sensor head and interface

Results

Licross® Interface, master, switchable

Order No.: 56TL1FAMAGTIN (EAN): 4058352400524
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface MSproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairwaysON/OFF 500x96-20..+50°C

Licross® Interface, master, dimmable

Order No.: 56TL1FCMAGTIN (EAN): 4058352373873
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface MDproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairwaysDALI 500x96-20..+50°C

Licross® Interface, slave, dimmable

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface Sfor narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairwaysDALI 2 500x96-20..+50°C

Siteco Connect Sensor-Head, master, switchable, dimmable

Order No.: 59US1HXMPC1AGTIN (EAN): 4058352363799
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Sensor-Head PC1-Mfor low rooms, i.e. car parks 2.5..4mD max. 40m95x95-20..+50°C

Siteco Connect Sensor-Head, slave, dimmable

Order No.: 59US1HXSPC1AGTIN (EAN): 4058352363911
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Sensor-Head PC1-Sfor low rooms, i.e. car parksDALI 22.5..4mD max. 40m95x95-20..+50°C

Licross® Interface, master, switchable

Order No.: 56TL1FAMAGTIN (EAN): 4058352400524

ArticleInterface MS
Application areaproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways
ControlON/OFF
Mounting height
Detection range movement

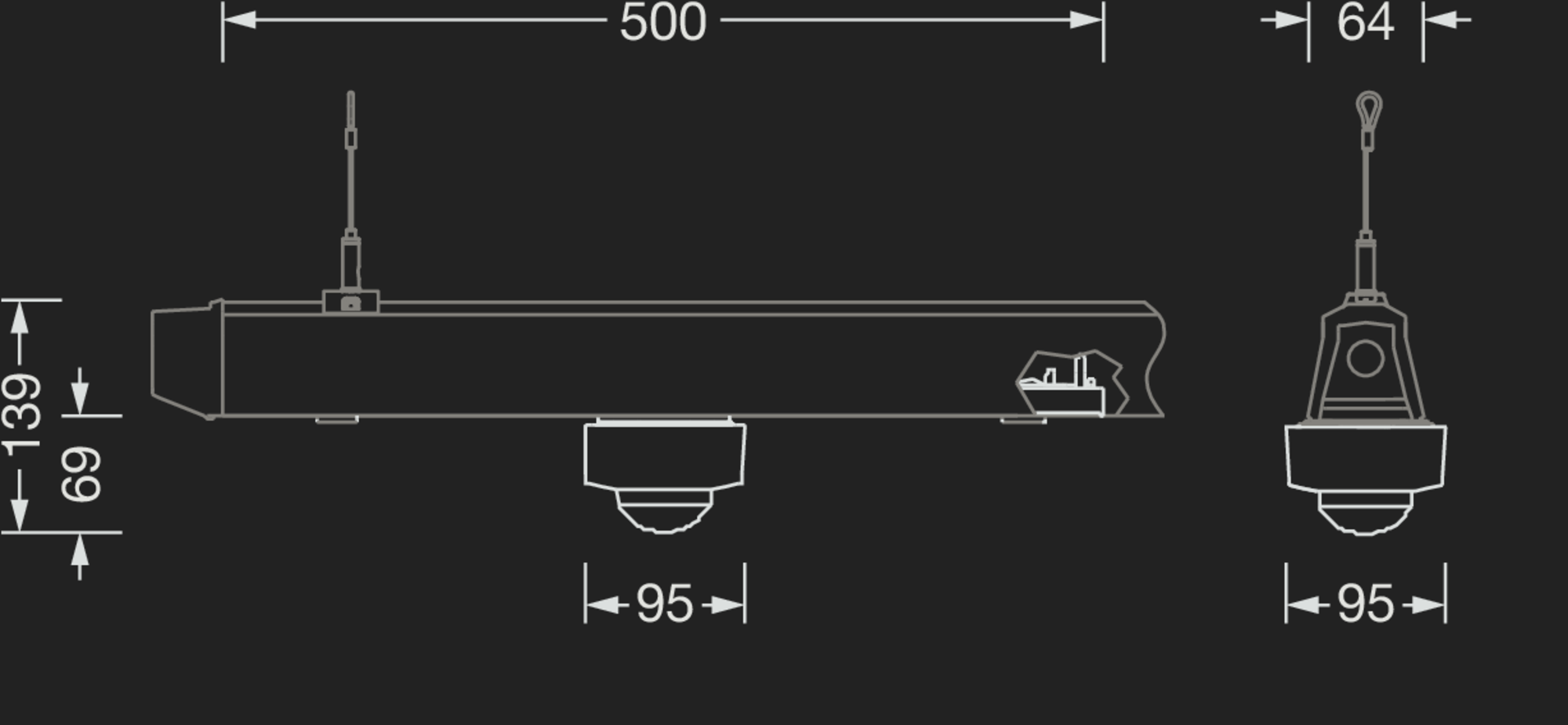

Dimension (mm)500x96
ta-20..+50°C

Licross® Interface, master, dimmable

Order No.: 56TL1FCMAGTIN (EAN): 4058352373873

ArticleInterface MD
Application areaproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways
ControlDALI
Mounting height
Detection range movement
Dimension (mm)500x96
ta-20..+50°C

Licross® Interface, slave, dimmable

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880

ArticleInterface S
Application areafor narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairways
ControlDALI 2
Mounting height
Detection range movement
Dimension (mm)500x96
ta-20..+50°C

Siteco Connect Sensor-Head, master, switchable, dimmable

Order No.: 59US1HXMPC1AGTIN (EAN): 4058352363799

ArticleSensor-Head PC1-M
Application areafor low rooms, i.e. car parks
Control
Mounting height2.5..4m
Detection range movementD max. 40m
Dimension (mm)95x95
ta-20..+50°C

Siteco Connect Sensor-Head, slave, dimmable

Order No.: 59US1HXSPC1AGTIN (EAN): 4058352363911

ArticleSensor-Head PC1-S
Application areafor low rooms, i.e. car parks
ControlDALI 2
Mounting height2.5..4m
Detection range movementD max. 40m
Dimension (mm)95x95
ta-20..+50°C

Mandatory accessory

ArticleSmart RemotePU1 pc.Wt. (kg)0.1Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show details

Optional accessory

Articlerepeater, masterPU1 pc.Wt. (kg)0.3Order No.: 56TL1CRM0BGTIN (EAN): 4058352595497Show details
