Licross® 11/21 for local control

Product typesConfiguration & data sheets

Stay flexible: The modular system of Licross® enables any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: with daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs. 45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to UVC air disinfection device open up a broad horizon of applications far from lighting, which create additional added value.

Simple standalone solution

Siteco Connect 31 Logistic - for shipping areas (5...14m)

Intro product family

Key data

Equipment master; slave
Article Sensor-Head PC5-M; Sensor-Head PC5-S; Interface MS; Interface MD; Interface S

Special features

Multi-sensor for use in shipping areas
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Circular detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly

Configuration & data sheets

Equipment

  • when contacting DALI line 1, suitable from 7-core wiring upwards
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaption to on-site conditions via 90° rotatable sensor interface
  • each expansion sensor reduces the number of controllable ECGs by 3 pieces
  • a sensor unit consists of sensor head and interface

Results

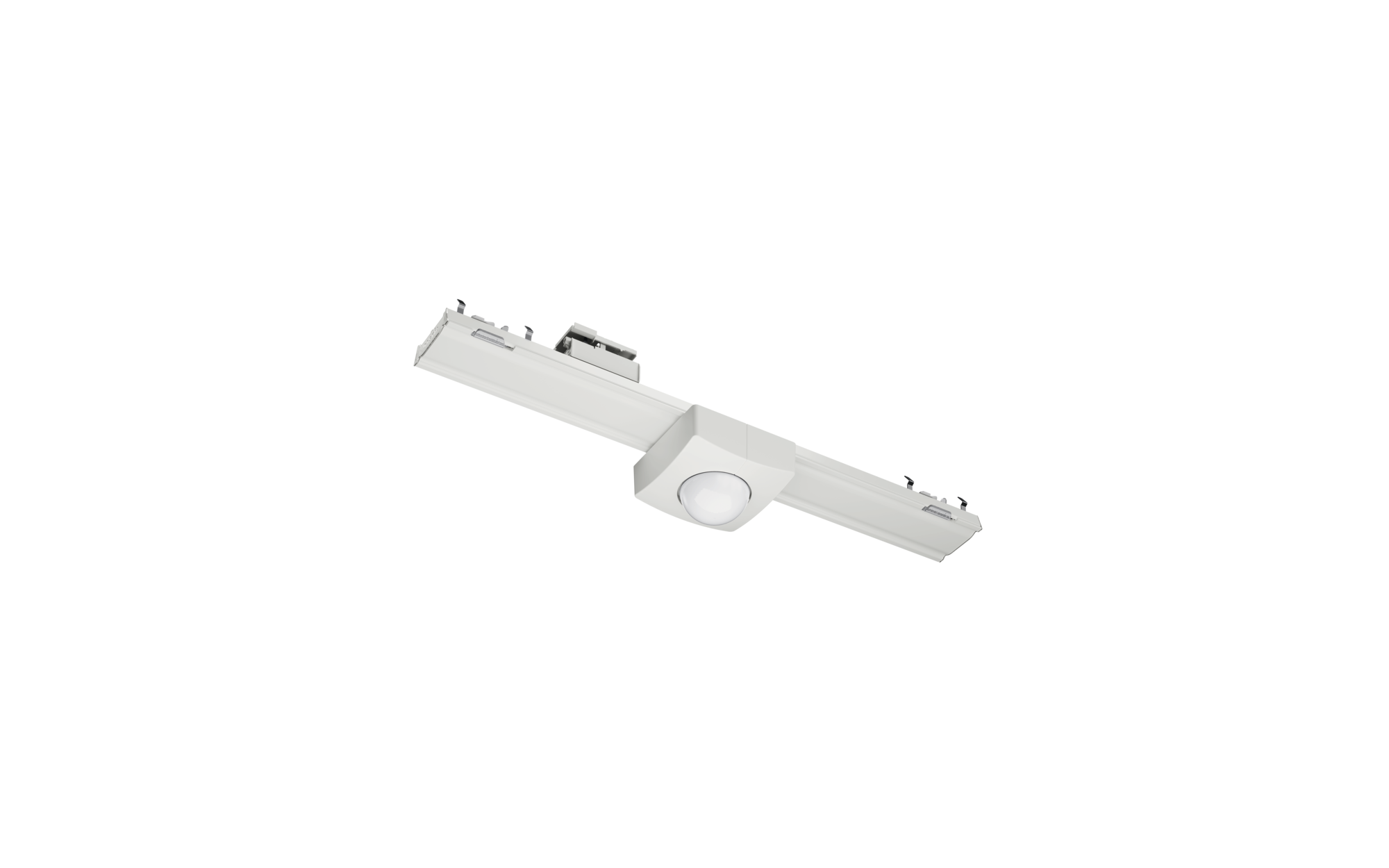

Licross® Interface, master, switchable

Order No.: 56TL1FAMA GTIN (EAN): 4058352400524
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface MScorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high roomsON/OFF 500x96-20..+50°C

Licross® Interface, master, dimmable

Order No.: 56TL1FCMA GTIN (EAN): 4058352373873
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface MDcorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high roomsDALI 500x96-20..+50°C

Licross® Interface, slave, dimmable

Order No.: 56TL1FCSA GTIN (EAN): 4058352373880
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Interface Scorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high roomsDALI 2 500x96-20..+50°C

SITECO Connect, master, switchable, dimmable

Order No.: 59US1HXMPC5A GTIN (EAN): 4058352363843
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Sensor-Head PC5-Mshipping area high roomsDALI4..14mmax. ø36m95x95-20..+50°C

SITECO Connect, slave, dimmable

Order No.: 59US1HXSPC5A GTIN (EAN): 4058352363942
ArticleApplication areaControlMounting heightDetection range movementDimension (mm)ta
Sensor-Head PC5-Sshipping area high roomsDALI 24..14mmax. ø36m95x95-20..+50°C

Licross® Interface, master, switchable

Order No.: 56TL1FAMAGTIN (EAN): 4058352400524

ArticleInterface MS
Application areacorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms
ControlON/OFF
Mounting height
Detection range movement

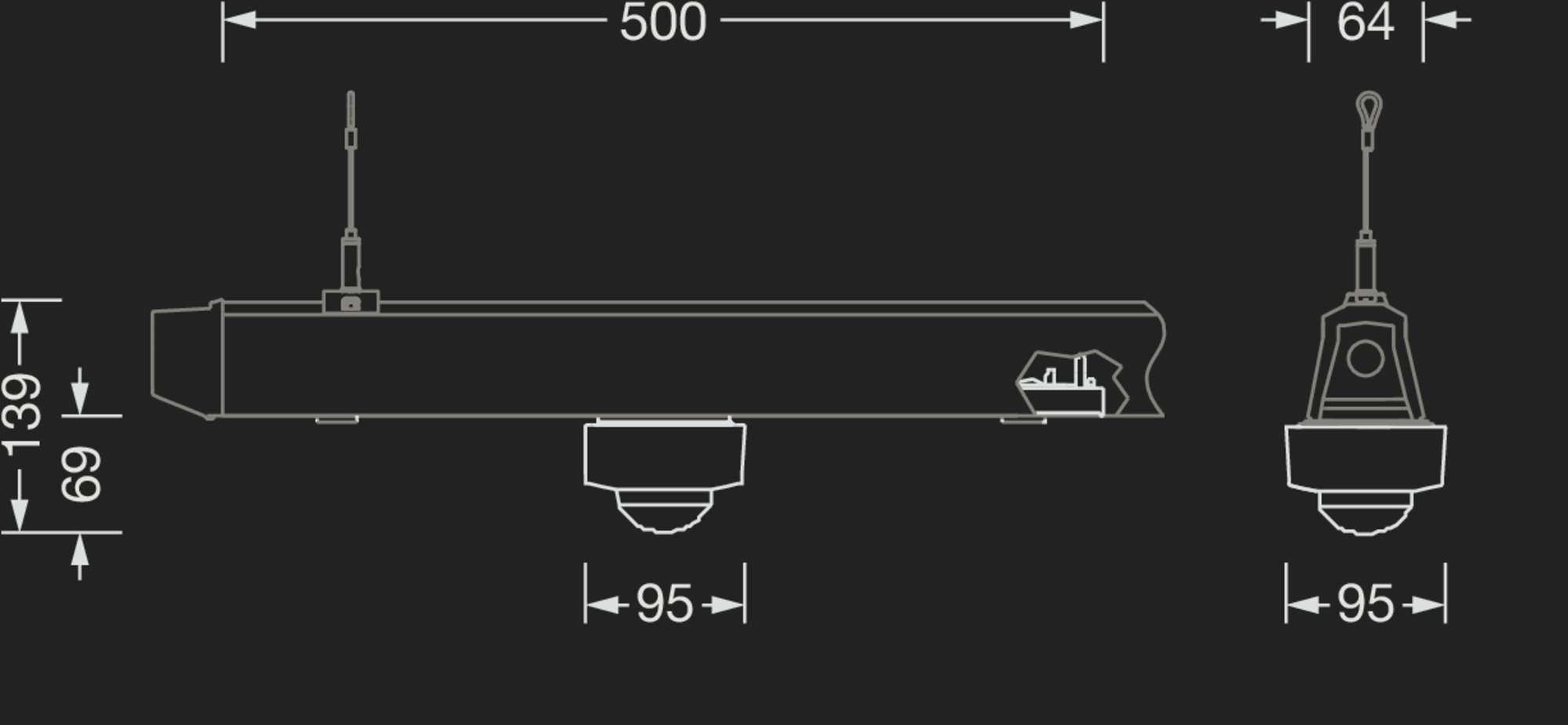

Dimension (mm)500x96
ta-20..+50°C

Licross® Interface, master, dimmable

Order No.: 56TL1FCMAGTIN (EAN): 4058352373873

ArticleInterface MD
Application areacorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms
ControlDALI
Mounting height
Detection range movement
Dimension (mm)500x96
ta-20..+50°C

Licross® Interface, slave, dimmable

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880

ArticleInterface S
Application areacorridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms
ControlDALI 2
Mounting height
Detection range movement
Dimension (mm)500x96
ta-20..+50°C

SITECO Connect, master, switchable, dimmable

Order No.: 59US1HXMPC5AGTIN (EAN): 4058352363843

ArticleSensor-Head PC5-M
Application areashipping area high rooms
ControlDALI
Mounting height4..14m
Detection range movementmax. ø36m
Dimension (mm)95x95
ta-20..+50°C

SITECO Connect, slave, dimmable

Order No.: 59US1HXSPC5AGTIN (EAN): 4058352363942

ArticleSensor-Head PC5-S
Application areashipping area high rooms
ControlDALI 2
Mounting height4..14m
Detection range movementmax. ø36m
Dimension (mm)95x95
ta-20..+50°C

Mandatory accessories

ArticleSmart RemotePU1 pc.Wt. (kg)0.1Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show all details
