Order No.: 59US1HXSPC1A

Article sensor
Product name SITECO Connect
Protection rating IP54
Weight 0.1kg

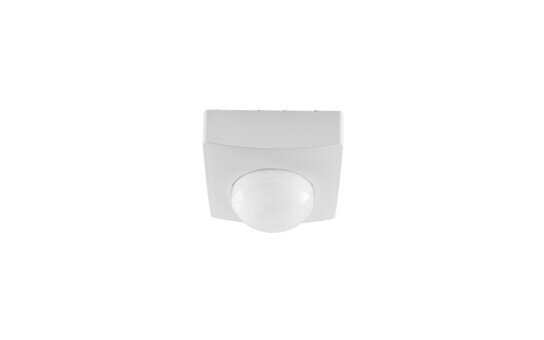

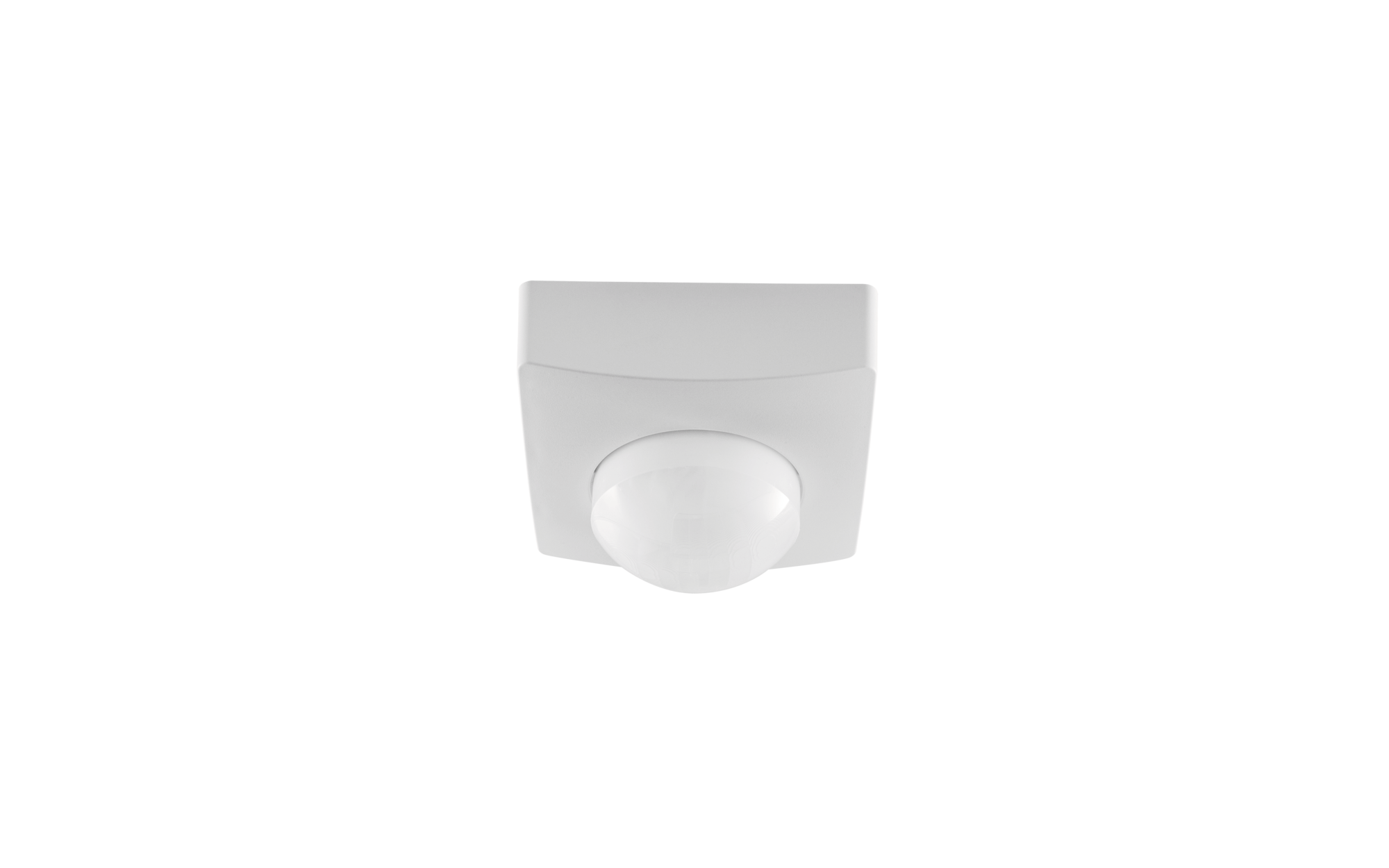

SITECO ConnectSensor-Head PC1-S, slave, local control - self-sufficient standalone sensors, central control - connection to lighting or building management, dimmable, installation type: slip-in mounting, installation location: to the ceiling, to the Modario® trunking rail, to the Licross® trunking rail, of plastic, protection rating (complete): IP54, certification: CE, VDE, 1 x PIR movement sensor, 1 x light sensor, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details


Key data

System family Siteco Connect 11, DALI-2, SITECO Connect, SITECO Connect 22
Product type sensor
Product name SITECO Connect
Order No. 59US1HXSPC1A


Control


Certificates, Standards

Protection rating IP54
Temperature range (operation) -20..+50°C
Certification, designation CE, VDE


Material, Colour

housing plastic, white
Colour specification white


Mounting

Mounting method, mounting location slip-in mounting, to the ceiling, to the Modario® trunking rail, to the Licross® trunking rail
Mounting height 2.5..4m
Supplement only suitable for use in indoor areas

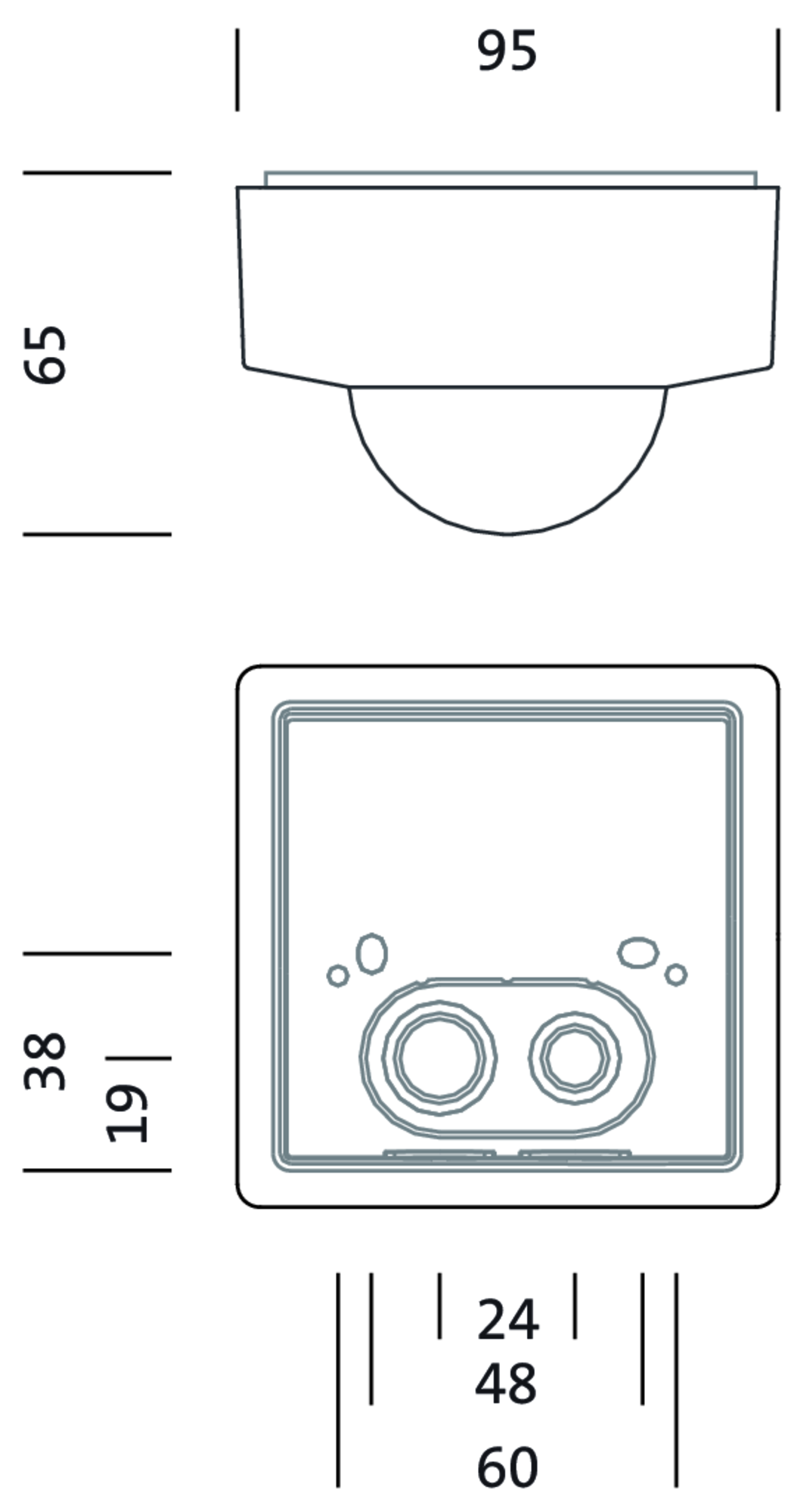

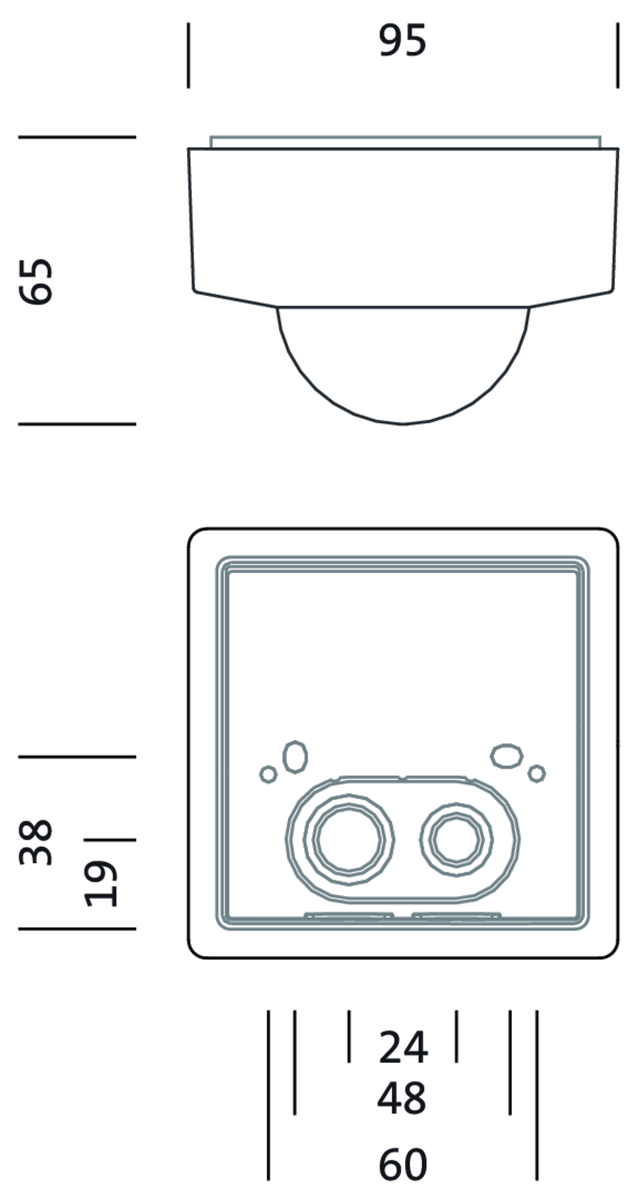

Dimensions, Weight

Length 95mm
Width 95mm
Height 65mm
Weight 0.1kg


Inputs

1x PIR movement sensor
Connection system connector

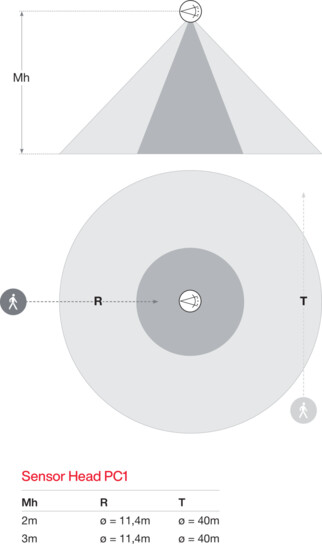

Detection range max. ø40m
Option 11 detection levels, 1416 switching zones
Feature circular detection area

1x light sensor
Feature light sensor with 'local control' without function

System family
Siteco Connect 11, DALI-2, SITECO Connect, SITECO Connect 22

Product type
sensor

Product name
SITECO Connect

Order No.
59US1HXSPC1A

Protection rating
IP54

Temperature range (operation)
-20..+50°C

Certification, designation
CE, VDE

housing
plastic, white

Colour specification
white

Mounting method, mounting location
slip-in mounting, to the ceiling, to the Modario® trunking rail, to the Licross® trunking rail

Mounting height
2.5..4m

Supplement
only suitable for use in indoor areas

Length
95mm

Width
95mm

Height
65mm

Weight
0.1kg

1x PIR movement sensor

Connection
system connector

Detection range
max. ø40m

Option
11 detection levels, 1416 switching zones

Feature
circular detection area

1x light sensor

Feature
light sensor with 'local control' without function
