Article base module

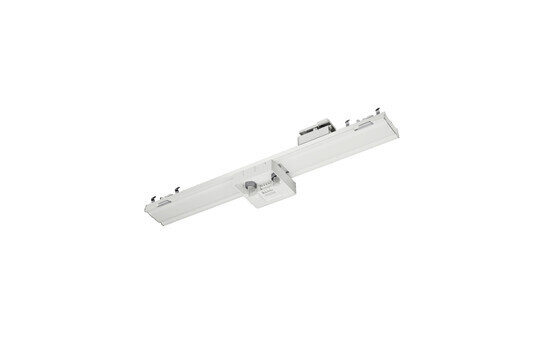

Product name Licross® Interface
Protection rating IP20
Weight 0.5kg

Licross®, Interface S, slave,local controlcentral controlinstallation location: to the Licross® trunking rail, of sheet steel, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, VDE, 1 x DALI-2, packaging unit: 1 piece

Product details


Key data

System family Siteco Connect 11, SITECO Connect 22
Product type base module
Product name Licross® Interface
Order No. 56TL1FCSA


Lamps

Supplement halogen-free wiring


Operating device

Control DALI 2


Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE, VDE


Material, Colour

trunking rail adapter set sheet steel, coil coated, white
Colour specification white


Mounting

Supplement only suitable for indoor use


Electrical connection

Connection plug, 5-pole, with phase selection


Dimensions, Weight

Length 500mm
Width 96mm
Height 97mm
Weight 0.5kg


Outputs

DALI-2
Feature DALI, slave function, DALI current max. 6mA

System family
Siteco Connect 11, SITECO Connect 22

Product type
base module

Product name
Licross® Interface

Order No.
56TL1FCSA

Supplement
halogen-free wiring

Control
DALI 2

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, VDE

trunking rail adapter set
sheet steel, coil coated, white

Colour specification
white

Supplement
only suitable for indoor use

Connection
plug, 5-pole, with phase selection

Length
500mm

Width
96mm

Height
97mm

Weight
0.5kg

DALI-2

Feature
DALI, slave function, DALI current max. 6mA
