Ordercode: 5LZ930100
Remember productRemember product

Article control unit
Product name SITECO Connect 11
Protection rating IP20
Weight 0.6kg

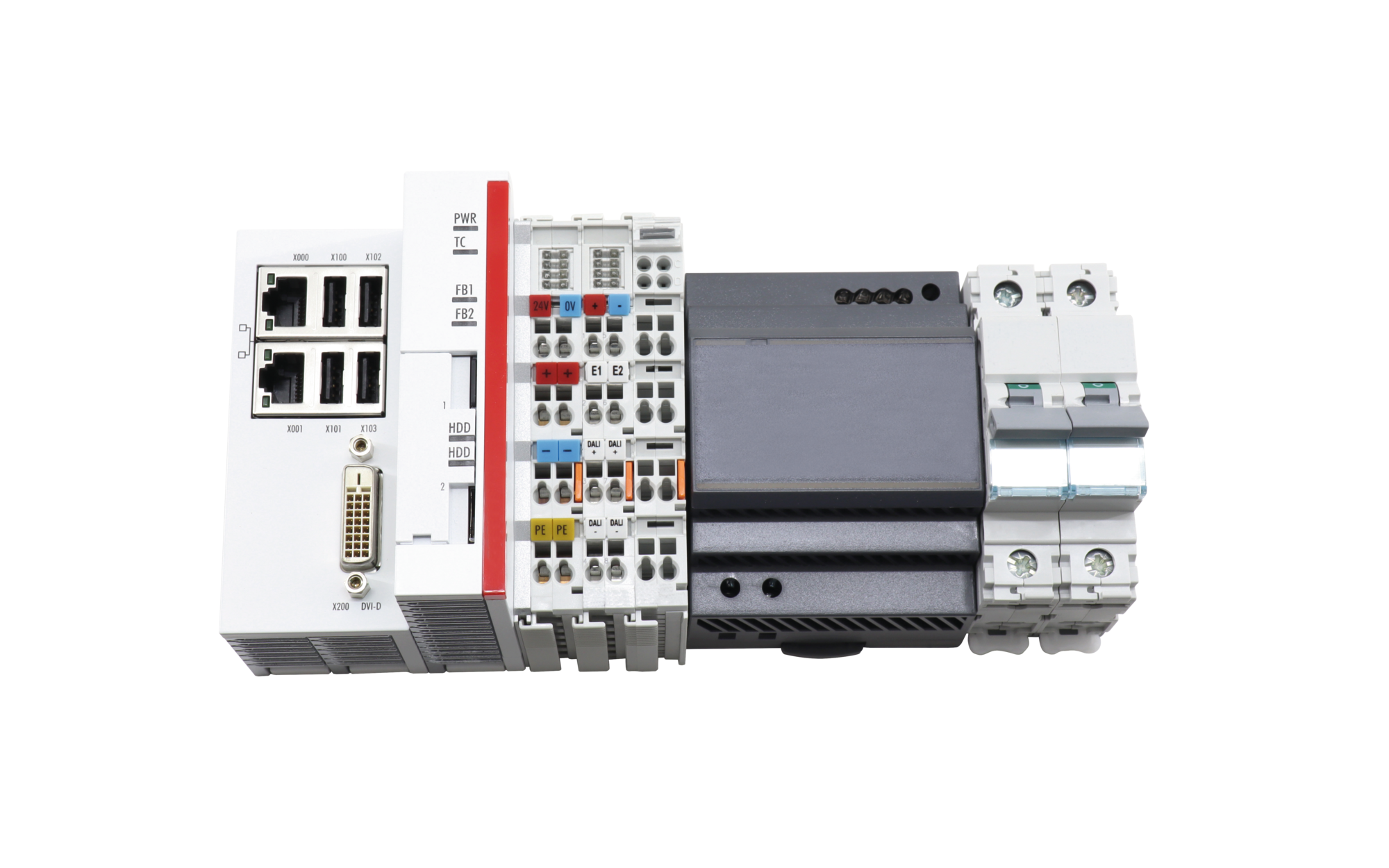

SITECO Connect 11base package S/D, 1..15 DALI lines, DIN rail PC, central control, installation type: recessed, installation location: in an electrical distributor, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, voltage: 230V, voltage type: AC, 1 x DALI-2, software: Lighting Solution, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family Siteco Connect 11
Product type control unit
Product name SITECO Connect 11
Order No. 5LZ930100

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

housing plastic, grey
Colour specification grey

Mounting

Mounting method, mounting location recessed, in an electrical distributor

Electrical connection

Nominal voltage 230V, AC

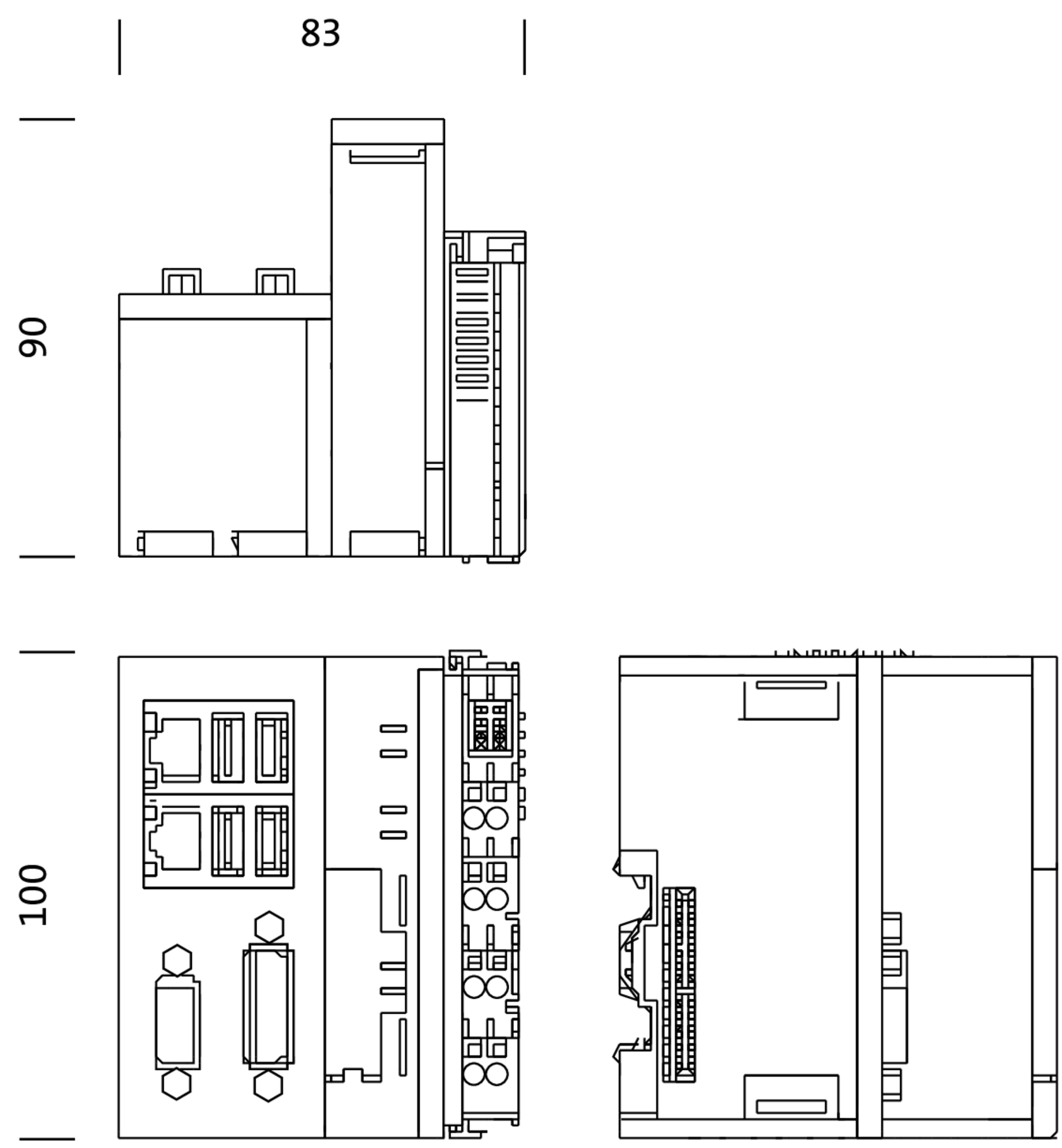

Dimensions, Weight

Weight 0.6kg

Outputs

1x DALI-2
Protocol according to current DALI-2 standard
Feature integrated power supply (250mA per DALI line)

Software

Software Lighting Solution
Supplement software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS

System family
Siteco Connect 11

Product type
control unit

Product name
SITECO Connect 11

Order No.
5LZ930100

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

housing
plastic, grey

Colour specification
grey

Mounting method, mounting location
recessed, in an electrical distributor

Nominal voltage
230V, AC

Weight
0.6kg

1x DALI-2

Protocol
according to current DALI-2 standard

Feature
integrated power supply (250mA per DALI line)

Software
Lighting Solution

Supplement
software pre-installed, TC3 licences (platform 30) TC3 PLC, TC3 PLC HMI, TC3 PLC HMI Web, TC3 XLS
