Ordercode: 5XA5132S1B08A1

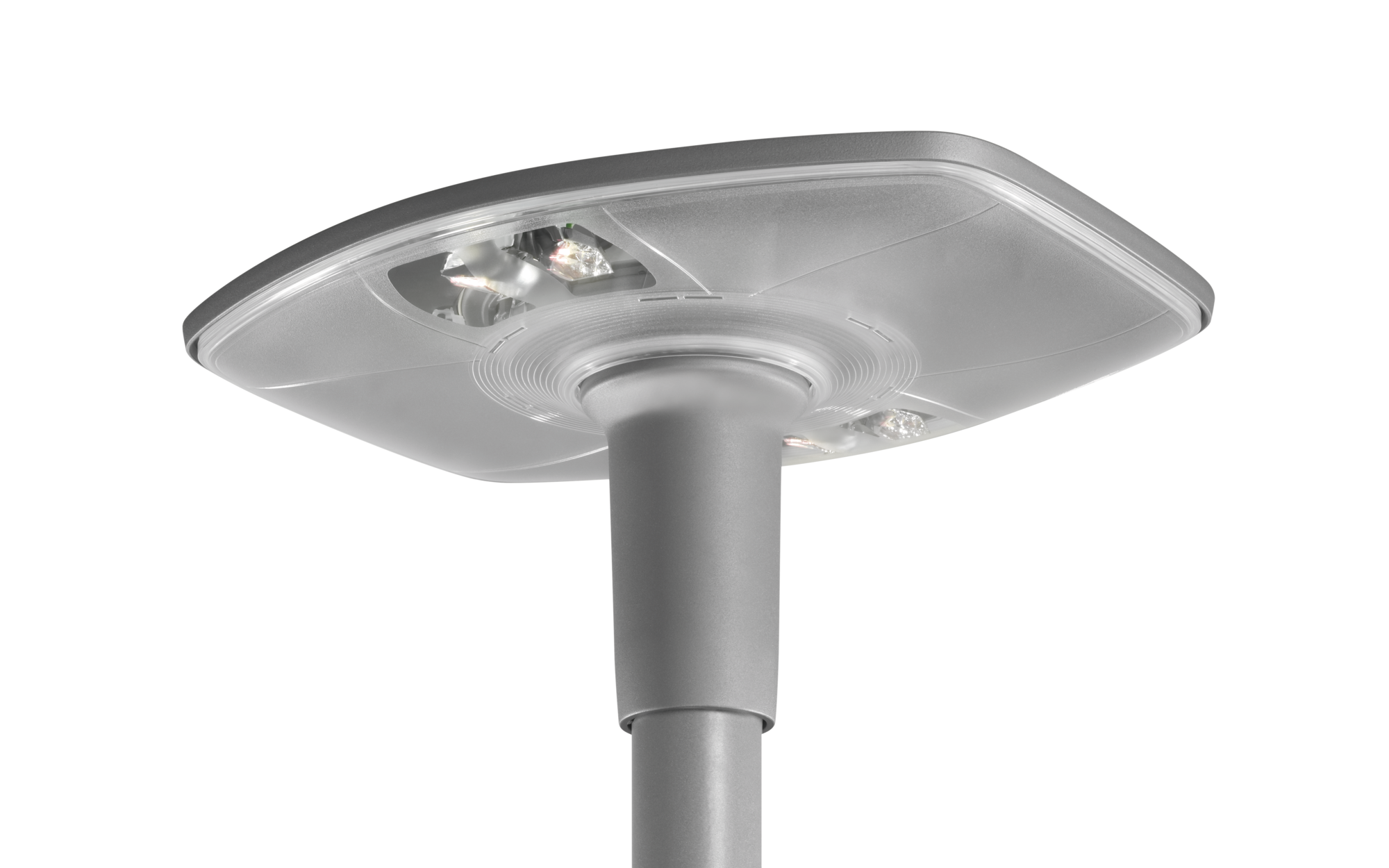

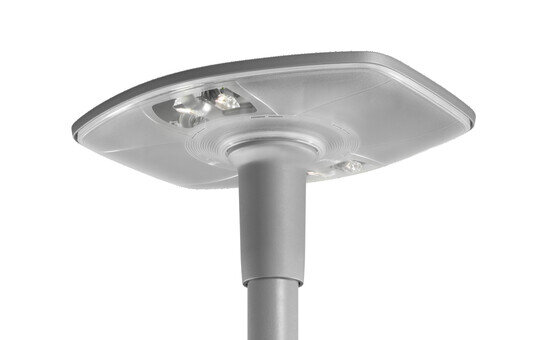

Article mast luminaire
Product name DL® 30 LED
Lamp LED
Rated luminous flux 1600lm
Luminous efficacy 128lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 13
Pnom end service life 13
Pred at 50% lumin. flux 7
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 7.7kg

DL® 30 LED, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, aluminium vaporised, highly specular, primary optical cover: cover, of PMMA, structured, transparent, light distribution: P1.0a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, LED High Power LED, rated luminous flux: 1.600 lm, light colour: 740, colour temperature: 4000K, control gear: ECG Plus, control: flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, digital communication interface, power reduction, electronic power reduction, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 13 W, end of lifetime: 13 W, reduction: 7 W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 600 mm, width: 510 mm, height: 290mm, spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK08, permissible ambient temperature for indoor applications: -25..+45°C, standard-compliant lighting for roads and squares, packaging unit: 1 piece

Product details


Key data

Product type mast luminaire
Product name DL® 30 LED
Order No. 5XA5132S1B08A1


Lighting technology

Light control 3 zone facetted reflector of plastic, aluminium vaporised, highly specular
Cover cover, transparent, structured
Light distribution P1.0a
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 1600lm
Luminous efficacy 128lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 13
Rated input power end service life 13
Rated input power at 50% lumin. flux 7


Operating device

Control gear ECG Plus
Control Plus
Equipment power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation
Switching method electronic power reduction


Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Temperature range (operation) -25..+45°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, VDE


Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover cover of PMMA


Mounting

Mounting method, mounting location post-top, on mast


Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 6kV 1.2/50µs

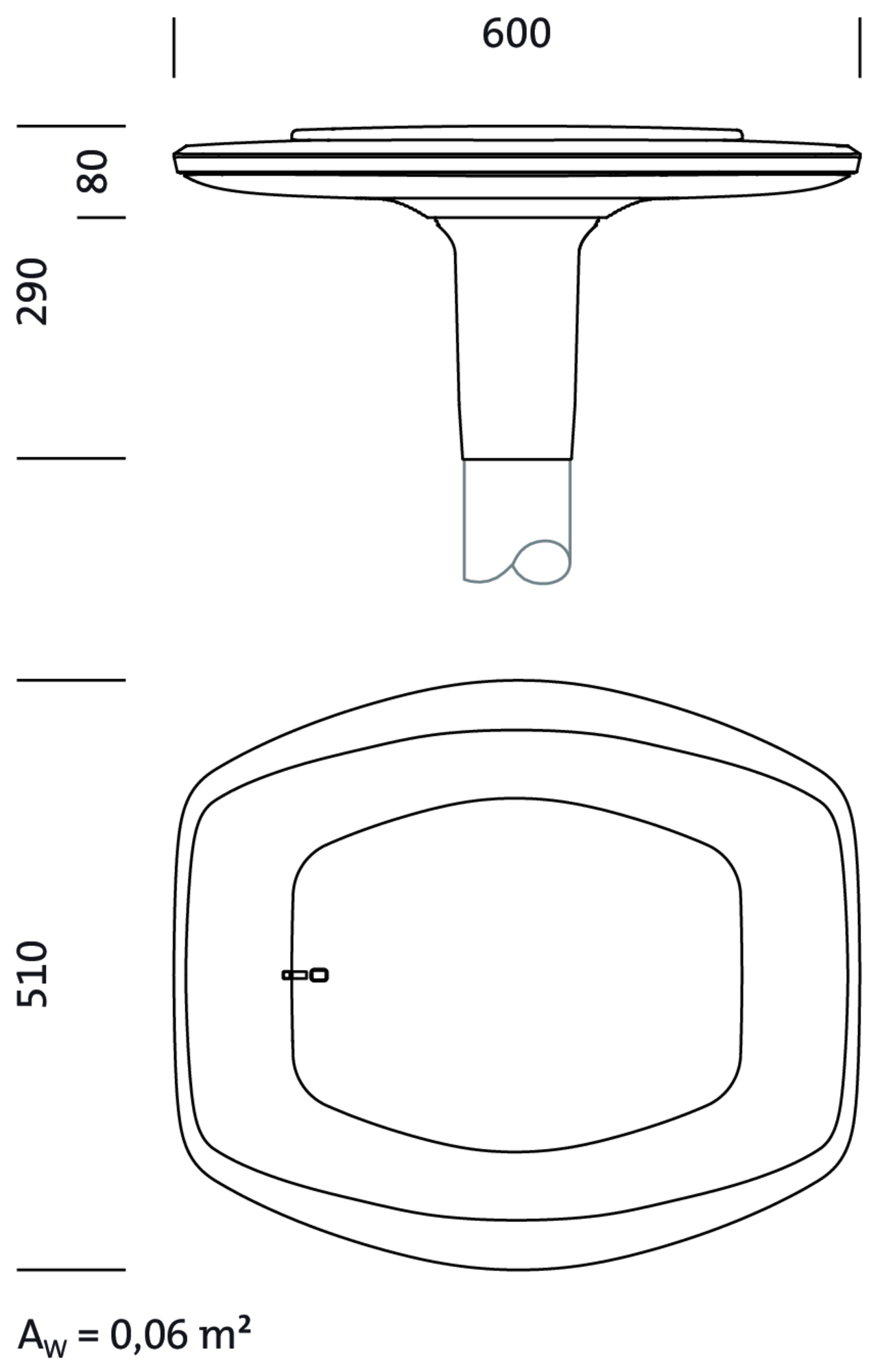

Dimensions, Weight

Length 600mm
Width 510mm
Height 290mm
Weight 7.7kg
Mast spigot spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm


Light emission

Light emission 0%


Service life

Rated service life 100000h (L97/B10) at AT = 25°C

Product type
mast luminaire

Product name
DL® 30 LED

Order No.
5XA5132S1B08A1

Light control
3 zone facetted reflector of plastic, aluminium vaporised, highly specular

Cover
cover, transparent, structured

Light distribution
P1.0a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
1600lm

Luminous efficacy
128lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
13

Rated input power end service life
13

Rated input power at 50% lumin. flux
7

Control gear
ECG Plus

Control
Plus

Equipment
power reduction, digital communication interface, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation

Switching method
electronic power reduction

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Temperature range (operation)
-25..+45°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, VDE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover of PMMA

Mounting method, mounting location
post-top, on mast

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
6kV 1.2/50µs

Length
600mm

Width
510mm

Height
290mm

Weight
7.7kg

Mast spigot
spigot size: d x l = 76 x 100mm (post-top) | with reducer (optional accessory) 60 x 100mm

Light emission
0%

Rated service life
100000h (L97/B10) at AT = 25°C

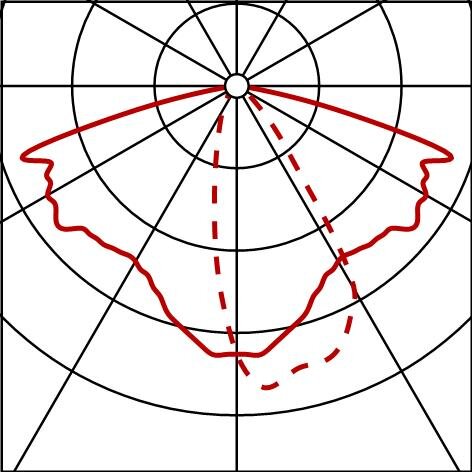

Photometric report / planning data

Photometric report / planning data

DL30
P1.0a,1600lm740,Plus
Ordercode: 5XA5132S1B08A1
