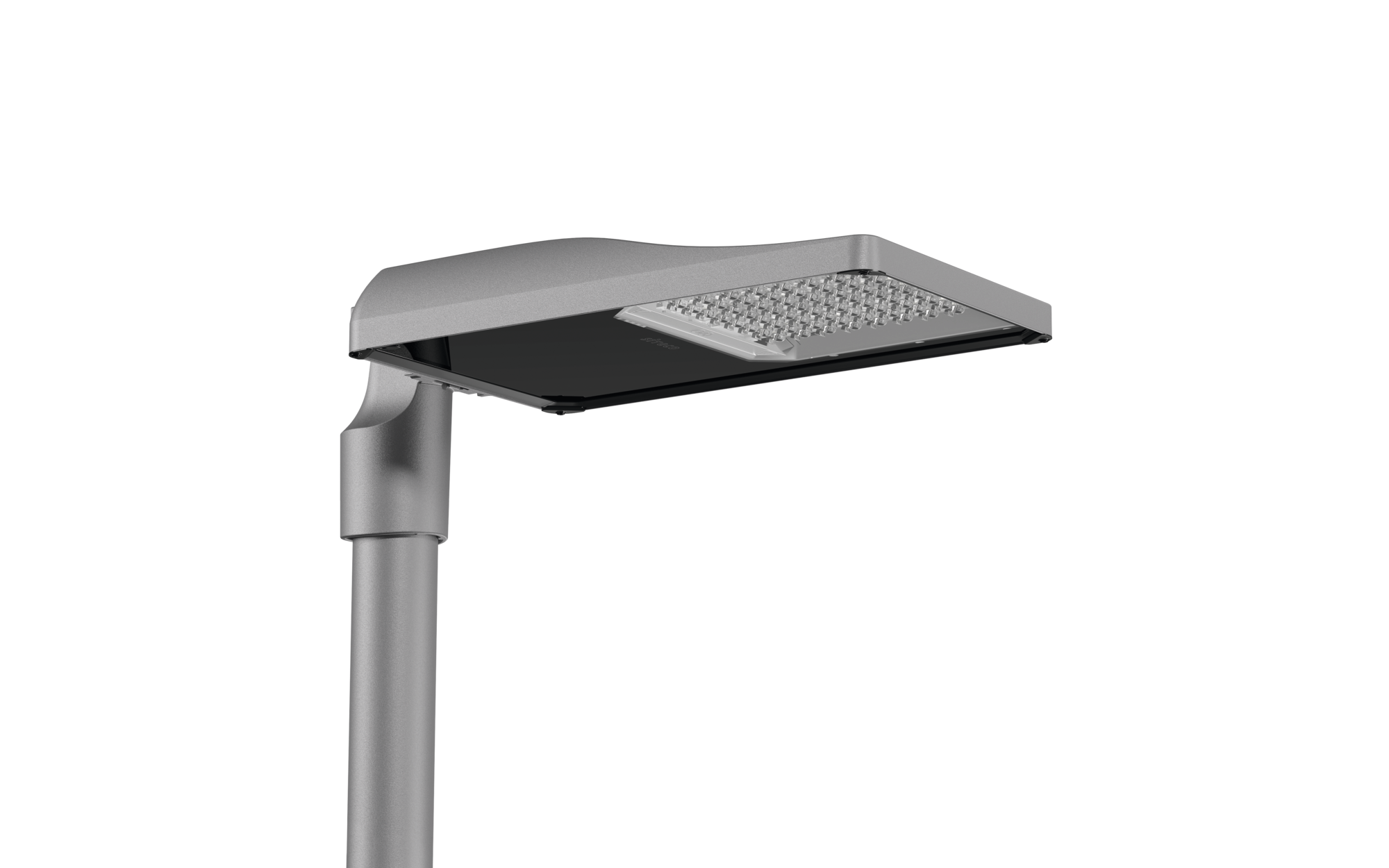

Streetlight SL 31 midi, direct asymmetric wide distribution, PL32

Order No.: 5XH313AA08QA

Article mast luminaire
Product name Streetlight SL 31 midi
Lamp LED
Rated luminous flux 23880lm
Luminous efficacy 148lm/W
Colour temperature 3000K
Colour rendering CRI > 70
P_nom begin service life 162
P_nom end service life 176
P_red at 50% lumin. flux 73
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 10.1kg

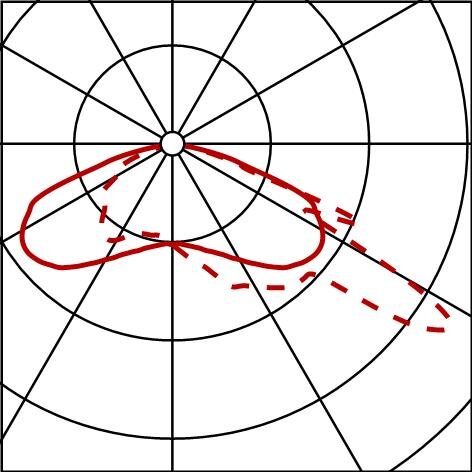

Streetlight SL 31 midi Easy mast luminaire for post-top, side-entry; light control with lens of PMMA; light distribution: PL32, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 23.880lm, light colour: 730, colour temperature: 3000K; luminous efficacy: 147,9lm/W; control: pre-setting: linear dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, intelligent temperature release in ECG and LED module, overheat protection; luminaire housing, of diecast aluminium, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, mast flange of diecast aluminium, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, mast flange included unmounted; with cable H07RN-F 2x 1.5mm², cable length: 14,5m, connection cable pre-assembled; mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 161,5W / (at end of service life): 175,9W / (with reduced operation 50%): 72,6W; protection rating (complete): IP66; insulation class (complete): insulation class II (safety insulation); impact resistance: IK10; certification: CE, ENEC, ENEC+, VDE, UKCA; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece
