Streetlight 31

ProducttypesConfiguration & Datasheets

Nowadays public lighting costs are the biggest part of the energy costs of cities. For this reason the refurbishment of public lighting with efficient solutions is of fundamental significance. It is the cost-effective solution for a long-life street lighting that matches needs to reduce the energy costs and CO2 emissions. Optional Zhaga or NEMA interfaces build the base for intelligent control systems and Smart City applications.

Streetlight 31 A strong concept for top performance. Cost-efficient solution

Streetlight 31 midi

Intro to Productfamily

Data

Article mast luminaire
Net luminous flux 16800lm to 18000lm
Colour temperature 3000K; 4000K
Lighting effect direct asymmetric wide distribution
Light distribution ST0.8a; ST1.0a
Protection rating IP66
Insulation class insulation class II (safety insulation)

Specials

Long service life of more than 100,000h, also thanks to future-proof product concept and long-life components
Standard light distributions via lens-based technology

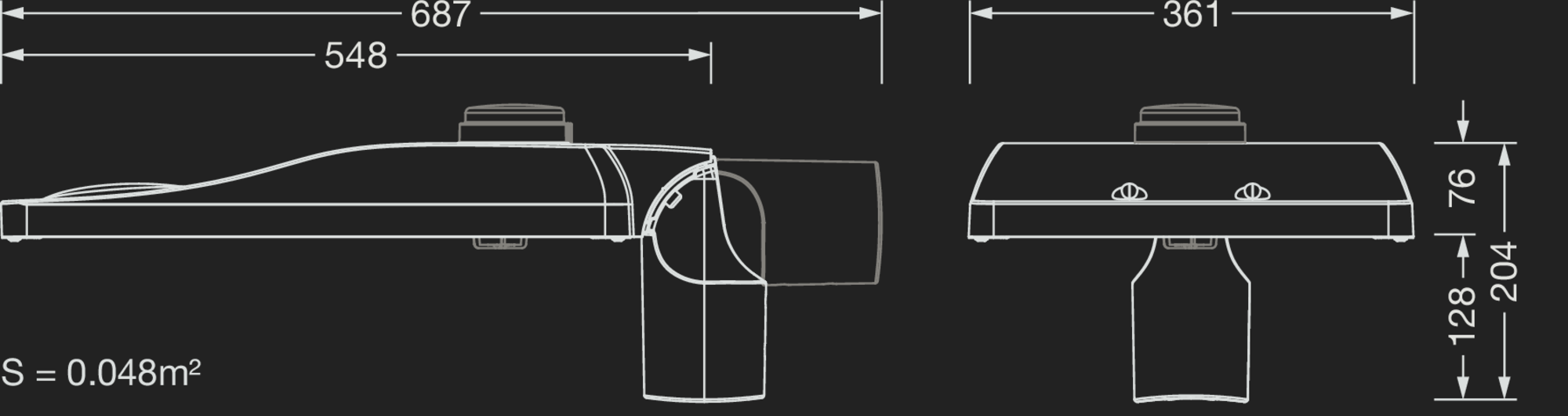

Simple mounting thanks to a universal mast flange (included in delivery) for spigot size 60/76mm with inclination setting (0°/5°/10°/15° (post-top), 0°/-5°/-10°/-15° (side-entry)) and a separate accessory for 42mm brackets
Smart City ready: Future-proof thanks to two optional Zhaga or NEMA interfaces for state-of-the-art light control, wireless networking and diverse sensors

Configuration & Datasheets

Light distribution

Colour temperature

Control

Smart City

  • mast flange for mast spigot diameter 76mm and 60mm contained in product
  • please order reducer for mast spigot diameter 42mm separately
  • luminaire without pre-assembled connection cable
  • if required, please order 'OSRAM DALI magic' or 'PRH 101 (NFC)' for transmitting the configuration separately

Results

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C42D08MAGTIN (EAN): 4058352466216
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST0.8aPlus6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C32D08MAGTIN (EAN): 4058352466193
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST0.8aPlus6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E42D08MAGTIN (EAN): 4058352466292
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST1.0aPlus6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E32D08MAGTIN (EAN): 4058352466254
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST1.0aPlus6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C42N08MAGTIN (EAN): 4058352468166
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST0.8aPlus, Nema6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C32N08MAGTIN (EAN): 4058352468159
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST0.8aPlus, Nema6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E42N08MAGTIN (EAN): 4058352468173
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST1.0aPlus, Nema6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E32N08MAGTIN (EAN): 4058352469125
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST1.0aPlus, Nema6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above

Order No.: 5XF3C42T08MAGTIN (EAN): 4058352466247
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST0.8aDALI 26.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above

Order No.: 5XF3C32T08MAGTIN (EAN): 4058352469118
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST0.8aDALI 26.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above

Order No.: 5XF3E42T08MAGTIN (EAN): 4058352466315
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
4000KCRI > 7018000lmST1.0aDALI 26.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above

Order No.: 5XF3E32T08MAGTIN (EAN): 4058352466278
Colour temperatureColour renderingLuminous fluxLight distributionControlWt. (kg)
3000KCRI > 7016800lmST1.0aDALI 26.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C42D08MAGTIN (EAN): 4058352466216

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST0.8a
ControlPlus
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C32D08MAGTIN (EAN): 4058352466193

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST0.8a
ControlPlus
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E42D08MAGTIN (EAN): 4058352466292

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST1.0a
ControlPlus
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E32D08MAGTIN (EAN): 4058352466254

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST1.0a
ControlPlus
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C42N08MAGTIN (EAN): 4058352468166

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST0.8a
ControlPlus, Nema
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a

Order No.: 5XF3C32N08MAGTIN (EAN): 4058352468159

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST0.8a
ControlPlus, Nema
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E42N08MAGTIN (EAN): 4058352468173

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST1.0a
ControlPlus, Nema
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a

Order No.: 5XF3E32N08MAGTIN (EAN): 4058352469125

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST1.0a
ControlPlus, Nema
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above

Order No.: 5XF3C42T08MAGTIN (EAN): 4058352466247

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST0.8a
ControlDALI 2
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST0.8a, with Smart Interface below and above

Order No.: 5XF3C32T08MAGTIN (EAN): 4058352469118

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST0.8a
ControlDALI 2
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above

Order No.: 5XF3E42T08MAGTIN (EAN): 4058352466315

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux18000lm
Light distributionST1.0a
ControlDALI 2
Wt. (kg)6.0

Streetlight 31 midi, direct asymmetric wide distribution, ST1.0a, with Smart Interface below and above

Order No.: 5XF3E32T08MAGTIN (EAN): 4058352466278

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux16800lm
Light distributionST1.0a
ControlDALI 2
Wt. (kg)6.0

Optional accessory

Articlereducer, spigot size: 76/42mmPU1 pc.Wt. (kg)0.1Order No.: 5XC1008XR14GTIN (EAN): 4058352467794Show details
