Streetlight SL 31 midi, direct asymmetric wide distribution, P1.0a, opened without tools

Ordercode: 5XH7A4AB08LA

Article mast luminaire
Product name Streetlight SL 31 midi
Lamp LED
Rated luminous flux 13220lm
Luminous efficacy 153lm/W
Colour temperature 4000K
Colour rendering CRI > 70
P_nom begin service life 87
P_nom end service life 90
P_red at 50% lumin. flux 40
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 10.6kg

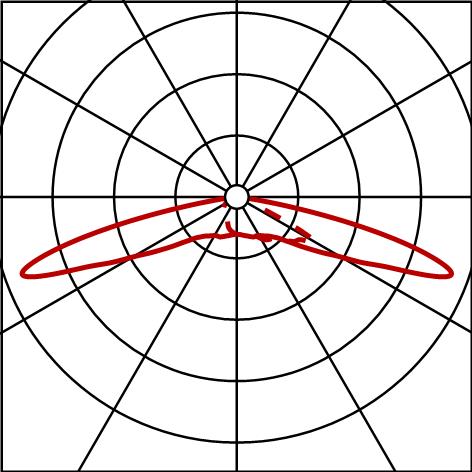

Streetlight SL 31 midi Easy LST mast luminaire for post-top, side-entry; light control with lens of PMMA; light distribution: P1.0a, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 13.220lm, light colour: 740, colour temperature: 4000K; luminous efficacy: 152,7lm/W; control: pre-setting: linear dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, power reduction, intelligent temperature release in ECG and LED module, overheat protection; luminaire housing, of diecast aluminium, Siteco® metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, opened without tools; mast flange of diecast aluminium, Siteco® metallic grey (DB 702S), spigot size: 76/60mm, mast flange included unmounted; with cable H07RN-F 3x 1.5mm², cable length: 10,5m, connection cable pre-assembled; mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 86,6W / (at end of service life): 90W / (with reduced operation 50%): 39,8W; protection rating (complete): IP66; insulation class (complete): insulation class II (safety insulation); impact resistance: IK10; certification: CE, ENEC, ENEC+, VDE, UKCA; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece
