Ordercode: 5XA7100W5ZS00100XX

Article floodlight
Product name Sirius® 500
Lamp LED
Rated luminous flux 55860lm
Luminous efficacy 113lm/W
Colour temperature 5700K
Colour rendering CRI > 95
Rated input power 493W
Service life 10000h (L97/B50) at AT = 25°C, 50000h (L90/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 16.0kg

Sirius® 500, floodlight, primary light control with lens, of glass, primary optical cover: cover, of toughened safety glass, transparent, light distribution: AREA-PL52, light emission: direct distribution, primary light characteristic: asymmetric, installation type: screw fastening, LED High Power LED, rated luminous flux: 55.860 lm, light colour: 957, colour temperature: 5700K, control gear: ECG, with cable with plug, mains connection: 220..240V, AC, 50/60Hz, cable length: 1,5 m, rated input power: 493W, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), length: 792 mm, width: 330 mm, height: 126mm, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK10, permissible ambient temperature for outdoor applications: in indoor areas: -30..+45°C, permissible storage temperature: -40..+80°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type floodlight
Product name Sirius® 500
Order No. 5XA7100W5ZS00100XX


Lighting technology

Light control lens of glass
Cover cover, transparent
Light distribution AREA-PL52
Symmetry asymmetric distribution
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 55860lm
Luminous efficacy 113lm/W
Colour temperature 5700K
Colour rendering index CRI > 95
Light colour 957
TLCI (Television Light Consistency Index) TLCI ≥ 96
Rated input power 493W
Supplement dimming range 5..100% per LED segment


Operating device

Control gear ECG
Control power reduction, DALI


Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK10
Temperature range (operation) in indoor areas: -30..+45°C
Certification, designation CE, ENEC


Material, Colour

Colour specification Siteco® metallic grey (DB 702S)
Cover cover of toughened safety glass


Mounting

Mounting method, mounting location screw fastening, to mounting bracket


Electrical connection

Connection cable with plug
Nominal voltage 220..240V, 50/60Hz, AC

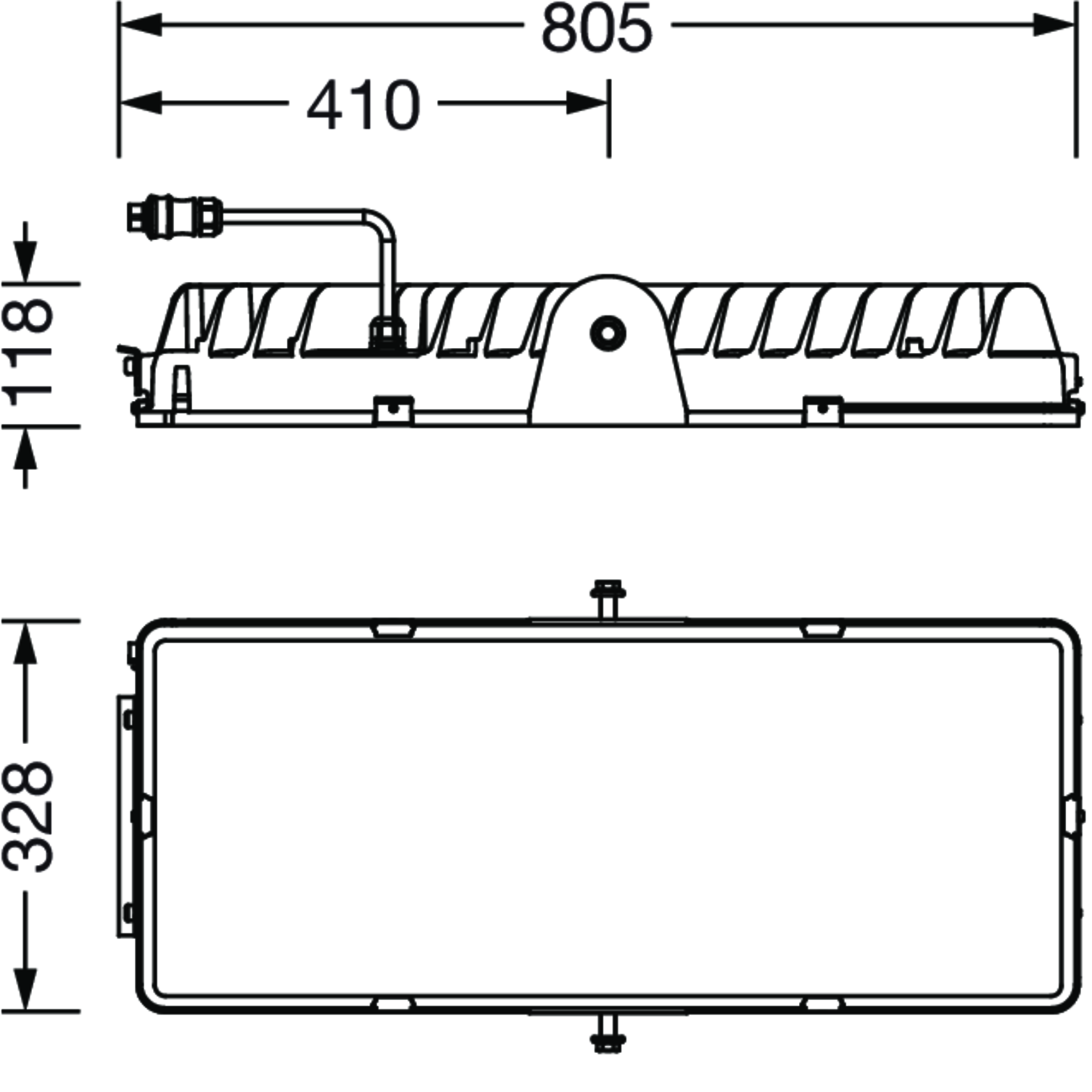

Dimensions, Weight

Length 792mm
Width 330mm
Height 126mm
Weight 16.0kg


Service life

Rated service life 50000h (L90/B50) at AT = 25°C, 10000h (L97/B50) at AT = 25°C

Product type
floodlight

Product name
Sirius® 500

Order No.
5XA7100W5ZS00100XX

Light control
lens of glass

Cover
cover, transparent

Light distribution
AREA-PL52

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
55860lm

Luminous efficacy
113lm/W

Colour temperature
5700K

Colour rendering index
CRI > 95

Light colour
957

TLCI (Television Light Consistency Index)
TLCI ≥ 96

Rated input power
493W

Supplement
dimming range 5..100% per LED segment

Control gear
ECG

Control
power reduction, DALI

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK10

Temperature range (operation)
in indoor areas: -30..+45°C

Certification, designation
CE, ENEC

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover of toughened safety glass

Mounting method, mounting location
screw fastening, to mounting bracket

Connection
cable with plug

Nominal voltage
220..240V, 50/60Hz, AC

Length
792mm

Width
330mm

Height
126mm

Weight
16.0kg

Rated service life
50000h (L90/B50) at AT = 25°C, 10000h (L97/B50) at AT = 25°C
