Ordercode: 5XA861D4N0X

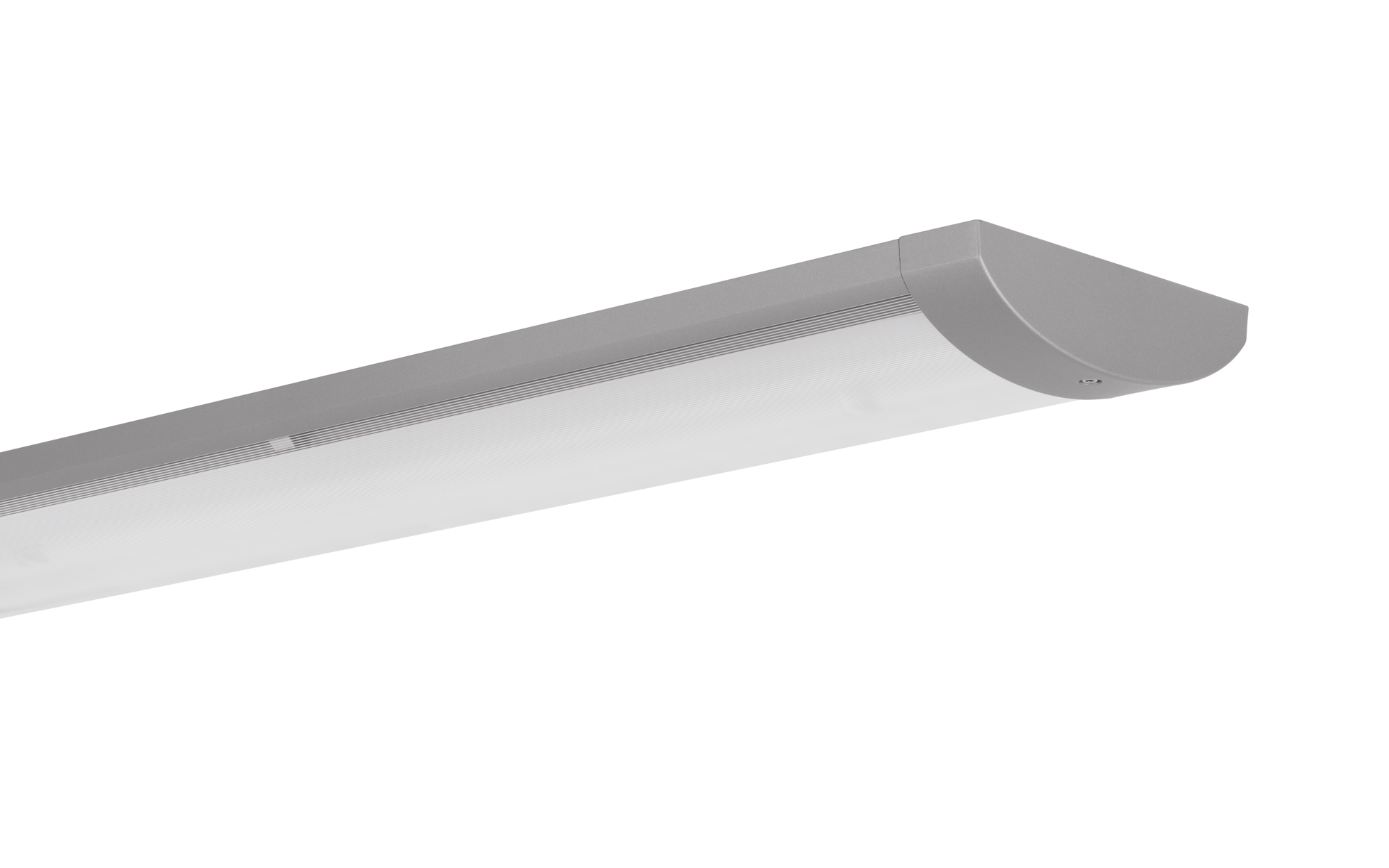

Article vandal-proof luminaire
Product name TV 20
Lamp LED
Rated luminous flux 5120lm
Luminous efficacy 102lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 50W
Service life 50000h (L80/B10) at AT = 25°C
Protection rating IP65
Impact resistance 2x IK10
Weight 8.9kg

TV 20, vandal-proof luminaire, primary light control with specular reflector, of aluminium, matt, primary optical cover: enclosure, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED rated luminous flux: 5.120 lm, light colour: 840, colour temperature: 4000K, control gear: ECG DALI, mains connection: 230V, AC, 50Hz, rated input power: 50W, luminaire housing, of aluminium, coated, Siteco® metallic grey (DB 702S), length: 1.561 mm, width: 260 mm, height: 70mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, protection symbol: F, impact resistance: 2x IK10, standard: EN 60598, packaging unit: 1 piece

Product details


Key data

Product type vandal-proof luminaire
Product name TV 20
Order No. 5XA861D4N0X


Lighting technology

Light control specular reflector of aluminium, matt
Cover enclosure, frosted
Symmetry symmetric distribution
Light emission direct distribution


Lamps

Lamps with LED
Rated luminous flux 5120lm
Luminous efficacy 102lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 50W


Operating device

Control gear ECG DALI
Control DALI


Certificates, Standards

Protection rating IP65
Insulation class insulation class I (protective earthing)
Impact resistance 2x IK10
Protection symbol F
Standard EN 60598
Certification, designation CE


Material, Colour

luminaire housing aluminium, coated, Siteco® metallic grey (DB 702S), with wall and ceiling fixing element
Colour specification Siteco® metallic grey (DB 702S)
Cover enclosure of PC


Mounting

Mounting method, mounting location surface-mounted, to the ceiling, to the wall
Arrangement single/continuous arrangement


Electrical connection

Nominal voltage 230V, 50Hz, AC

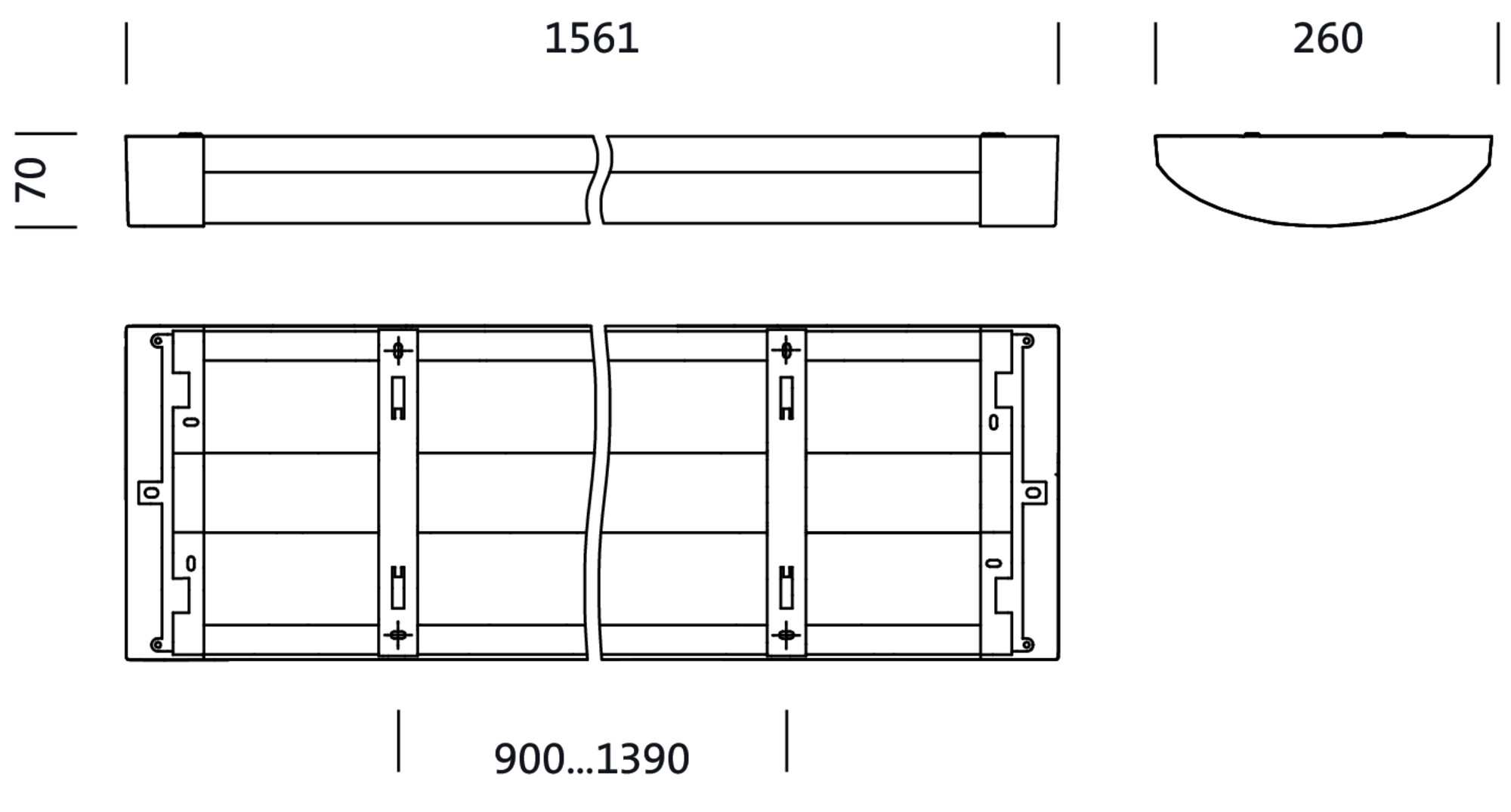

Dimensions, Weight

Length 1561mm
Width 260mm
Height 70mm
Weight 8.9kg


Service life

Rated service life 50000h (L80/B10) at AT = 25°C

Product type
vandal-proof luminaire

Product name
TV 20

Order No.
5XA861D4N0X

Light control
specular reflector of aluminium, matt

Cover
enclosure, frosted

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with LED

Rated luminous flux
5120lm

Luminous efficacy
102lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
50W

Control gear
ECG DALI

Control
DALI

Protection rating
IP65

Insulation class
insulation class I (protective earthing)

Impact resistance
2x IK10

Protection symbol
F

Standard
EN 60598

Certification, designation
CE

luminaire housing
aluminium, coated, Siteco® metallic grey (DB 702S), with wall and ceiling fixing element

Colour specification
Siteco® metallic grey (DB 702S)

Cover
enclosure of PC

Mounting method, mounting location
surface-mounted, to the ceiling, to the wall

Arrangement
single/continuous arrangement

Nominal voltage
230V, 50Hz, AC

Length
1561mm

Width
260mm

Height
70mm

Weight
8.9kg

Rated service life
50000h (L80/B10) at AT = 25°C

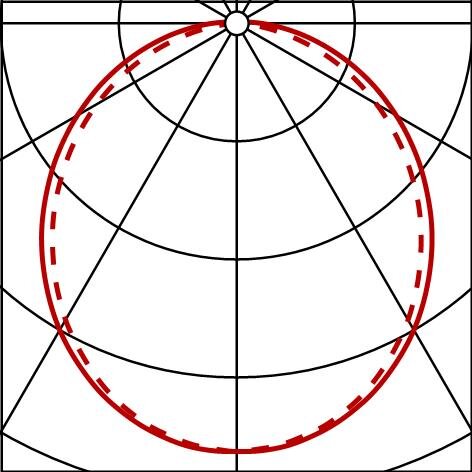

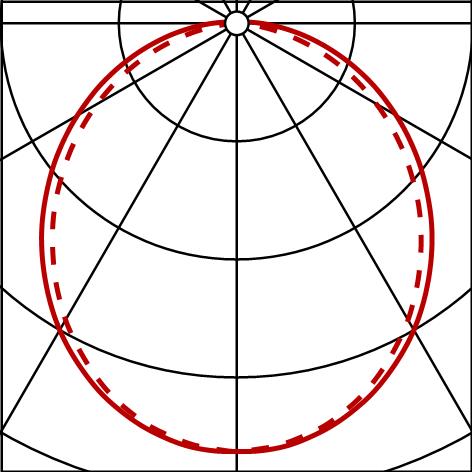

Photometric report / planning data

Photometric report / planning data

TV20VPL
LED,5120lm840,DALI,PC,dir,surf
