Ordercode: 5XA7571C1K23

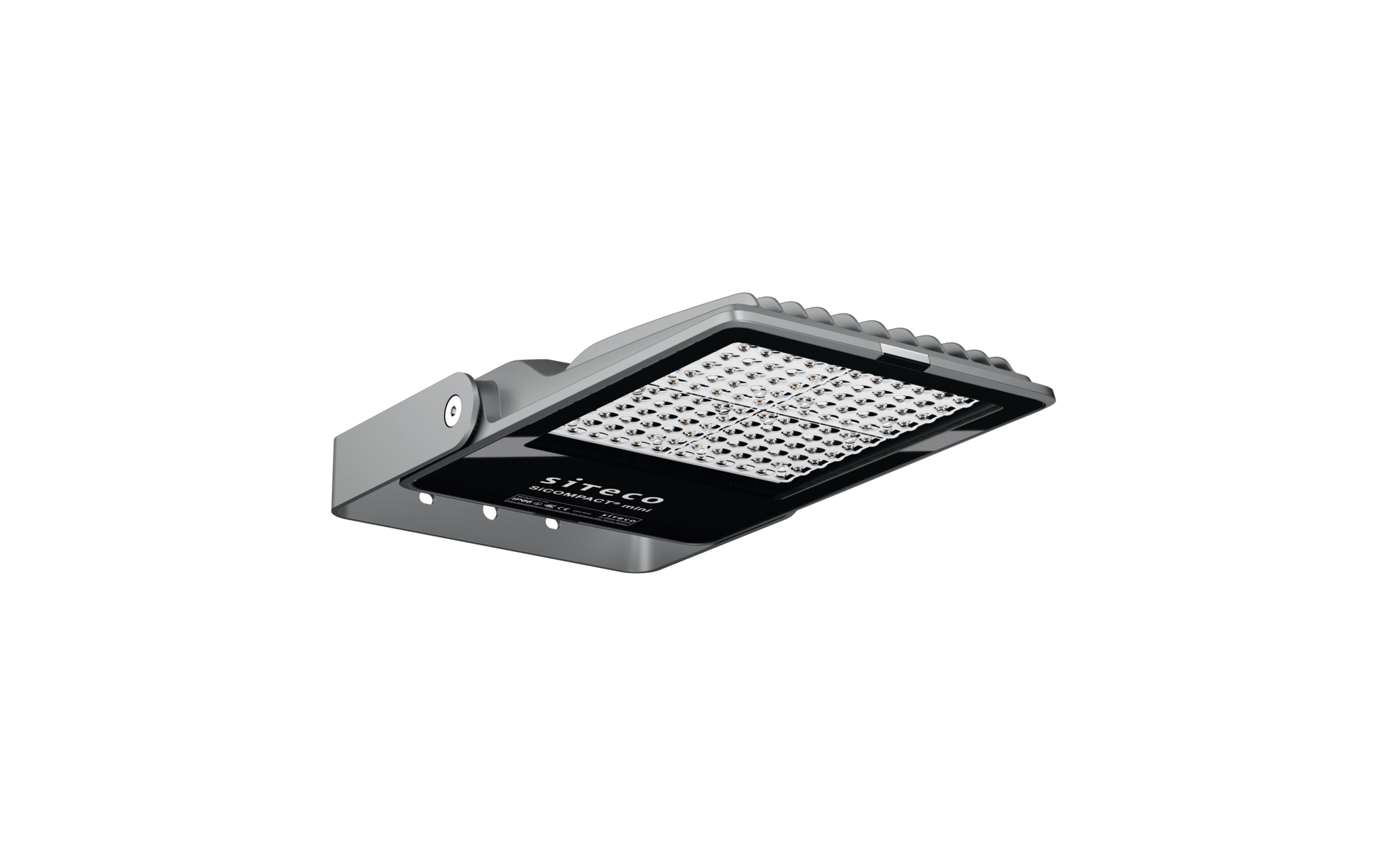

Article floodlight
Product name SiCompact® 31 mini
Lamp LED
Rated luminous flux 15000lm
Luminous efficacy 150lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 100W
Service life 73000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 5.6kg

SiCompact® 31 mini, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: PL32, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 15.000lm, luminous efficacy: 150lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG, with cable, 3x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 2m, rated input power: 100W, of diecast aluminium, specular, metallic grey (RAL 9006), length: 461mm, width: 261mm, height: 62mm, bracket, of sheet steel, coated, metallic grey (RAL 9006), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, impact resistance: IK08, permissible operating ambient temperature: -40..+45°C, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name SiCompact® 31 mini
Order No. 5XA7571C1K23


Lighting technology

Light control lens of plastic
Light distribution PL32
Symmetry asymmetric distribution
Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 15000lm
Luminous efficacy 150lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power 100W


Operating device

Control gear ECG
Control ON/OFF


Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK08
Temperature range (operation) -40..+45°C
Certification, designation CE, ENEC


Material, Colour

Colour specification metallic grey (RAL 9006)
bracket sheet steel, coated, metallic grey (RAL 9006)
Colour specification metallic grey (RAL 9006)


Mounting

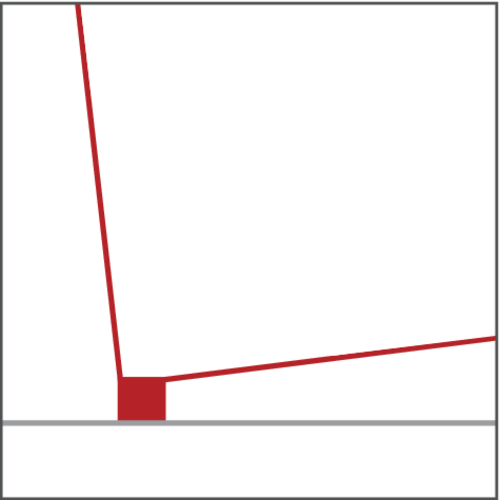

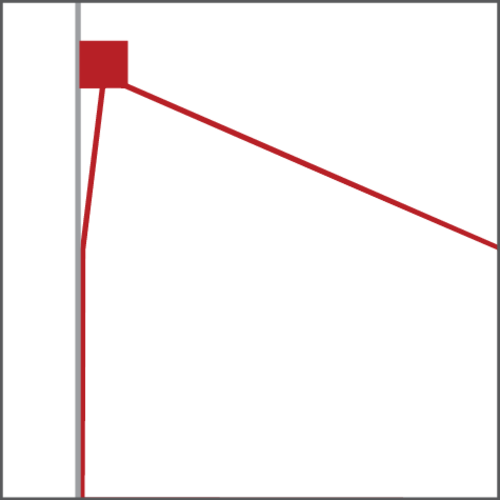

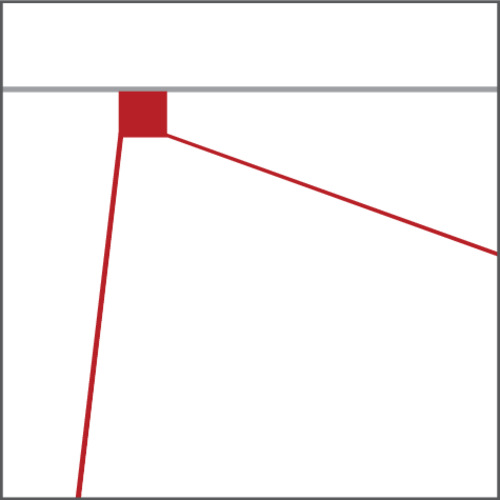

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm, to the wall
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection cable, 3x 1.5mm²
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs
Connection cable pre-assembled, L= 2m

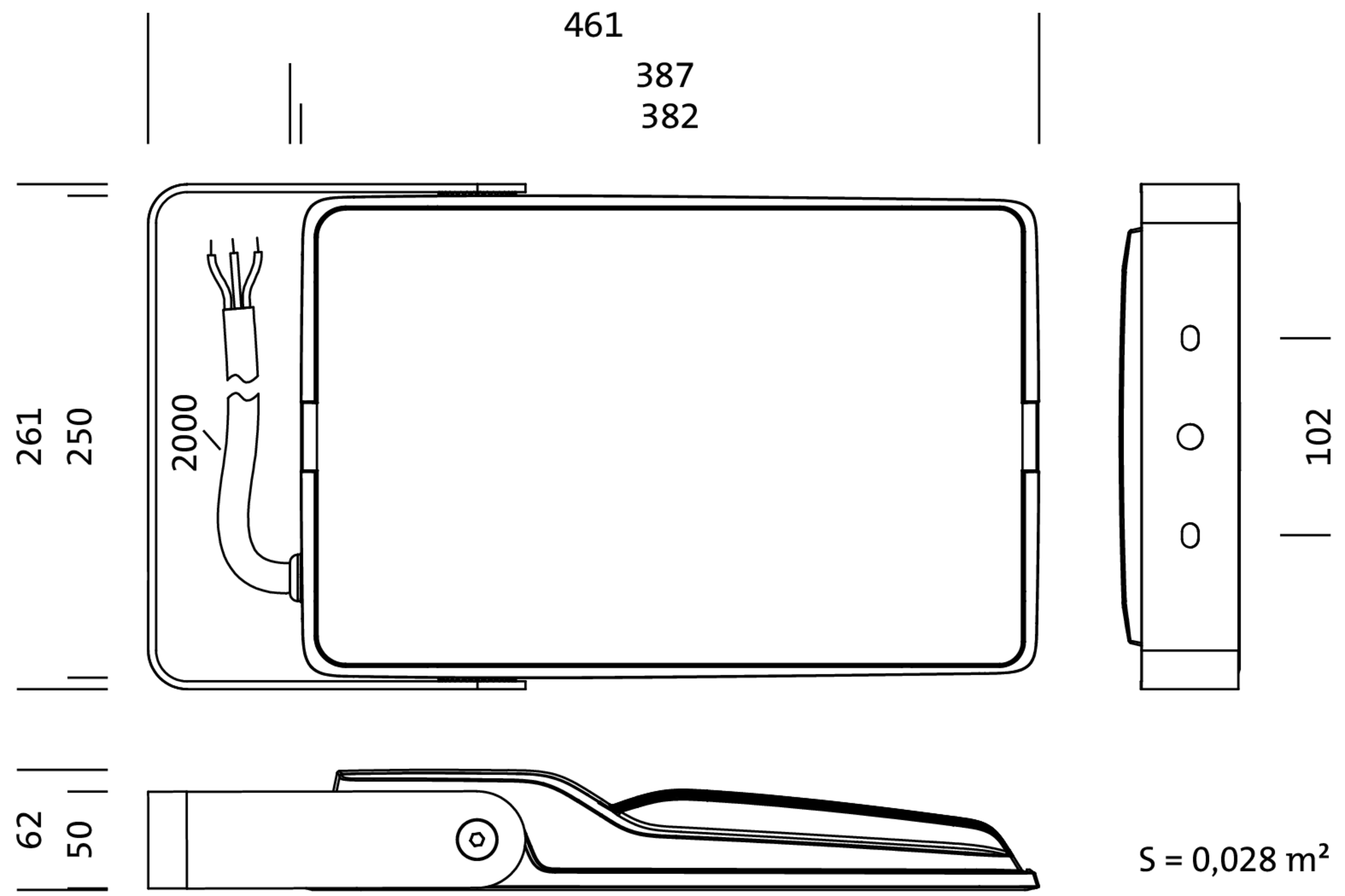

Dimensions, Weight

Length 461mm
Width 261mm
Height 62mm
Weight 5.6kg

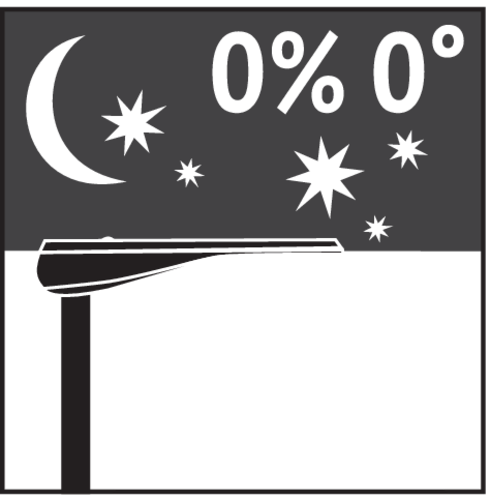

Light emission

Light emission 0% at 0° inclination


Service life

Rated service life 73000h (L80/B50) at AT = 25°C

Product type
floodlight

Product name
SiCompact® 31 mini

Order No.
5XA7571C1K23

Light control
lens of plastic

Light distribution
PL32

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
15000lm

Luminous efficacy
150lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power
100W

Control gear
ECG

Control
ON/OFF

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK08

Temperature range (operation)
-40..+45°C

Certification, designation
CE, ENEC

Colour specification
metallic grey (RAL 9006)

bracket
sheet steel, coated, metallic grey (RAL 9006)

Colour specification
metallic grey (RAL 9006)

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm, to the wall

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
cable, 3x 1.5mm²

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Connection cable
pre-assembled, L= 2m

Length
461mm

Width
261mm

Height
62mm

Weight
5.6kg

Light emission
0% at 0° inclination

Rated service life
73000h (L80/B50) at AT = 25°C

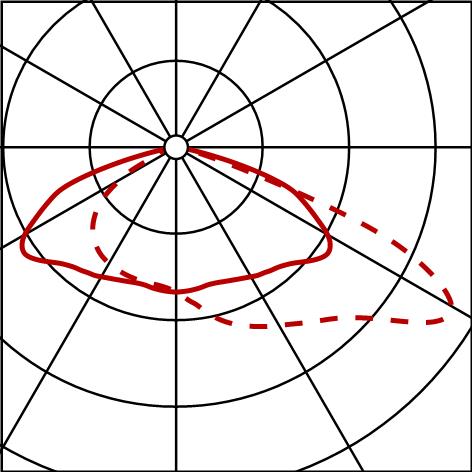

Photometric report / planning data

Photometric report / planning data

SiCompact® 31 mini
LED, ECG, direct asymmetric distribution, surface-mounted, to the wall, to the cross arm, to supporting structure
Ordercode: 5XA7571C1K23
