SiCompact® 31 midi, PL32, asymmetric distribution
Close
Article floodlight
Product name SiCompact® 31 midi
Lamp LED
Rated luminous flux 27000lm
Luminous efficacy 158lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Rated input power 171W
Service life 73000h (L80/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 8.5kg

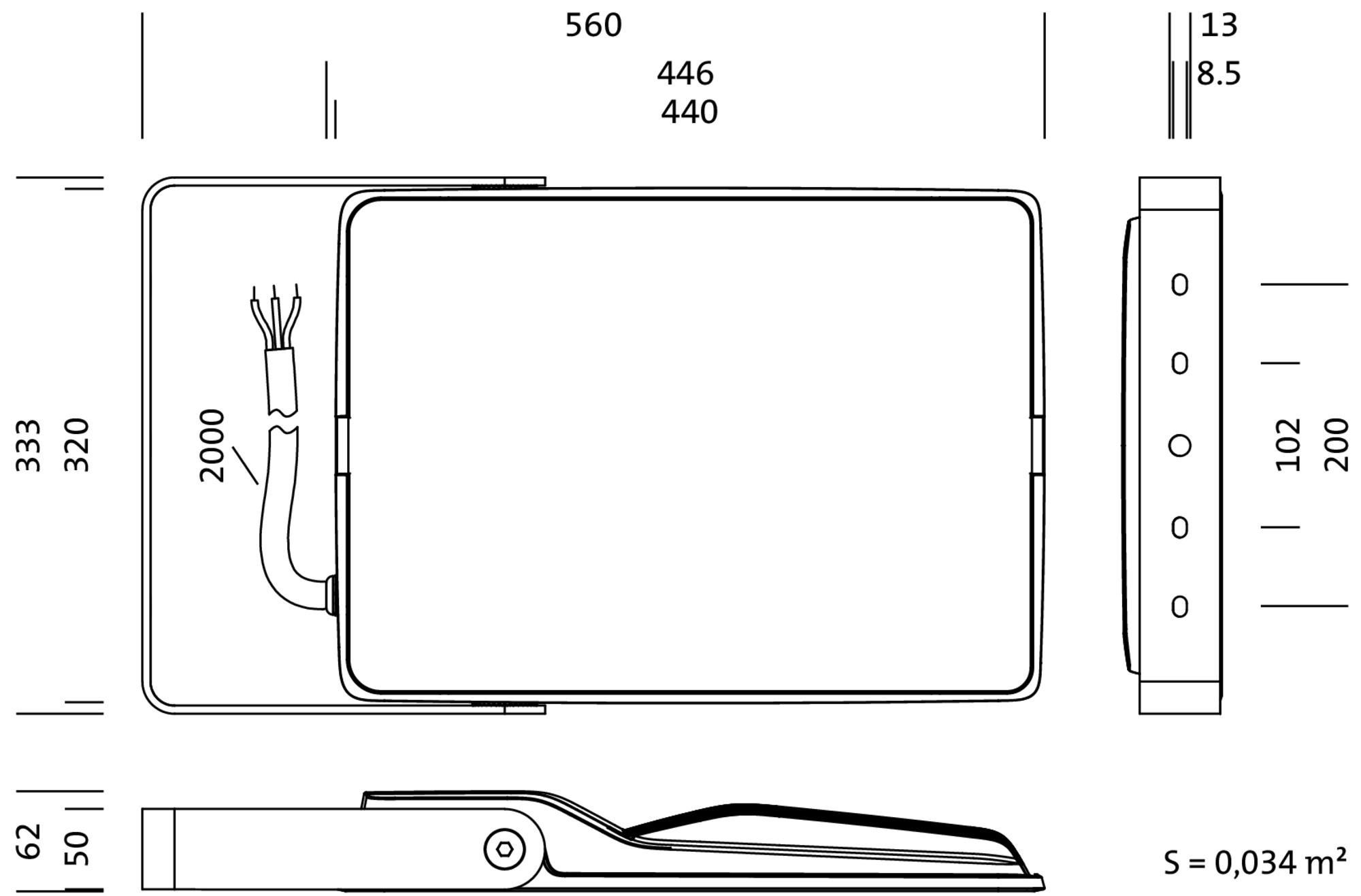

SiCompact® 31 midi, floodlight, primary light control with lens, of plastic, of toughened safety glass, transparent, light distribution: PL32, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 27.000lm, luminous efficacy: 158lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG, with cable, 3x 1.5mm², mains connection: 220..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 2m, rated input power: 171W, of diecast aluminium, specular, metallic grey (RAL 9006), length: 560mm, width: 330mm, height: 62mm, bracket, of sheet steel, coated, metallic grey (RAL 9006), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK08, permissible operating ambient temperature: -40..+45°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

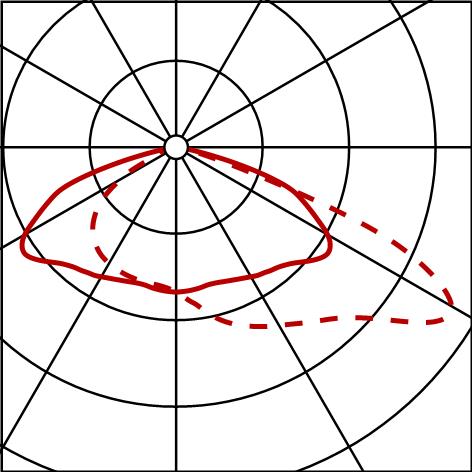

Photometric report / planning data

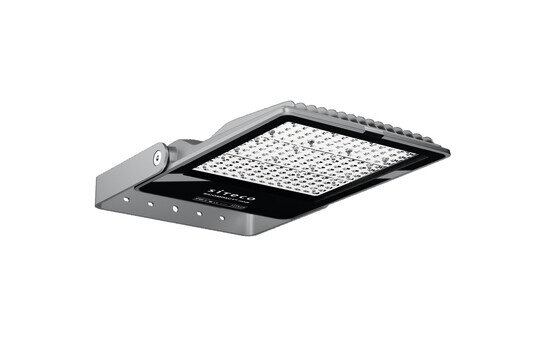

SiCompact® 31 midi

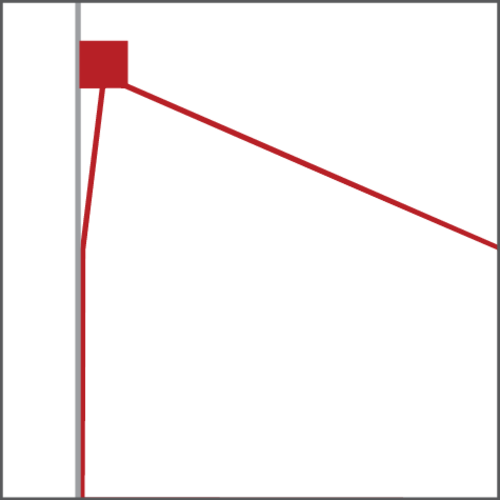

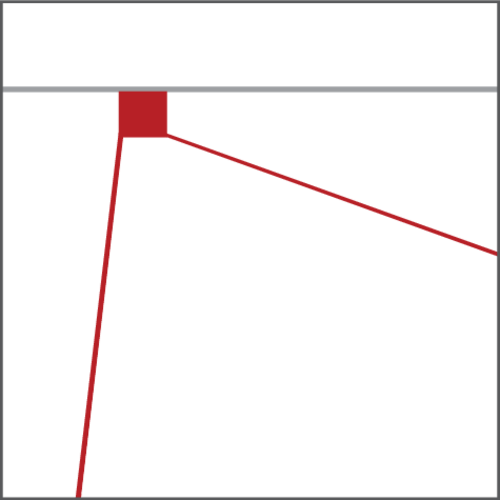

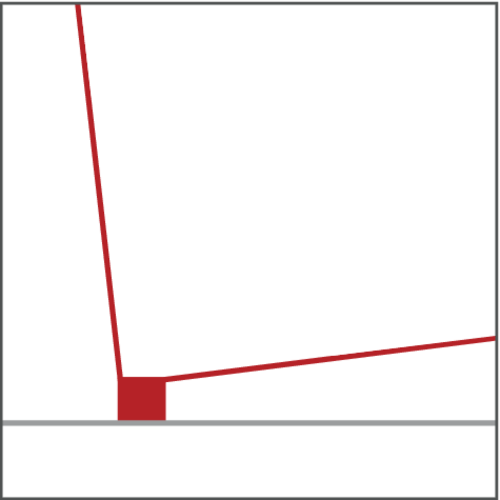

LED, ECG, direct asymmetric distribution, surface-mounted, to the wall, to the cross arm, to supporting structure
Ordercode: 5XA7581D1K23
