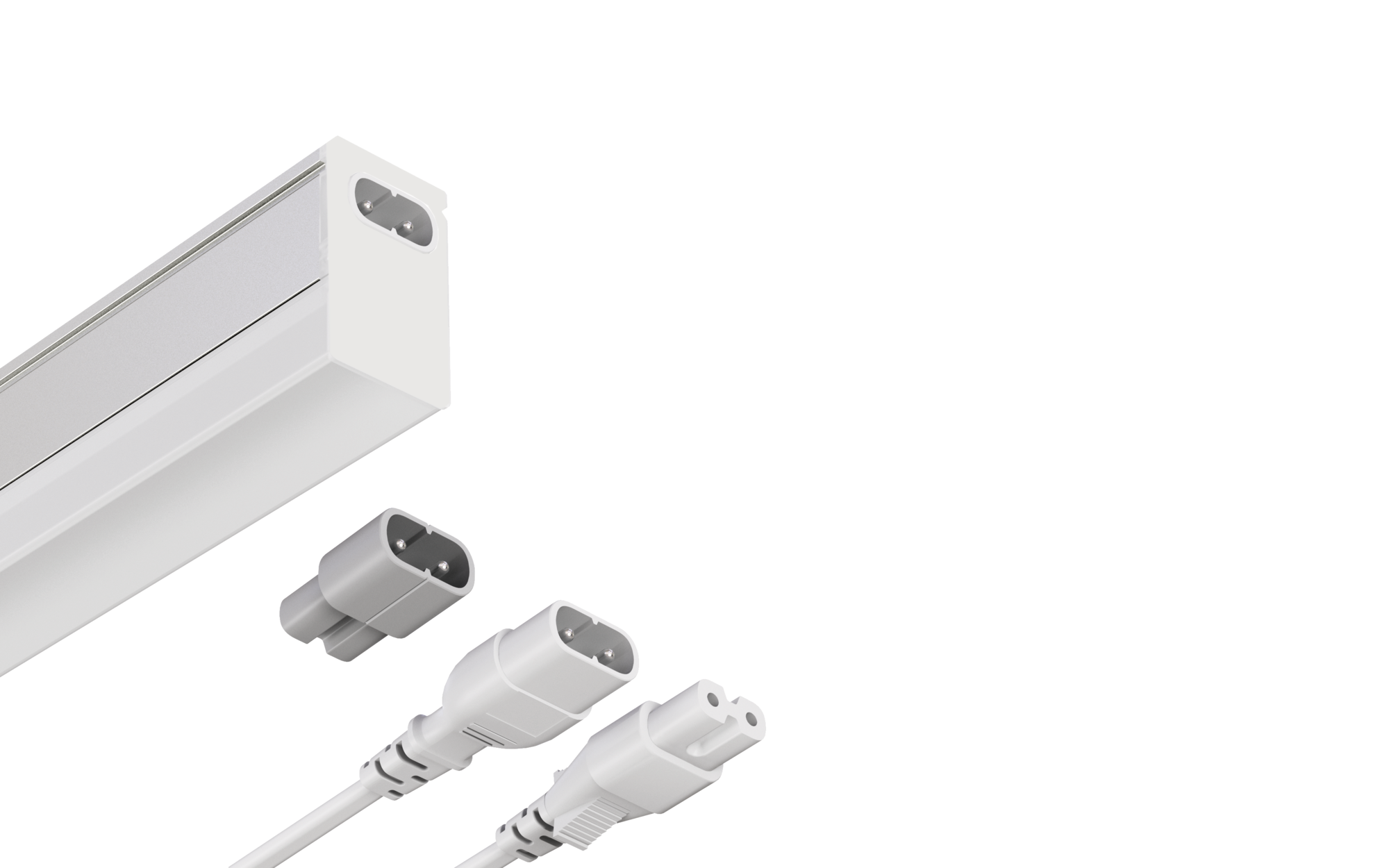

Siluette® 41-E, Light colour 830/840/850, ON/OFF, system connector: socket
Close
Article batten luminaire
Product name Siluette® 41-E
Lamp LED
Rated luminous flux 2000lm
Luminous efficacy 125lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 16W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 0.5kg

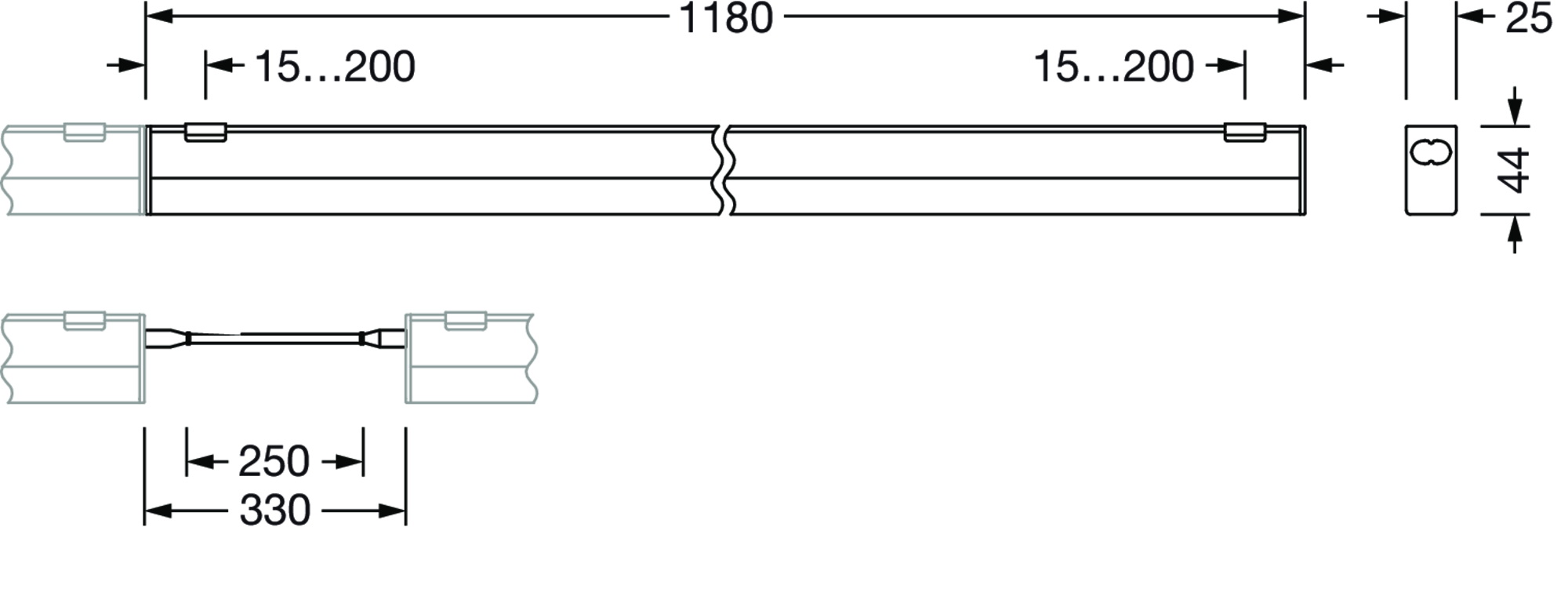

Siluette® 41-E, batten luminaire, primary optical cover: cover, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 2.000lm, luminous efficacy: 125lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF, with system connector: socket, mains connection: 220..240V, AC, 50/60Hz, rated input power: 16W, housing, of aluminium, silver, length: 1.180mm, width: 25mm, height: 44mm, end cap, of PC, white, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible operating ambient temperature: -20..+40°C, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

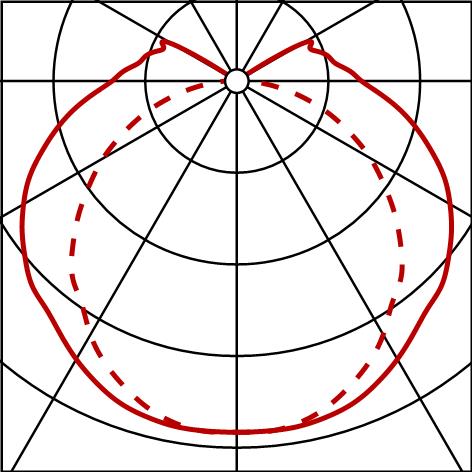

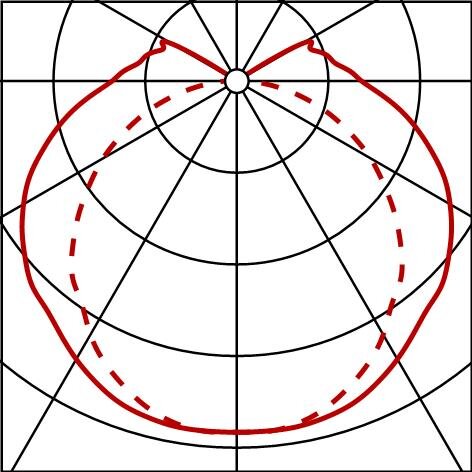

Photometric report / planning data
SIU41E
2000lm8mc,0/1,PC,sr
Lamps: 1x LED, factory setting: colour temperature 4000K
Ordercode: 51LP327KM20AE
SIU41E
Lamps: 1x LED, individual setting: colour temperature 3000K
Ordercode: 51LP327KM20AE
SIU41E
Lamps: 1x LED, individual setting: colour temperature 5000K
Ordercode: 51LP327KM20AE
