Ordercode: 5MZ212D04WA
Remember productRemember product

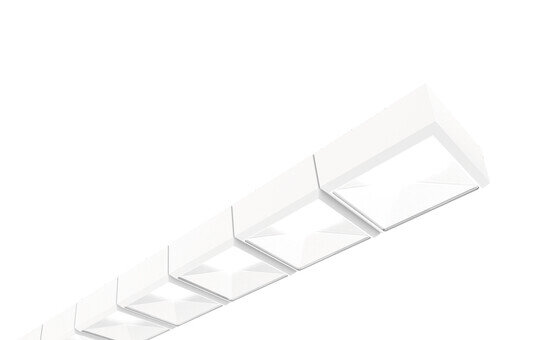

Article office luminaire
Product name Scriptus® 11
Lamp LED
Rated luminous flux 4810lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 35W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 5.3kg

Scriptus® 11, office luminaire, primary optical cover: lenses, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 4.810lm, luminous efficacy: 139lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI, with terminal, 5-pole, mains connection: 230V, AC, 50Hz, rated input power: 35W, housing, luminaire housing, of aluminium, traffic white (RAL 9016), length: 1.658mm, width: 114mm, height: 57mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, protection symbol: F, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type office luminaire
Product name Scriptus® 11
Order No. 5MZ212D04WA

Lighting technology

Cover lenses
Symmetry symmetric

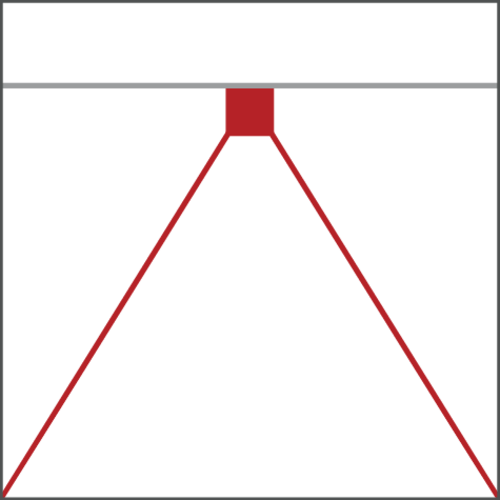

Light emission direct distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19
UGR viewing direction along lateral luminaire axis ≤ 19

Lamps

Lamps with LED
Rated luminous flux 4810lm
Luminous efficacy 139lm/W
Colour temperature 4000K
Colour rendering index CRI > 80
Light colour 840
Rated input power 35W

Operating device

Control gear ECG DALI
Control DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Protection symbol F
Temperature range (operation) 0..+35°C
Standard EN 50419
Certification, designation CE, ENEC, VDE

Material, Colour

housing aluminium, traffic white (RAL 9016)
luminaire housing aluminium, traffic white (RAL 9016)
Colour specification traffic white (RAL 9016)
Cover lenses

Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Arrangement single arrangement

Electrical connection

Connection terminal, 5-pole
Nominal voltage 230V, 230..240V, 50Hz, AC

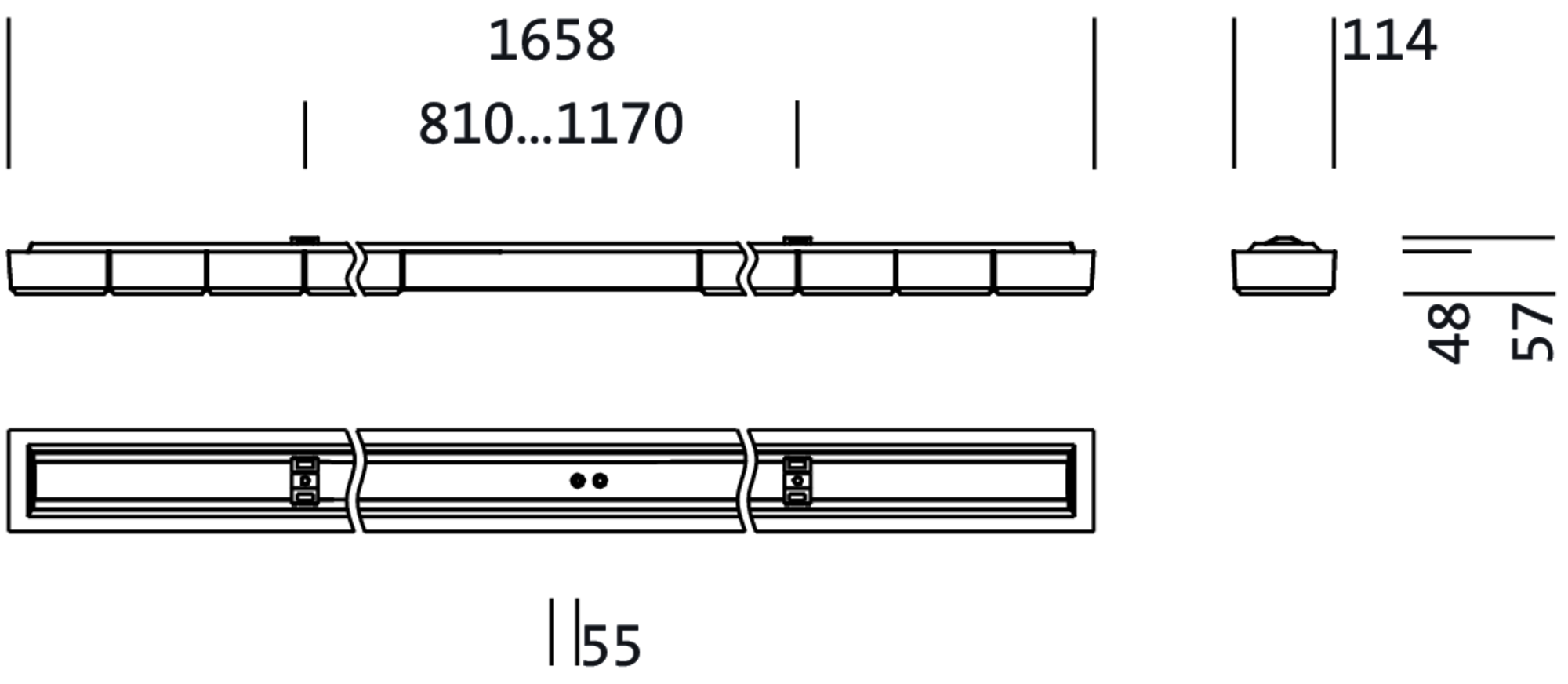

Dimensions, Weight

Length 1658mm
Width 114mm
Height 57mm
Weight 5.3kg

Service life

Rated service life 50000h (L85/B50) at AT = 25°C

Product type
office luminaire

Product name
Scriptus® 11

Order No.
5MZ212D04WA

Cover
lenses

Symmetry
symmetric

Light emission
direct distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

UGR viewing direction along lateral luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
4810lm

Luminous efficacy
139lm/W

Colour temperature
4000K

Colour rendering index
CRI > 80

Light colour
840

Rated input power
35W

Control gear
ECG DALI

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Protection symbol
F

Temperature range (operation)
0..+35°C

Standard
EN 50419

Certification, designation
CE, ENEC, VDE

housing
aluminium, traffic white (RAL 9016)

luminaire housing
aluminium, traffic white (RAL 9016)

Colour specification
traffic white (RAL 9016)

Cover
lenses

Mounting method, mounting location
surface-mounted, to the ceiling

Arrangement
single arrangement

Connection
terminal, 5-pole

Nominal voltage
230V, 230..240V, 50Hz, AC

Length
1658mm

Width
114mm

Height
57mm

Weight
5.3kg

Rated service life
50000h (L85/B50) at AT = 25°C

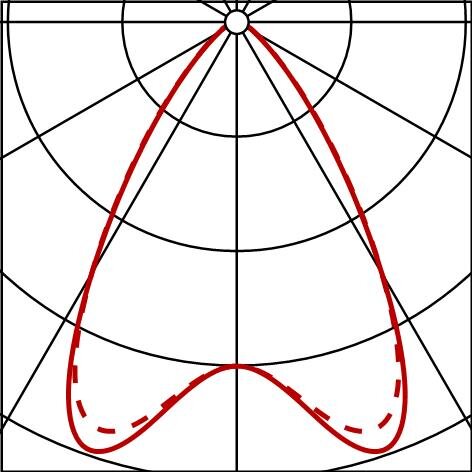

Photometric report / planning data

Scriptus® 11
office luminaire, traffic white (RAL 9016), DALI, 4810lm, 840, 1658x114mm, Connection: terminal
Lamps: 1x LED 4000K / CRI >= 80
Ordercode: 5MZ212D04WA

Photometric report (PDF)
