Ordercode: 5MB2512L30830

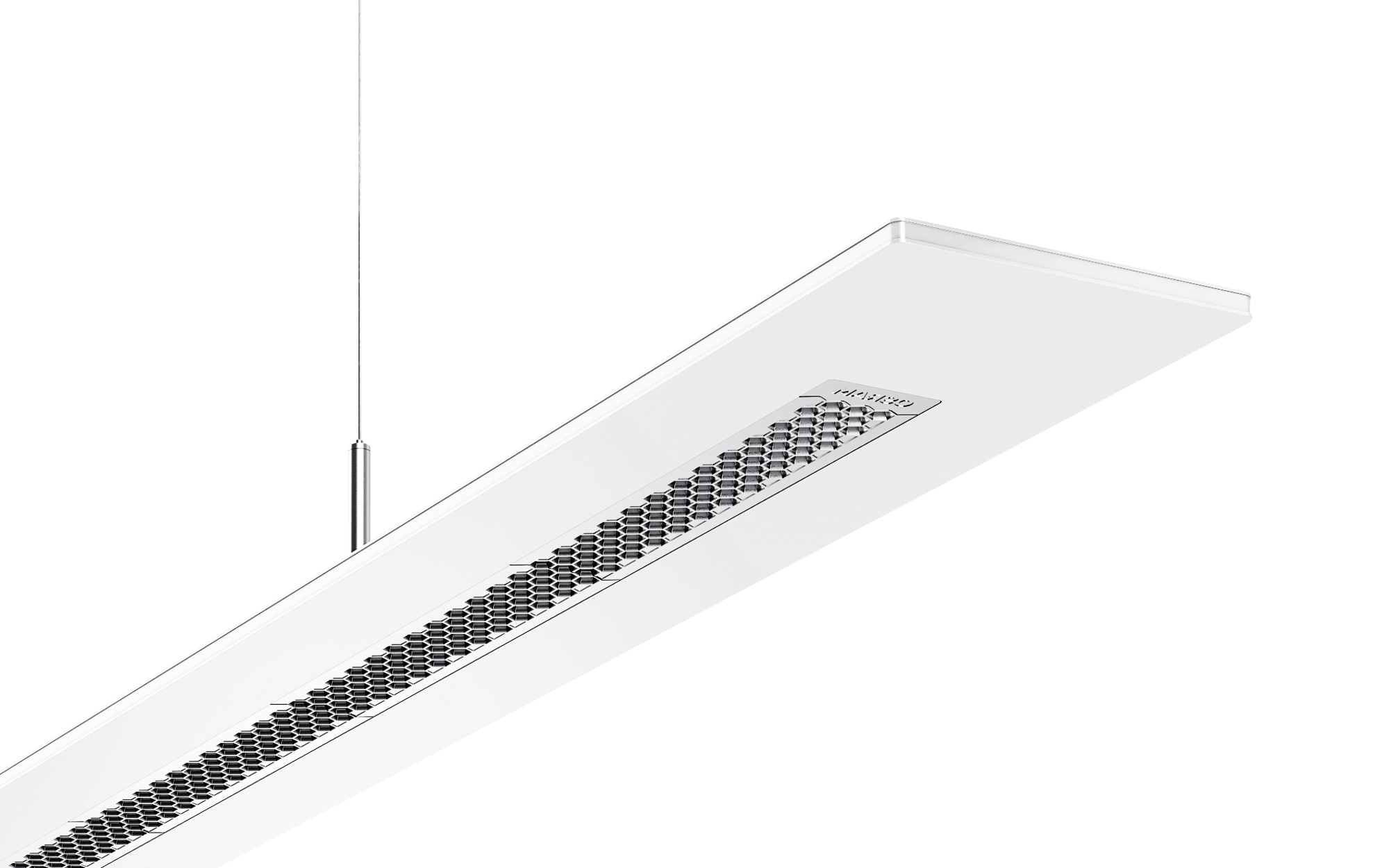

Article office luminaire
Product name Arktika®
Lamp LED
Rated luminous flux 3670lm
Luminous efficacy 120lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 31W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 1.8kg

Arktika®, office luminaire, primary anti-glare with honeycomb louvre, of plastic, aluminium vaporised, highly specular, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED rated luminous flux: 3.670 lm, light colour: 830, colour temperature: 3000K, control gear: ECG, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 31W, housing, of aluminium, powder-coated, traffic white (RAL 9016), 1-length, length: 1.250 mm, width: 120 mm, height: 8mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, packaging unit: 1 piece

Product details


Key data

Product type office luminaire
Product name Arktika®
Order No. 5MB2512L30830


Lighting technology

Glare reduction honeycomb louvre of plastic, aluminium vaporised, highly specular
Beam angle wide distribution, 95°
Symmetry symmetric distribution

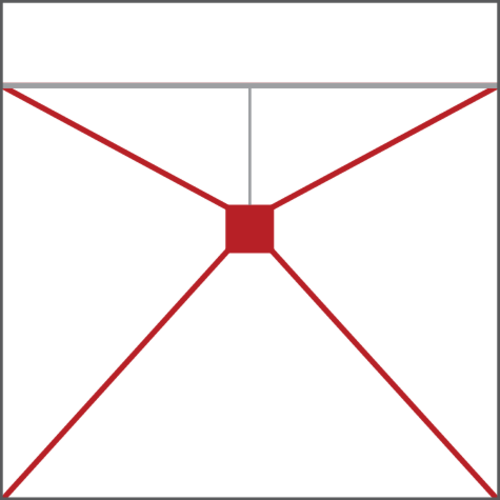

Light emission direct/indirect distribution
UGR viewing direction along longitudinal luminaire axis ≤ 19


Lamps

Lamps with LED
Rated luminous flux 3670lm
Luminous efficacy 120lm/W
Colour temperature 3000K
Colour rendering index CRI > 80
Light colour 830
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 3 SDCM (initial)
Rated input power 31W


Operating device

Control gear ECG
Control ON/OFF


Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Certification, designation CE


Material, Colour

housing aluminium, powder-coated, traffic white (RAL 9016), 1-length
Colour specification traffic white (RAL 9016)


Mounting

Mounting method, mounting location suspended mounting, to the wire suspension, to the ceiling
Recommended suspension height 0.2..1.5m


Electrical connection

Connection terminal, 3-pole
Nominal voltage 220..240V, 50/60Hz, AC

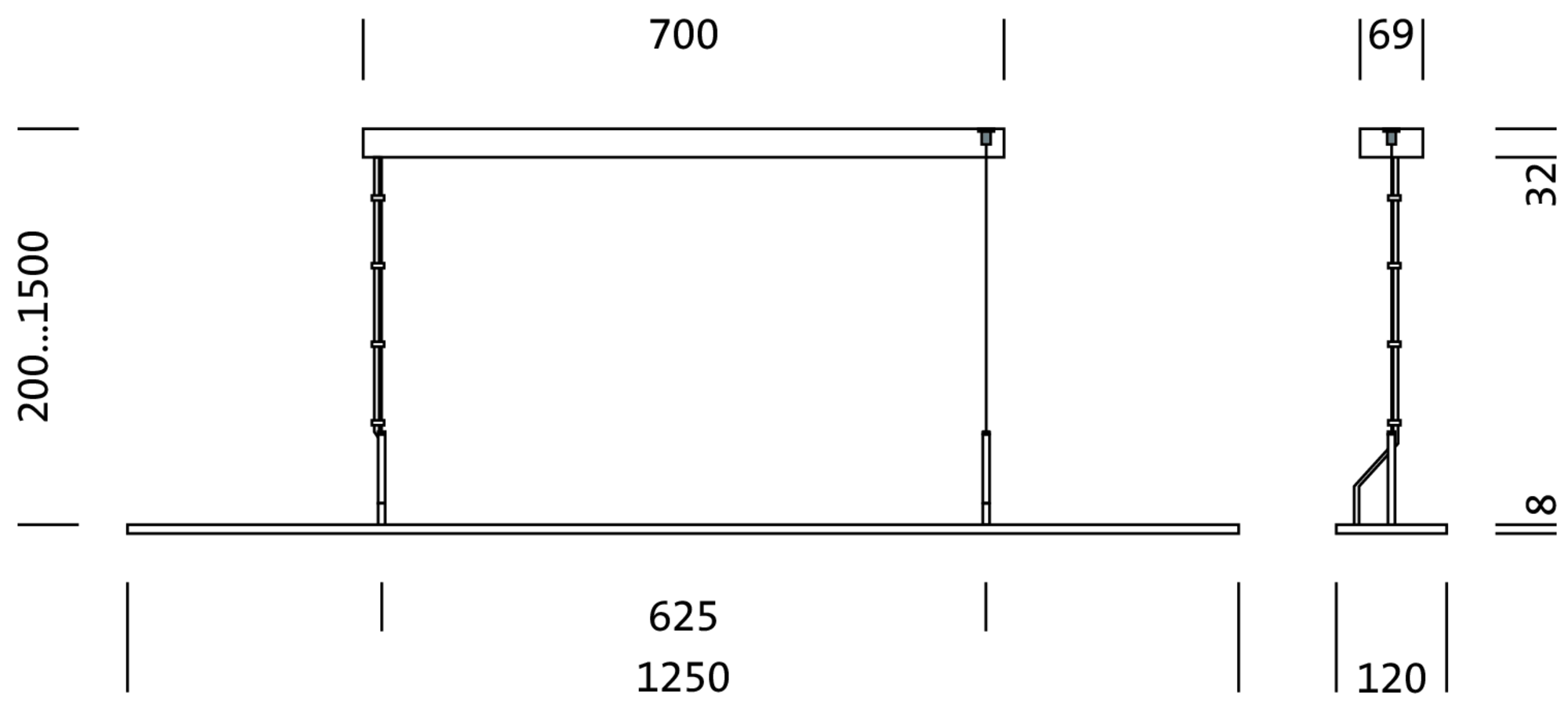

Dimensions, Weight

Length 1250mm
Width 120mm
Height 8mm
Weight 1.8kg


Service life

Rated service life 50000h (L80/B50) at AT = 25°C

Product type
office luminaire

Product name
Arktika®

Order No.
5MB2512L30830

Glare reduction
honeycomb louvre of plastic, aluminium vaporised, highly specular

Beam angle
wide distribution, 95°

Symmetry
symmetric distribution

Light emission
direct/indirect distribution

UGR viewing direction along longitudinal luminaire axis
≤ 19

Lamps
with LED

Rated luminous flux
3670lm

Luminous efficacy
120lm/W

Colour temperature
3000K

Colour rendering index
CRI > 80

Light colour
830

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 3 SDCM (initial)

Rated input power
31W

Control gear
ECG

Control
ON/OFF

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Certification, designation
CE

housing
aluminium, powder-coated, traffic white (RAL 9016), 1-length

Colour specification
traffic white (RAL 9016)

Mounting method, mounting location
suspended mounting, to the wire suspension, to the ceiling

Recommended suspension height
0.2..1.5m

Connection
terminal, 3-pole

Nominal voltage
220..240V, 50/60Hz, AC

Length
1250mm

Width
120mm

Height
8mm

Weight
1.8kg

Rated service life
50000h (L80/B50) at AT = 25°C

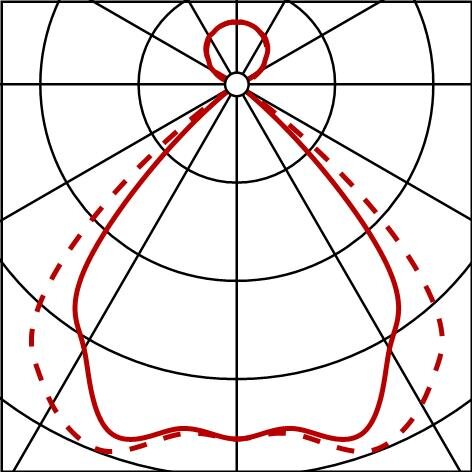

Photometric report / planning data

Photometric report / planning data

Arktika®
office luminaire, traffic white (RAL 9016), ON/OFF, 3670lm, 830, 1250x120mm, Connection: terminal
Ordercode: 5MB2512L30830
