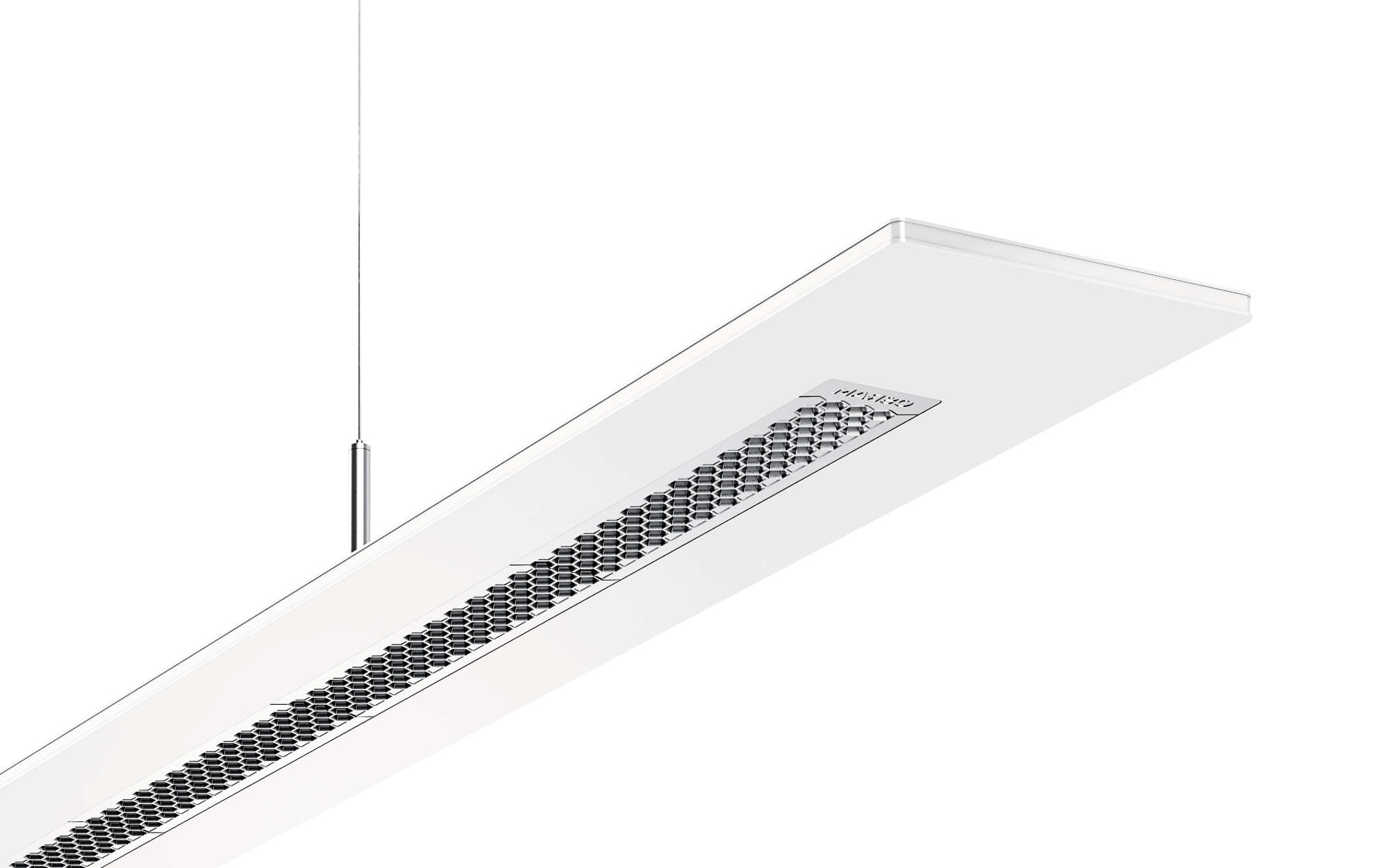

Arktika® 21 duo, direct/indirect distribution, Light colour 840, DALI
Close
Article office luminaire
Product name Arktika® 21 duo
Lamp LED
Rated luminous flux 8800lm
Luminous efficacy 132lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 67W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 3.3kg

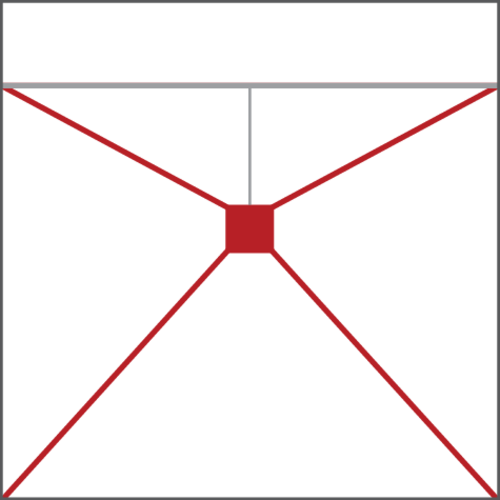

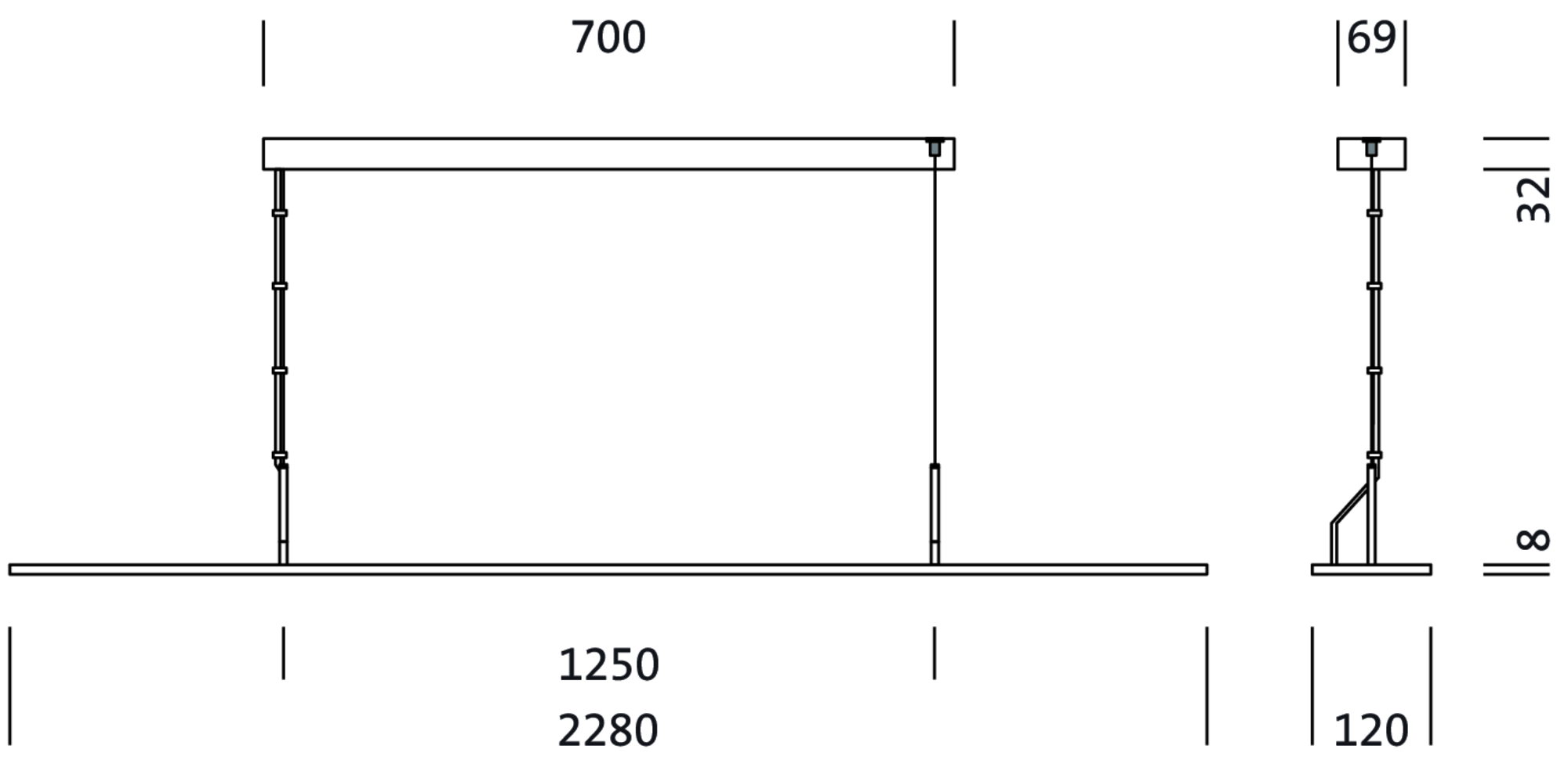

Arktika® 21 duo, office luminaire, primary anti-glare with honeycomb louvre, of plastic, aluminium vaporised, highly specular, light emission: direct/indirect distribution, primary light characteristic: symmetric, installation type: suspended mounting, LED, rated luminous flux: 8.800lm, luminous efficacy: 132lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG DALI, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 67W, housing, of aluminium, powder-coated, traffic white (RAL 9016), 2-length, length: 2.280mm, width: 120mm, height: 8mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

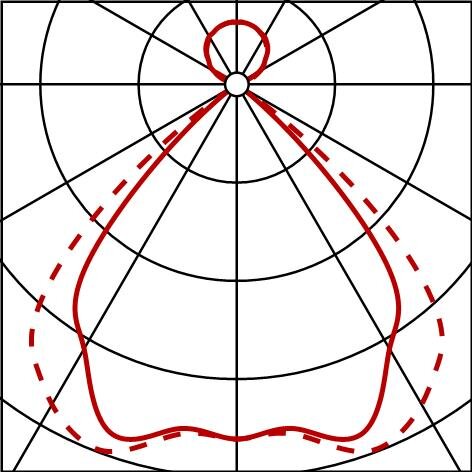

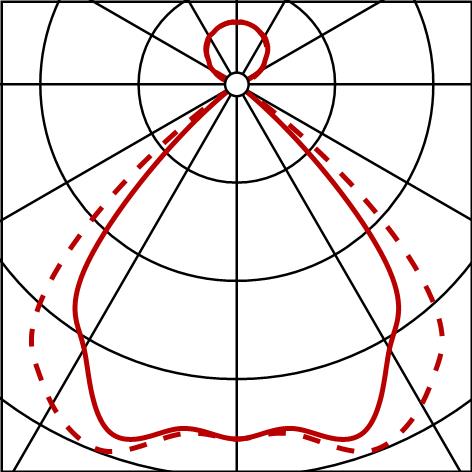

Photometric report / planning data
Arktika® 21 duo
office luminaire, traffic white (RAL 9016), DALI, 8800lm, 840, 2280x120mm, Connection: terminal
Ordercode: 5MB252DL60840
