Apollon® 21 linear, direct distribution, Light colour 830, DALI
Close
Article office luminaire

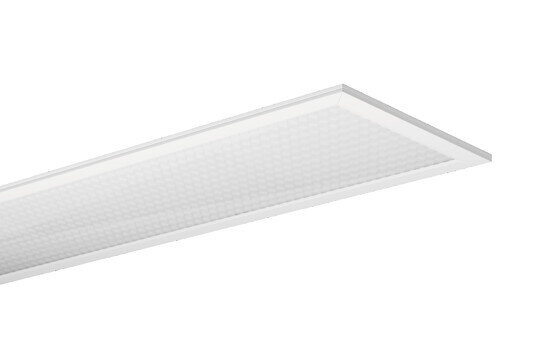

Product name Apollon® 21 linear
Lamp LED
Rated luminous flux 6900lm
Luminous efficacy 115lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 60W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 3.7kg
Apollon® 21, office luminaire, primary optical cover: micro prismatic cover, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED rated luminous flux: 6.900 lm, light colour: 830, colour temperature: 3000K, control gear: ECG DALI, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 60W, housing, of aluminium, coated, pure white, length: 1.545 mm, width: 307 mm, height: 39mm, housing upper side, of sheet steel, galvanised, protection rating (complete): IP20, protection rating (lamp compartment, on room side): IP50, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, packaging unit: 1 piece
Downloads
Technical product information
- Installation sheet (PDF) Data sheet full (PDF)Data sheet short (PDF)Photometric report / planning data
Data for application programs
Product details

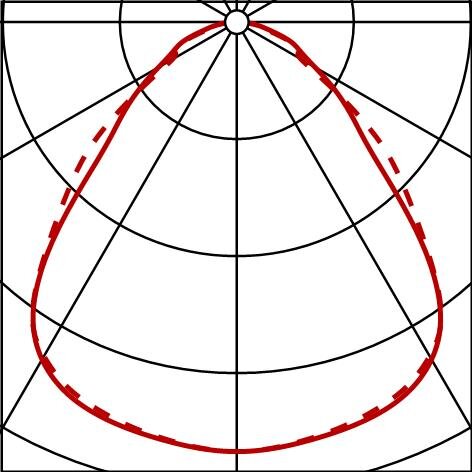

Photometric report / planning data
Apollon® 21 linear
office luminaire, pure white, DALI, 6900lm, 830, 1545x307mm, Connection: terminal
Ordercode: 51MQ17WD2312
