Ordercode: 5LZ902050TW
Remember productRemember product

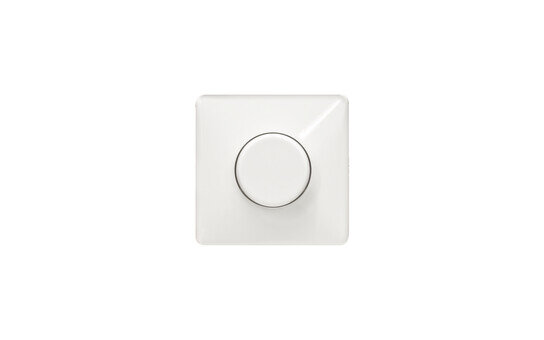

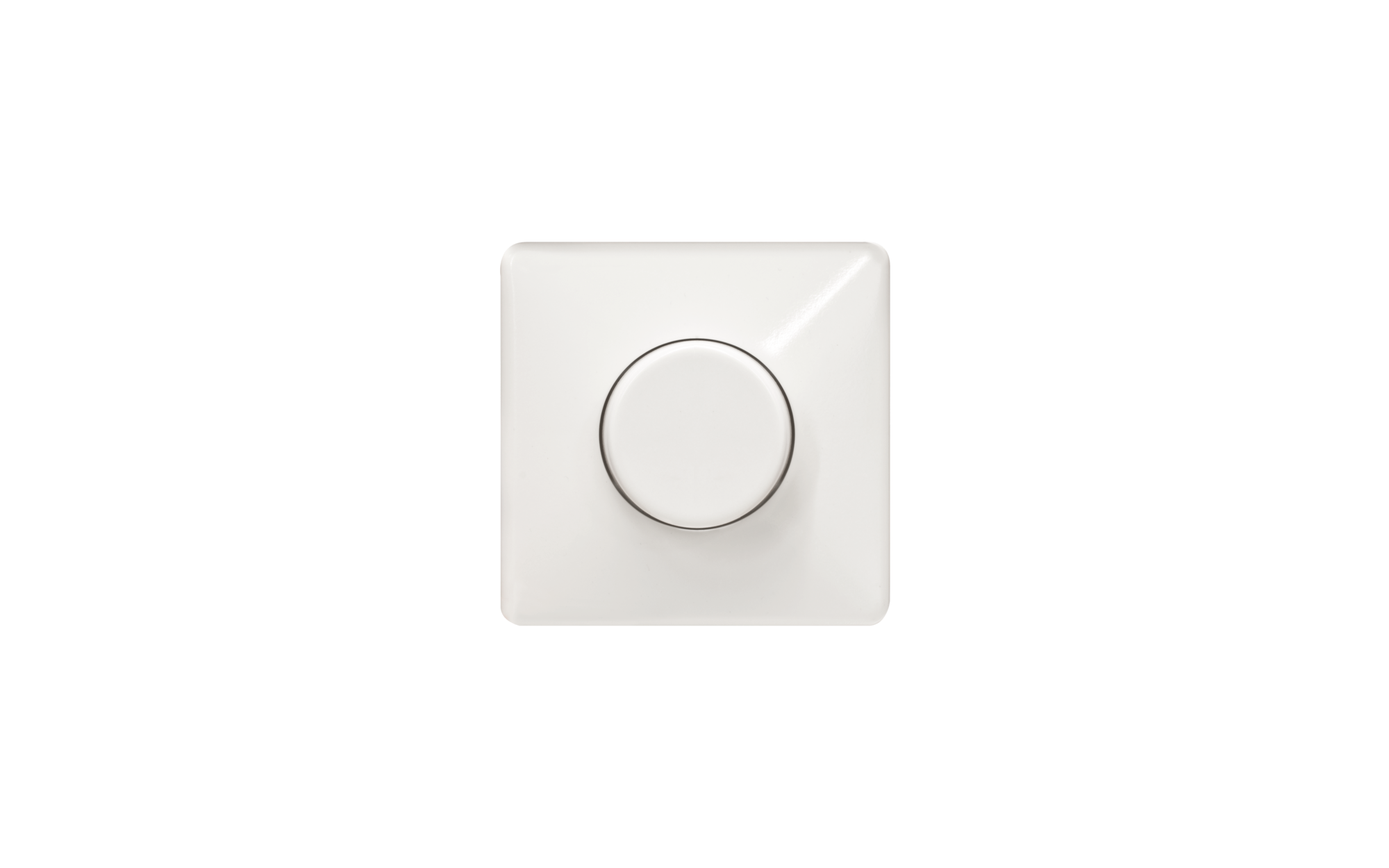

Article rotary dimmer
Product name DALI
Protection rating IP20
Weight 0.1kg

DALI, rotary dimmer, installation type: recessed, mains connection: 230V, AC, 50/60Hz, installation housing, of plastic, grey, length: 80 mm, width: 80 mm, height: 32mm, rotary dimmerlocal controlconnection options: DALI control output, equipment: Touchdim, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, permissible ambient temperature for indoor applications: -5..+45°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

System family DALI
Product type rotary dimmer
Product name DALI
Order No. 5LZ902050TW

Control

Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) -5..+45°C
Certification, designation CE

Material, Colour

installation housing plastic, grey
Colour specification grey

Mounting

Mounting method, mounting location recessed, in the switch box
Supplement only for mounting indoors

Electrical connection

Nominal voltage 230V, 50/60Hz, AC

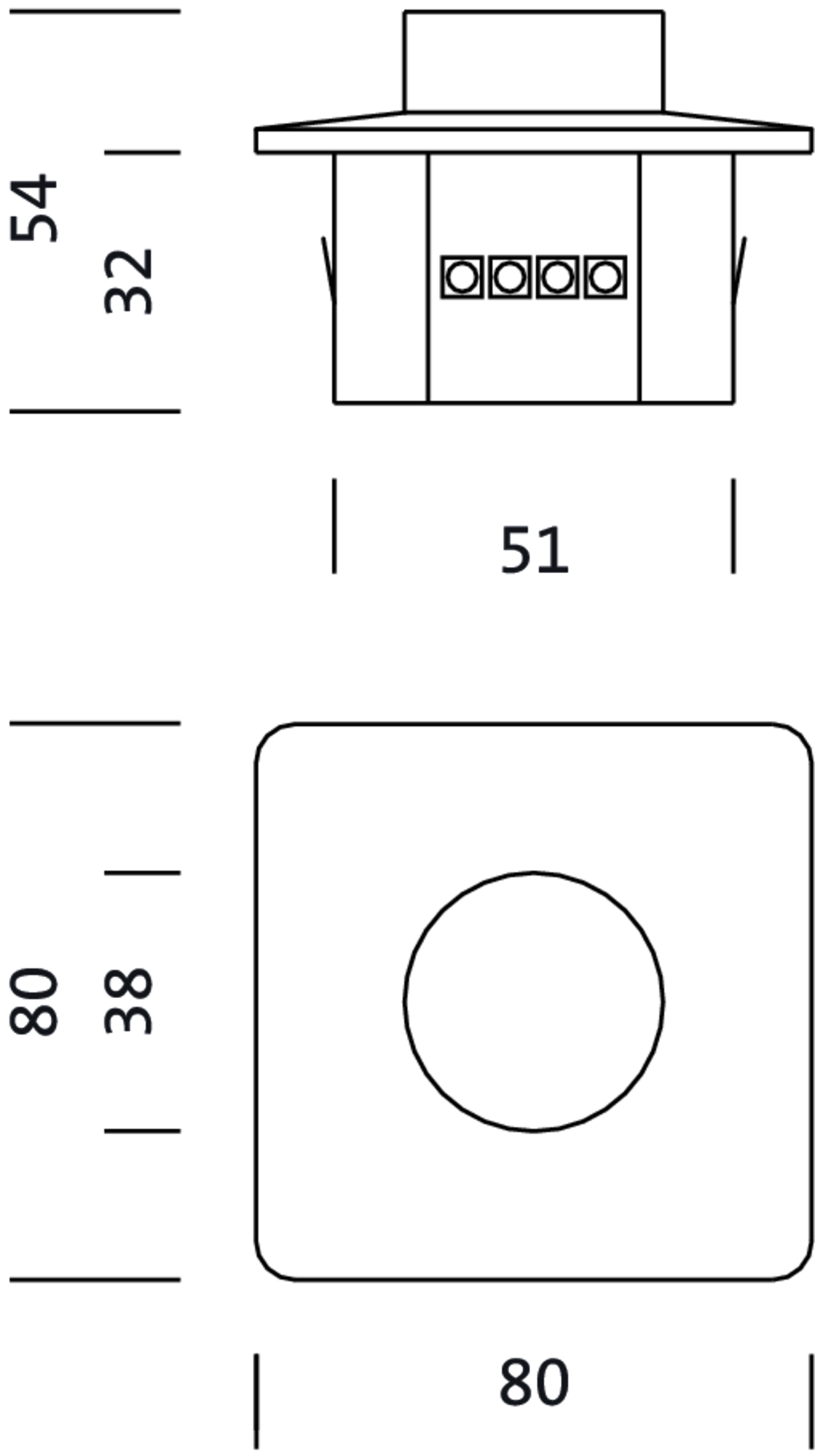

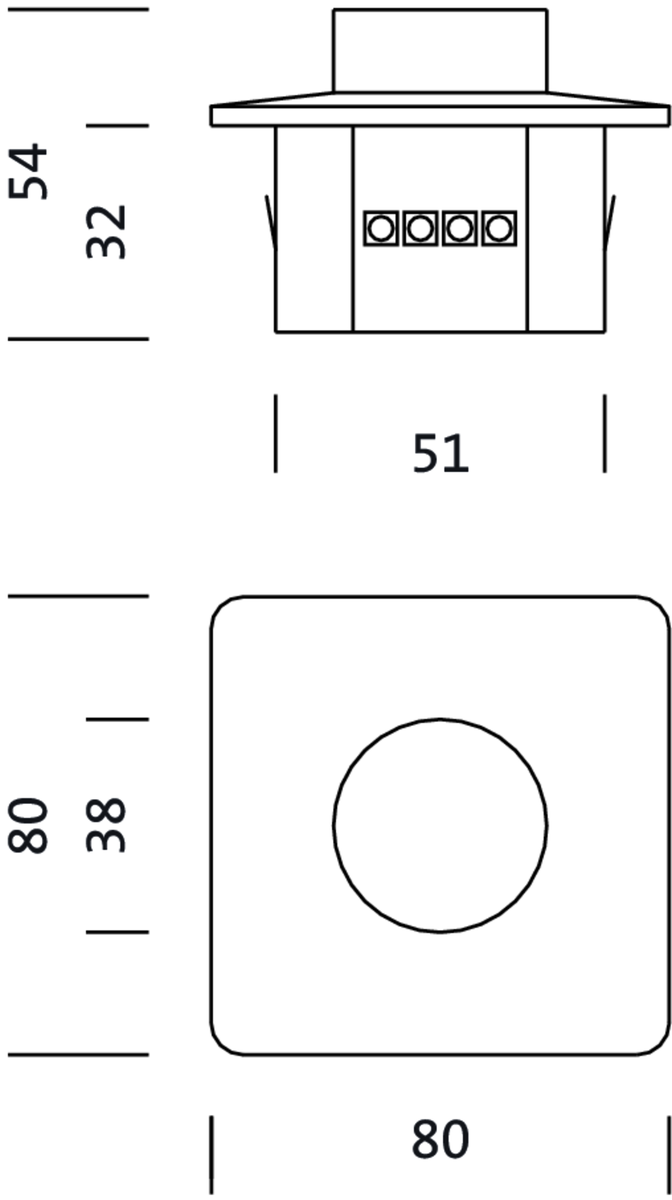

Dimensions, Weight

Length 80mm
Width 80mm
Height 32mm
Weight 0.1kg

Inputs

1x rotary button/push button
Connection screw terminal, 2-pole, max. 4.0mm²

Outputs

1x DALI
Connection screw terminal, 2-pole, max. 4mm²
Limiting max. 25x ECG DALI
Feature ON/OFF, bright/dark, storing of brightness power on illumination levels, expansion of control units or number of ECG DALI via parallel switching of several rotary potentiometers; incl. rotary button and frame of white plastic
Cable length max. 300m

System family
DALI

Product type
rotary dimmer

Product name
DALI

Order No.
5LZ902050TW

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
-5..+45°C

Certification, designation
CE

installation housing
plastic, grey

Colour specification
grey

Mounting method, mounting location
recessed, in the switch box

Supplement
only for mounting indoors

Nominal voltage
230V, 50/60Hz, AC

Length
80mm

Width
80mm

Height
32mm

Weight
0.1kg

1x rotary button/push button

Connection
screw terminal, 2-pole, max. 4.0mm²

1x DALI

Connection
screw terminal, 2-pole, max. 4mm²

Limiting
max. 25x ECG DALI

Feature
ON/OFF, bright/dark, storing of brightness power on illumination levels, expansion of control units or number of ECG DALI via parallel switching of several rotary potentiometers; incl. rotary button and frame of white plastic

Cable length
max. 300m
