Article presence detector

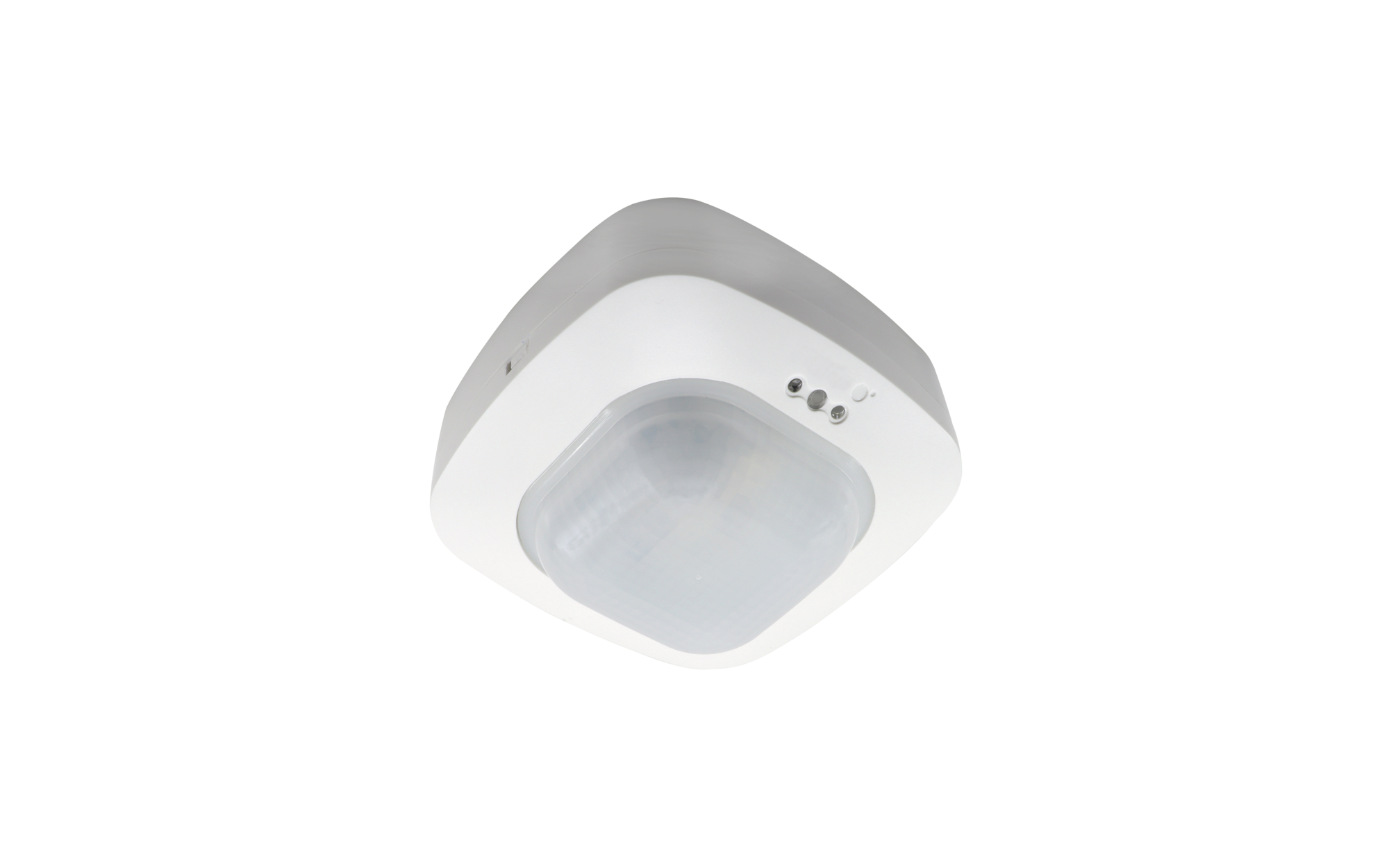

Product name IR-Quattro HD
Rated input power 0.5W
Protection rating IP20
Weight 0.3kg

IR-Quattro HD, presence detector, installation type: surface-mounted, mains connection: 220..240V, AC, 50/60Hz, housing, of plastic, pure white (RAL 9010), length: 120 mm, width: 120 mm, height: 65mm, multi-sensorlocal controlequipment: master, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, VDE, permissible ambient temperature for indoor applications: 0..+40°C, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details


Key data

Product type presence detector
Product name IR-Quattro HD
Order No. 5LZ925602


Lamps

Rated input power 0.5W


Operating device

Control DALI


Certificates, Standards

Protection rating IP20
Insulation class insulation class II (safety insulation)
Temperature range (operation) 0..+40°C
Certification, designation CE, VDE


Material, Colour

housing plastic, pure white (RAL 9010)
Colour specification pure white (RAL 9010)


Mounting

Mounting method, mounting location surface-mounted, to the ceiling
Mounting height 2.5..10m
Supplement only suitable for indoor use


Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC


Dimensions, Weight

Length 120mm
Width 120mm
Height 65mm
Weight 0.3kg


Inputs

1x PIR movement sensor
Connection PIR sensor (passive-infrared)
Detection angle 360°

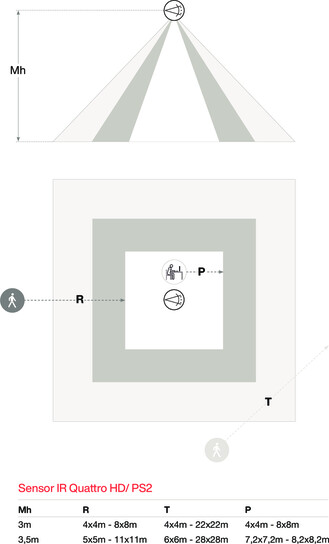

Detection range radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m
Detection range min./max. 4.8x 4.8m/8.2x 8.2m
Feature square detection area

4x push button input
Feature operating mode: full or semi automatic


Outputs

1x DALI
Feature grouping of luminaires in window, corridor or blackboard, integrated DALI power supply 150mA

Product type
presence detector

Product name
IR-Quattro HD

Order No.
5LZ925602

Rated input power
0.5W

Control
DALI

Protection rating
IP20

Insulation class
insulation class II (safety insulation)

Temperature range (operation)
0..+40°C

Certification, designation
CE, VDE

housing
plastic, pure white (RAL 9010)

Colour specification
pure white (RAL 9010)

Mounting method, mounting location
surface-mounted, to the ceiling

Mounting height
2.5..10m

Supplement
only suitable for indoor use

Nominal voltage
220..240V, 50/60Hz, AC

Length
120mm

Width
120mm

Height
65mm

Weight
0.3kg

1x PIR movement sensor

Connection
PIR sensor (passive-infrared)

Detection angle
360°

Detection range
radial min./max. 5x 5m/11x 11m, tangential min./max. 6x 6m/28x 28m

Detection range
min./max. 4.8x 4.8m/8.2x 8.2m

Feature
square detection area

4x push button input

Feature
operating mode: full or semi automatic

1x DALI

Feature
grouping of luminaires in window, corridor or blackboard, integrated DALI power supply 150mA
