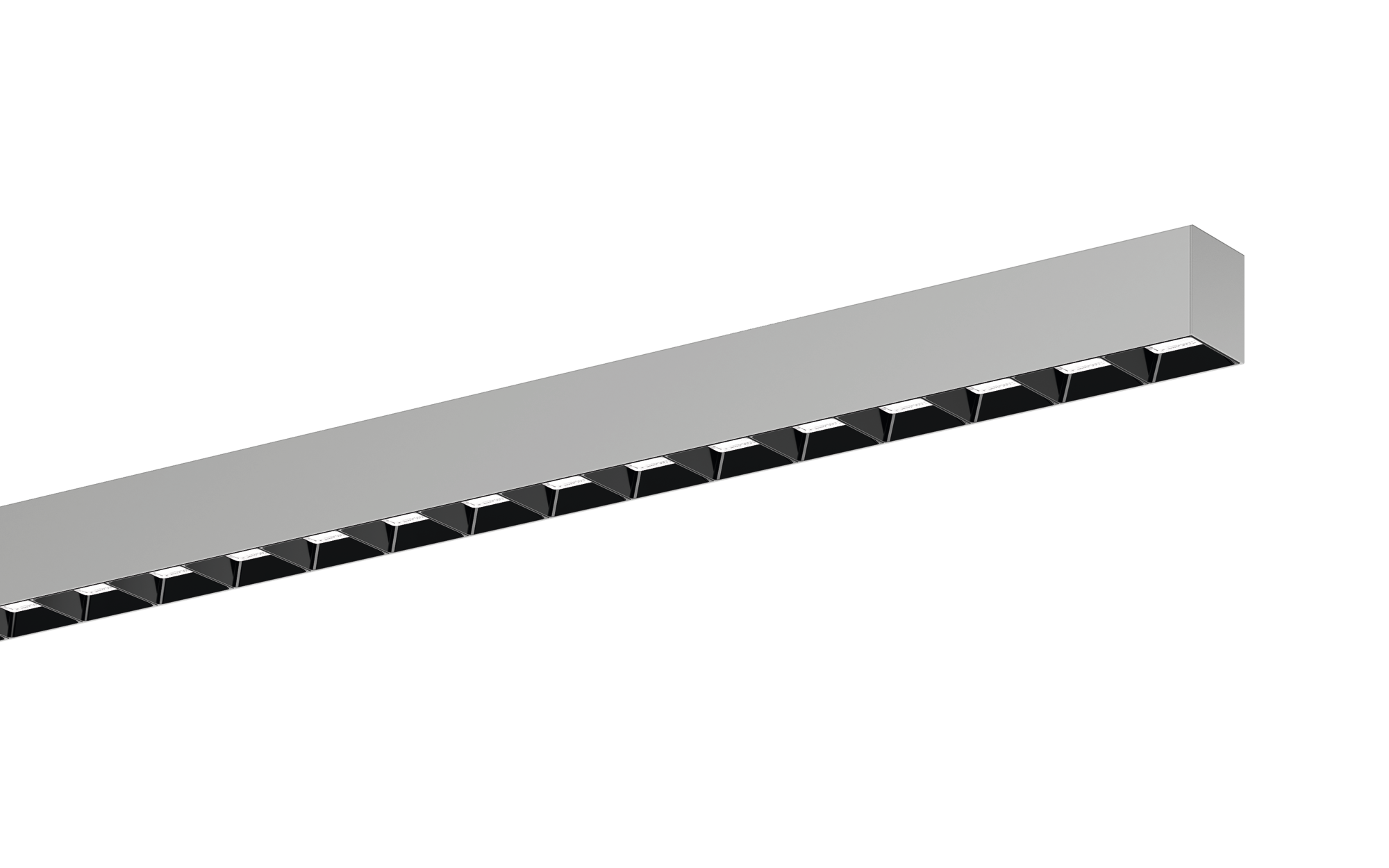

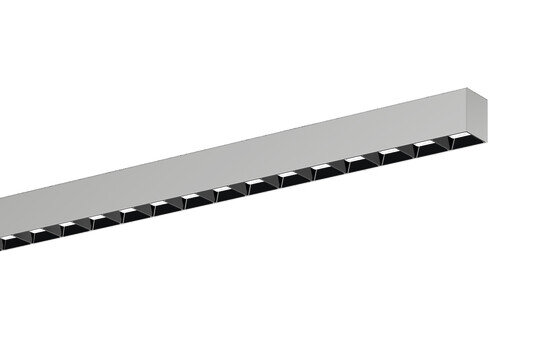

Silica® 21, wallwasher, ELDACON® L, darklight reflector, black, 2700..6500K, DALI DT8, metallic grey (RAL 9006)
Close
Article office luminaire
Product name Silica® 21
Lamp LED
Rated luminous flux 3280lm
Luminous efficacy 96lm/W
Colour temperature 2700..6500K
Colour rendering CRI > 80
Rated input power 34.1W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Weight 3.0kg

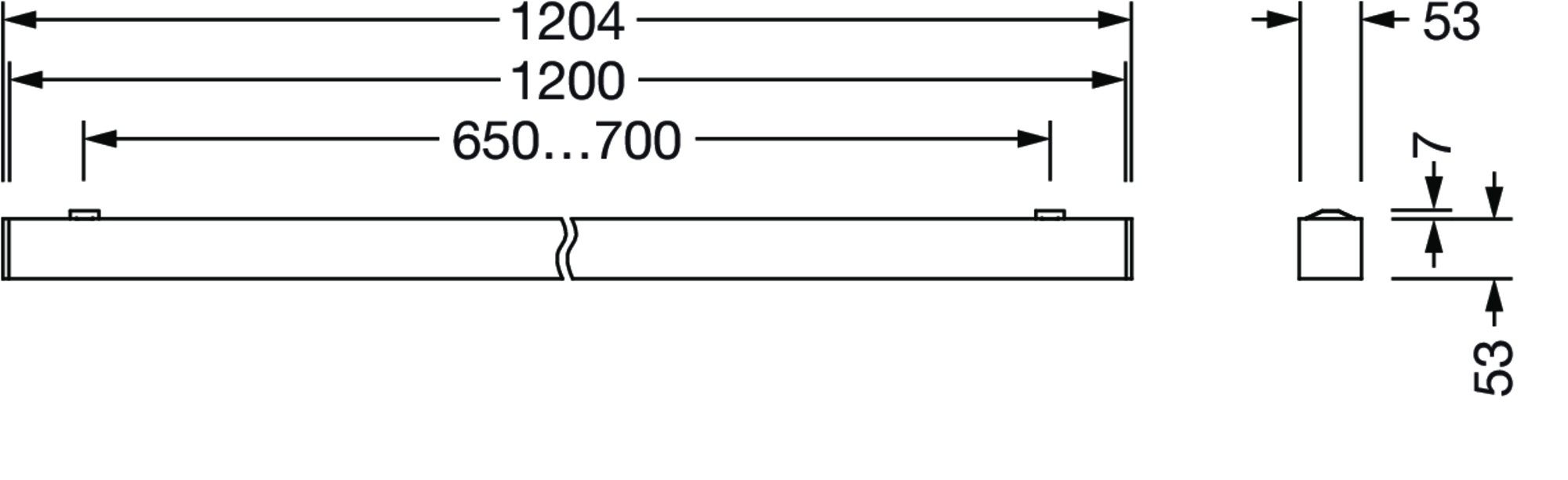

Silica® 21, office luminaire, primary light control with darklight reflector, of PMMA, black, light emission: direct distribution, primary light characteristic: asymmetric, installation type: surface-mounted, LED, rated luminous flux: 3.280lm, luminous efficacy: 96lm/W, light colour: 8tw, colour temperature: 2700..6500K, control gear: DALI DT8, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 34.1W, luminaire housing, of aluminium, metallic grey (RAL 9006), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for application programs
Product details

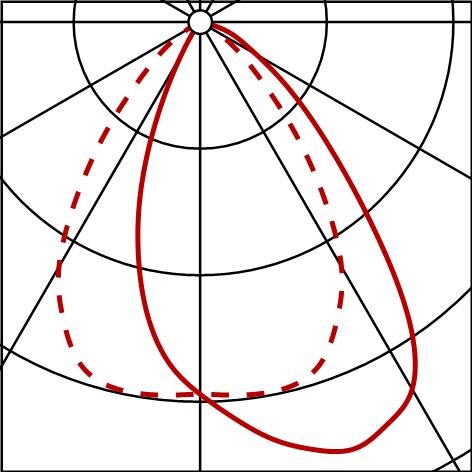

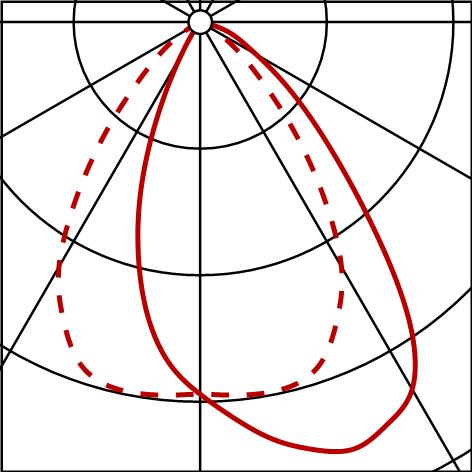

Photometric report / planning data
Silica® 21
office luminaire, metallic grey (RAL 9006), DALI DT8, 3280lm, 8tw, 1204x53mm, Connection: terminal
Lamps: 1x LED, factory setting
Ordercode: 51MX24TAT4S
Silica® 21
Lamps: 1x LED, individual setting
Ordercode: 51MX24TAT4S
Silica® 21
Lamps: 1x LED, individual setting
Ordercode: 51MX24TAT4S
