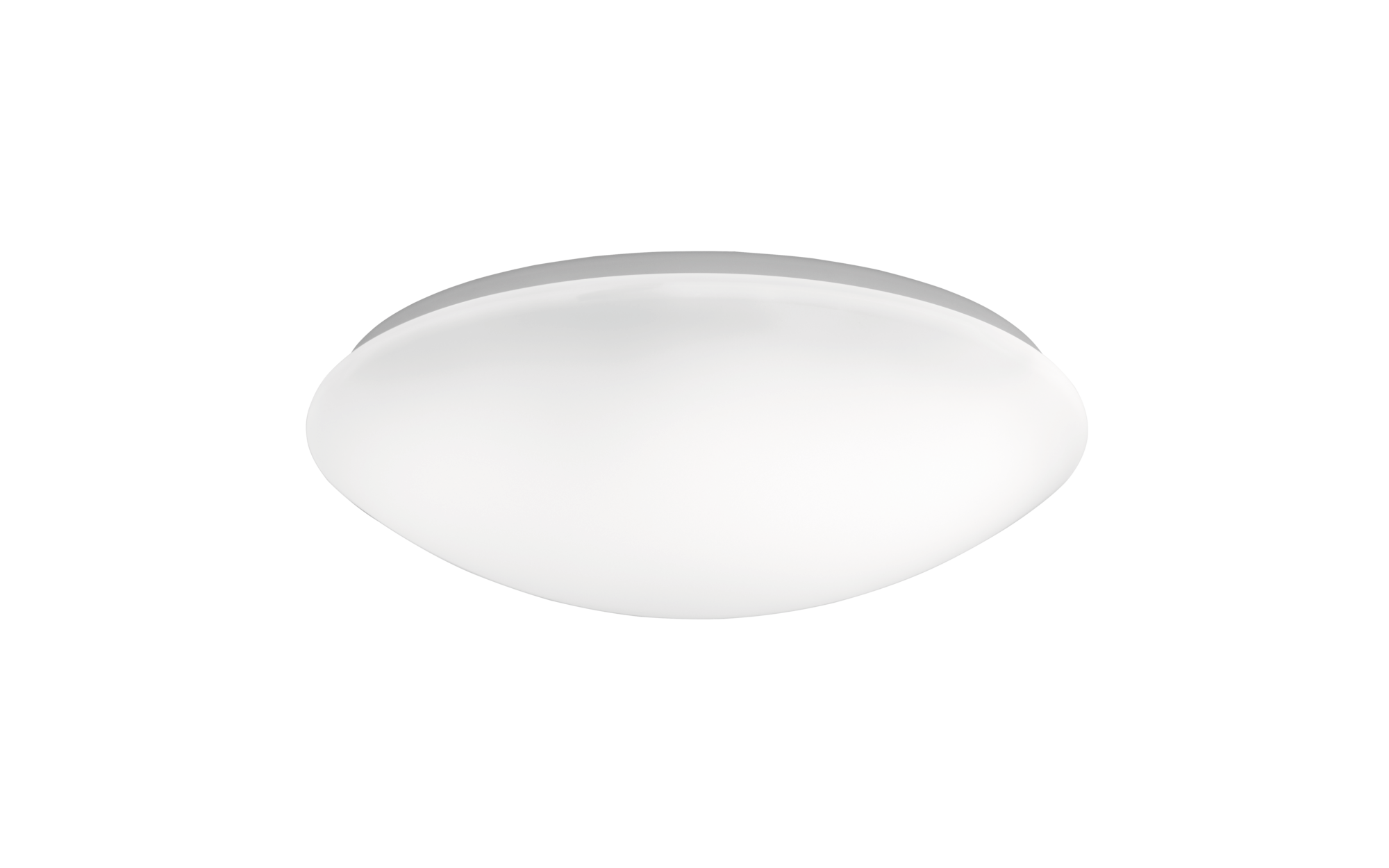

Rondel 31

Product typesConfiguration & data sheets

The Round 31 is an efficient wall and ceiling luminaire that provides optimal lighting in entrance areas, stairwells, hallways, corridors and adjoining rooms. Thanks to its high level of resistance, it is a robust luminaire suitable for harsh environments. In addition, the Round 31 can be adapted to all desired lighting scenarios with multi-lumen drivers in On/Off, DALI 2 and multi-colour function.

Our basic solution: Round 31 is our practical wall and ceiling luminaire as a perfect addition with high efficiency and quality

Product types

with convex cover

with convex cover

Intro product family

Key data

Article wall and ceiling luminaire
Lighting effect direct symmetric distribution, 120°
Net luminous flux 1800lm to 4700lm
Colour temperature 3000/4000K
Control ON/OFF Multilumen; DALI 2, Multilumen
Cover PMMA
Protection rating IP40
Insulation class insulation class I (protective earthing)
Impact resistance IK02

Special features

Luminaire in a minimalist design in three construction sizes for wall or ceiling surface mounting
For entrance areas, staircases, corridors, hallways and adjoining rooms
ON/OFF and DALI 2 variants for easy light control
Eight different lighting packages easily adjustable via DIP switch
Light colour between 3000 and 4000K easily adjustable via DIP switch
Easy installation, cover can be opened without tools via bayonet catch

Configuration & data sheets

Rated luminous flux (lm)

Control

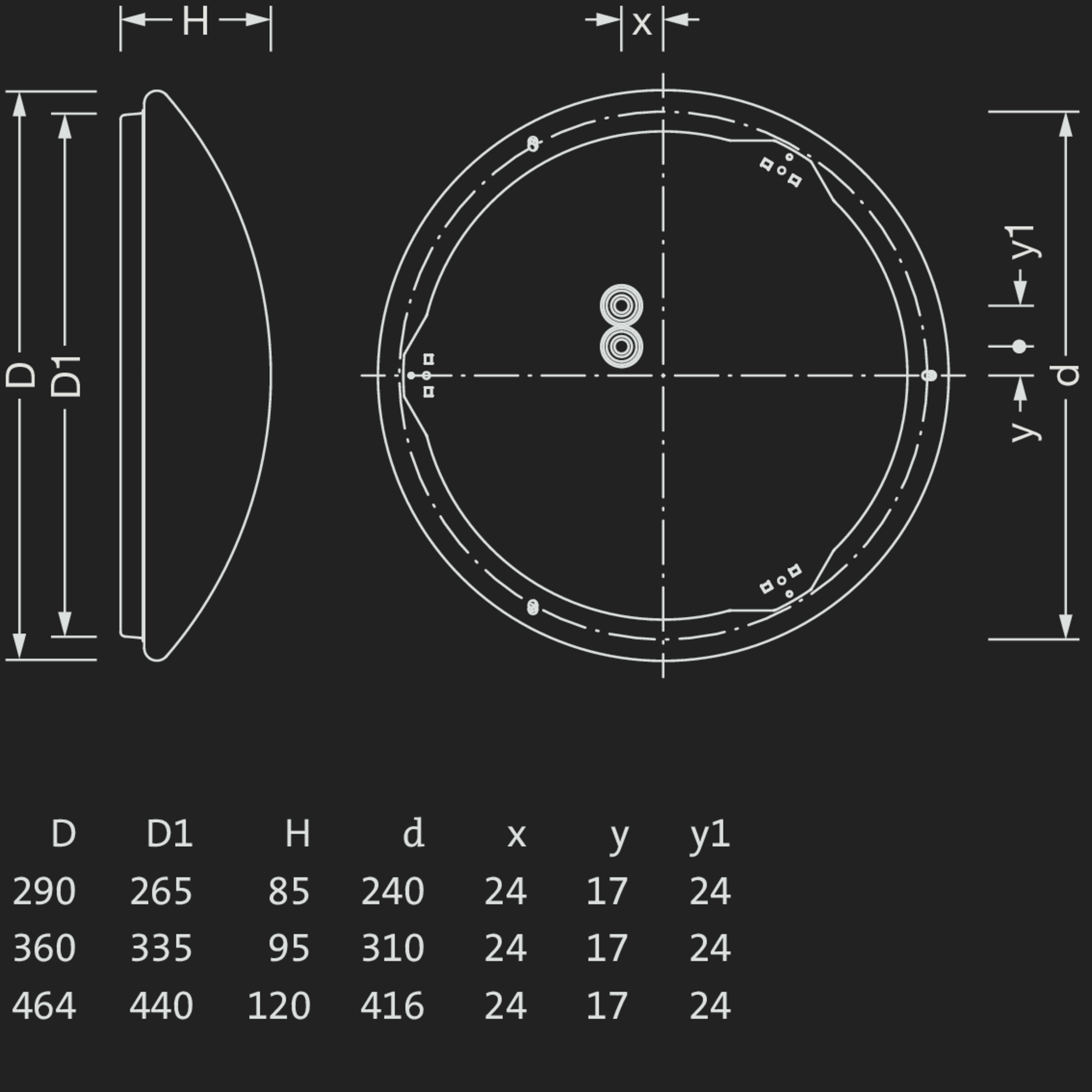

Dimension (mm)

  • ceiling or wall installation without other luminaire-specific mounting accessories

Results

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MA1G20B GTIN (EAN): 4069025155900
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 801800lm20W120lm/WON/OFF Multilumen2900.899.80
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MB1G30B GTIN (EAN): 4069025155924
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 803000lm21W120lm/WON/OFF Multilumen3601.3119.40
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MC1G40B GTIN (EAN): 4069025155955
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 804700lm39W121lm/WON/OFF Multilumen4641.7162.50
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EA1G20B GTIN (EAN): 4069025155849
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 802500lm20W120lm/WDALI 2, Multilumen2900.8139.00
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EB1G30B GTIN (EAN): 4069025155863
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 803000lm19W121lm/WDALI 2, Multilumen3601.0166.50
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EC1G40B GTIN (EAN): 4069025155887
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlD (mm)Wt. (kg)Price (EUR)
3000/4000KCRI > 804700lm39W121lm/WDALI 2, Multilumen4641.7215.50
Show all details
Tender textData sheet (PDF, full)Complete download list

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MA1G20BGTIN (EAN): 4069025155900

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux1800lm
Connected load20W
Luminous efficacy120lm/W
ControlON/OFF Multilumen
D (mm)290
Wt. (kg)0.8
Price (EUR)99.80
Show all details

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MB1G30BGTIN (EAN): 4069025155924

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load21W
Luminous efficacy120lm/W
ControlON/OFF Multilumen
D (mm)360
Wt. (kg)1.3
Price (EUR)119.40
Show all details

Rondel 31, direct distribution, 120°, Light colour 830/840, ON/OFF Multilumen, white

Order No.: 5PJDN11MC1G40BGTIN (EAN): 4069025155955

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux4700lm
Connected load39W
Luminous efficacy121lm/W
ControlON/OFF Multilumen
D (mm)464
Wt. (kg)1.7
Price (EUR)162.50
Show all details

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EA1G20BGTIN (EAN): 4069025155849

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux2500lm
Connected load20W
Luminous efficacy120lm/W
ControlDALI 2, Multilumen
D (mm)290
Wt. (kg)0.8
Price (EUR)139.00
Show all details

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EB1G30BGTIN (EAN): 4069025155863

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load19W
Luminous efficacy121lm/W
ControlDALI 2, Multilumen
D (mm)360
Wt. (kg)1.0
Price (EUR)166.50
Show all details

Rondel 31, direct distribution, 120°, Light colour 830/840, DALI 2, Multilumen, white

Order No.: 5PJDN11EC1G40BGTIN (EAN): 4069025155887

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux4700lm
Connected load39W
Luminous efficacy121lm/W
ControlDALI 2, Multilumen
D (mm)464
Wt. (kg)1.7
Price (EUR)215.50
Show all details
