DL® 20

Product typesConfiguration & data sheets

DL® 20 impressively combines the benefits of innovative lighting technology with an outstanding design – the perfect symbiosis. High efficiency and a long service life of up to 100,000 hours are guaranteed. Two light colours and three light distributions ensure maximum flexibility in application. The technical details are harmoniously integrated into the design and high quality white glass closes the luminaire from below.

DL® 20

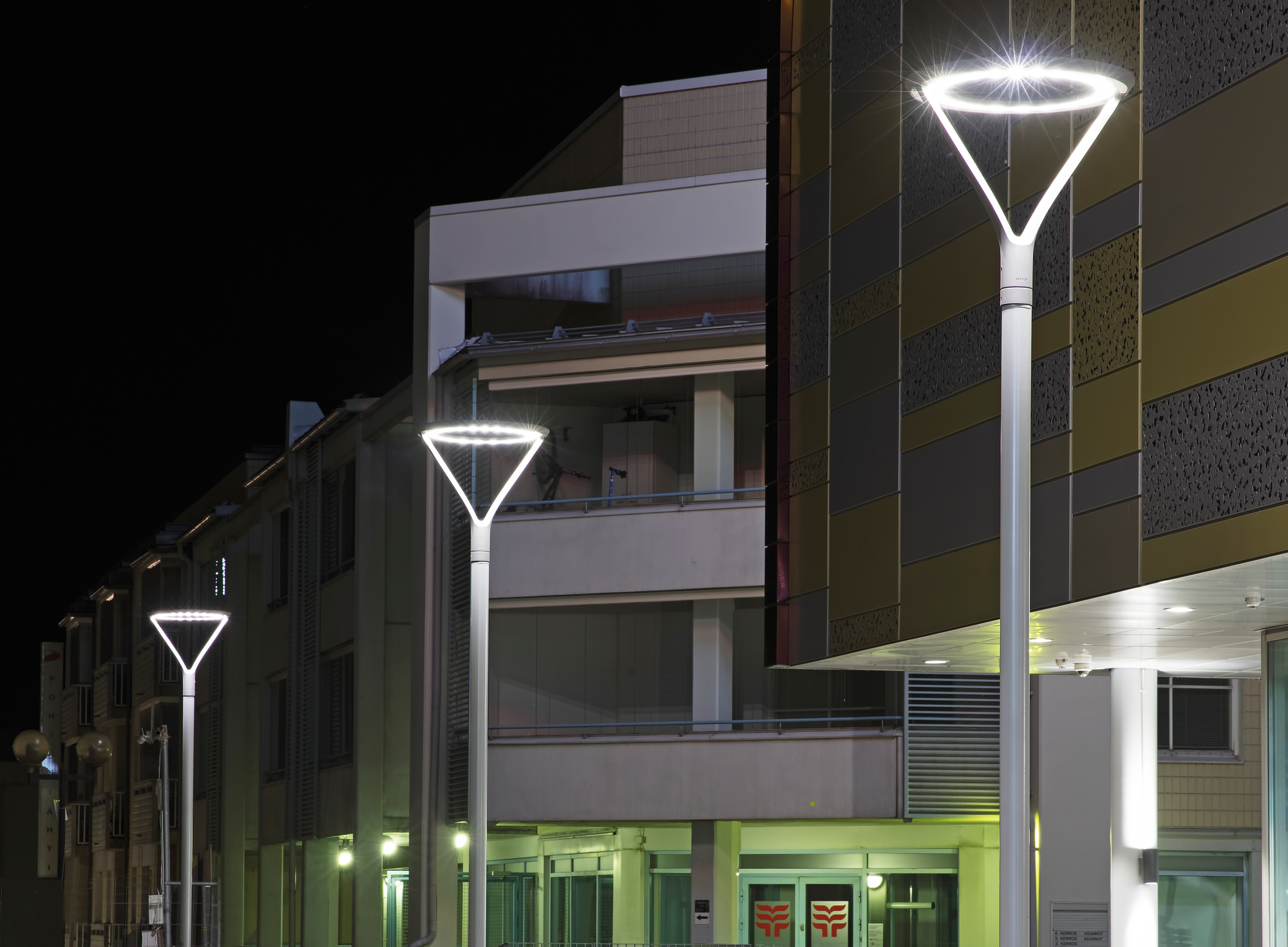

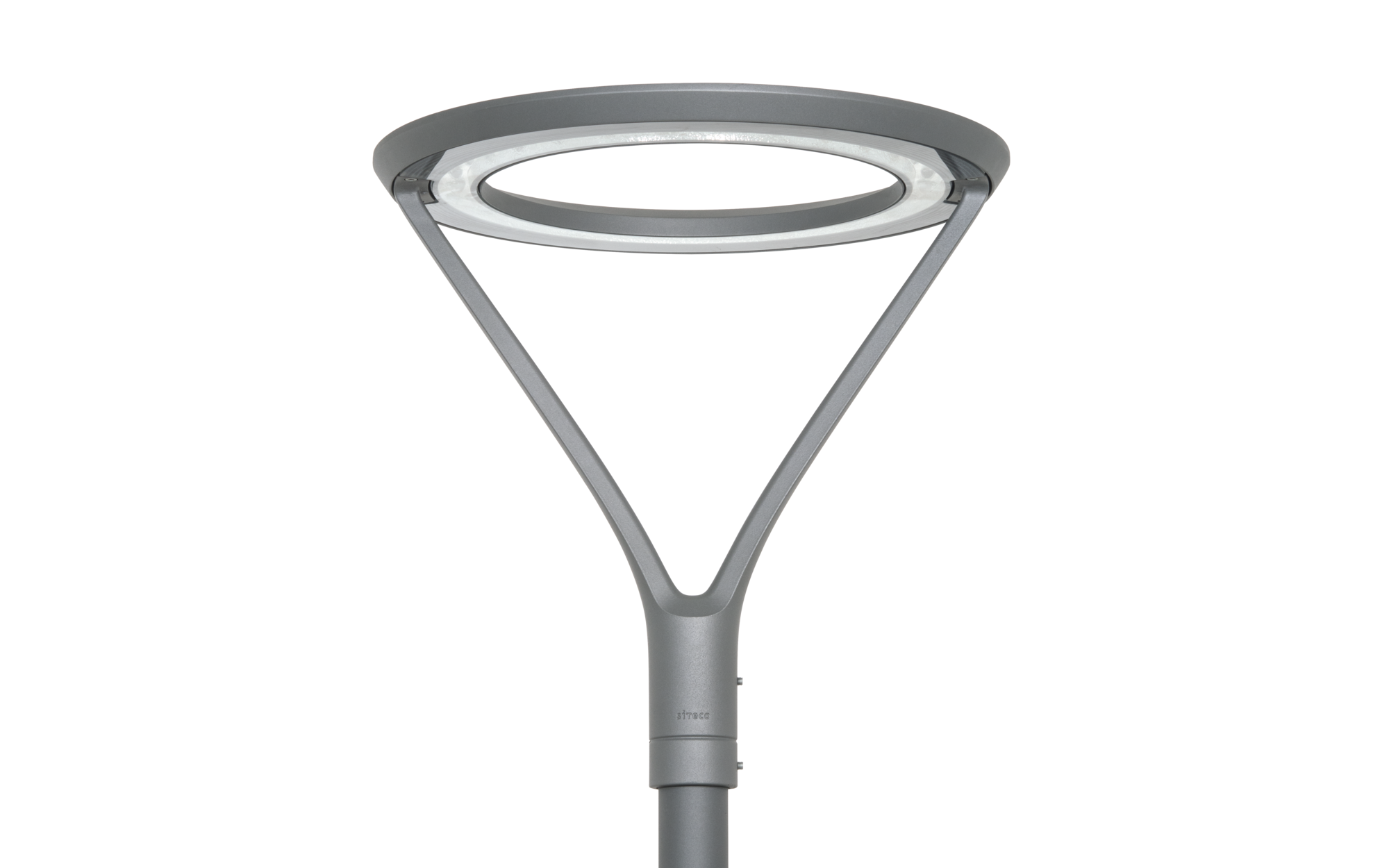

The design object among the street luminaires

Product types

DL® 20

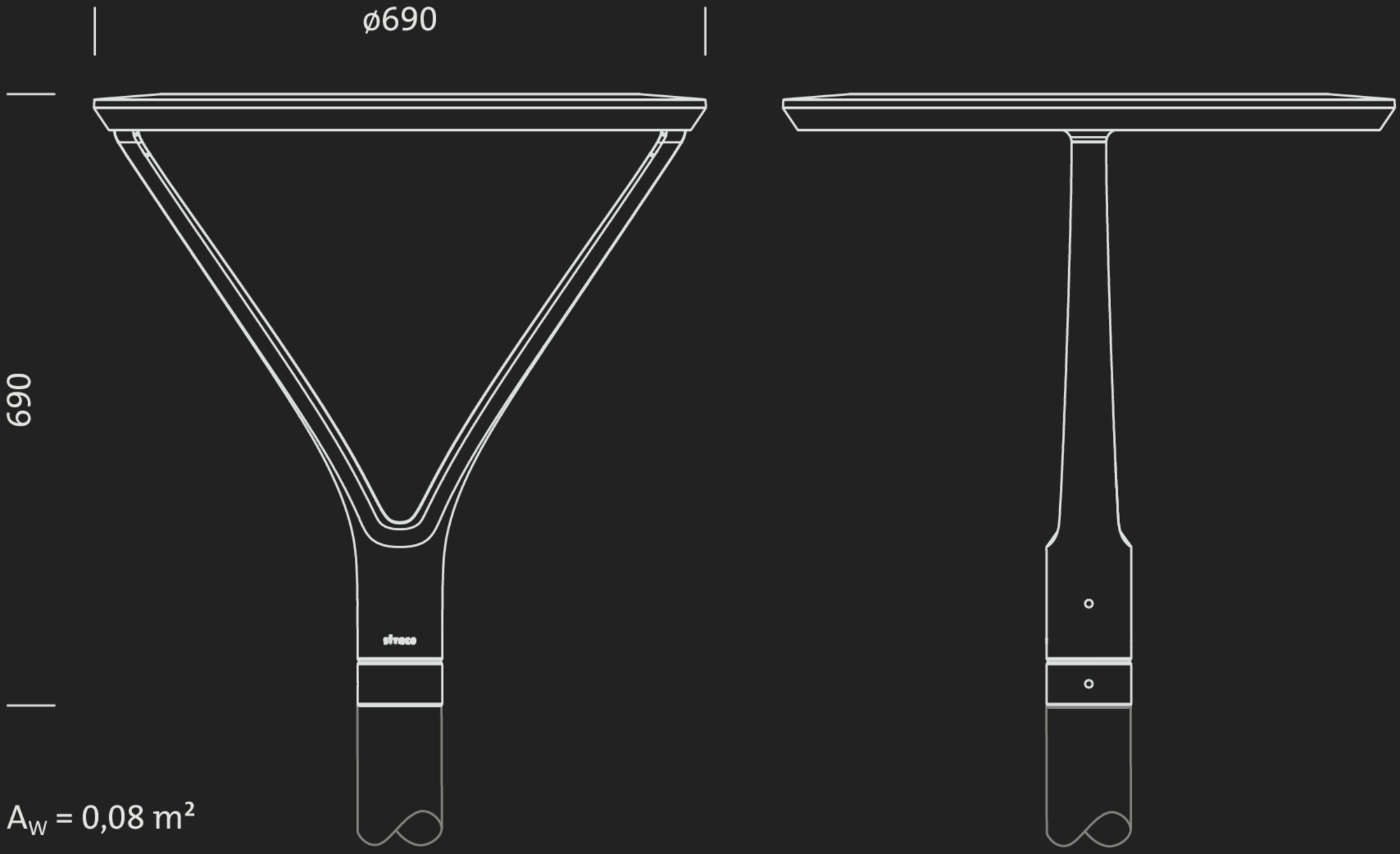

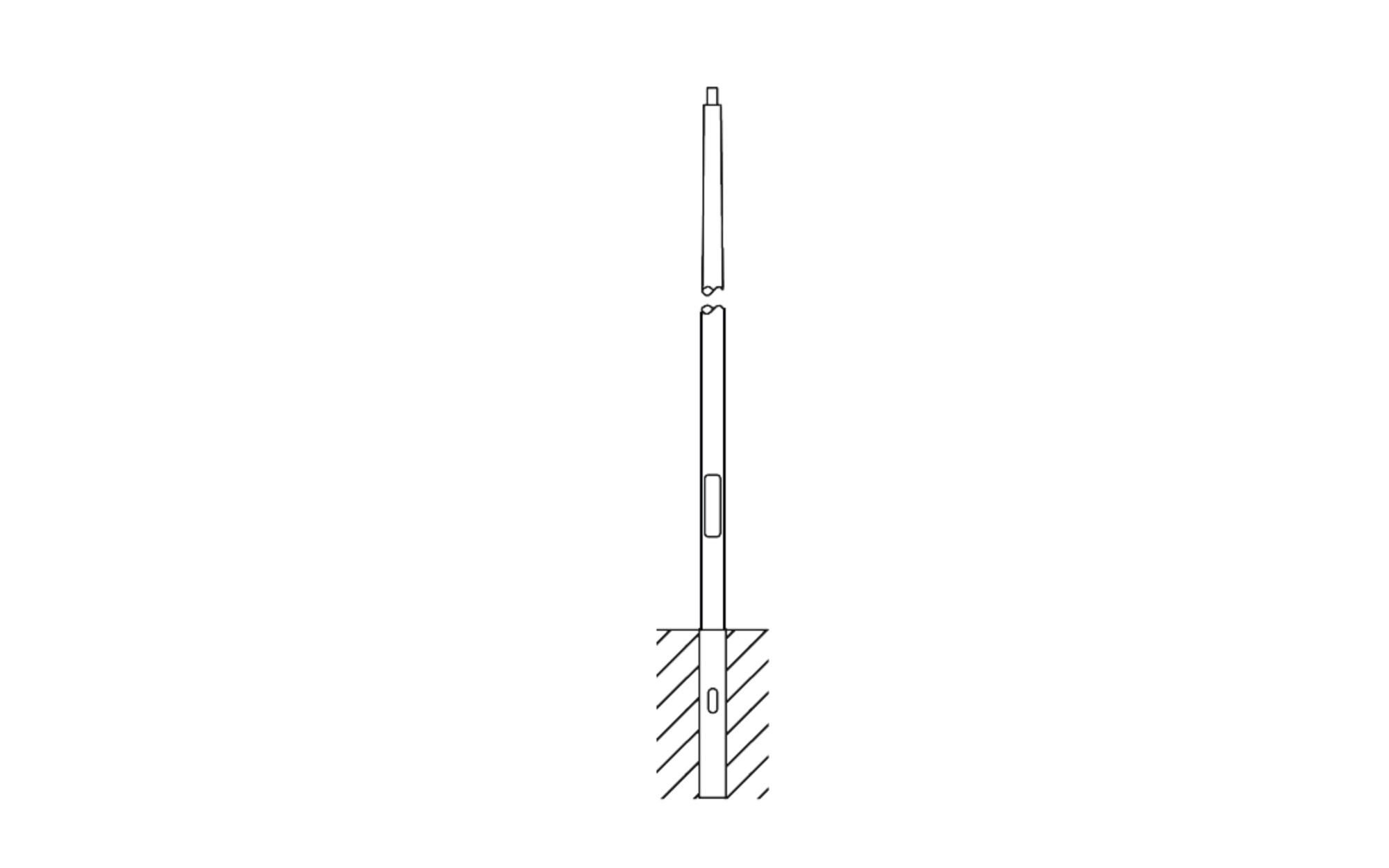

design mast conical round for DL® 20

DL® 20

Intro product family

Key data

Article mast luminaire
Net luminous flux 3010lm to 5380lm
Colour temperature 2700K; 2200K; 3000K; 4000K
Lighting effect direct asymmetric wide distribution; direct asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Protection rating IP66
Insulation class insulation class II (safety insulation)

Special features

Elegant design based on lantern-shaped luminaires with robust workmanship (IP66, IK08) and dirt-resistant toughened safety glass
Low-maintenance continuous operation of up to 100,000 hours with minimum luminous flux degradation thanks to optimum thermal management
Precise light distributions due to MIRO®-quality double reflector technology for various road and plaza situations
Optimum glare control even allows glare-free view into the luminaire

Configuration & data sheets

Lighting effect

Light distribution

Colour temperature

Rated luminous flux (lm)

  • luminaire incl. pre-installed connection cable; for Plus version: please separately order additional cable set with length 0.7m; (necessary for integration of the Service Box into the supply line with mounted luminaires)
  • for Plus version: please order Siteco® Service Box for configuring the LED module additionally if required
  • please order further SLC lighting management components separately if required
-
  • CRI > 80 / 3000K on request

Results

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283NA008 GTIN (EAN): 4058352271766
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 703010lmST1.2aPlus27281413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283NA008P GTIN (EAN): 4058352271780
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705300lmST1.2aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283NR008 GTIN (EAN): 4058352271803
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 703050lmP1.0aPlus27281413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283NR008P GTIN (EAN): 4058352271827
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705380lmP1.0aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283NS008 GTIN (EAN): 4058352271858
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 703030lmPL1.2sPlus27281413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283NS008P GTIN (EAN): 4058352271865
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705340lmPL1.2sPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283WA008 GTIN (EAN): 4058352271889
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703020lmST1.2aPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283WA008P GTIN (EAN): 4058352271902
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 704180lmST1.2aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283WR008 GTIN (EAN): 4058352271926
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703060lmP1.0aPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283WR008P GTIN (EAN): 4058352271940
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 704240lmP1.0aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283WS008 GTIN (EAN): 4058352271964
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703040lmPL1.2sPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283WS008P GTIN (EAN): 4058352271988
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 704210lmPL1.2sPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512832R008 GTIN (EAN): 4058352546352
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 703060lmP1.0aPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512832R008P GTIN (EAN): 4058352546376
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 704240lmP1.0aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512832S008 GTIN (EAN): 4058352546406
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 703040lmPL1.2sPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512832S008P GTIN (EAN): 4058352546413
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 704210lmPL1.2sPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512832A008 GTIN (EAN): 4058352546314
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 703020lmST1.2aPlus36361713.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512832A008P GTIN (EAN): 4058352546338
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2200KCRI > 704180lmST1.2aPlus53542413.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512836A008 GTIN (EAN): 4058352042830
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 703020lmST1.2aPlus29291513.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512836A008P GTIN (EAN): 4058352042854
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 704200lmST1.2aPlus41422013.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512836R008 GTIN (EAN): 4058352042878
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 703030lmP1.0aPlus29291513.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512836R008P GTIN (EAN): 4069025024732
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 704220lmP1.0aPlus41422013.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512836S008 GTIN (EAN): 4069025024756
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 703050lmPL1.2sPlus29291513.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512836S008P GTIN (EAN): 4069025024770
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
2700KCRI > 704250lmPL1.2sPlus41422013.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283NA008GTIN (EAN): 4058352271766

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3010lm
Light distributionST1.2a
ControlPlus
Pnom begin service life27
Pnom end service life28
Pred at 50% lumin. flux14
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283NA008PGTIN (EAN): 4058352271780

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5300lm
Light distributionST1.2a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283NR008GTIN (EAN): 4058352271803

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3050lm
Light distributionP1.0a
ControlPlus
Pnom begin service life27
Pnom end service life28
Pred at 50% lumin. flux14
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283NR008PGTIN (EAN): 4058352271827

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5380lm
Light distributionP1.0a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283NS008GTIN (EAN): 4058352271858

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3030lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life27
Pnom end service life28
Pred at 50% lumin. flux14
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283NS008PGTIN (EAN): 4058352271865

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5340lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283WA008GTIN (EAN): 4058352271889

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3020lm
Light distributionST1.2a
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA51283WA008PGTIN (EAN): 4058352271902

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4180lm
Light distributionST1.2a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283WR008GTIN (EAN): 4058352271926

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3060lm
Light distributionP1.0a
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA51283WR008PGTIN (EAN): 4058352271940

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4240lm
Light distributionP1.0a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283WS008GTIN (EAN): 4058352271964

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3040lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA51283WS008PGTIN (EAN): 4058352271988

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux4210lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512832R008GTIN (EAN): 4058352546352

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux3060lm
Light distributionP1.0a
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512832R008PGTIN (EAN): 4058352546376

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux4240lm
Light distributionP1.0a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512832S008GTIN (EAN): 4058352546406

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux3040lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512832S008PGTIN (EAN): 4058352546413

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux4210lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512832A008GTIN (EAN): 4058352546314

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux3020lm
Light distributionST1.2a
ControlPlus
Pnom begin service life36
Pnom end service life36
Pred at 50% lumin. flux17
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512832A008PGTIN (EAN): 4058352546338

Colour temperature2200K
Colour renderingCRI > 70
Luminous flux4180lm
Light distributionST1.2a
ControlPlus
Pnom begin service life53
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512836A008GTIN (EAN): 4058352042830

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux3020lm
Light distributionST1.2a
ControlPlus
Pnom begin service life29
Pnom end service life29
Pred at 50% lumin. flux15
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric wide distribution, ST1.2a

Order No.: 5XA512836A008PGTIN (EAN): 4058352042854

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux4200lm
Light distributionST1.2a
ControlPlus
Pnom begin service life41
Pnom end service life42
Pred at 50% lumin. flux20
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512836R008GTIN (EAN): 4058352042878

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux3030lm
Light distributionP1.0a
ControlPlus
Pnom begin service life29
Pnom end service life29
Pred at 50% lumin. flux15
Wt. (kg)13.5
Show all details

DL® 20, direct asymmetric extremely wide distribution, P1.0a

Order No.: 5XA512836R008PGTIN (EAN): 4069025024732

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux4220lm
Light distributionP1.0a
ControlPlus
Pnom begin service life41
Pnom end service life42
Pred at 50% lumin. flux20
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512836S008GTIN (EAN): 4069025024756

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux3050lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life29
Pnom end service life29
Pred at 50% lumin. flux15
Wt. (kg)13.5
Show all details

DL® 20, direct symmetric wide distribution, PL1.2s

Order No.: 5XA512836S008PGTIN (EAN): 4069025024770

Colour temperature2700K
Colour renderingCRI > 70
Luminous flux4250lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life41
Pnom end service life42
Pred at 50% lumin. flux20
Wt. (kg)13.5
Show all details

Optional accessories

Articleconnection cable 'mast' for version Plus, OZ-500, 5X 1.5mm², L= 0.7mPU1 pc.Wt. (kg)0.2Order No.: 5EA6B00L00GTIN (EAN): 4058352277430Show all details
