solutions for manual control of luminaires
The office is the place where work and life come together. SITECO therefore puts people at the centre: for optimal visual comfort, maximum adaptability in everyday life and innovative concepts for greater well-being.

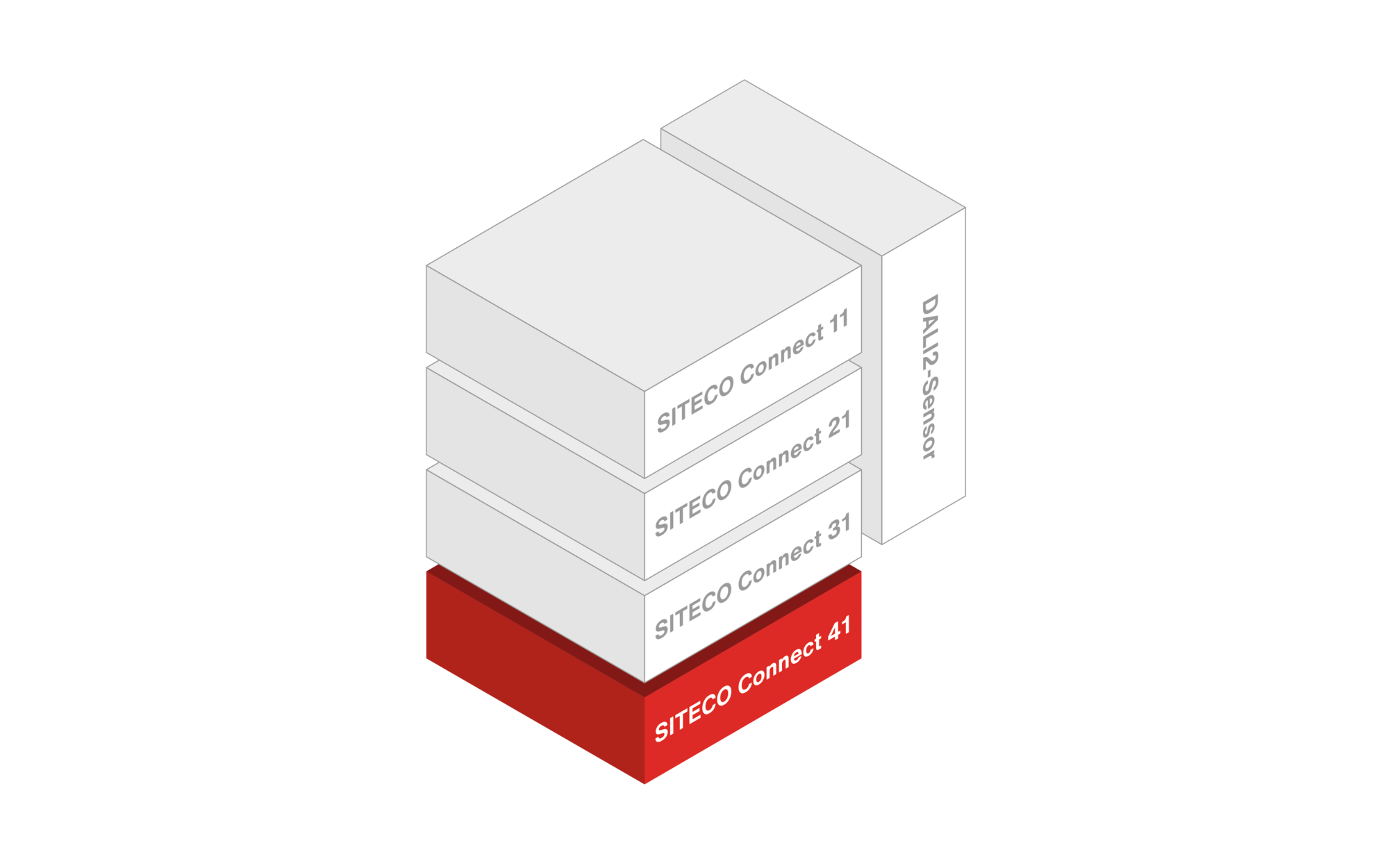

SITECO Connect solution kit
SITECO Connect 41 Rotary - manual control with tunable white
Intro product family
Key data
Article rotary dimmer
Control DALI
Special features
Standalone system for use in classrooms, training rooms and production areas enables multifunctional use with one solution product
Already contains the complete intelligence for room-related lighting control. A DALI bus voltage supply is integrated. This reduces complexity and saves space
Connection of all luminaires via DALI reduces the cabling effort
Easy control of luminaires: ON/OFF/dimming/colour temperature

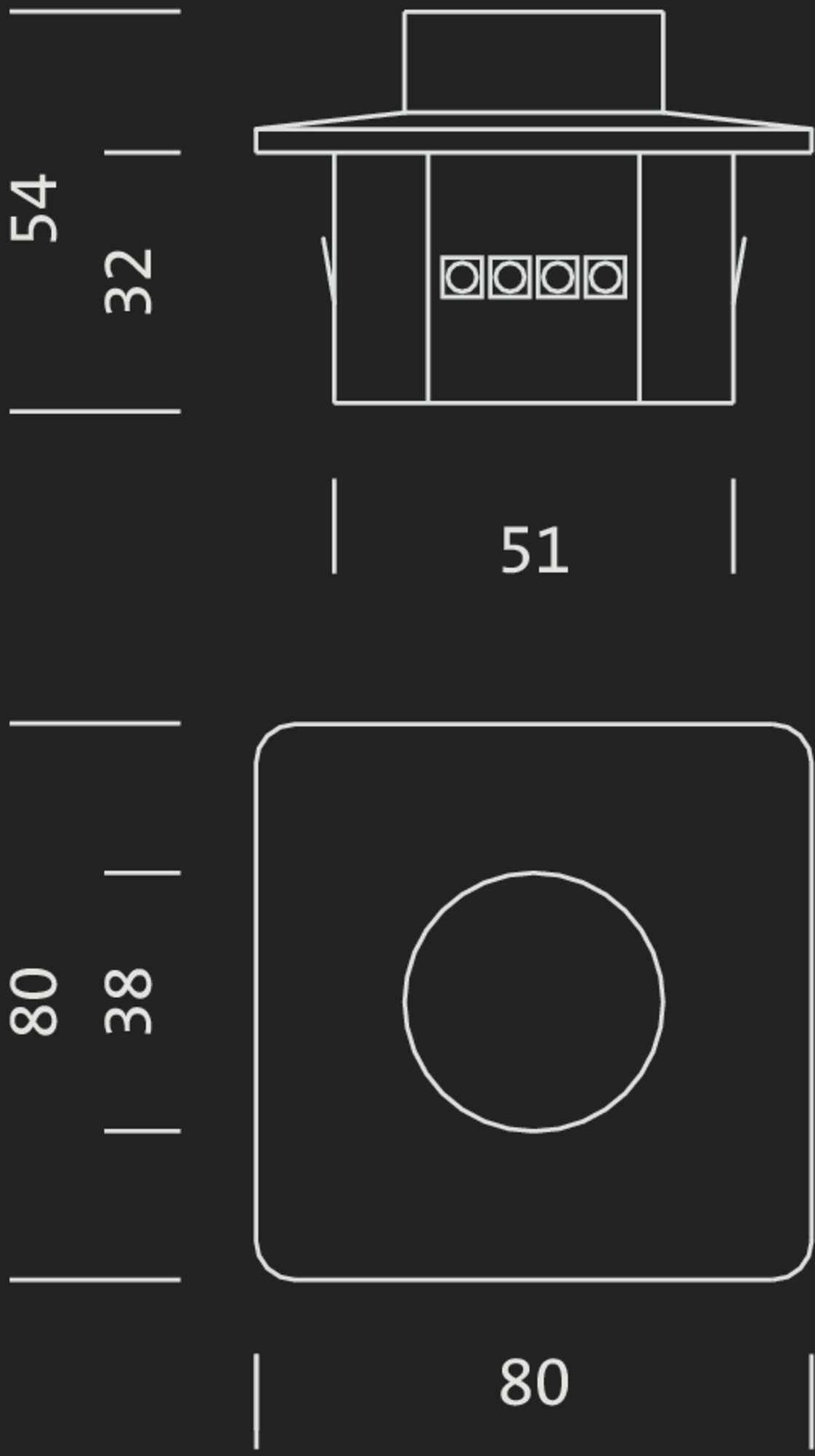

Configuration & data sheets
- can be used as active or passive rotary dimmer
- incl. rotary button and frame of white plastic
Results
rotary dimmer
Order No.: 5LZ902050TW GTIN (EAN): 4058352145807
| Family | Article | Equipment | Control | Colour | Installation location | Wt. (kg) |
|---|---|---|---|---|---|---|
| SITECO Connect 41 | rotary dimmer | master | DALI | grey | in the switch box | 0.1 |
rotary dimmer
Order No.: 5LZ902050TWGTIN (EAN): 4058352145807
| Family | SITECO Connect 41 |
|---|---|
| Article | rotary dimmer |
| Equipment | master |
| Control | DALI |
| Colour | grey |
| Installation location | in the switch box |
| Wt. (kg) | 0.1 |
