Apollon® 31
The Apollon® family impresses with its integrative design, homogeneous illumination and advanced technology. Thanks to the different geometries and installation variants, the versatile family of luminaires is perfect for the entire office building. The Apollon® 31 impresses with its long service life and high-quality metal design. Quick installation is possible thanks to optimized connection technology.
Our basic solution: Apollon® 31 is our practical recessed-mounted luminaire as a perfect addition with high efficiency and quality
Product types
Apollon® 31 with square housing
Intro product family
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 3600lm to 4000lm
Colour temperature 3000/4000K; 4000/5000K; 3000K; 4000K
Control ON/OFF; DALI 2, Multilumen
Protection rating IP20/IP40
Service life 50000h (L85/B50) at AT = 25°C
Special features
Apollon® 31 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Long-life replacement for traditional louvre solutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels
Configuration & data sheets
- lay-in mounting into system ceilings without recessing accessories; for installation in ceiling cutout and for other types of installation: please order mounting accessories separately
- recessing into cut ceiling aperture either with a quick mounting bracket or with a mounting frame; please order installation accessories matching the luminaire separately
Results

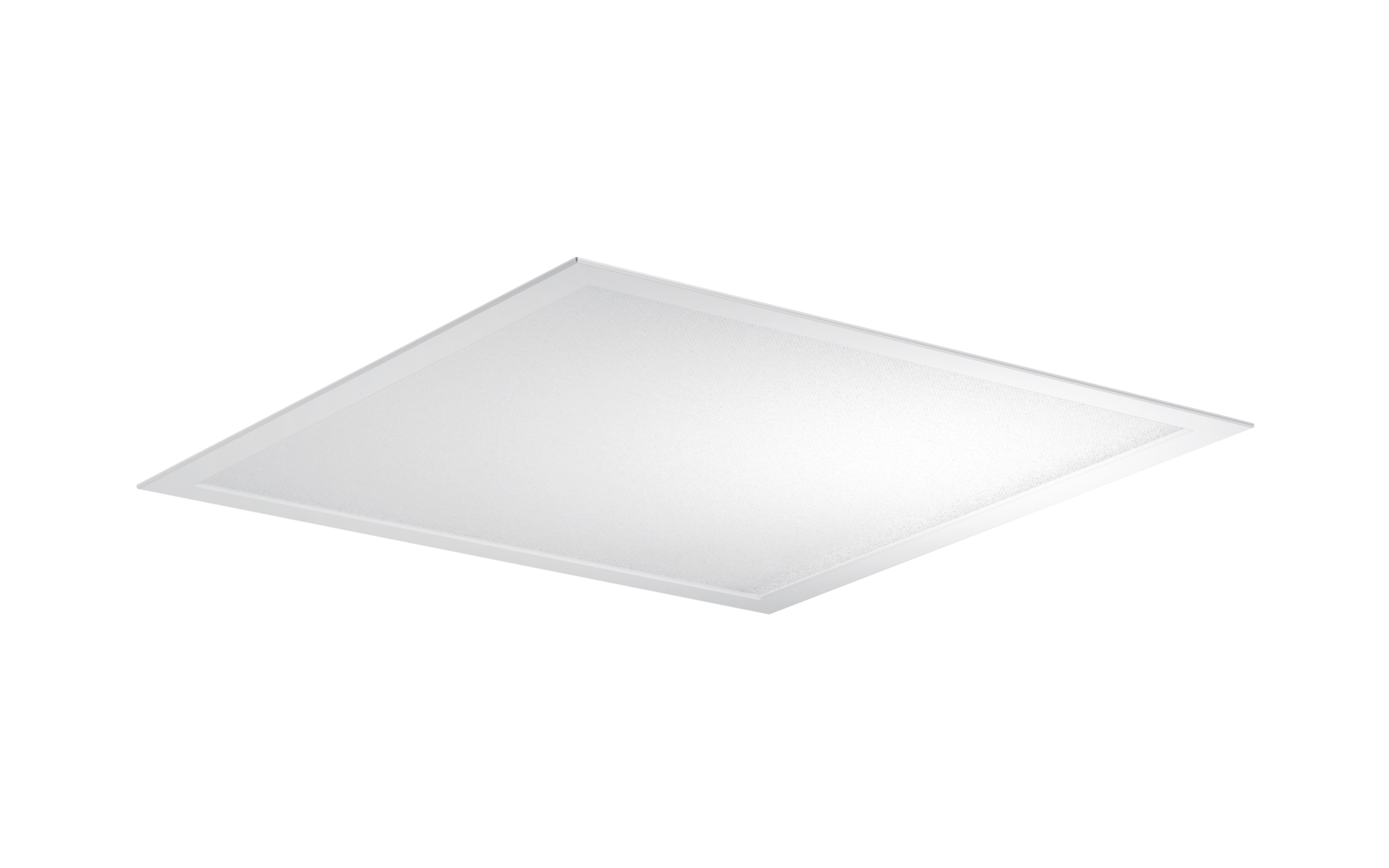

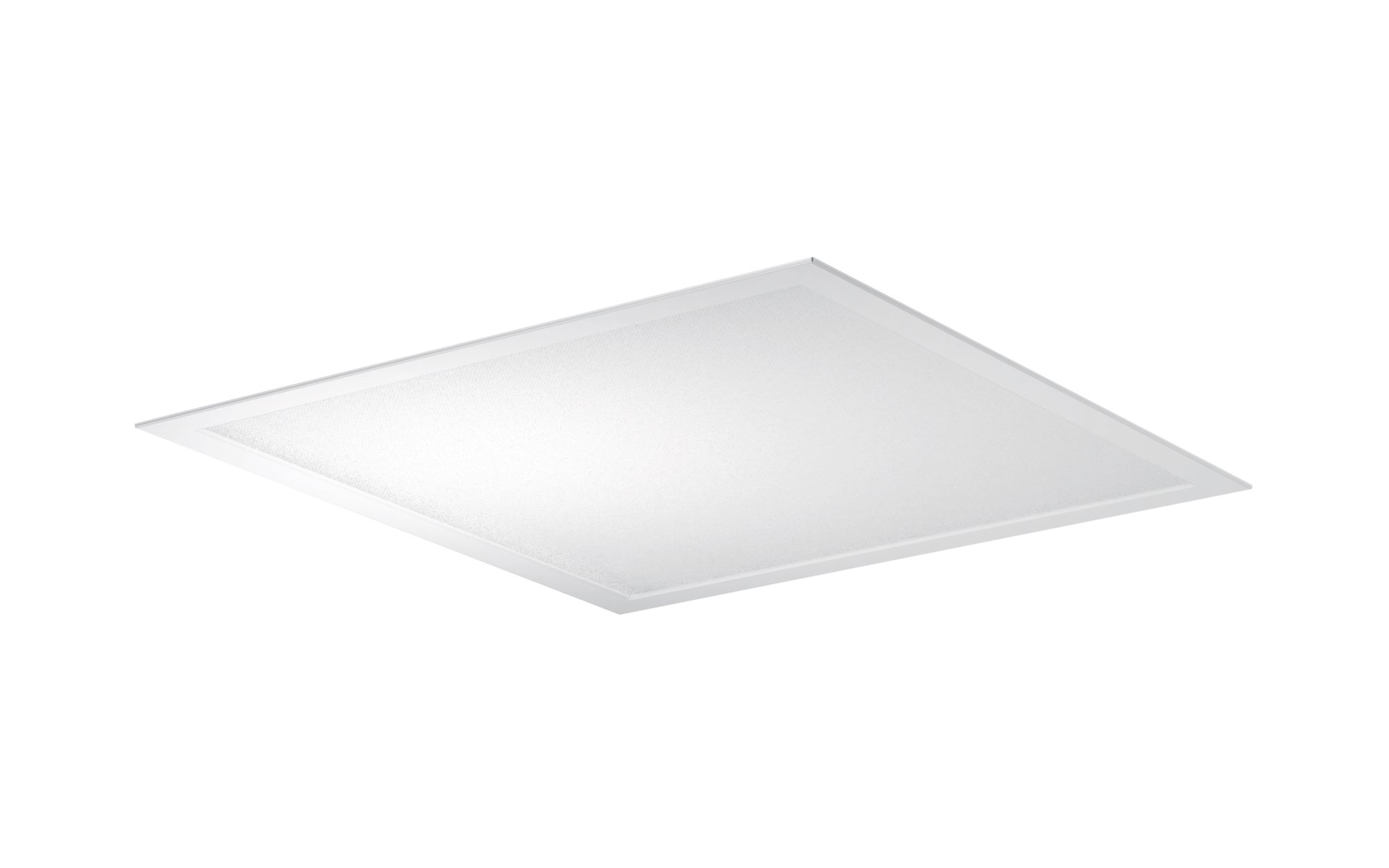

Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M625
Order No.: 51MP11W72342 GTIN (EAN): 4058352926031
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3800lm | 28W | 138lm/W | ON/OFF | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625
Order No.: 51MP11W72442 GTIN (EAN): 4058352926062
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4000lm | 28W | 145lm/W | ON/OFF | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2342 GTIN (EAN): 4058352926178
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3800lm | 28W | 138lm/W | DALI 2, Multilumen | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2442 GTIN (EAN): 4058352926185
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4000lm | 28W | 145lm/W | DALI 2, Multilumen | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2M42 GTIN (EAN): 4058352926215
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4000lm | 28W | 145lm/W | DALI 2, Multilumen | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840/850, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2N42 GTIN (EAN): 4058352926246
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000/5000K | CRI > 80 | 4000lm | 28W | 145lm/W | DALI 2, Multilumen | 620x620 | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M600
Order No.: 51MP12W72442 GTIN (EAN): 4058352926390
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4000lm | 28W | 145lm/W | ON/OFF | 595x595 | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, ON/OFF, for M600
Order No.: 51MP12W72M42 GTIN (EAN): 4058352926420
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4000lm | 28W | 145lm/W | ON/OFF | 595x595 | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2342 GTIN (EAN): 4058352926505
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3600lm | 27.5W | 130lm/W | DALI 2, Multilumen | 595x595 | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2442 GTIN (EAN): 4058352926512
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3800lm | 28W | 138lm/W | DALI 2, Multilumen | 595x595 | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2M42 GTIN (EAN): 4058352926543
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4000lm | 28W | 142lm/W | DALI 2, Multilumen | 595x595 | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830, ON/OFF, for M625
Order No.: 51MP11W72342GTIN (EAN): 4058352926031
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 138lm/W |
| Control | ON/OFF |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625
Order No.: 51MP11W72442GTIN (EAN): 4058352926062
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2342GTIN (EAN): 4058352926178
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 138lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2442GTIN (EAN): 4058352926185
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2M42GTIN (EAN): 4058352926215
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840/850, DALI 2, Multilumen, for M625
Order No.: 51MP11WD2N42GTIN (EAN): 4058352926246
| Colour temperature | 4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 620x620 |
| Wt. (kg) | 1.9 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M600
Order No.: 51MP12W72442GTIN (EAN): 4058352926390
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, ON/OFF, for M600
Order No.: 51MP12W72M42GTIN (EAN): 4058352926420
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 145lm/W |
| Control | ON/OFF |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2342GTIN (EAN): 4058352926505
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3600lm |
| Connected load | 27.5W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 840, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2442GTIN (EAN): 4058352926512
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3800lm |
| Connected load | 28W |
| Luminous efficacy | 138lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 1.8 |
Apollon® 31 square, wide distribution, 90°, Light colour 830/840, DALI 2, Multilumen, for M600
Order No.: 51MP12WD2M42GTIN (EAN): 4058352926543
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4000lm |
| Connected load | 28W |
| Luminous efficacy | 142lm/W |
| Control | DALI 2, Multilumen |
| Dimension (mm) | 595x595 |
| Wt. (kg) | 1.8 |
Optional accessories
| Order No.: 59MQ11008004GTIN (EAN): 4069025012340 | Show all details |
| Order No.: 59MQ11018004GTIN (EAN): 4069025012333 | Show all details |
| Order No.: 58DB00B013AGTIN (EAN): 4069025012647 | Show all details |
| Order No.: 59MQ11005021GTIN (EAN): 4058352465325 | Show all details |
| Order No.: 59MQ12005021GTIN (EAN): 4058352465332 | Show all details |
| Order No.: 59MQ11005024GTIN (EAN): 4069025012357 | Show all details |
| Order No.: 59MQ12005024GTIN (EAN): 4069025012326 | Show all details |
| Order No.: 59MH12000022GTIN (EAN): 4058352405932 | Show all details |
