Siluette® 21

ProducttypesConfiguration & Datasheets

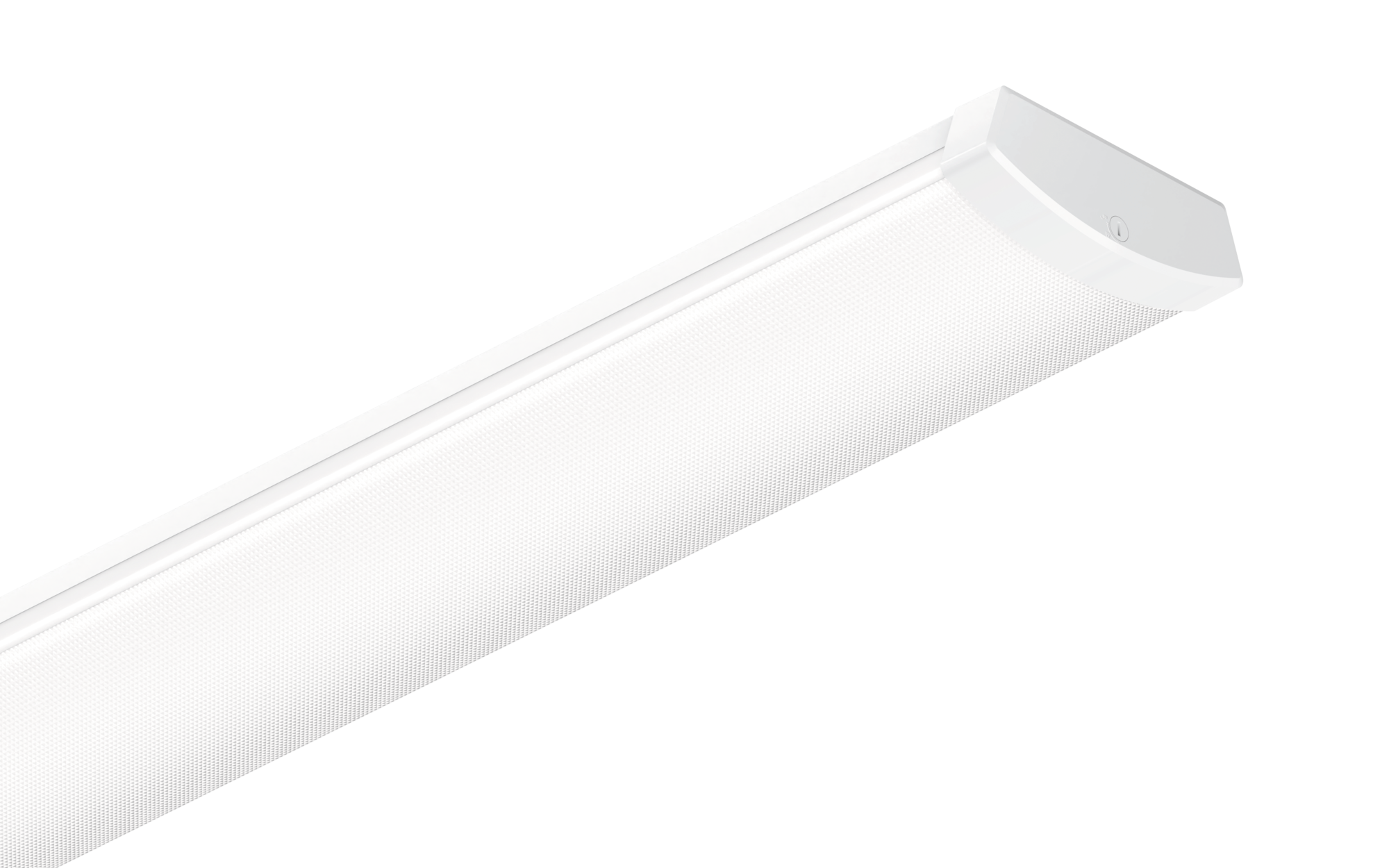

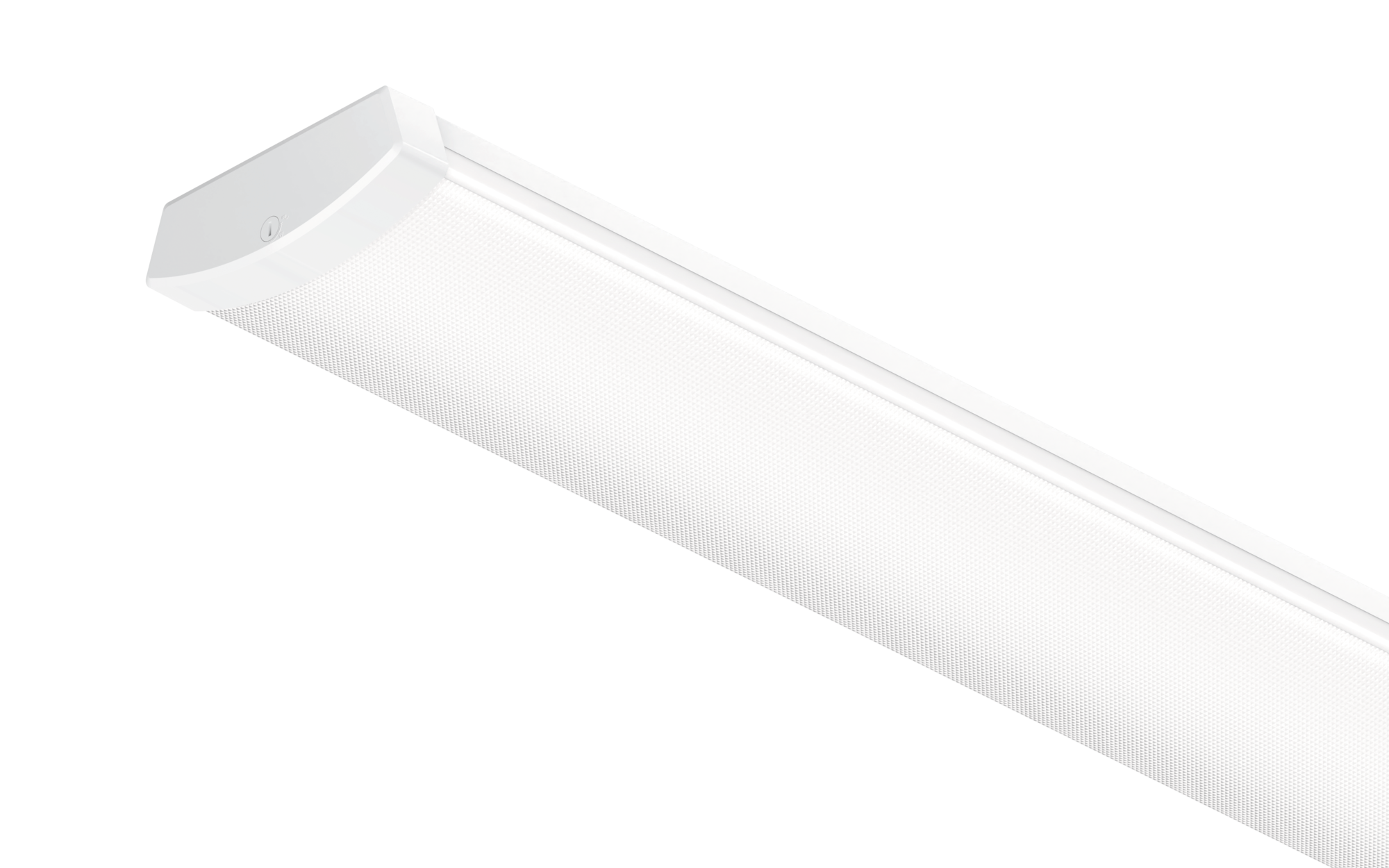

Siluette® 21, the versatile enclosure luminaire, combines elegance with innovative technology. Available in various lengths, it adapts perfectly to any room size. With a selection of different light colours and excellent efficiency, it offers a service life of up to 100,000 hours. With the integrated multi-lumen functionality, the amount of light can be easily adjusted, while the HF motion sensor guarantees additional energy savings. Variants with 3 hours of self-contained emergency lighting ensure safety. Thanks to the increased protection class, Siluette® 21 is particularly suitable for demanding environments. Perfect for lounge areas, exhibition areas, hallways, stairwells and all kinds of adjoining rooms.

Our core portfolio: Siluette® 21 is our elegant enclosure luminaire with the highest standards of efficiency, quality and flexibility for your project

Producttypes

Siluette® 21

Siluette® 21

Intro to Productfamily

Data

Article office luminaire
Light emission direct distribution
Beam angle wide distribution
Net luminous flux 2600lm to 7000lm
Colour temperature 3000/4000/5000K
Control ON/OFF Multilumen
Emergency light with self-contained supply
Protection rating IP44
Insulation class insulation class I (protective earthing)

Specials

Attractive enclosure luminaire in 3 different lengths
Four different light packages can be easily adjusted using a DIP switch
Light colour selectable between 3000/4000/5000K
HF sensor for easy motion detection as an easily retrofittable accessory

Configuration & Datasheets

Rated luminous flux (lm)

Emergency light operating time

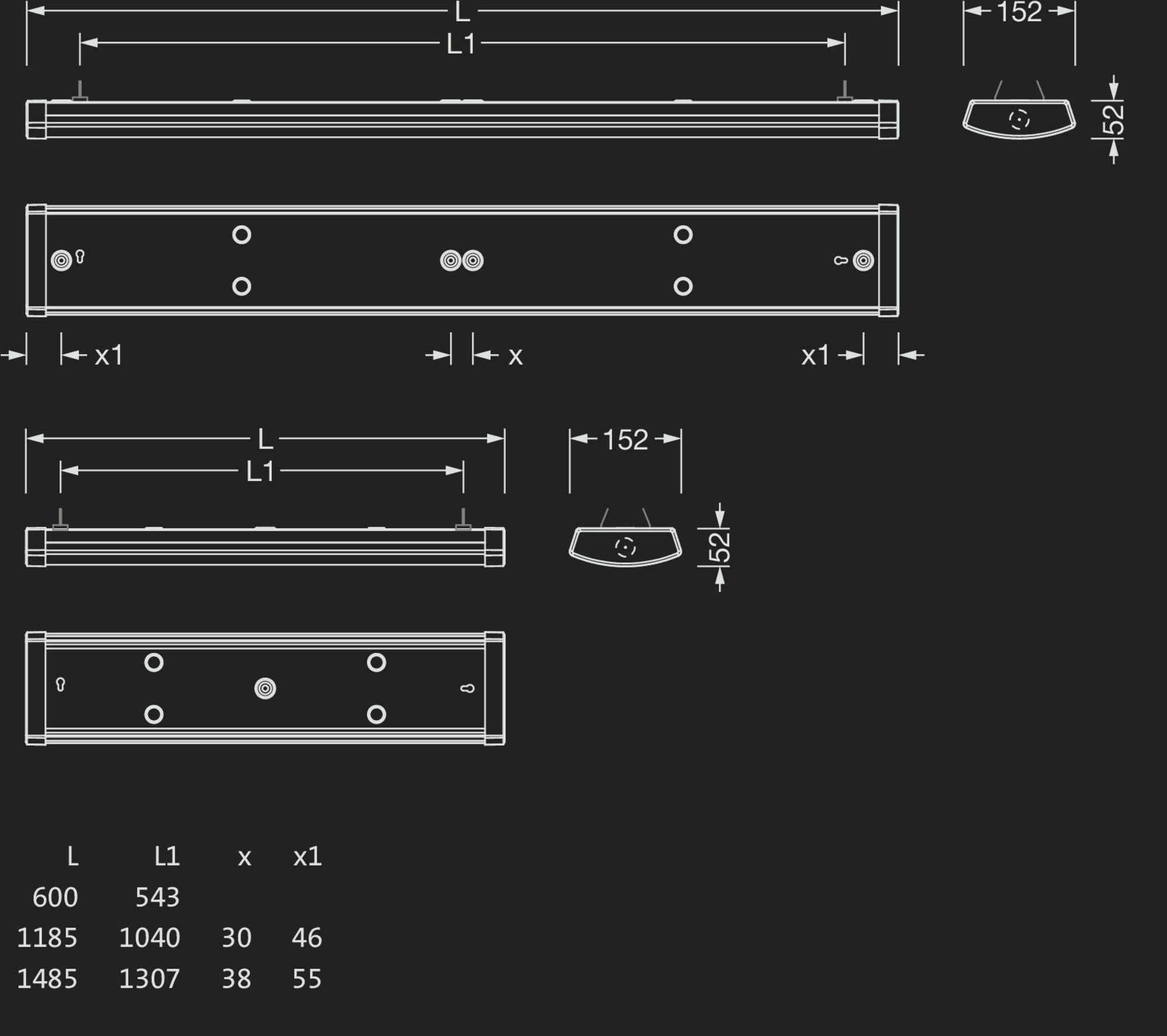

Length (mm)

Results

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MDM20A GTIN (EAN): 4058352011508
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 802600lm20W130lm/WON/OFF Multilumen 6001.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MKM40A GTIN (EAN): 4058352011546
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen 12002.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MNM70A GTIN (EAN): 4058352011607
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen 15001.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MKM40A3G GTIN (EAN): 4058352011584
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen3h12003.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MNM70A3G GTIN (EAN): 4058352011645
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationL (mm)Wt. (kg)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen3h15003.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MDM20AGTIN (EAN): 4058352011508

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux2600lm
Connected load20W
Luminous efficacy130lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)600
Wt. (kg)1.6
Show details

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MKM40AGTIN (EAN): 4058352011546

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1200
Wt. (kg)2.8
Show details

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white

Order No.: 51LN12MNM70AGTIN (EAN): 4058352011607

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
Battery duration
L (mm)1500
Wt. (kg)1.0
Show details

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MKM40A3GGTIN (EAN): 4058352011584

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1200
Wt. (kg)3.0
Show details

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, 3h, white

Order No.: 51LN12MNM70A3GGTIN (EAN): 4058352011645

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
Battery duration3h
L (mm)1500
Wt. (kg)3.9
Show details

Optional accessory

Articlemulti-sensorPU1 pc.Wt. (kg)1.0Order No.: 59LN201GTIN (EAN): 4058352062234Show details
