Modario®
A trunking system for universal use.

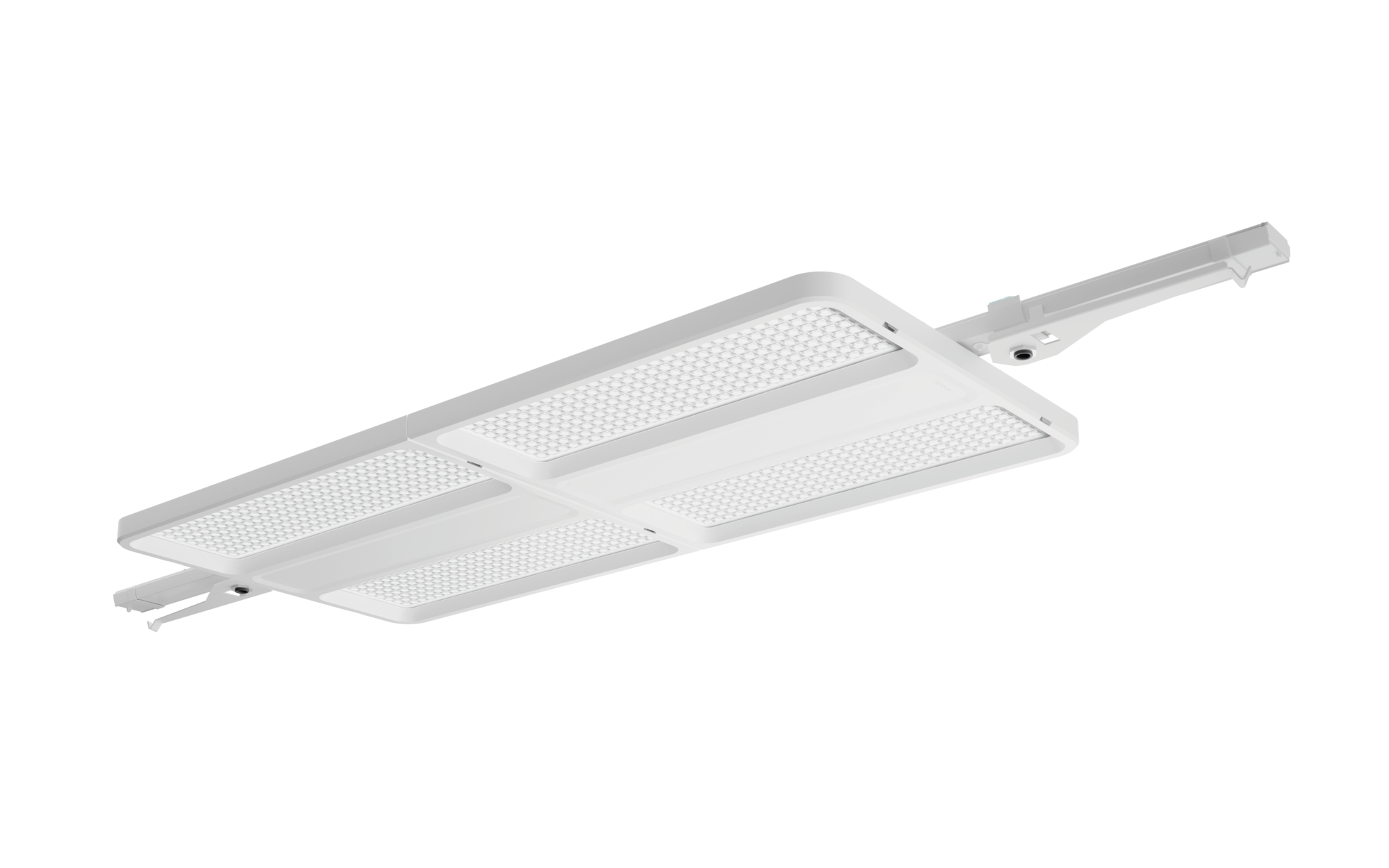

Highbay 11 midi/maxi for rail IP64
Intro product family
Key data
Article high bay luminaire
Lighting effect direct symmetric narrow distribution; direct symmetric wide distribution
Net luminous flux 14220lm to 70000lm
Luminous efficacy up to 205lm/W
Colour temperature 3000K; 4000K; 5000K; 6500K
ta according to version/application in the range from -40°C to +55°C
Cover PMMA
Protection rating IP64
Impact resistance IK07
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free
Special features
High bay luminaire for flexible mounting to the trunking rail of the Modario® trunking system
Highly efficient lens-based optical system with extremely good efficiency of up to 211lm/W and very good glare control (UGR ≤ 22) with a long service life of up to 100,000 hours (L95 B50)
Innovative housing concept made of high-performance plastic and aluminum with a high protection class of IP66 (in conjunction with mounting on the mounting rail IP64). Special thermal concept makes it suitable for permanent ambient temperatures of -40 to +55°C. Extremely low weight makes installation quick and easy
Developed for a very wide range of applications through various light packages up to 70,000lm with different light distributions
Variants with integrated sensors for light control concepts depending on movement and daylight, wired or easily wirelessly networkable with automatic swarm function
The use of control and sensor technology reduces energy costs and CO2 consumption and supports the fulfillment of legal regulations (GEG / EPDB)
Minimal material consumption and recyclable components protect the environment. The modular design enables easy maintenance. Manufactured in Germany, delivered quickly and in an environmentally friendly manner
Configuration & data sheets
- please order Modario® trunking rail and trunking rail accessories separately
Results
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4FMA GTIN (EAN): 4069025348586
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000 | 73.2W | 205lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4MMA GTIN (EAN): 4069025349743
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 146.6W | 191lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4QMA GTIN (EAN): 4069025349767
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 36000 | 177.7W | 203lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4FMA GTIN (EAN): 4069025349781
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000 | 73.2W | 205lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4MMA GTIN (EAN): 4069025349804
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 146.6W | 191lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4QMA GTIN (EAN): 4069025349828
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 36000 | 177.7W | 203lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4KMA GTIN (EAN): 4069025419361
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23000 | 117.3W | 196lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4NMA GTIN (EAN): 4069025419408
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 31500 | 167.9W | 188lm/W | DALI 2 | -40..+45°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4PMA GTIN (EAN): 4069025419446
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 34500 | 186.7W | 185lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4KMA GTIN (EAN): 4069025419583
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 23000 | 117.3W | 196lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4NMA GTIN (EAN): 4069025421067
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 31500 | 167.9W | 188lm/W | DALI 2 | -40..+45°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4PMA GTIN (EAN): 4069025419644
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 34500 | 186.7W | 185lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4MMA GTIN (EAN): 4069025419460
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 30000 | 146.5W | 205lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4RMA GTIN (EAN): 4069025419484
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 42500 | 213.7W | 199lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4VMA GTIN (EAN): 4069025419507
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 56000 | 294.9W | 190lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4WMA GTIN (EAN): 4069025419538
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 63000 | 329.9W | 191lm/W | DALI 2 | -40..+45°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4XMA GTIN (EAN): 4069025419545
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 70000 | 372.9W | 188lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4MMA GTIN (EAN): 4069025419668
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 30000 | 146.5W | 205lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4RMA GTIN (EAN): 4069025419682
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 42500 | 213.7W | 199lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4VMA GTIN (EAN): 4069025419705
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 56000 | 294.9W | 190lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4WMA GTIN (EAN): 4069025419736
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 63000 | 329.9W | 191lm/W | DALI 2 | -40..+45°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4XMA GTIN (EAN): 4069025419743
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 70000 | 372.9W | 188lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3MMA GTIN (EAN): 4069025424273
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 28480 | 146.3W | 195lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3PMA GTIN (EAN): 4069025424303
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 34200 | 177.6W | 193lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3TMA GTIN (EAN): 4069025424334
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 53070 | 295.1W | 180lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5MMA GTIN (EAN): 4069025424372
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 29840 | 146.4W | 204lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5QMA GTIN (EAN): 4069025424402
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 35850 | 177.7W | 202lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5VMA GTIN (EAN): 4069025424433
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 55810 | 294.9W | 189lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6MMA GTIN (EAN): 4069025424471
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 28420 | 146.3W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6PMA GTIN (EAN): 4069025424501
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 34160 | 177.6W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6TMA GTIN (EAN): 4069025424532
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 53100 | 295.1W | 180lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3MMA GTIN (EAN): 4069025424785
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 28480 | 146.3W | 195lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3PMA GTIN (EAN): 4069025424815
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 34200 | 177.6W | 193lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3TMA GTIN (EAN): 4069025424846
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 53070 | 295.1W | 180lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5MMA GTIN (EAN): 4069025424884
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 29840 | 146.4W | 204lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5QMA GTIN (EAN): 4069025424914
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 35850 | 177.7W | 202lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5VMA GTIN (EAN): 4069025424945
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 55810 | 294.9W | 189lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6MMA GTIN (EAN): 4069025424983
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 28420 | 146.3W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6PMA GTIN (EAN): 4069025425010
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 34160 | 177.6W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6TMA GTIN (EAN): 4069025425041
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 53100 | 295.1W | 180lm/W | DALI 2 | -40..+50°C | IP64 | 1496 | 7.0 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 830
Order No.: 51HN11DA3FMA GTIN (EAN): 4069025424051
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14260 | 73.2W | 195lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 830
Order No.: 51HN11DA3LMA GTIN (EAN): 4069025424099
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 26560 | 146.7W | 181lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 850
Order No.: 51HN11DA5FMA GTIN (EAN): 4069025424129
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 14930 | 73.2W | 204lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 850
Order No.: 51HN11DA5MMA GTIN (EAN): 4069025424167
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 27890 | 146.6W | 190lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 865
Order No.: 51HN11DA6FMA GTIN (EAN): 4069025424198
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 14220 | 73.2W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 865
Order No.: 51HN11DA6LMA GTIN (EAN): 4069025424235
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 26540 | 146.7W | 181lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 830
Order No.: 51HN12DA3FMA GTIN (EAN): 4069025424563
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14260 | 73.2W | 195lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 830
Order No.: 51HN12DA3LMA GTIN (EAN): 4069025424600
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 26560 | 146.7W | 181lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 850
Order No.: 51HN12DA5FMA GTIN (EAN): 4069025424631
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 14930 | 73.2W | 204lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 850
Order No.: 51HN12DA5MMA GTIN (EAN): 4069025424679
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 27890 | 146.6W | 190lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 865
Order No.: 51HN12DA6FMA GTIN (EAN): 4069025424709
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 14220 | 73.2W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 865
Order No.: 51HN12DA6LMA GTIN (EAN): 4069025424747
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 26540 | 146.7W | 181lm/W | DALI 2 | -40..+50°C | IP64 | 1195 | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4FMAGTIN (EAN): 4069025348586
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15000 |
| Connected load | 73.2W |
| Luminous efficacy | 205lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4MMAGTIN (EAN): 4069025349743
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 146.6W |
| Luminous efficacy | 191lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4QMAGTIN (EAN): 4069025349767
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36000 |
| Connected load | 177.7W |
| Luminous efficacy | 203lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4FMAGTIN (EAN): 4069025349781
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 15000 |
| Connected load | 73.2W |
| Luminous efficacy | 205lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4MMAGTIN (EAN): 4069025349804
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 146.6W |
| Luminous efficacy | 191lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4QMAGTIN (EAN): 4069025349828
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36000 |
| Connected load | 177.7W |
| Luminous efficacy | 203lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4KMAGTIN (EAN): 4069025419361
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23000 |
| Connected load | 117.3W |
| Luminous efficacy | 196lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4NMAGTIN (EAN): 4069025419408
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 31500 |
| Connected load | 167.9W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+45°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 840
Order No.: 51HN11DA4PMAGTIN (EAN): 4069025419446
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34500 |
| Connected load | 186.7W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4KMAGTIN (EAN): 4069025419583
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 23000 |
| Connected load | 117.3W |
| Luminous efficacy | 196lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4NMAGTIN (EAN): 4069025421067
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 31500 |
| Connected load | 167.9W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+45°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 840
Order No.: 51HN12DA4PMAGTIN (EAN): 4069025419644
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34500 |
| Connected load | 186.7W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4MMAGTIN (EAN): 4069025419460
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 30000 |
| Connected load | 146.5W |
| Luminous efficacy | 205lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4RMAGTIN (EAN): 4069025419484
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 42500 |
| Connected load | 213.7W |
| Luminous efficacy | 199lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4VMAGTIN (EAN): 4069025419507
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 56000 |
| Connected load | 294.9W |
| Luminous efficacy | 190lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4WMAGTIN (EAN): 4069025419538
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 63000 |
| Connected load | 329.9W |
| Luminous efficacy | 191lm/W |
| Control | DALI 2 |
| ta | -40..+45°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 840
Order No.: 51HN11DB4XMAGTIN (EAN): 4069025419545
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 70000 |
| Connected load | 372.9W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4MMAGTIN (EAN): 4069025419668
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 30000 |
| Connected load | 146.5W |
| Luminous efficacy | 205lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4RMAGTIN (EAN): 4069025419682
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 42500 |
| Connected load | 213.7W |
| Luminous efficacy | 199lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4VMAGTIN (EAN): 4069025419705
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 56000 |
| Connected load | 294.9W |
| Luminous efficacy | 190lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |

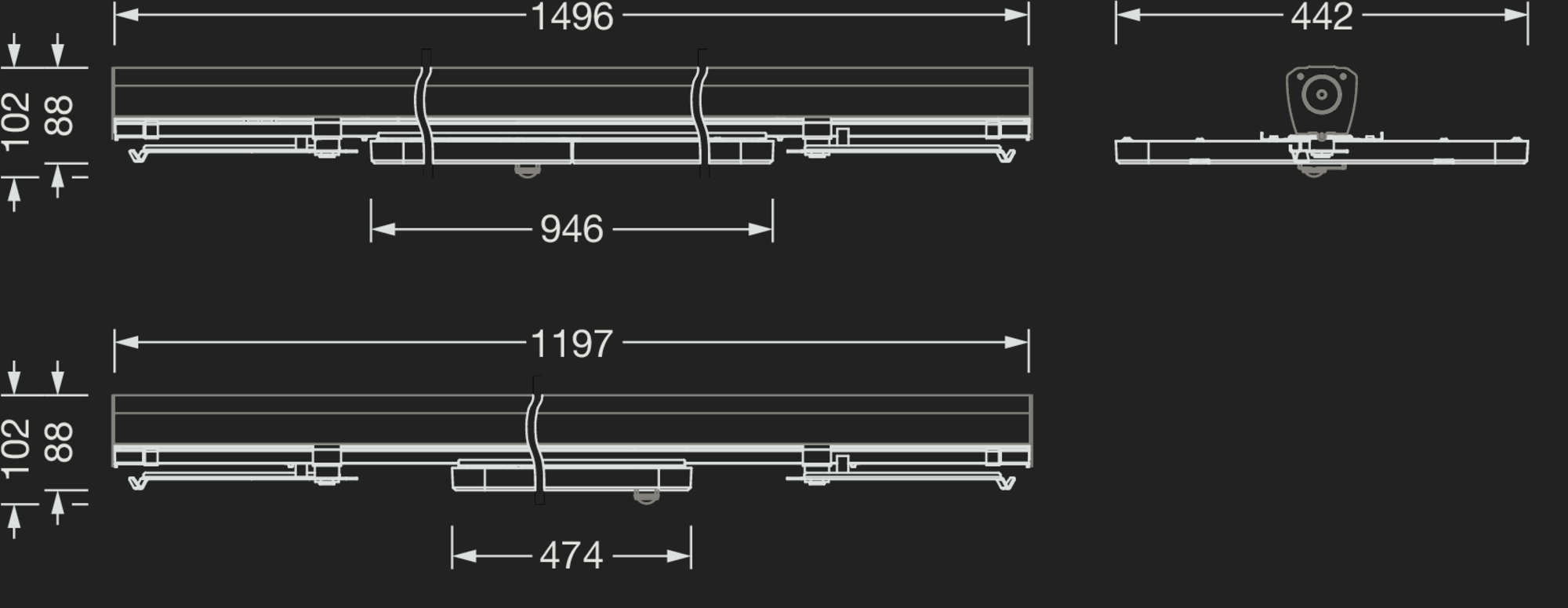

| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4WMAGTIN (EAN): 4069025419736
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 63000 |
| Connected load | 329.9W |
| Luminous efficacy | 191lm/W |
| Control | DALI 2 |
| ta | -40..+45°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 840
Order No.: 51HN12DB4XMAGTIN (EAN): 4069025419743
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 70000 |
| Connected load | 372.9W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3MMAGTIN (EAN): 4069025424273
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28480 |
| Connected load | 146.3W |
| Luminous efficacy | 195lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3PMAGTIN (EAN): 4069025424303
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34200 |
| Connected load | 177.6W |
| Luminous efficacy | 193lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 830
Order No.: 51HN11DB3TMAGTIN (EAN): 4069025424334
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53070 |
| Connected load | 295.1W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5MMAGTIN (EAN): 4069025424372
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 29840 |
| Connected load | 146.4W |
| Luminous efficacy | 204lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5QMAGTIN (EAN): 4069025424402
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 35850 |
| Connected load | 177.7W |
| Luminous efficacy | 202lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 850
Order No.: 51HN11DB5VMAGTIN (EAN): 4069025424433
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 55810 |
| Connected load | 294.9W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6MMAGTIN (EAN): 4069025424471
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28420 |
| Connected load | 146.3W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6PMAGTIN (EAN): 4069025424501
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34160 |
| Connected load | 177.6W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, narrow distribution, 865
Order No.: 51HN11DB6TMAGTIN (EAN): 4069025424532
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53100 |
| Connected load | 295.1W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3MMAGTIN (EAN): 4069025424785
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28480 |
| Connected load | 146.3W |
| Luminous efficacy | 195lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3PMAGTIN (EAN): 4069025424815
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34200 |
| Connected load | 177.6W |
| Luminous efficacy | 193lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 830
Order No.: 51HN12DB3TMAGTIN (EAN): 4069025424846
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53070 |
| Connected load | 295.1W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5MMAGTIN (EAN): 4069025424884
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 29840 |
| Connected load | 146.4W |
| Luminous efficacy | 204lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5QMAGTIN (EAN): 4069025424914
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 35850 |
| Connected load | 177.7W |
| Luminous efficacy | 202lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 850
Order No.: 51HN12DB5VMAGTIN (EAN): 4069025424945
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 55810 |
| Connected load | 294.9W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6MMAGTIN (EAN): 4069025424983
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28420 |
| Connected load | 146.3W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6PMAGTIN (EAN): 4069025425010
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34160 |
| Connected load | 177.6W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail maxi, wide distribution, 865
Order No.: 51HN12DB6TMAGTIN (EAN): 4069025425041
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53100 |
| Connected load | 295.1W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1496 |
| Wt. (kg) | 7.0 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 830
Order No.: 51HN11DA3FMAGTIN (EAN): 4069025424051
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14260 |
| Connected load | 73.2W |
| Luminous efficacy | 195lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 830
Order No.: 51HN11DA3LMAGTIN (EAN): 4069025424099
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 146.7W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 850
Order No.: 51HN11DA5FMAGTIN (EAN): 4069025424129
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14930 |
| Connected load | 73.2W |
| Luminous efficacy | 204lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 850
Order No.: 51HN11DA5MMAGTIN (EAN): 4069025424167
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27890 |
| Connected load | 146.6W |
| Luminous efficacy | 190lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 865
Order No.: 51HN11DA6FMAGTIN (EAN): 4069025424198
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14220 |
| Connected load | 73.2W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, narrow distribution, 865
Order No.: 51HN11DA6LMAGTIN (EAN): 4069025424235
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26540 |
| Connected load | 146.7W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 830
Order No.: 51HN12DA3FMAGTIN (EAN): 4069025424563
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14260 |
| Connected load | 73.2W |
| Luminous efficacy | 195lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 830
Order No.: 51HN12DA3LMAGTIN (EAN): 4069025424600
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26560 |
| Connected load | 146.7W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 850
Order No.: 51HN12DA5FMAGTIN (EAN): 4069025424631
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14930 |
| Connected load | 73.2W |
| Luminous efficacy | 204lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 850
Order No.: 51HN12DA5MMAGTIN (EAN): 4069025424679
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27890 |
| Connected load | 146.6W |
| Luminous efficacy | 190lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 865
Order No.: 51HN12DA6FMAGTIN (EAN): 4069025424709
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14220 |
| Connected load | 73.2W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
Highbay 11 for Modario® trunking rail midi, wide distribution, 865
Order No.: 51HN12DA6LMAGTIN (EAN): 4069025424747
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26540 |
| Connected load | 146.7W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1195 |
| Wt. (kg) | 3.5 |
