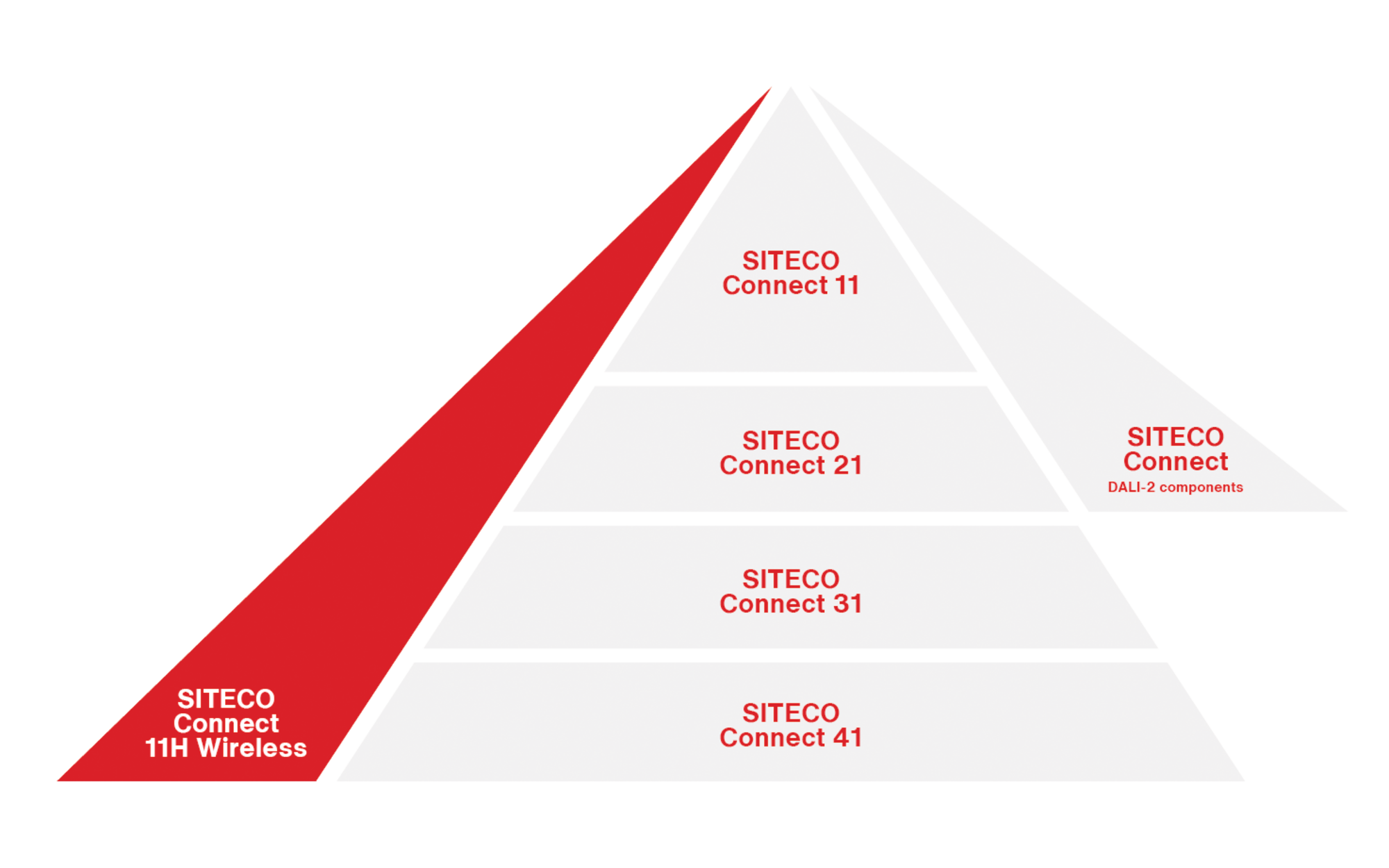

SITECO Connect 11H Wireless components
SITECO Connect solution kit.
SITECO Connect Wireless components (wireless control)
Intro to ProductfamilyData
Article control unit; sensor; push button interface; Gateway; surface-mounted housing
Control Bluetooth® Mesh
Specials
Cost savings - efficient lighting control
Cost savings - necessary for refurbishment projects where a control line cannot be retrofitted for structural reasons
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Regulatory Compliance - Energy efficiency regulations are met
Sustainability and environmental protection - reducing the ecological footprint
Increase in the value of the building - it is attractive for tenants and users as it reduces operating costs in the long term
Adaptability to user needs - adaptable depending on the needs and requirements, which increases the future security of the users
Simplicity - automatic swarm function makes commissioning easier and increases user comfort
Better quality of work and quality of life - adequate lighting can significantly improve the quality of work
Reduced maintenance effort – easy component replacement possible without a system integrator or system specialist
Security - motion sensors increase security by automatically activating lighting when someone is in the room
Economic efficiency - Multisensor with very high detection quality guarantees reliable detection of large areas with few sensors
Configuration & Datasheets
- BT mesh communication between the individual BT sensors
- the maximum distance between BT sensors is 15m in the open field
- 360° detection range of the sensor, can be limited mechanically using the covers included in the scope of delivery
- sensor function: motion-dependent control in combination with daylight sensors
- parameterization of the BT sensors with Helvar ActiveAhead APP
- APP available for iOS and Android
- Surface mounting housing 5LZ950400A is required for Node Multisensor PC9 5LZ950200A.
Results
Control Panel
Order No.: 5LZ950732A GTIN (EAN): 4069025243096
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Control Panel | Bluetooth® Mesh | white | to the wall | icons can be exchanged without tools, 4 control push buttons can be assigned any switching/dimming functions or scenes | 0.1 |
Node Multisensor PC9
Order No.: 5LZ950200A GTIN (EAN): 4069025242907
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Node Multisensor PC9 | Bluetooth® Mesh | 1 PIR movement sensor, daylight sensor | white | in the ceiling | 2.5..5m | circular detection area | office, parking garage and underground car park, training room and classroom, shipping area low height | 0.2 |
Node Multisensor PC8
Order No.: 5LZ950201A GTIN (EAN): 4069025242938
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Node Multisensor PC8 | Bluetooth® Mesh | 1 PIR movement sensor, daylight sensor | white | to the ceiling | 5..14m | circular detection area | manufacturing hall, for rack and highbay storage, shipping area high rooms, sports hall | 0.2 |
surface-mounted housing
Order No.: 5LZ950400A GTIN (EAN): 4069025243003
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| surface-mounted housing | Bluetooth® Mesh | white | to the ceiling | 0.6 |
controller
Order No.: 5LZ950101A GTIN (EAN): 4069025242884
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| controller | Bluetooth® Mesh | white | to the ceiling, in the ceiling | 0.2 |
ACTIVETUNE QR Code
Order No.: 5LZ950733A GTIN (EAN): 4069025243119
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| ACTIVETUNE QR Code | Bluetooth® Mesh | white | to the luminaire, to the wall | office, training room and classroom | 1.0 |
ACTIVETUNE QR Code TW
Order No.: 5LZ950734A GTIN (EAN): 4069025243133
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| ACTIVETUNE QR Code TW | Bluetooth® Mesh | white | to the luminaire, to the wall | office, training room and classroom | 1.0 |
Gateway DALI wireless
Order No.: 5LZ950701A GTIN (EAN): 4069025243065
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Gateway DALI wireless | Bluetooth® Mesh | white | to the ceiling, in the ceiling | for connection to a DALI application controller | office, manufacturing hall, for rack and highbay storage, parking garage and underground car park, shipping area high rooms, training room and classroom, shipping area low height, sports hall | 0.2 |
Node Environment Sensor
Order No.: 5LZ950204A GTIN (EAN): 4069025242969
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Node Environment Sensor | Bluetooth® Mesh | 1 PIR movement sensor, daylight sensor, temperature sensor, humidity sensor, air quality sensor (VOC), noise sensor, CO2 sensor | white | in the ceiling | 2.5..4m | circular detection area | office, manufacturing hall, for rack and highbay storage, parking garage and underground car park, shipping area high rooms, training room and classroom, shipping area low height, sports hall | 0.6 |
Gateway BACnet wireless
Order No.: 5LZ950702A GTIN (EAN): 4069025243072
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| Gateway BACnet wireless | Bluetooth® Mesh | black | to the ceiling, in the ceiling | for connection to building automation | 0.3 |
controller
Order No.: 5LZ950100A GTIN (EAN): 4069025242877
| Article | Control | Sensor technology | Colour | Installation location | Mounting height | Feature | Application area | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| controller | Bluetooth® Mesh | white | in the ceiling, in the luminaire | 0.1 |
Control Panel
Order No.: 5LZ950732AGTIN (EAN): 4069025243096
| Article | Control Panel |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the wall |
| Mounting height | |
| Feature | icons can be exchanged without tools, 4 control push buttons can be assigned any switching/dimming functions or scenes |
| Application area | |
| Wt. (kg) | 0.1 |
Node Multisensor PC9
Order No.: 5LZ950200AGTIN (EAN): 4069025242907
| Article | Node Multisensor PC9 |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Colour | white |
| Installation location | in the ceiling |
| Mounting height | 2.5..5m |
| Feature | circular detection area |
| Application area | office, parking garage and underground car park, training room and classroom, shipping area low height |
| Wt. (kg) | 0.2 |
Node Multisensor PC8
Order No.: 5LZ950201AGTIN (EAN): 4069025242938
| Article | Node Multisensor PC8 |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | 1 PIR movement sensor, daylight sensor |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | 5..14m |
| Feature | circular detection area |
| Application area | manufacturing hall, for rack and highbay storage, shipping area high rooms, sports hall |
| Wt. (kg) | 0.2 |
surface-mounted housing
Order No.: 5LZ950400AGTIN (EAN): 4069025243003
| Article | surface-mounted housing |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the ceiling |
| Mounting height | |
| Feature | |
| Application area | |
| Wt. (kg) | 0.6 |
controller
Order No.: 5LZ950101AGTIN (EAN): 4069025242884
| Article | controller |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the ceiling, in the ceiling |
| Mounting height | |
| Feature | |
| Application area | |
| Wt. (kg) | 0.2 |
ACTIVETUNE QR Code
Order No.: 5LZ950733AGTIN (EAN): 4069025243119
| Article | ACTIVETUNE QR Code |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the luminaire, to the wall |
| Mounting height | |
| Feature | |
| Application area | office, training room and classroom |
| Wt. (kg) | 1.0 |
ACTIVETUNE QR Code TW
Order No.: 5LZ950734AGTIN (EAN): 4069025243133
| Article | ACTIVETUNE QR Code TW |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the luminaire, to the wall |
| Mounting height | |
| Feature | |
| Application area | office, training room and classroom |
| Wt. (kg) | 1.0 |
Gateway DALI wireless
Order No.: 5LZ950701AGTIN (EAN): 4069025243065
| Article | Gateway DALI wireless |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | to the ceiling, in the ceiling |
| Mounting height | |
| Feature | for connection to a DALI application controller |
| Application area | office, manufacturing hall, for rack and highbay storage, parking garage and underground car park, shipping area high rooms, training room and classroom, shipping area low height, sports hall |
| Wt. (kg) | 0.2 |
Node Environment Sensor
Order No.: 5LZ950204AGTIN (EAN): 4069025242969
| Article | Node Environment Sensor |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | 1 PIR movement sensor, daylight sensor, temperature sensor, humidity sensor, air quality sensor (VOC), noise sensor, CO2 sensor |
| Colour | white |
| Installation location | in the ceiling |
| Mounting height | 2.5..4m |
| Feature | circular detection area |
| Application area | office, manufacturing hall, for rack and highbay storage, parking garage and underground car park, shipping area high rooms, training room and classroom, shipping area low height, sports hall |
| Wt. (kg) | 0.6 |
Gateway BACnet wireless
Order No.: 5LZ950702AGTIN (EAN): 4069025243072
| Article | Gateway BACnet wireless |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | black |
| Installation location | to the ceiling, in the ceiling |
| Mounting height | |
| Feature | for connection to building automation |
| Application area | |
| Wt. (kg) | 0.3 |
controller
Order No.: 5LZ950100AGTIN (EAN): 4069025242877
| Article | controller |
|---|---|
| Control | Bluetooth® Mesh |
| Sensor technology | |
| Colour | white |
| Installation location | in the ceiling, in the luminaire |
| Mounting height | |
| Feature | |
| Application area | |
| Wt. (kg) | 0.1 |
