Lunis 31

Product typesConfiguration & data sheets

Elegance and efficiency – that is what characterizes the Lunis 31 luminaire family. The downlights are ideally suited for display workstation lighting. The aluminum housing ensures good heat dissipation and a long service life. Thanks to the quick and easy installation, the Lunis 31 is the practical solution for office and general lighting.

Our basic solution: Lunis 31 is our practical downlight as a perfect addition with high efficiency and quality

Product types

Lunis 31 L Ø 162mm

Lunis 31 XL Ø 212mm

Lunis 31 XL Ø 212mm

Intro product family

Key data

Article downlight
Lighting effect direct wide distribution
Net luminous flux 2380lm to 2550lm
Colour temperature 3000K; 4000K
Control ON/OFF Multilumen; DALI 2, Multilumen

Special features

Downlight family from classic DL in two construction sizes for all classic applications
Very easy to assemble and use thanks to the low recessing depth

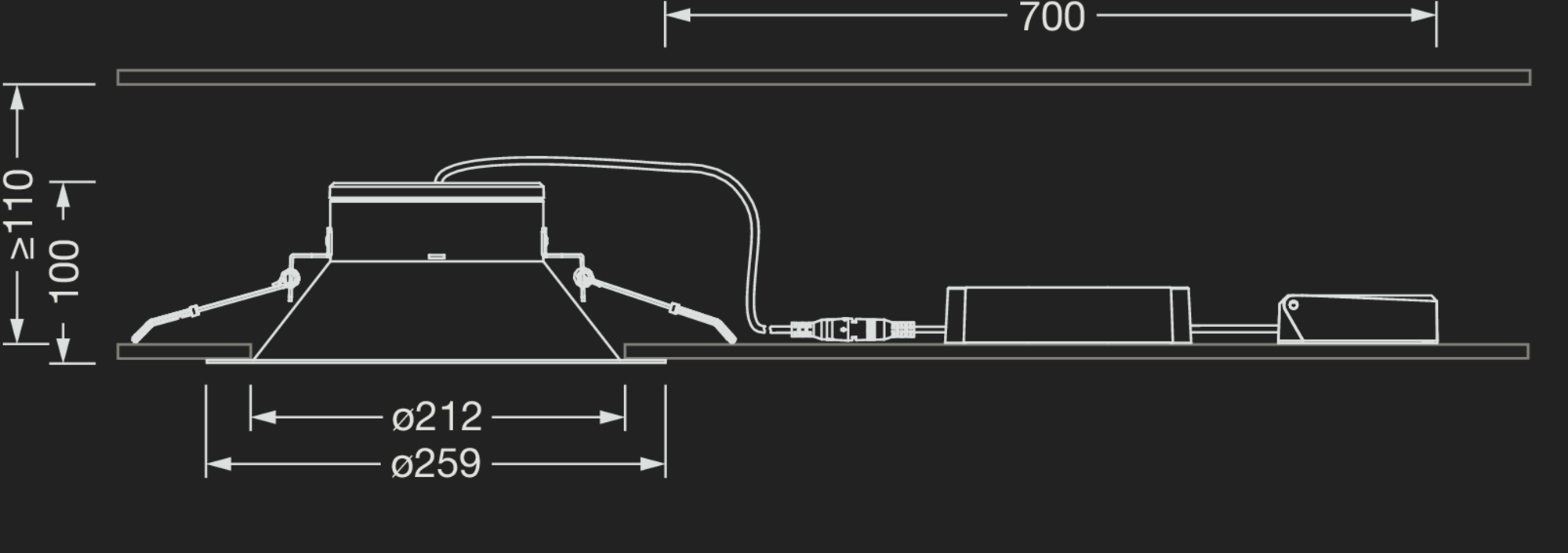

Ceiling cut-out DA = 162mm and 212mm, therefore also as a replacement for many Siteco downlights with conventional lamps
Suitable for office lighting with UGR ≤ 19

Configuration & data sheets

Colour temperature

Light colour

UGR

Rated luminous flux (lm)

Control

Results

Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DN16MG32B GTIN (EAN): 4069025151957
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 802500lm17W147lm/WON/OFF Multilumen0.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DN16MG42B GTIN (EAN): 4069025151988
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 802550lm17W150lm/WON/OFF Multilumen0.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51DN16EG42B GTIN (EAN): 4069025151865
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 802550lm17W150lm/WDALI 2, Multilumen0.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DN15MG32B GTIN (EAN): 4069025151735
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 802400lm17W141lm/WON/OFF Multilumen0.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DN15MG42B GTIN (EAN): 4069025151742
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 802500lm17W147lm/WON/OFF Multilumen0.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 830, DALI 2, Multilumen

Order No.: 51DN15EG32B GTIN (EAN): 4069025151599
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 802380lm17.5W136lm/WDALI 2, Multilumen0.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51DN15EG42B GTIN (EAN): 4069025151629
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 802500lm17.5W143lm/WDALI 2, Multilumen0.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DN16MG32BGTIN (EAN): 4069025151957

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2500lm
Connected load17W
Luminous efficacy147lm/W
ControlON/OFF Multilumen
Wt. (kg)0.5
Show all details

Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DN16MG42BGTIN (EAN): 4069025151988

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2550lm
Connected load17W
Luminous efficacy150lm/W
ControlON/OFF Multilumen
Wt. (kg)0.5
Show all details

Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51DN16EG42BGTIN (EAN): 4069025151865

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2550lm
Connected load17W
Luminous efficacy150lm/W
ControlDALI 2, Multilumen
Wt. (kg)0.5
Show all details

Lunis 31-XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DN15MG32BGTIN (EAN): 4069025151735

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2400lm
Connected load17W
Luminous efficacy141lm/W
ControlON/OFF Multilumen
Wt. (kg)0.5
Show all details

Lunis 31-XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DN15MG42BGTIN (EAN): 4069025151742

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2500lm
Connected load17W
Luminous efficacy147lm/W
ControlON/OFF Multilumen
Wt. (kg)0.5
Show all details

Lunis 31-XL, wide distribution, Light colour 830, DALI 2, Multilumen

Order No.: 51DN15EG32BGTIN (EAN): 4069025151599

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2380lm
Connected load17.5W
Luminous efficacy136lm/W
ControlDALI 2, Multilumen
Wt. (kg)0.6
Show all details

Lunis 31-XL, wide distribution, Light colour 840, DALI 2, Multilumen

Order No.: 51DN15EG42BGTIN (EAN): 4069025151629

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2500lm
Connected load17.5W
Luminous efficacy143lm/W
ControlDALI 2, Multilumen
Wt. (kg)0.6
Show all details
