Highbay
Product selection

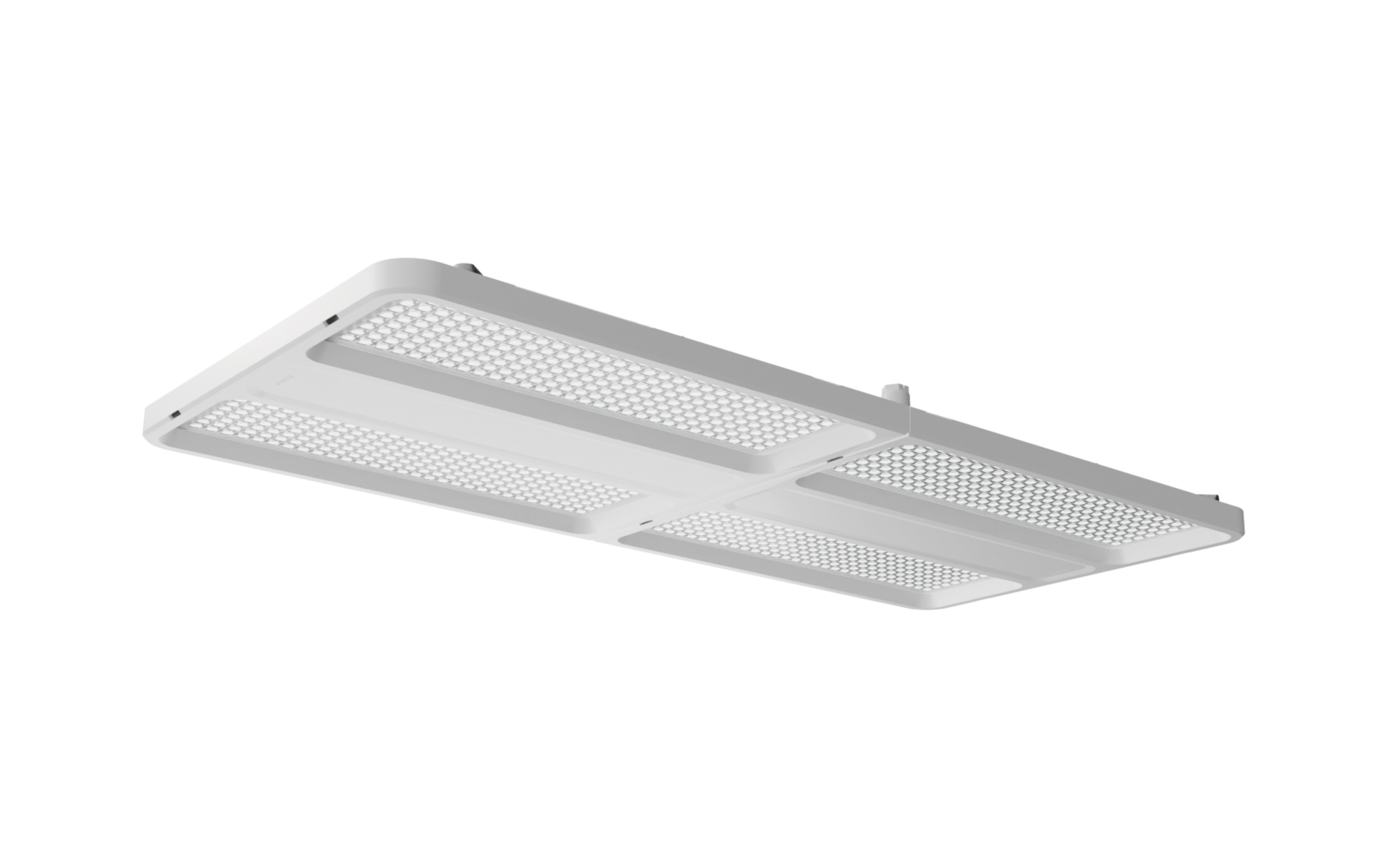

Highbay 11 maxi ball-proof
Key data
Article high bay luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 26000lm to 36000lm
Luminous efficacy up to 207lm/W
Colour temperature 4000K
ta according to version/application in the range from -40°C to +65°C
Cover PMMA
Protection rating IP40
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free
Special features
Highly efficient lens-based optical system with extremely good efficiency of up to 211lm/W and very good glare control (UGR ≤ 22) with a long service life of up to 100,000 hours (L95 B50)
Innovative housing concept made of high-performance plastic and aluminum with a high protection rating of IP66. The special thermal concept makes it suitable for permanent ambient temperatures of -40 to +70°C. The extremely low weight and the external plug-in terminal make installation quick and easy.
Developed for a very wide range of applications through various lumen packages up to 70,000lm with different light distributions and a wide range of mounting accessories
Luminaire validated and approved for operation on central battery systems according to DIN EN 60598-2-22
Minimal material consumption and recyclable components protect the environment. The modular design enables easy maintenance. Manufactured in Germany, delivered quickly and in an environmentally friendly manner
Variants with integrated sensors for light control concepts depending on movement and daylight, wired or easily wirelessly networkable with automatic swarm function
The use of control and sensor technology reduces energy costs and CO2 consumption and supports the fulfillment of legal regulations (GEG / EPDB).
As a ball-proof variant, it is ideally suited for use in sports facilities
Links
Configuration & data sheets
- suspended mounting with wire or chain with 4 suspension points on luminaire side (4-fold suspension on ceiling side with one fixing point / 2-fold suspension on ceiling side with two fixing points)
- near-ceiling mounting or wall mounting with mounting bracket
- please order fixing accessories (in required quantities) separately
- please order supplementary chain for higher suspension heights separately if required (as replacement for standard chain of chain suspension | please consider desired suspension height and number of chain strands)
wireless control:
- Node Multisensor PC11 with integrated daylight and motion sensor and Bluetooth® mesh antenna
- sensor characteristic PC11 with circular detection, optimized for use in high mounting heights up to 17m
- Node Multisensor - leading lighting creates safety - auto swarm function is set at the factory without commissioning
- Node Multisensor - no on-site parameterization necessary, as basic functions are set at the factory
- Node with integrated Bluetooth® mesh antenna
- Bluetooth® mesh communication between the individual nodes and node multisensors
- maximum distance 15m between node and node multisensors
- Multisensor function: motion sensor in combination with daylight sensor
- parameterization of the node and node multisensors with APP
- connection to on-site lighting or building management on request
- Suitable accessories can be found under Siteco/Indoor luminaires/Light management/SITECO Connect 11H Wireless
wired control:
- sensor function: with integrated daylight and motion sensor
- sensor characteristic PC11 with circular detection, optimized for use in high mounting heights up to 17m
- sensor DALI-2 certified according to IEC 62386, parts 101, 103, 303 and 304
- sensor luminaire is only functional with a higher-level DALI-2 application controller
- for accessories, see Siteco/Indoor luminaires/Light management/Siteco Connect 11 or 21
- connection to on-site lighting or building management on request
Results
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4LBA GTIN (EAN): 4069025440549
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26000lm | 125.4W | 207lm/W | DALI 2 | -40..+65°C | 946x442 | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4MBA GTIN (EAN): 4069025440563
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 30000lm | 146.5W | 205lm/W | DALI 2 | -40..+60°C | 946x442 | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4QBA GTIN (EAN): 4069025440600
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 36000lm | 177.7W | 203lm/W | DALI 2 | -40..+55°C | 946x442 | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN32DB4QCA GTIN (EAN): 4069025446640
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 36000lm | 177.7W | 203lm/W | DALI 2 | -40..+55°C | 946x442 | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN32DB4QBA GTIN (EAN): 4069025440747
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Dimension (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 36000lm | 177.7W | 203lm/W | DALI 2 | -40..+55°C | 946x442 | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4LBAGTIN (EAN): 4069025440549
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 26000lm |
| Connected load | 125.4W |
| Luminous efficacy | 207lm/W |
| Control | DALI 2 |
| ta | -40..+65°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4MBAGTIN (EAN): 4069025440563
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 30000lm |
| Connected load | 146.5W |
| Luminous efficacy | 205lm/W |
| Control | DALI 2 |
| ta | -40..+60°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN12DB4QBAGTIN (EAN): 4069025440600
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 36000lm |
| Connected load | 177.7W |
| Luminous efficacy | 203lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN32DB4QCAGTIN (EAN): 4069025446640
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 36000lm |
| Connected load | 177.7W |
| Luminous efficacy | 203lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Highbay 11 maxi, wide distribution, 840, AC/DC, ball impact resistant according to DIN 18032-3 with ceiling mounting or chain suspension
Order No.: 51HN32DB4QBAGTIN (EAN): 4069025440747
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 36000lm |
| Connected load | 177.7W |
| Luminous efficacy | 203lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Dimension (mm) | 946x442 |
| Wt. (kg) | 7.0 |
Optional accessories
| Order No.: 59HN92001GTIN (EAN): 4069025445711 | Show all details |
| Order No.: 59HN92002GTIN (EAN): 4069025445728 | Show all details |
| Order No.: 59HN92011GTIN (EAN): 4069025356994 | Show all details |
