Apollon® 31

Product typesConfiguration & data sheets

The Apollon® family impresses with its integrative design, homogeneous illumination and advanced technology. Thanks to the different geometries and installation variants, the versatile family of luminaires is perfect for the entire office building. The Apollon® 31 impresses with its long service life and high-quality metal design. Quick installation is possible thanks to optimized connection technology.

Our basic solution: Apollon® 31 is our practical surface-mounted luminaire as a perfect addition with high efficiency and quality

Product types

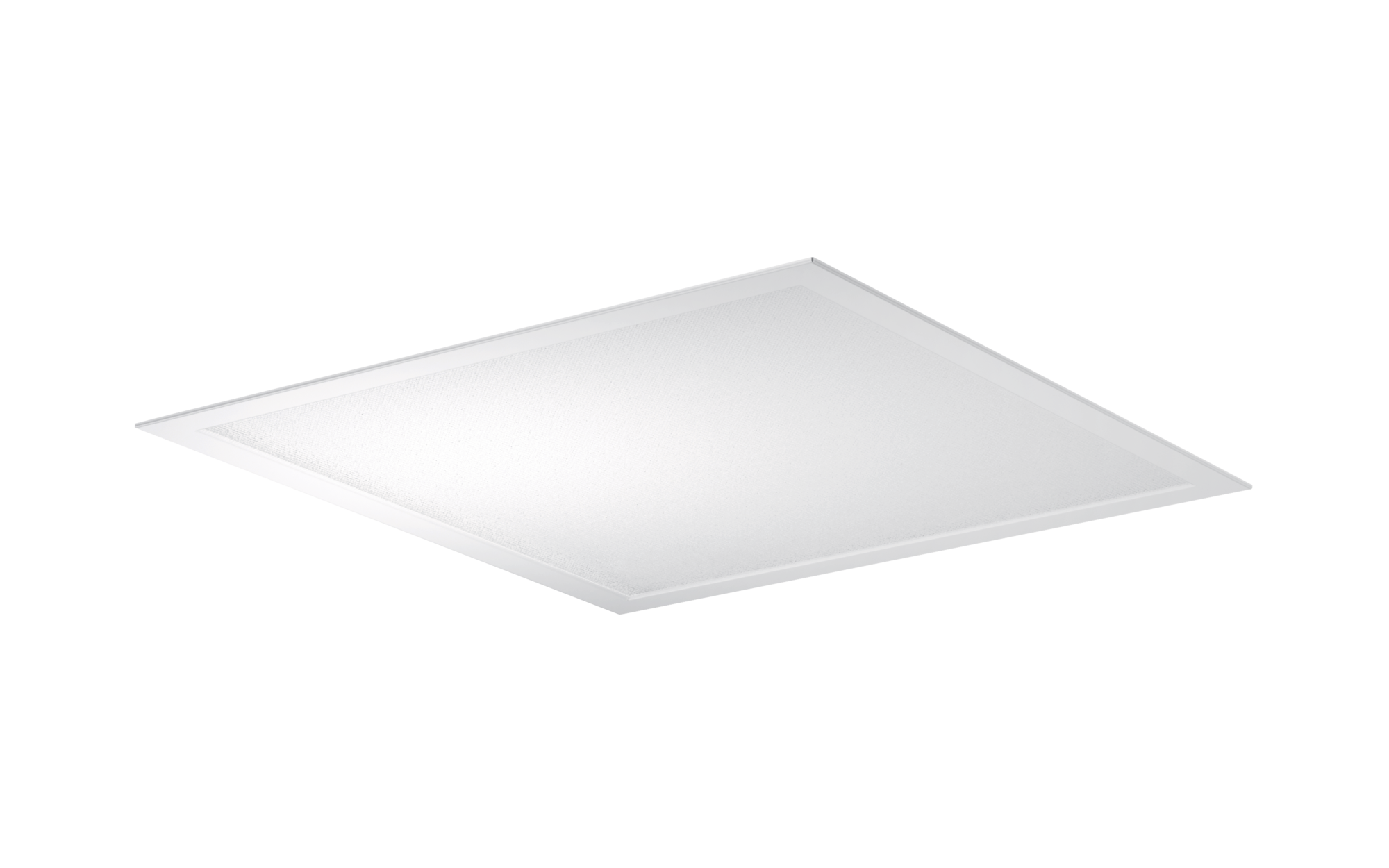

Apollon® 31 with square housing

Apollon® 31 with square housing

Intro product family

Key data

Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 3800lm to 4000lm
Colour temperature 3000K; 4000K
Control ON/OFF; DALI 2, Multilumen
Protection rating IP20/IP40
Service life 50000h (L85) at AT = 25°C

Special features

Apollon® 31 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Long-life replacement for traditional louvre solutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels

Configuration & data sheets

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Installation type

  • lay-in mounting into system ceilings without recessing accessories; for installation in ceiling cutout and for other types of installation: please order mounting accessories separately
  • recessing into cut ceiling aperture either with a quick mounting bracket or with a mounting frame; please order installation accessories matching the luminaire separately

Results

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625 and for cut ceiling aperture

Order No.: 51MP11W72442M GTIN (EAN): 4058352943885
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804000lm28W145lm/WON/OFF620x62011.4
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture

Order No.: 51MP11WD2342 GTIN (EAN): 4058352926178
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 803800lm28W138lm/WDALI 2, Multilumen620x6201.9
Show all details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataComplete download list

Apollon® 31 square, wide distribution, 90°, Light colour 840, ON/OFF, for M625 and for cut ceiling aperture

Order No.: 51MP11W72442MGTIN (EAN): 4058352943885

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load28W
Luminous efficacy145lm/W
ControlON/OFF
Dimension (mm)620x620
Wt. (kg)11.4
Show all details

Apollon® 31 square, wide distribution, 90°, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture

Order No.: 51MP11WD2342GTIN (EAN): 4058352926178

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load28W
Luminous efficacy138lm/W
ControlDALI 2, Multilumen
Dimension (mm)620x620
Wt. (kg)1.9
Show all details

Optional accessories

Articlerapid mounting bracket, for cut ceiling apertures, clamping range 1..20mmPU4 pcs.Wt. (kg)0.1Order No.: 59MQ11008004GTIN (EAN): 4069025012340Show all details
Articlerapid mounting bracket, for cut ceiling apertures, clamping range 20..60mmPU4 pcs.Wt. (kg)0.1Order No.: 59MQ11018004GTIN (EAN): 4069025012333Show all details
Articlemounting frame, for luminaire M625PU1 pc.Wt. (kg)0.7Order No.: 59MQ11005024GTIN (EAN): 4069025012357Show all details
Articlemounting frame, for luminaire M600PU1 pc.Wt. (kg)0.6Order No.: 59MQ12005024GTIN (EAN): 4069025012326Show all details
Articlemounting cable, L= 1500mmPU1 pc.Wt. (kg)0.1Order No.: 59MH12000022GTIN (EAN): 4058352405932Show all details
