DUS® 31

ProducttypesConfiguration & Datasheets

DUS® 31 luminaire insert

Intro to Productfamily

Data

Article luminaire insert
Lighting effect direct symmetric extremely narrow distribution; direct symmetric wide distribution
Net luminous flux 7620lm to 11330lm
Colour temperature 4000K; 6500K
Control ON/OFF; ON/OFF multilumen*; DALI 2

Specials

Effiziente LED-Einsätze mit hoher Licht­ausbeute zur Sanierung vorhandener DUS® Tragschienen-Systeme z.B. als Ersatz für vorhandene Leuchtstofflampen-Einsätze
Verschiedene Licht­verteilungen für vielfältige Anwendungen
Bedarfsgerechte Beleuchtungslösung mit individuell einstellbaren Lumenpaketen auch bei On/Off-Typen durch Multilumenfähigkeit
Simple, quick mounting

Configuration & Datasheets

Lighting effect

Colour temperature

Rated luminous flux (lm)

Control

Versions with 3000K colour temperature on request
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C

Results

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812M1V4085GTIN (EAN): 4058352421741
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 80895060W150lm/WON/OFF multilumen*-35..+30°C15351.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812C1V4075GTIN (EAN): 4058352421666
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 80762049W156lm/WOn/OFF Multilumen, CLOi-35..+30°C15351.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD81271V4080GTIN (EAN): 4058352425886
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 80781051W154lm/WON/OFF-35..+35°C15351.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812D2V4085GTIN (EAN): 4058352421703
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 80893062W144lm/WDALI 2-25..+30°C15352.0

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812C1V6075GTIN (EAN): 4058352434475
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
6500KCRI > 80764049W156lm/WOn/OFF Multilumen, CLOi-35..+30°C15351.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD81271V6080GTIN (EAN): 4058352434451
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
6500KCRI > 80782051W154lm/WON/OFF-35..+35°C15351.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812D2V6085GTIN (EAN): 4058352434512
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
6500KCRI > 80896062W145lm/WDALI 2-25..+30°C15352.0

DUS® PS, symmetric wide distribution

Order No.: 5LS812M1V4110GTIN (EAN): 4058352146965
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 801133071W160lm/WON/OFF multilumen*-25..+35°C15351.9

DUS® PS, symmetric extremely narrow distribution

Order No.: 5LS813M1V4110GTIN (EAN): 4058352147047
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)Wt. (kg)
4000KCRI > 801109071W157lm/WON/OFF multilumen*-25..+35°C15352.0

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812M1V4085GTIN (EAN): 4058352421741

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8950
Connected load60W
Luminous efficacy150lm/W
ControlON/OFF multilumen*
ta-35..+30°C

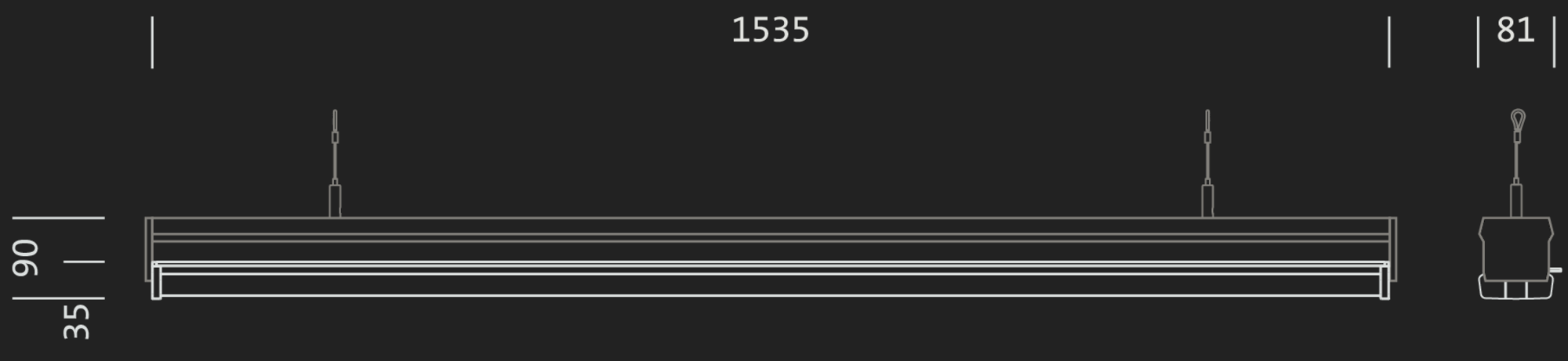

L (mm)1535
Wt. (kg)1.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812C1V4075GTIN (EAN): 4058352421666

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7620
Connected load49W
Luminous efficacy156lm/W
ControlOn/OFF Multilumen, CLOi
ta-35..+30°C
L (mm)1535
Wt. (kg)1.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD81271V4080GTIN (EAN): 4058352425886

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7810
Connected load51W
Luminous efficacy154lm/W
ControlON/OFF
ta-35..+35°C
L (mm)1535
Wt. (kg)1.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812D2V4085GTIN (EAN): 4058352421703

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8930
Connected load62W
Luminous efficacy144lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1535
Wt. (kg)2.0

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812C1V6075GTIN (EAN): 4058352434475

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)7640
Connected load49W
Luminous efficacy156lm/W
ControlOn/OFF Multilumen, CLOi
ta-35..+30°C
L (mm)1535
Wt. (kg)1.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD81271V6080GTIN (EAN): 4058352434451

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)7820
Connected load51W
Luminous efficacy154lm/W
ControlON/OFF
ta-35..+35°C
L (mm)1535
Wt. (kg)1.8

DUS® 31 MO, symmetric wide distribution

Order No.: 53BD812D2V6085GTIN (EAN): 4058352434512

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)8960
Connected load62W
Luminous efficacy145lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1535
Wt. (kg)2.0

DUS® PS, symmetric wide distribution

Order No.: 5LS812M1V4110GTIN (EAN): 4058352146965

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)11330
Connected load71W
Luminous efficacy160lm/W
ControlON/OFF multilumen*
ta-25..+35°C
L (mm)1535
Wt. (kg)1.9

DUS® PS, symmetric extremely narrow distribution

Order No.: 5LS813M1V4110GTIN (EAN): 4058352147047

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)11090
Connected load71W
Luminous efficacy157lm/W
ControlON/OFF multilumen*
ta-25..+35°C
L (mm)1535
Wt. (kg)2.0
