Complete your road and city lighting with high-quality design masts or design brackets as well as standard masts in various designs and heights. You will also find important accessories such as cable junction boxes and reducers here.

The extra for road and city lighting

conical round masts

Intro to Productfamily

Data

Article mast

Configuration & Datasheets

Surface

Height

Spigot size

  • please order edge protection for cable inlet separately if required
  • Please order shrink sleeve separately if required as additional corrosion protection at the earth transition
  • please order baseplate separately if required as additional anchor in the ground to prevent the mast from sinking in
  • customer-specific special designs on request
  • further RAL colours and DB colour tones on request

Results

mast, conical round, galvanised, 3m, spigot size: 60mm

Order No.: 5NY231630KM00 GTIN (EAN): 4039806381095

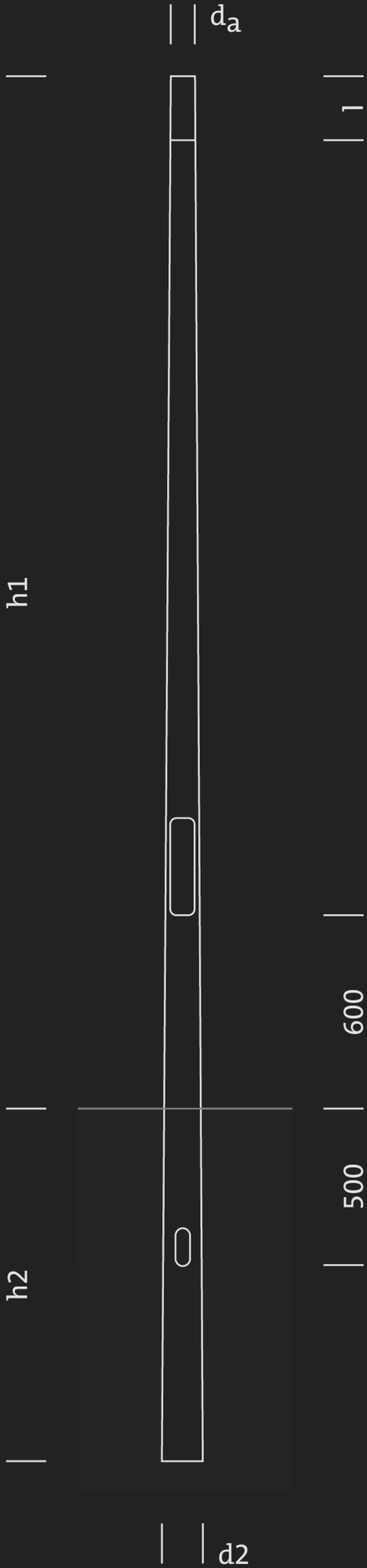

Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6030.6110galvanised 15.6

mast, conical round, galvanised, 3.5m, spigot size: 60mm

Order No.: 5NY231635KM00 GTIN (EAN): 4039806381156
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round603.50.6117galvanised 18.5

mast, conical round, galvanised, 4.0m, spigot size: 60mm

Order No.: 5NY231640KM00 GTIN (EAN): 4039806381231
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6040.8127galvanised 22.9

mast, conical round, galvanised, 4.5m, spigot size: 60mm

Order No.: 5NY231645KM00 GTIN (EAN): 4039806381323
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round604.50.8134galvanised 26.3

mast, conical round, galvanised, 5.0m, spigot size: 60mm

Order No.: 5NY231650KM00 GTIN (EAN): 4039806381392
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6050.8130galvanised 29.9

mast, conical round, galvanised, 3m, spigot size: 76mm

Order No.: 5NY231730KM00 GTIN (EAN): 4039806381521
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7630.6126galvanised 18.6

mast, conical round, galvanised, 3.5m, spigot size: 76mm

Order No.: 5NY231735KM00 GTIN (EAN): 4039806381606
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round763.50.6133galvanised 21.9

mast, conical round, galvanised, 4.0m, spigot size: 76mm

Order No.: 5NY231740KM00 GTIN (EAN): 4039806381781
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7640.8129galvanised 27.0

mast, conical round, galvanised, 4.5m, spigot size: 76mm

Order No.: 5NY231745KM00 GTIN (EAN): 4039806382023
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round764.50.8134galvanised 30.8

mast, conical round, galvanised, 5.0m, spigot size: 76mm

Order No.: 5NY231750KM00 GTIN (EAN): 4039806382191
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7650.8140galvanised 34.8

mast, conical round, galvanised, 6.0m, spigot size: 76mm

Order No.: 5NY231760KM00 GTIN (EAN): 4039806382344
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7661153galvanised 45.2

mast, conical round, galvanised, 8.0m, spigot size: 76mm

Order No.: 5NY231780KM00 GTIN (EAN): 4039806382429
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7681.2168galvanised 91.3

mast, conical round, galvanised, 10m, spigot size: 76mm

Order No.: 5NY231710KM00 GTIN (EAN): 4039806381446
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round76101.5202galvanised 123.9

mast, conical round, Siteco® metallic grey (DB 702S), 3m, spigot size: 60mm

Order No.: 5NY231630KM08 GTIN (EAN): 4039806381118
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6030.6110 Siteco® metallic grey (DB 702S)22.0

mast, conical round, Siteco® metallic grey (DB 702S), 3.5m, spigot size: 60mm

Order No.: 5NY231635KM08 GTIN (EAN): 4039806381170
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round603.50.6117 Siteco® metallic grey (DB 702S)26.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.0m, spigot size: 60mm

Order No.: 5NY231640KM08 GTIN (EAN): 4039806381262
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6040.8127 Siteco® metallic grey (DB 702S)33.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.5m, spigot size: 60mm

Order No.: 5NY231645KM08 GTIN (EAN): 4039806381347
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round604.50.8134 Siteco® metallic grey (DB 702S)26.2

mast, conical round, Siteco® metallic grey (DB 702S), 5.0m, spigot size: 60mm

Order No.: 5NY231650KM08 GTIN (EAN): 4039806381415
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round6050.8130 Siteco® metallic grey (DB 702S)28.5

mast, conical round, Siteco® metallic grey (DB 702S), 3m, spigot size: 76mm

Order No.: 5NY231730KM08 GTIN (EAN): 4039806381545
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7630.6126 Siteco® metallic grey (DB 702S)18.8

mast, conical round, Siteco® metallic grey (DB 702S), 3.5m, spigot size: 76mm

Order No.: 5NY231735KM08 GTIN (EAN): 4039806381620
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round763.50.6133 Siteco® metallic grey (DB 702S)21.9

mast, conical round, Siteco® metallic grey (DB 702S), 4.0m, spigot size: 76mm

Order No.: 5NY231740KM08 GTIN (EAN): 4039806381835
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7640.8129 Siteco® metallic grey (DB 702S)27.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.5m, spigot size: 76mm

Order No.: 5NY231745KM08 GTIN (EAN): 4039806382047
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round764.50.8134 Siteco® metallic grey (DB 702S)30.8

mast, conical round, Siteco® metallic grey (DB 702S), 5.0m, spigot size: 76mm

Order No.: 5NY231750KM08 GTIN (EAN): 4039806382221
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7650.8140 Siteco® metallic grey (DB 702S)34.0

mast, conical round, Siteco® metallic grey (DB 702S), 6.0m, spigot size: 76mm

Order No.: 5NY231760KM08 GTIN (EAN): 4039806382368
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7661153 Siteco® metallic grey (DB 702S)45.5

mast, conical round, Siteco® metallic grey (DB 702S), 8.0m, spigot size: 76mm

Order No.: 5NY231780KM08 GTIN (EAN): 4039806382443
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round7681.2168 Siteco® metallic grey (DB 702S)96.0

mast, conical round, Siteco® metallic grey (DB 702S), 10m, spigot size: 76mm

Order No.: 5NY231710KM08 GTIN (EAN): 4039806381460
Formda (mm)Mast h1 (m)Planted section h2 (m)Planted section d2 (mm)SurfaceColourWt. (kg)
conical round76101.5202 Siteco® metallic grey (DB 702S)131.5

mast, conical round, galvanised, 3m, spigot size: 60mm

Order No.: 5NY231630KM00GTIN (EAN): 4039806381095

Formconical round
da (mm)60
Mast h1 (m)3
Planted section h2 (m)0.6
Planted section d2 (mm)110
Surfacegalvanised
Colour
Wt. (kg)15.6

mast, conical round, galvanised, 3.5m, spigot size: 60mm

Order No.: 5NY231635KM00GTIN (EAN): 4039806381156

Formconical round
da (mm)60
Mast h1 (m)3.5
Planted section h2 (m)0.6
Planted section d2 (mm)117
Surfacegalvanised
Colour
Wt. (kg)18.5

mast, conical round, galvanised, 4.0m, spigot size: 60mm

Order No.: 5NY231640KM00GTIN (EAN): 4039806381231

Formconical round
da (mm)60
Mast h1 (m)4
Planted section h2 (m)0.8
Planted section d2 (mm)127
Surfacegalvanised
Colour
Wt. (kg)22.9

mast, conical round, galvanised, 4.5m, spigot size: 60mm

Order No.: 5NY231645KM00GTIN (EAN): 4039806381323

Formconical round
da (mm)60
Mast h1 (m)4.5
Planted section h2 (m)0.8
Planted section d2 (mm)134
Surfacegalvanised
Colour
Wt. (kg)26.3

mast, conical round, galvanised, 5.0m, spigot size: 60mm

Order No.: 5NY231650KM00GTIN (EAN): 4039806381392

Formconical round
da (mm)60
Mast h1 (m)5
Planted section h2 (m)0.8
Planted section d2 (mm)130
Surfacegalvanised
Colour
Wt. (kg)29.9

mast, conical round, galvanised, 3m, spigot size: 76mm

Order No.: 5NY231730KM00GTIN (EAN): 4039806381521

Formconical round
da (mm)76
Mast h1 (m)3
Planted section h2 (m)0.6
Planted section d2 (mm)126
Surfacegalvanised
Colour
Wt. (kg)18.6

mast, conical round, galvanised, 3.5m, spigot size: 76mm

Order No.: 5NY231735KM00GTIN (EAN): 4039806381606

Formconical round
da (mm)76
Mast h1 (m)3.5
Planted section h2 (m)0.6
Planted section d2 (mm)133
Surfacegalvanised
Colour
Wt. (kg)21.9

mast, conical round, galvanised, 4.0m, spigot size: 76mm

Order No.: 5NY231740KM00GTIN (EAN): 4039806381781

Formconical round
da (mm)76
Mast h1 (m)4
Planted section h2 (m)0.8
Planted section d2 (mm)129
Surfacegalvanised
Colour
Wt. (kg)27.0

mast, conical round, galvanised, 4.5m, spigot size: 76mm

Order No.: 5NY231745KM00GTIN (EAN): 4039806382023

Formconical round
da (mm)76
Mast h1 (m)4.5
Planted section h2 (m)0.8
Planted section d2 (mm)134
Surfacegalvanised
Colour
Wt. (kg)30.8

mast, conical round, galvanised, 5.0m, spigot size: 76mm

Order No.: 5NY231750KM00GTIN (EAN): 4039806382191

Formconical round
da (mm)76
Mast h1 (m)5
Planted section h2 (m)0.8
Planted section d2 (mm)140
Surfacegalvanised
Colour
Wt. (kg)34.8

mast, conical round, galvanised, 6.0m, spigot size: 76mm

Order No.: 5NY231760KM00GTIN (EAN): 4039806382344

Formconical round
da (mm)76
Mast h1 (m)6
Planted section h2 (m)1
Planted section d2 (mm)153
Surfacegalvanised
Colour
Wt. (kg)45.2

mast, conical round, galvanised, 8.0m, spigot size: 76mm

Order No.: 5NY231780KM00GTIN (EAN): 4039806382429

Formconical round
da (mm)76
Mast h1 (m)8
Planted section h2 (m)1.2
Planted section d2 (mm)168
Surfacegalvanised
Colour
Wt. (kg)91.3

mast, conical round, galvanised, 10m, spigot size: 76mm

Order No.: 5NY231710KM00GTIN (EAN): 4039806381446

Formconical round
da (mm)76
Mast h1 (m)10
Planted section h2 (m)1.5
Planted section d2 (mm)202
Surfacegalvanised
Colour
Wt. (kg)123.9

mast, conical round, Siteco® metallic grey (DB 702S), 3m, spigot size: 60mm

Order No.: 5NY231630KM08GTIN (EAN): 4039806381118

Formconical round
da (mm)60
Mast h1 (m)3
Planted section h2 (m)0.6
Planted section d2 (mm)110
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)22.0

mast, conical round, Siteco® metallic grey (DB 702S), 3.5m, spigot size: 60mm

Order No.: 5NY231635KM08GTIN (EAN): 4039806381170

Formconical round
da (mm)60
Mast h1 (m)3.5
Planted section h2 (m)0.6
Planted section d2 (mm)117
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)26.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.0m, spigot size: 60mm

Order No.: 5NY231640KM08GTIN (EAN): 4039806381262

Formconical round
da (mm)60
Mast h1 (m)4
Planted section h2 (m)0.8
Planted section d2 (mm)127
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)33.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.5m, spigot size: 60mm

Order No.: 5NY231645KM08GTIN (EAN): 4039806381347

Formconical round
da (mm)60
Mast h1 (m)4.5
Planted section h2 (m)0.8
Planted section d2 (mm)134
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)26.2

mast, conical round, Siteco® metallic grey (DB 702S), 5.0m, spigot size: 60mm

Order No.: 5NY231650KM08GTIN (EAN): 4039806381415

Formconical round
da (mm)60
Mast h1 (m)5
Planted section h2 (m)0.8
Planted section d2 (mm)130
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)28.5

mast, conical round, Siteco® metallic grey (DB 702S), 3m, spigot size: 76mm

Order No.: 5NY231730KM08GTIN (EAN): 4039806381545

Formconical round
da (mm)76
Mast h1 (m)3
Planted section h2 (m)0.6
Planted section d2 (mm)126
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)18.8

mast, conical round, Siteco® metallic grey (DB 702S), 3.5m, spigot size: 76mm

Order No.: 5NY231735KM08GTIN (EAN): 4039806381620

Formconical round
da (mm)76
Mast h1 (m)3.5
Planted section h2 (m)0.6
Planted section d2 (mm)133
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)21.9

mast, conical round, Siteco® metallic grey (DB 702S), 4.0m, spigot size: 76mm

Order No.: 5NY231740KM08GTIN (EAN): 4039806381835

Formconical round
da (mm)76
Mast h1 (m)4
Planted section h2 (m)0.8
Planted section d2 (mm)129
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)27.0

mast, conical round, Siteco® metallic grey (DB 702S), 4.5m, spigot size: 76mm

Order No.: 5NY231745KM08GTIN (EAN): 4039806382047

Formconical round
da (mm)76
Mast h1 (m)4.5
Planted section h2 (m)0.8
Planted section d2 (mm)134
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)30.8

mast, conical round, Siteco® metallic grey (DB 702S), 5.0m, spigot size: 76mm

Order No.: 5NY231750KM08GTIN (EAN): 4039806382221

Formconical round
da (mm)76
Mast h1 (m)5
Planted section h2 (m)0.8
Planted section d2 (mm)140
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)34.0

mast, conical round, Siteco® metallic grey (DB 702S), 6.0m, spigot size: 76mm

Order No.: 5NY231760KM08GTIN (EAN): 4039806382368

Formconical round
da (mm)76
Mast h1 (m)6
Planted section h2 (m)1
Planted section d2 (mm)153
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)45.5

mast, conical round, Siteco® metallic grey (DB 702S), 8.0m, spigot size: 76mm

Order No.: 5NY231780KM08GTIN (EAN): 4039806382443

Formconical round
da (mm)76
Mast h1 (m)8
Planted section h2 (m)1.2
Planted section d2 (mm)168
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)96.0

mast, conical round, Siteco® metallic grey (DB 702S), 10m, spigot size: 76mm

Order No.: 5NY231710KM08GTIN (EAN): 4039806381460

Formconical round
da (mm)76
Mast h1 (m)10
Planted section h2 (m)1.5
Planted section d2 (mm)202
Surface
ColourSiteco® metallic grey (DB 702S)
Wt. (kg)131.5

Optional accessory

Articleedge protectionPU1 pc.Wt. (kg)0.1Order No.: 5NY23101XK0GTIN (EAN): 4039806380999Show details
Articleshrink-on collar, for mast diameter <= 114mmPU1 pc.Wt. (kg)1.0Order No.: 5NY23101XM114GTIN (EAN): 4039806381019Show details
Articleshrink-on collar, for mast diameter > 114mmPU1 pc.Wt. (kg)0.6Order No.: 5NY23101XM191GTIN (EAN): 4039806381026Show details
Articlebaseplate, 250 x mmPU1 pc.Wt. (kg)1.0Order No.: 5NY23101XB250GTIN (EAN): 4039806380975Show details
Articlebaseplate, 400 x mmPU1 pc.Wt. (kg)1.0Order No.: 5NY23101XB400GTIN (EAN): 4039806380982Show details
