Licross® 11/21 sensors with DALI2 interface

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

for low rooms, e.g. logistics zones

Intro to Productfamily

Data

Equipment slave
Article Sensor-Head PC1-S; Interface S

Configuration & Datasheets

  • when contacting DALI line 1, suitable from 7-core wiring upwards
  • with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
  • adaption to on-site conditions via 90° rotatable sensor interface
  • a sensor unit consists of sensor head and interface
  • DALI2 certified according to part 101,103,303,304
  • DALI current I= 6mA

Results

Licross® Interface, slave

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Interface Sfor narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairways 500x96

Licross® Sensor Head, slave

Order No.: 59US1HXSPC1AGTIN (EAN): 4058352363911
ArticleApplication areaMounting heightDetection range movementDimension (mm)ta
Sensor-Head PC1-Sfor low rooms, i.e. car parks2.5..4mD max. 40m95x95-20..+50°C

Licross® Interface, slave

Order No.: 56TL1FCSAGTIN (EAN): 4058352373880

ArticleInterface S
Application areafor narrow rooms, e.g. corridors, for rack and highbay storage, for low rooms, i.e. car parks, for high rooms, e.g. logistics zones, for stairways
Mounting height
Detection range movement

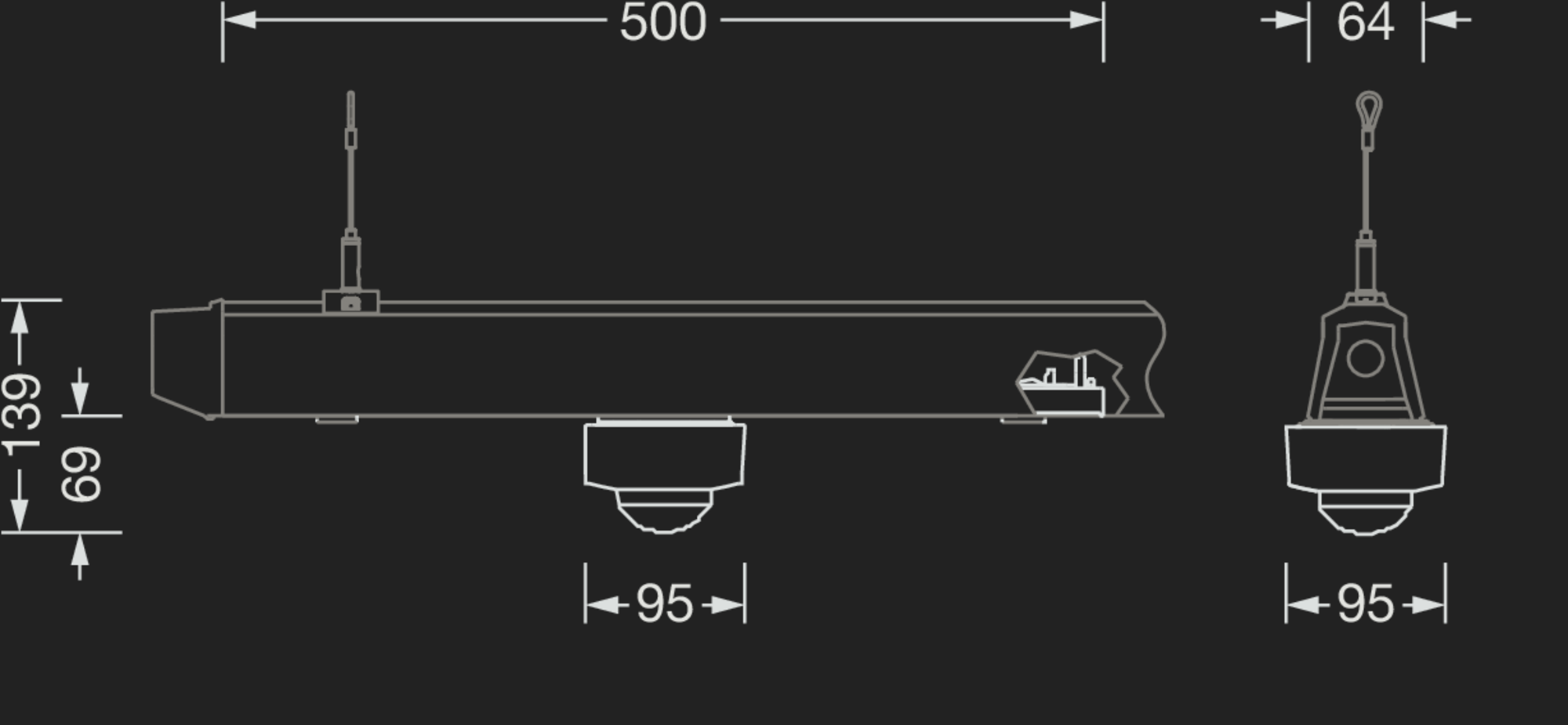

Dimension (mm)500x96
ta

Licross® Sensor Head, slave

Order No.: 59US1HXSPC1AGTIN (EAN): 4058352363911

ArticleSensor-Head PC1-S
Application areafor low rooms, i.e. car parks
Mounting height2.5..4m
Detection range movementD max. 40m
Dimension (mm)95x95
ta-20..+50°C

Mandatory accessory

Articlecontroller, central control, wired, 6 TEPU1 pc.Wt. (kg)0.2Order No.: 5LZ904712AGTIN (EAN): 4058352548448Show details
Articlebase package S/D, DIN rail PC with 1GHz ARM Cortex™ A8 CPU, recessed, in an electrical distributorPU1 pc.Wt. (kg)0.6Order No.: 5LZ930100GTIN (EAN): 4058352385906Show details
Articlebase package S/P, 7" touch panel PC with ARM Cortex-A8, 7" TFT display, recessed, in an electrical distributor, with shield, blackPU1 pc.Wt. (kg)0.9Order No.: 5LZ930101GTIN (EAN): 4058352385913Show details
Articlebase package M/D, DIN rail PC with Intel Atom® 1.47GHz, recessed, in an electrical distributorPU1 pc.Wt. (kg)0.6Order No.: 5LZ930102GTIN (EAN): 4058352385920Show details
Articlebase package M/P, 7" touch panel PC with Intel Atom®, max. 4 cores, 7" TFT display, recessed, in an electrical distributor, with shield, blackPU1 pc.Wt. (kg)0.9Order No.: 5LZ930103GTIN (EAN): 4058352385937Show details
