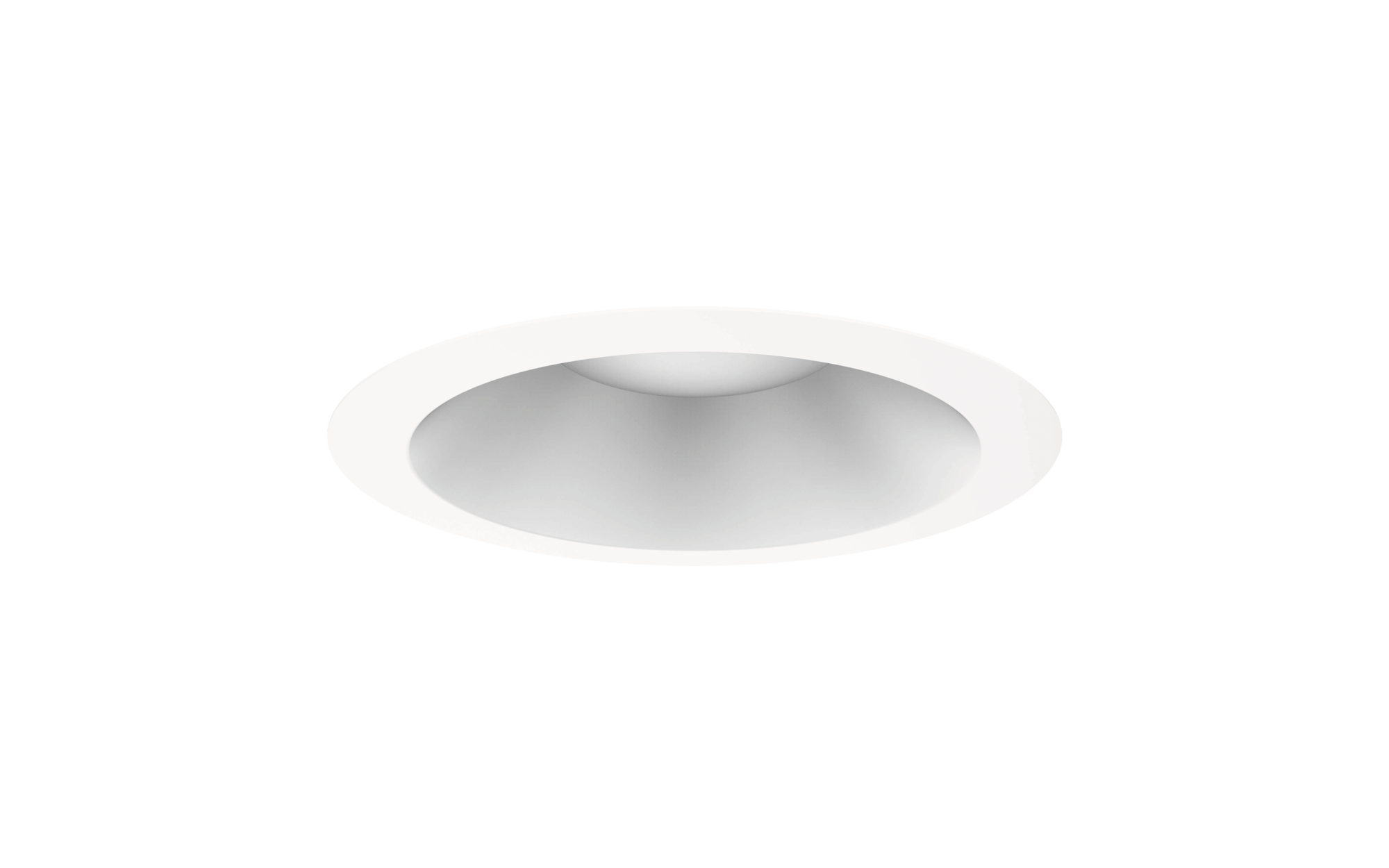

Lunis 31
Elegance and efficiency – that is what characterizes the Lunis 31 luminaire family. The downlights are ideally suited for display workstation lighting. The aluminum housing ensures good heat dissipation and a long service life. Thanks to the quick and easy installation, the Lunis 31 is the practical solution for office and general lighting.
Our basic solution: Lunis 31 is our practical downlight as a perfect addition with high efficiency and quality
Producttypes
Lunis 31 L Ø 162mm
Intro to Productfamily
Data
Article downlight
Lighting effect direct wide distribution
Net luminous flux 1000lm to 2500lm
Colour temperature 3000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2; DALI 2, Multilumen
Specials
Downlight family from classic DL in two construction sizes for all classic applications
Very easy to assemble and use thanks to the low recessing depth

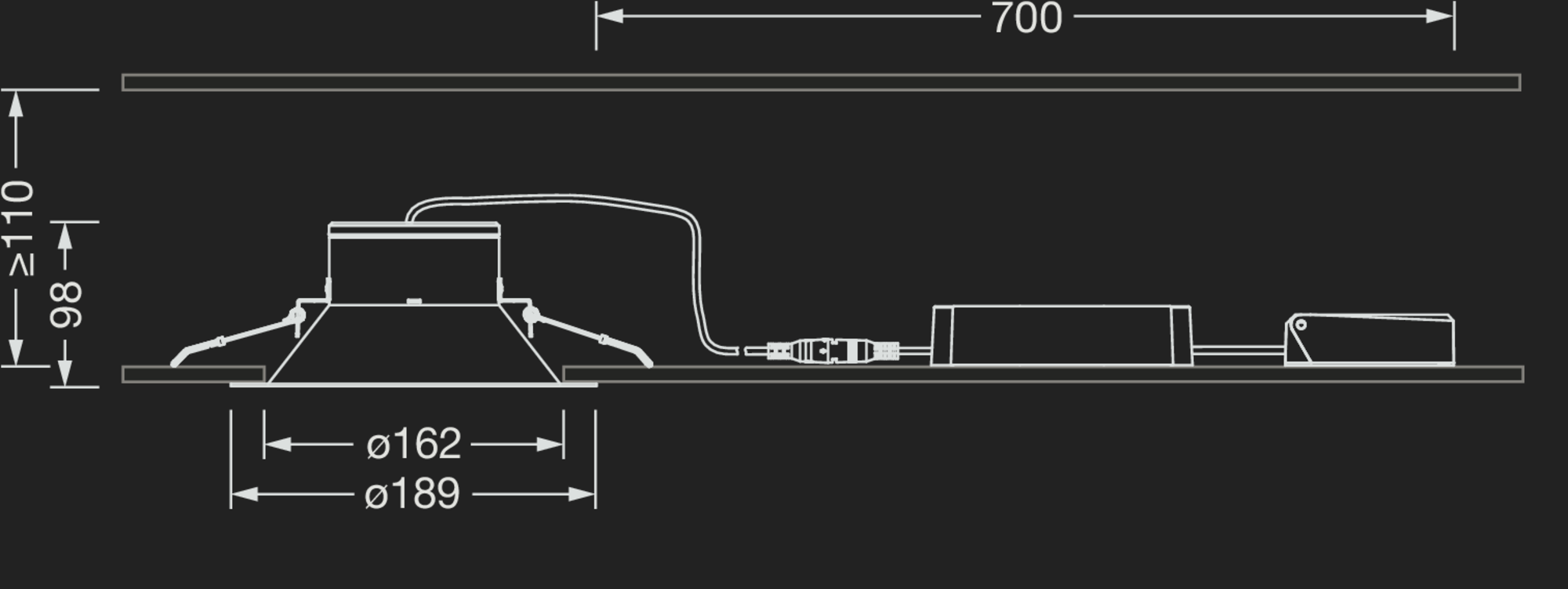

Ceiling cut-out DA = 162mm and 212mm, therefore also as a replacement for many Siteco downlights with conventional lamps
Suitable for office lighting with UGR ≤ 19
Downlight size L/XL corresponds to previous size specification mini/midi
Configuration & Datasheets
Results

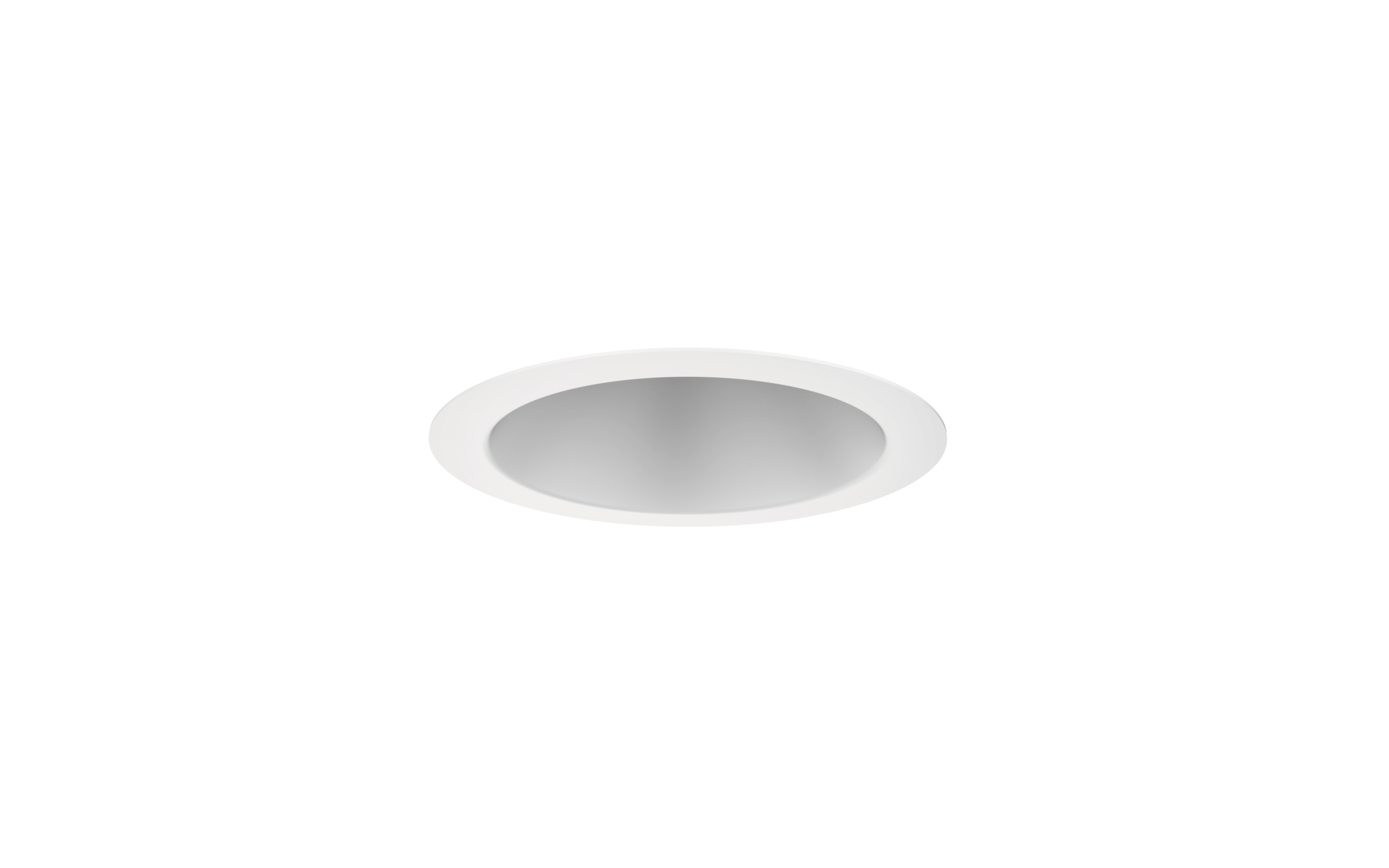

Lunis 31 mini, wide distribution, Light colour 830, ON/OFF
Order No.: 51DN157E31 GTIN (EAN): 4058352555903
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1000lm | 8.3W | 120lm/W | ON/OFF | 0.3 |
Lunis 31 mini, wide distribution, Light colour 830, ON/OFF
Order No.: 51DN167E31 GTIN (EAN): 4058352555989
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1000lm | 8.3W | 121lm/W | ON/OFF | 0.3 |
Lunis 31 mini, wide distribution, Light colour 830, DALI 2
Order No.: 51DN16DE31 GTIN (EAN): 4058352556023
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1000lm | 8.3W | 121lm/W | DALI 2 | 0.4 |
Lunis 31-L, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN16ME31B GTIN (EAN): 4069025151896
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1600lm | 11.5W | 139lm/W | ON/OFF Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN16ME41B GTIN (EAN): 4069025151940
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1650lm | 11.5W | 143lm/W | ON/OFF Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN16EE31B GTIN (EAN): 4069025151773
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1550lm | 12W | 129lm/W | DALI 2, Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN16EE41B GTIN (EAN): 4069025151803
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1600lm | 12W | 133lm/W | DALI 2, Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN15ME31B GTIN (EAN): 4069025151650
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1600lm | 12W | 133lm/W | ON/OFF Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN15ME41B GTIN (EAN): 4069025151681
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1700lm | 12W | 142lm/W | ON/OFF Multilumen | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN15EE31B GTIN (EAN): 4069025151537
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1650lm | 12.2W | 135lm/W | DALI 2, Multilumen | 0.4 |
Lunis 31-L, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN15EE41B GTIN (EAN): 4069025151568
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1750lm | 12.2W | 143lm/W | DALI 2, Multilumen | 0.4 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN16EG32B GTIN (EAN): 4069025151834
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2500lm | 17W | 147lm/W | DALI 2, Multilumen | 0.5 |
Lunis 31 mini, wide distribution, Light colour 830, ON/OFF
Order No.: 51DN157E31GTIN (EAN): 4058352555903
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.3 |
Lunis 31 mini, wide distribution, Light colour 830, ON/OFF
Order No.: 51DN167E31GTIN (EAN): 4058352555989
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 121lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.3 |
Lunis 31 mini, wide distribution, Light colour 830, DALI 2
Order No.: 51DN16DE31GTIN (EAN): 4058352556023
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 121lm/W |
| Control | DALI 2 |
| Wt. (kg) | 0.4 |
Lunis 31-L, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN16ME31BGTIN (EAN): 4069025151896
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1600lm |
| Connected load | 11.5W |
| Luminous efficacy | 139lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN16ME41BGTIN (EAN): 4069025151940
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1650lm |
| Connected load | 11.5W |
| Luminous efficacy | 143lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN16EE31BGTIN (EAN): 4069025151773
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1550lm |
| Connected load | 12W |
| Luminous efficacy | 129lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN16EE41BGTIN (EAN): 4069025151803
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1600lm |
| Connected load | 12W |
| Luminous efficacy | 133lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, ON/OFF Multilumen
Order No.: 51DN15ME31BGTIN (EAN): 4069025151650
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1600lm |
| Connected load | 12W |
| Luminous efficacy | 133lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 840, ON/OFF Multilumen
Order No.: 51DN15ME41BGTIN (EAN): 4069025151681
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1700lm |
| Connected load | 12W |
| Luminous efficacy | 142lm/W |
| Control | ON/OFF Multilumen |
| Wt. (kg) | 0.3 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN15EE31BGTIN (EAN): 4069025151537
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1650lm |
| Connected load | 12.2W |
| Luminous efficacy | 135lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.4 |
Lunis 31-L, wide distribution, Light colour 840, DALI 2, Multilumen
Order No.: 51DN15EE41BGTIN (EAN): 4069025151568
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1750lm |
| Connected load | 12.2W |
| Luminous efficacy | 143lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.4 |
Lunis 31-L, wide distribution, Light colour 830, DALI 2, Multilumen
Order No.: 51DN16EG32BGTIN (EAN): 4069025151834
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2500lm |
| Connected load | 17W |
| Luminous efficacy | 147lm/W |
| Control | DALI 2, Multilumen |
| Wt. (kg) | 0.5 |
