TV 20

ProducttypesConfiguration & Datasheets

Complete robustness and daylight-bright illumination in combination with well thought-out features – the ideal tunnel and underpass lighting.

Producttypes

Data

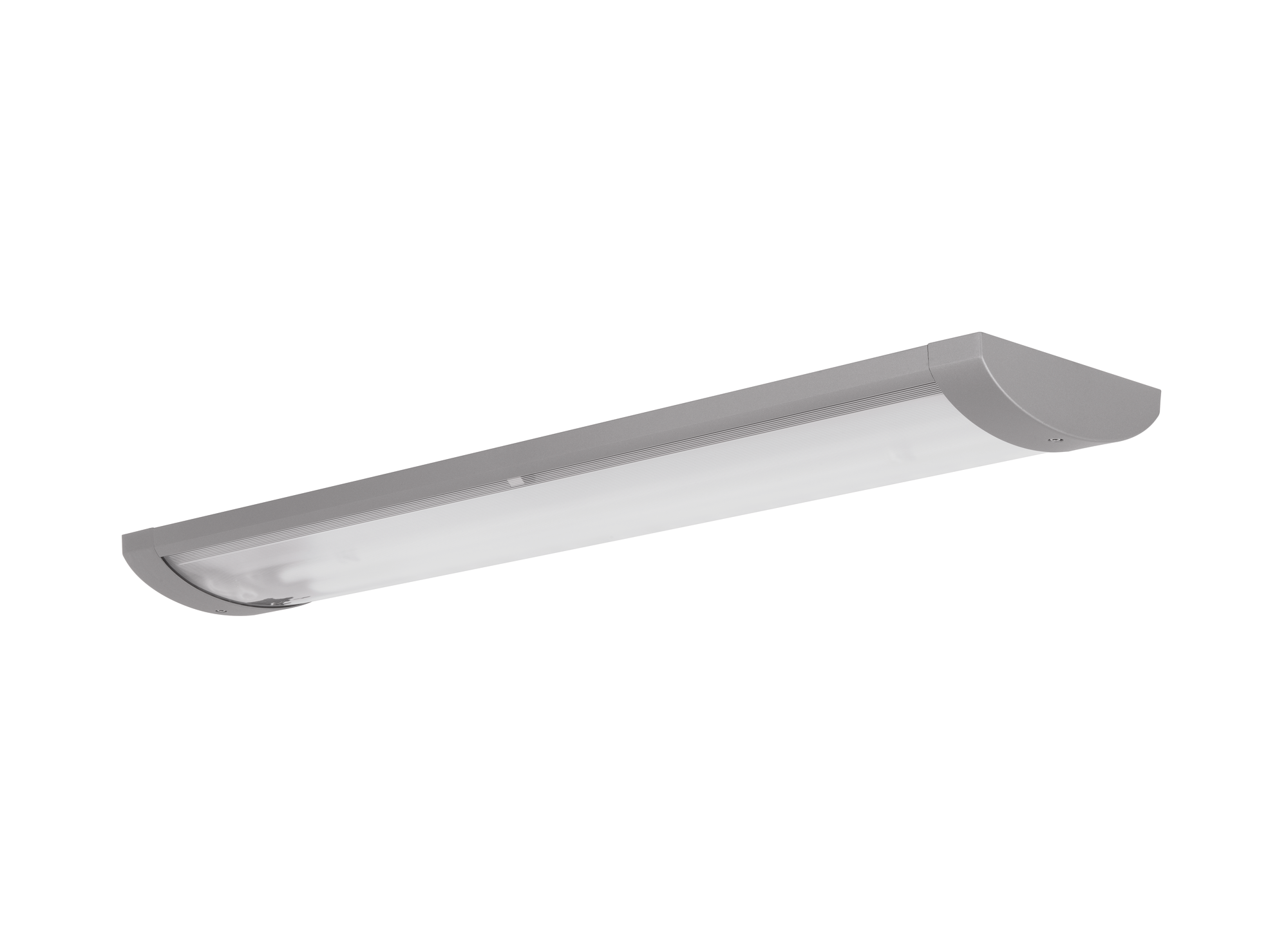

Article vandal-proof luminaire
Lighting effect direct symmetric distribution
Net luminous flux 2130lm to 5120lm
Colour temperature 4000K
Control ON/OFF; DALI

Specials

Vandal-proof luminaire of diecast aluminium with high impact resistance of 2x IK10 (50J) and polycarbonate cover - especially rugged for reliable operation
Designed for harsh environments thanks to corrosion-resistant materials such as stainless steel or special aluminum alloys as well as increased resistance to damage
One-man mounting with variable mounting distances using click-in stainless steel fasteners for quick, flexible mounting
Integrated cable routing channel and concealed fixing points for visually clean mounting and protection against vandalism
Form-fit corner mounting brackets allow installation between the wall and ceiling in tunnels and underpasses

Configuration & Datasheets

Rated luminous flux

Control

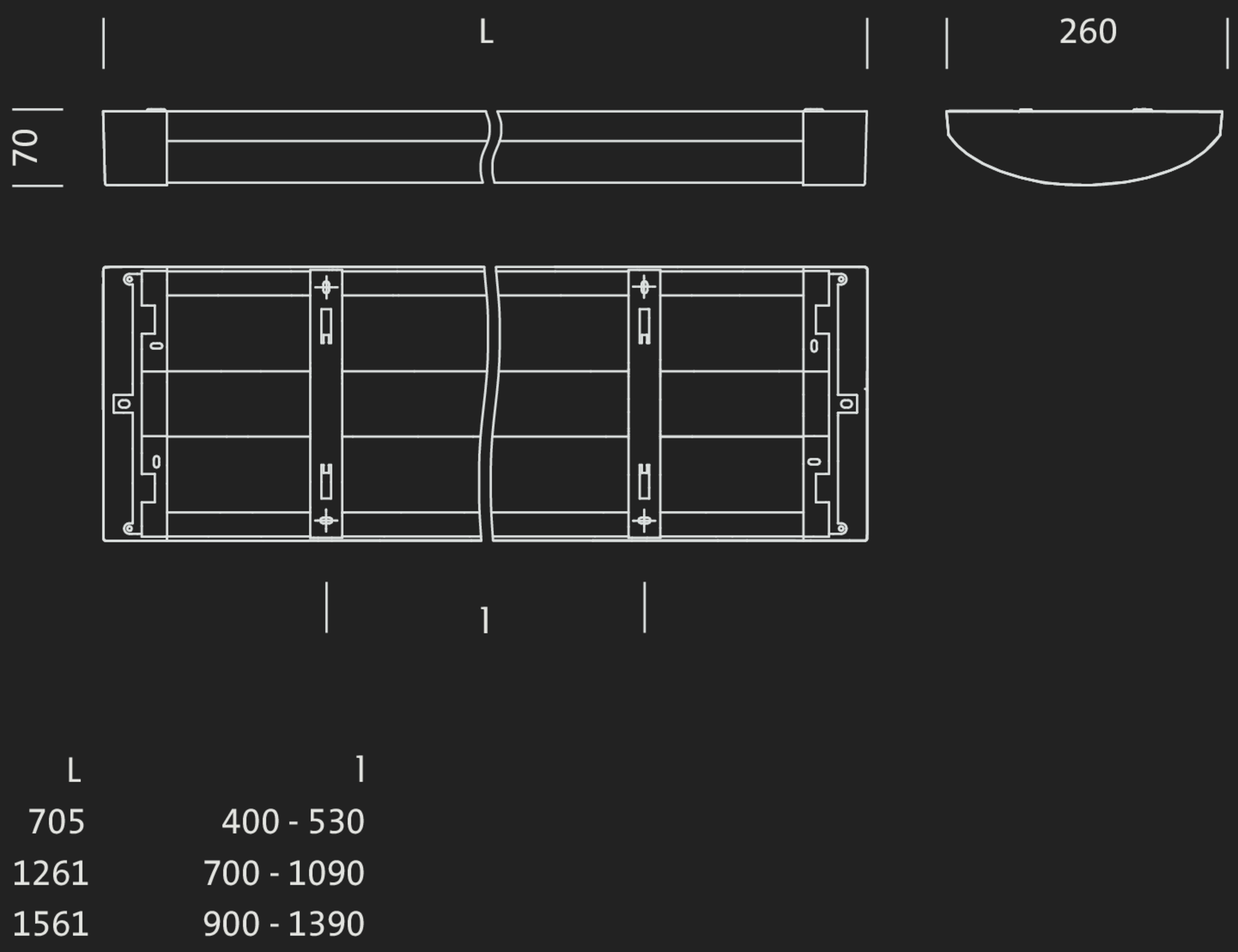

Length (mm)

  • luminaire incl. mounting brackets

Results

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86172N0AGTIN (EAN): 4050737978284
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 802130lm21W101lm/WON/OFF7054.8

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86174N0JGTIN (EAN): 4050737978291
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 803960lm37W107lm/WON/OFF12617.9

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86174N0XGTIN (EAN): 4050737978307
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 805120lm50W102lm/WON/OFF15619.4

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D2N0AGTIN (EAN): 4050737978314
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 802130lm21W101lm/WDALI7054.1

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D4N0JGTIN (EAN): 4050737978321
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 803960lm37W107lm/WDALI12616.9

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D4N0XGTIN (EAN): 4050737978338
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 805120lm50W102lm/WDALI15618.9

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86172N0AGTIN (EAN): 4050737978284

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2130lm
Connected load21W
Luminous efficacy101lm/W
ControlON/OFF
L (mm)705
Wt. (kg)4.8

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86174N0JGTIN (EAN): 4050737978291

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3960lm
Connected load37W
Luminous efficacy107lm/W
ControlON/OFF
L (mm)1261
Wt. (kg)7.9

TV 20, Light colour 840, ON/OFF, 2x IK10

Order No.: 5XA86174N0XGTIN (EAN): 4050737978307

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux5120lm
Connected load50W
Luminous efficacy102lm/W
ControlON/OFF
L (mm)1561
Wt. (kg)9.4

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D2N0AGTIN (EAN): 4050737978314

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2130lm
Connected load21W
Luminous efficacy101lm/W
ControlDALI
L (mm)705
Wt. (kg)4.1

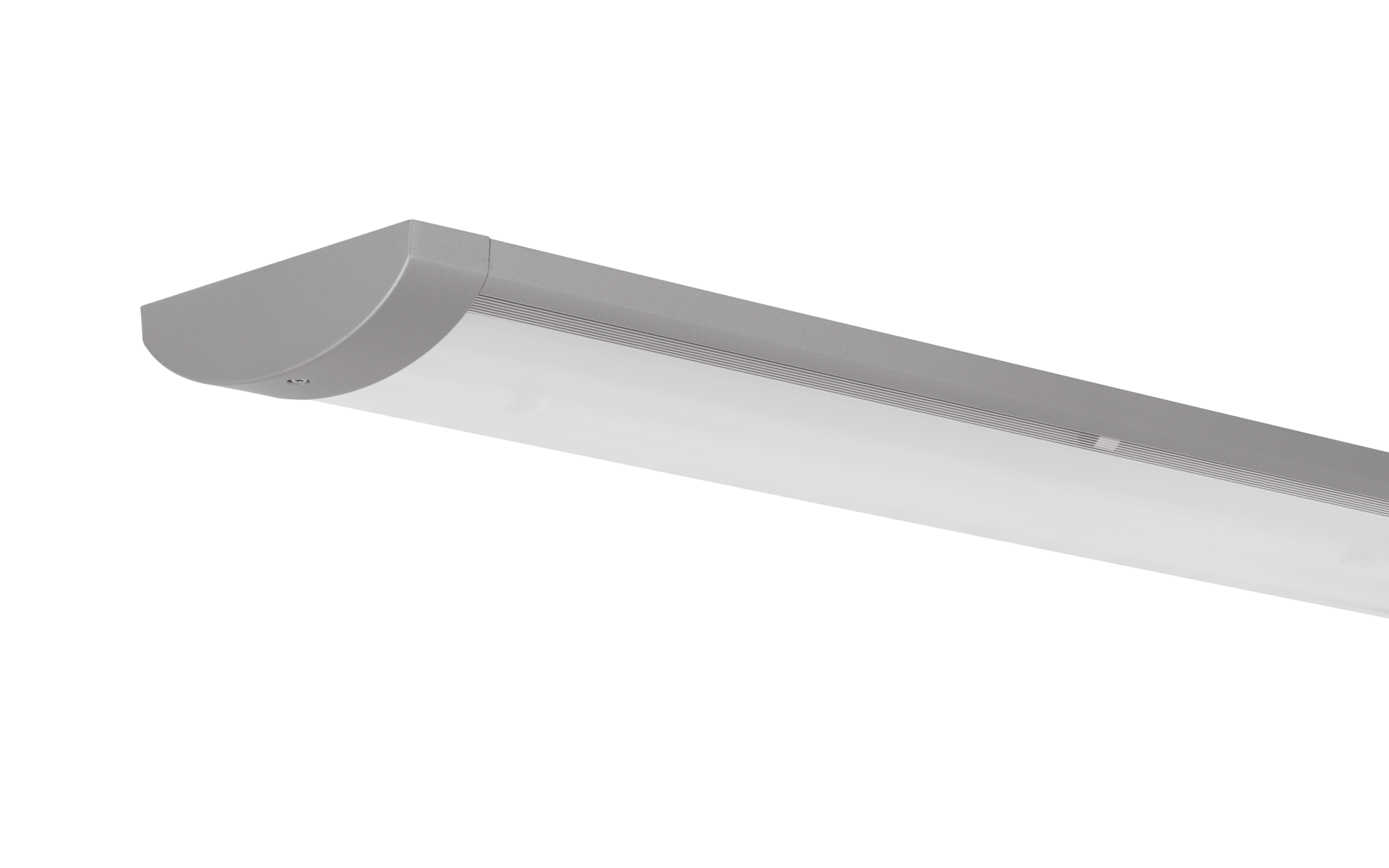

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D4N0JGTIN (EAN): 4050737978321

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3960lm
Connected load37W
Luminous efficacy107lm/W
ControlDALI
L (mm)1261
Wt. (kg)6.9

TV 20, Light colour 840, DALI, 2x IK10

Order No.: 5XA861D4N0XGTIN (EAN): 4050737978338

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux5120lm
Connected load50W
Luminous efficacy102lm/W
ControlDALI
L (mm)1561
Wt. (kg)8.9
