Silica® 21 Floor R

ProducttypesConfiguration & Datasheets

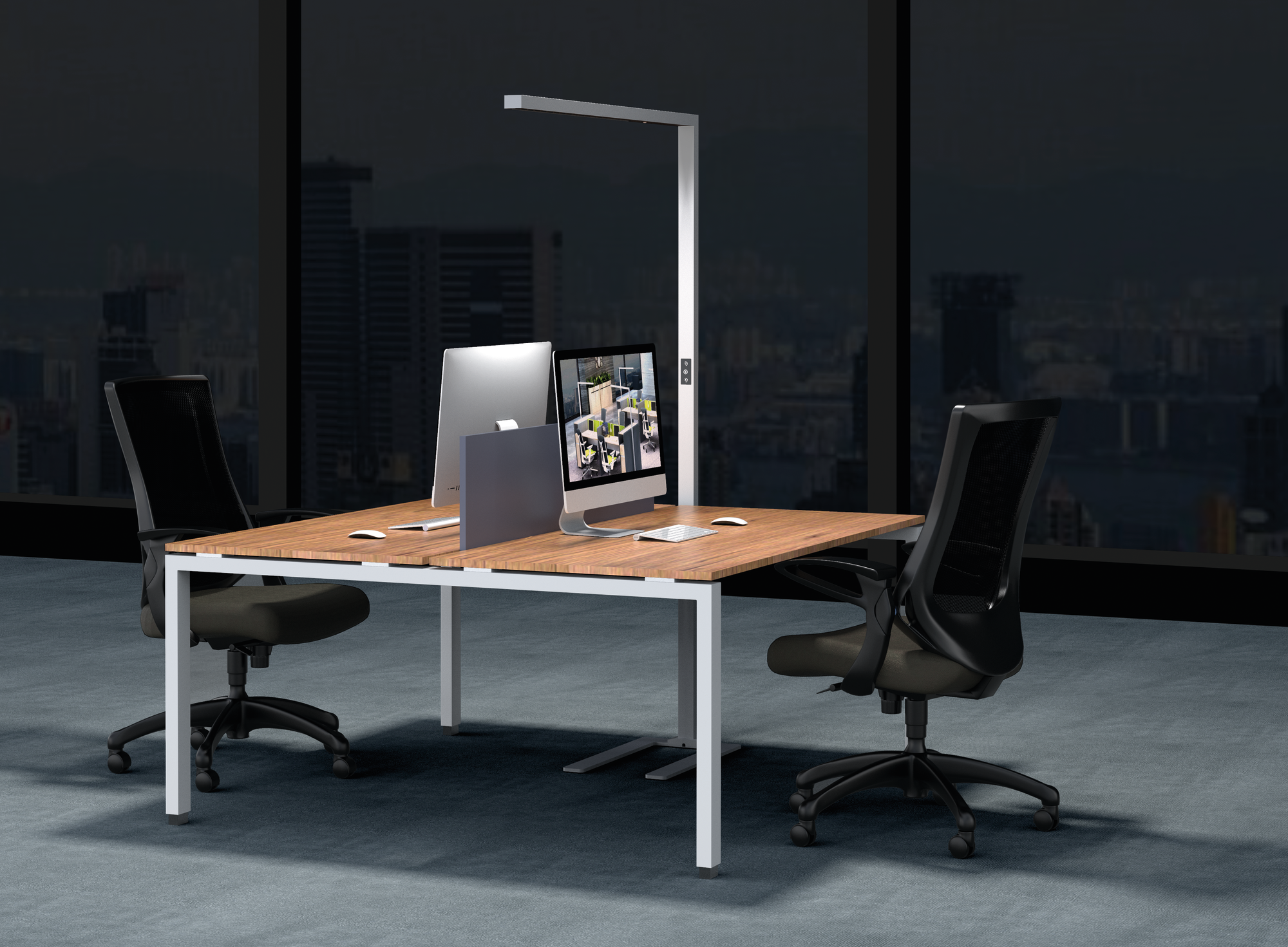

The timeless floorstanding luminaire is the ideal basis for a smart office through flexible expansion with intelligent sensors, for example for room data collection with an open interface. According to DIN EN 12464-1, two workplaces can be illuminated very homogeneously and in accordance with standards. The Silica® 21 Floor R creates a pleasant room atmosphere through very wide ceiling illumination. Maintenance and expansion is easy thanks to the gear tray principle and access to the electronics compartment.

As flexible as modern working concepts

Silica® 21 Floor R

Intro to Productfamily

Data

Varetekst gulvlampe
Lyseffekt indirekte/direkte symmetrisk bredstrålende
Netto lysfluks 15000lm
Fargetemperatur 4000K
Styring DALI 2
Tillegg med omgivelseslys- og tilstedeværelsessensor

Specials

Very homogeneous and standard-compliant illumination of two workplaces in accordance with DIN EN 12464-1
Pleasant room atmosphere due to very wide ceiling illumination
Ideal basis for a smart office thanks to the flexible extension of the luminaire with intelligent sensors, e.g. B. for spatial data acquisition with an open interface

Configuration & Datasheets

  • luminaires with intelligent sensors (room data acquisition, swarm function) on request
  • App for operating and controlling the full range of functions on request
  • luminaire for four workstations on request
  • armatur delvis forhåndsmontert, lyshode med elektrisk pluggforbinder

Results

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DW GTIN (EAN): 4058352602362
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringFargeVekt (kg)
4000KCRI > 8015000lm106,4W141lm/WDALI 2trafikkhvit (RAL 9016)15,0

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DB GTIN (EAN): 4058352602324
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringFargeVekt (kg)
4000KCRI > 8015000lm106,4W141lm/WDALI 2dypsvart (RAL 9005)15,1

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DS GTIN (EAN): 4058352602348
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringFargeVekt (kg)
4000KCRI > 8015000lm106,4W141lm/WDALI 2light aluminium (RAL 9006)15,1

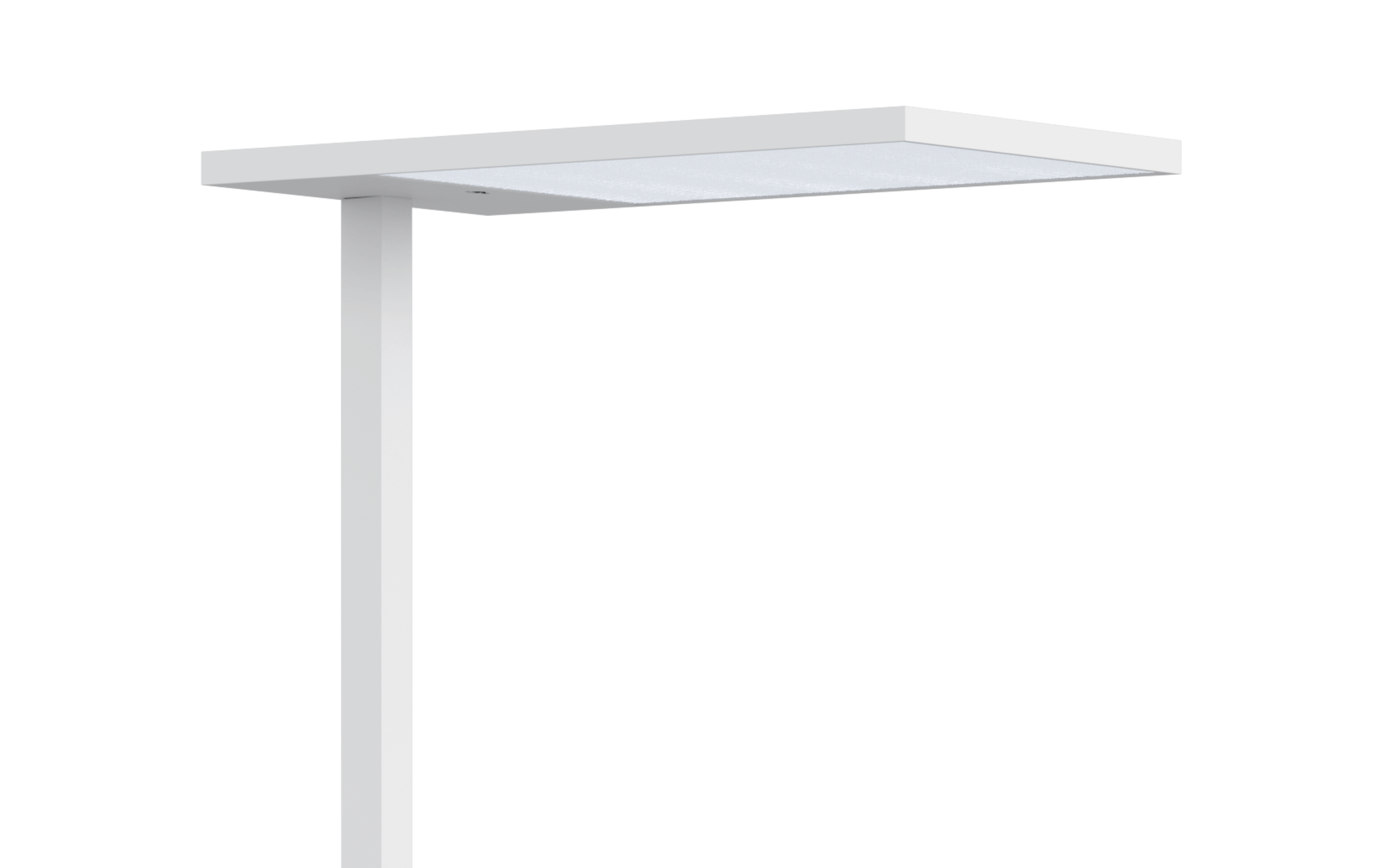

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DWGTIN (EAN): 4058352602362

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks15000lm
Tilkoblingseffekt106,4W
Lysutbytte141lm/W
StyringDALI 2
Fargetrafikkhvit (RAL 9016)
Vekt (kg)15,0

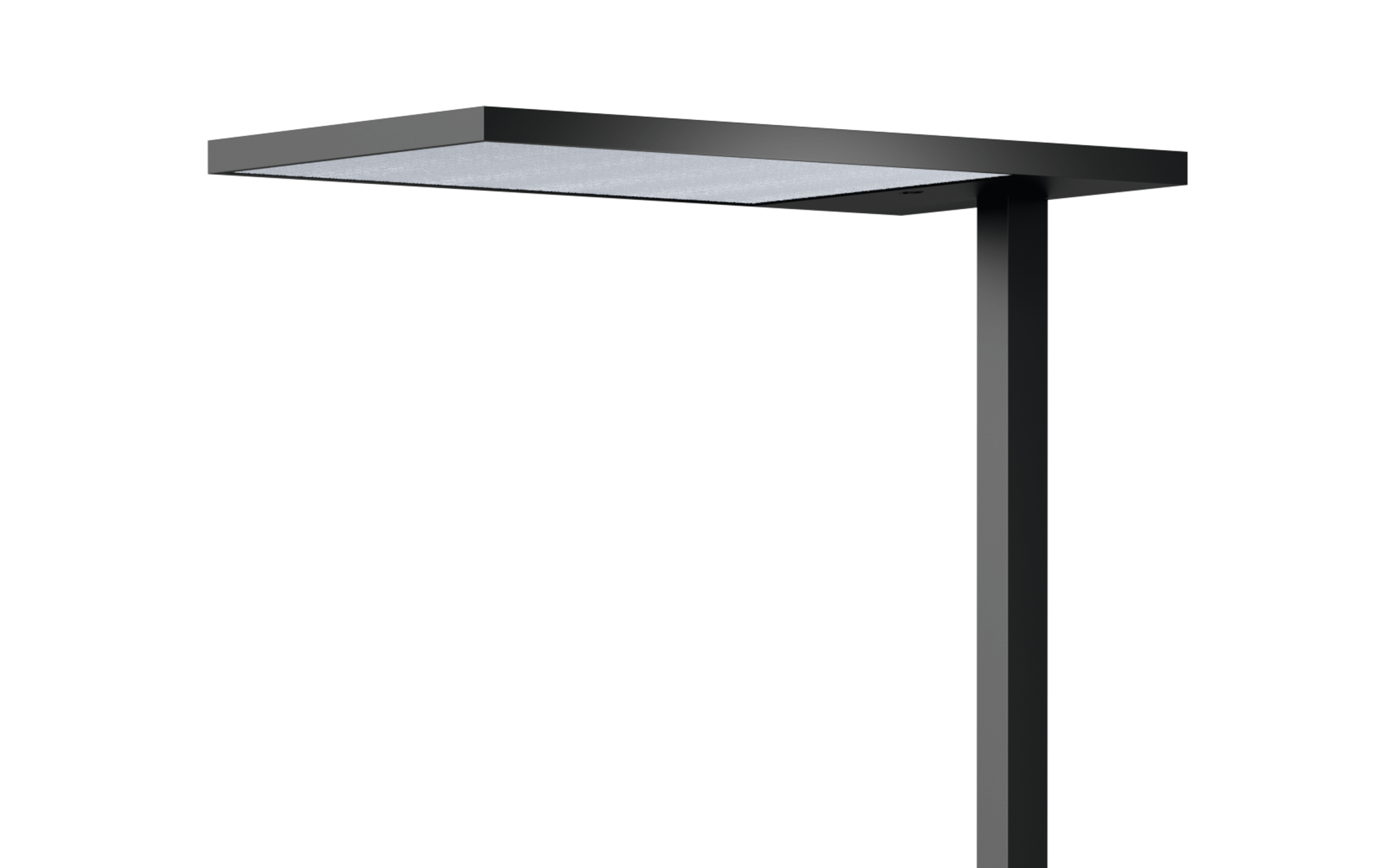

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DBGTIN (EAN): 4058352602324

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks15000lm
Tilkoblingseffekt106,4W
Lysutbytte141lm/W
StyringDALI 2
Fargedypsvart (RAL 9005)
Vekt (kg)15,1

Silica® 21 Floor R, med omgivelseslys- og tilstedeværelsessensor, for dagslysavhengig styring

Bestillingsnummer: 51MX53SG4DSGTIN (EAN): 4058352602348

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks15000lm
Tilkoblingseffekt106,4W
Lysutbytte141lm/W
StyringDALI 2
Fargelight aluminium (RAL 9006)
Vekt (kg)15,1
