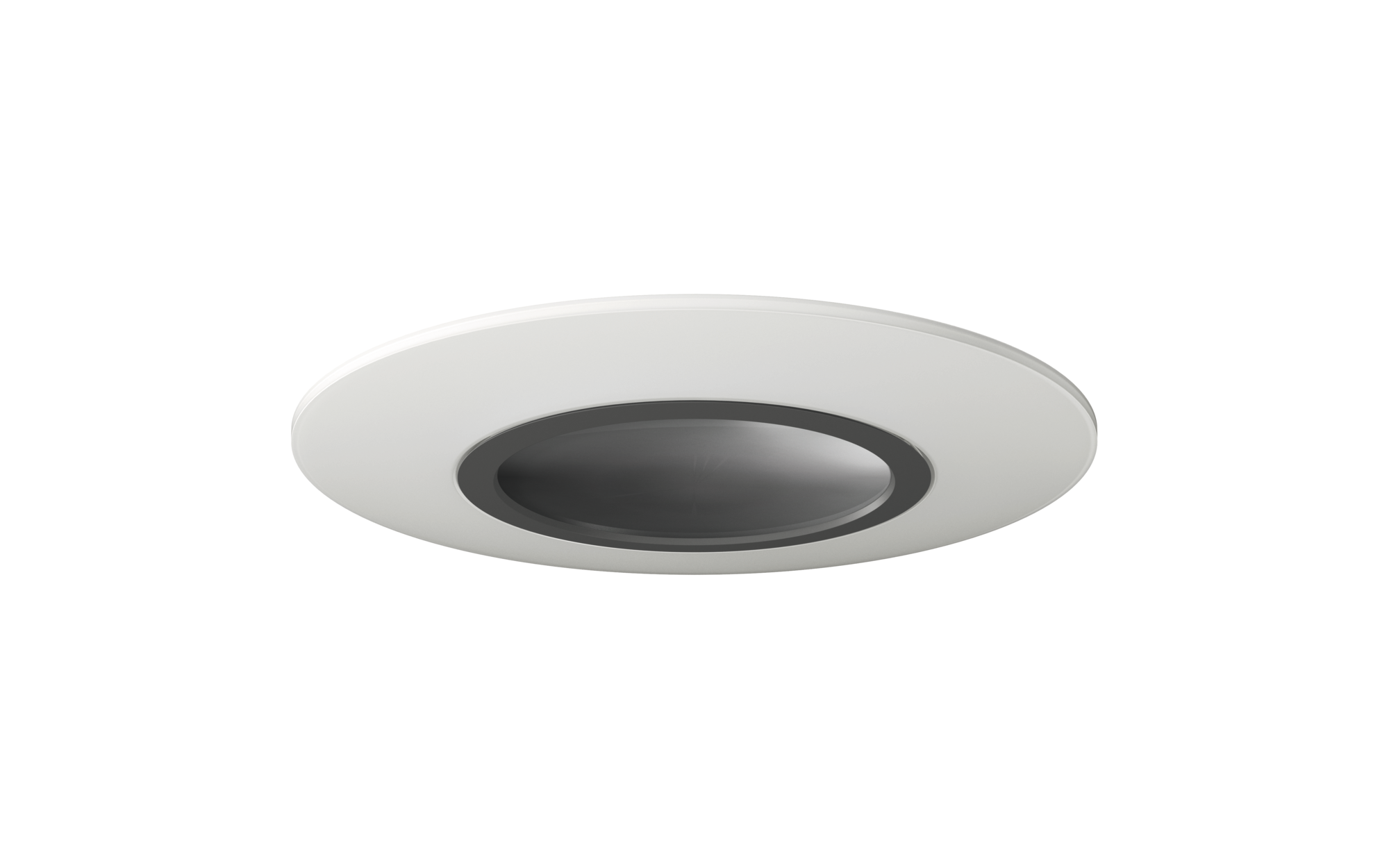

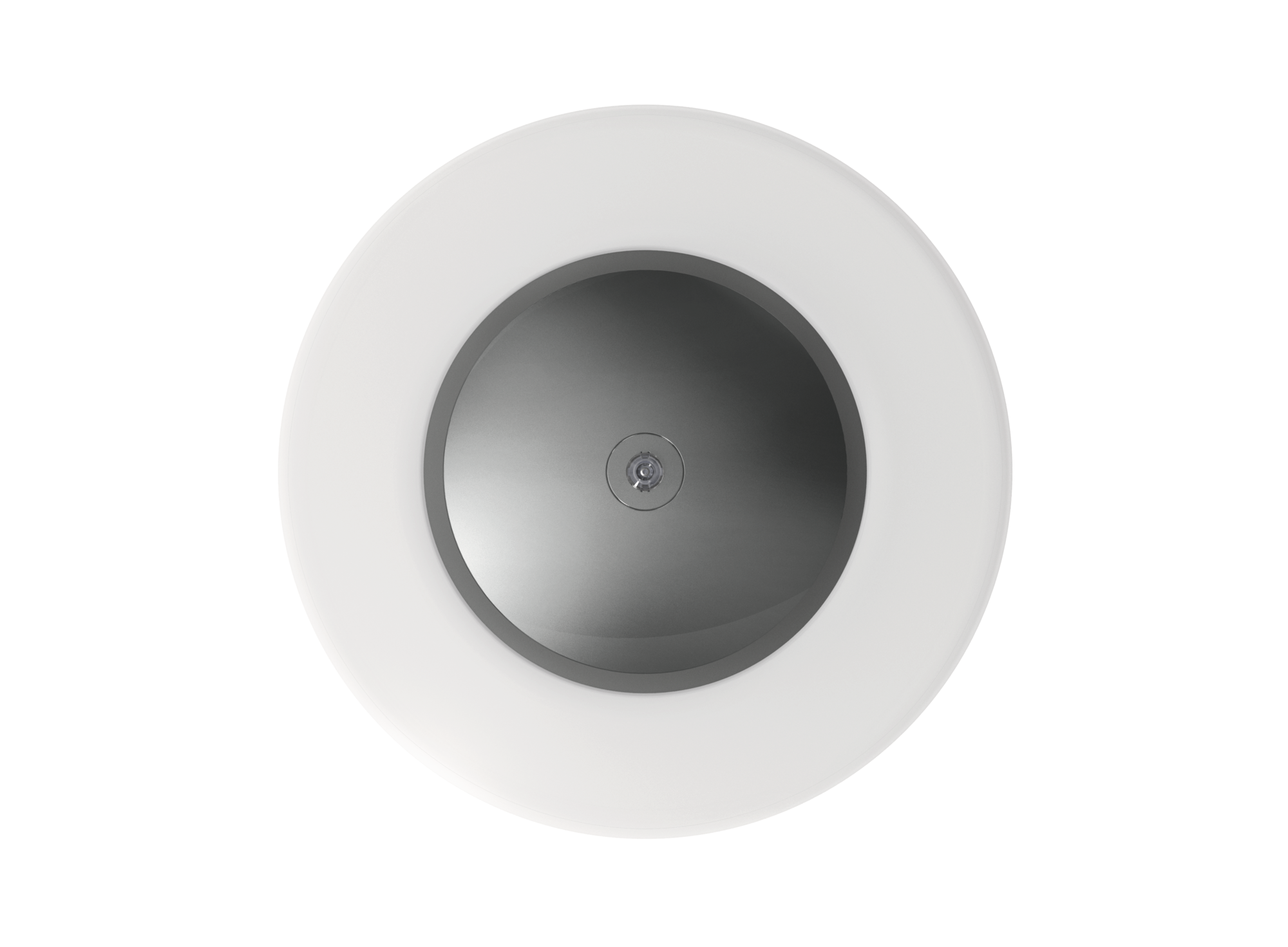

Rondel 21

Product typesConfiguration & data sheets

The Rondel 21 is the all-rounder for basic lighting with innovative features. Thanks to the flat, timeless design, the Rondel 21 blends into any environment and, thanks to the indirect component, creates a decorative ceiling illumination. The modular product concept allows the easy integration of functional extensions such as emergency lighting or sensors for an uncomplicated lighting concept. The optional control via Bluetooth simplifies commissioning and operation many times over, and the tunable white function creates the ideal basis for SITECO HCLlive applications for more motivation and well-being.

Our core portfolio: Rondel 21 is our wall and ceiling luminaire with the highest standards of efficiency, quality and flexibility for your project

Product types

Rondel 21, switchable

Rondel 21 TW, luminaire for integration into a CASAMBI ecosystem

Rondel 21 TW, luminaire for integration into a CASAMBI ecosystem

Intro product family

Key data

Article wall and ceiling luminaire
Lighting effect direct distribution
Net luminous flux 1710lm
Colour temperature 2700…6500K
Control Bluetooth® Mesh 4.2

Special features

Modern, elegant design for sophisticated surroundings

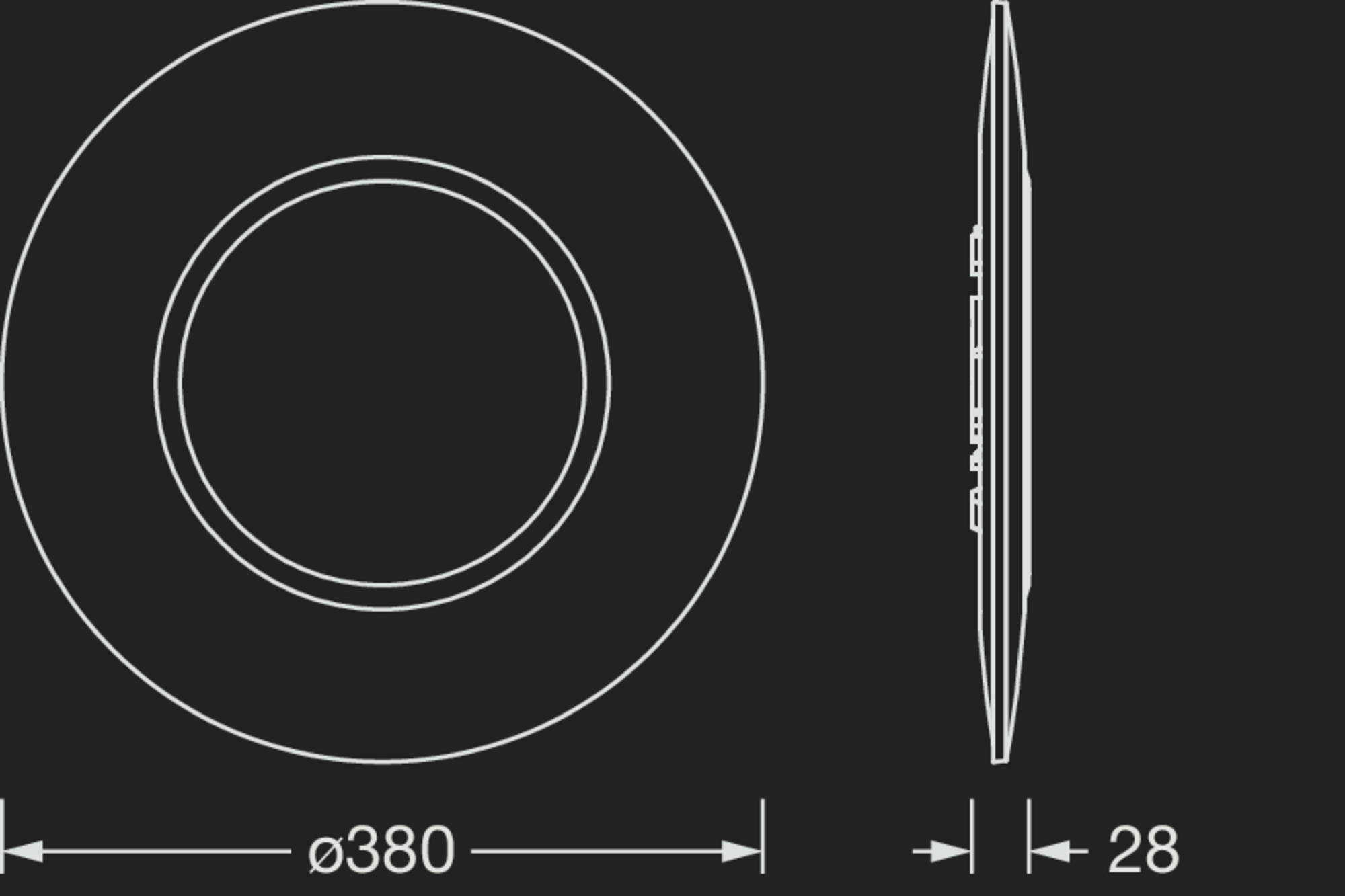

Ultraflat construction with a visible edge of less than 15mm
Uniform light distribution with decorative ceiling illumination
Flexible mounting distances, also suitable for mounting to flush-mounted distribution box/switch box
Integration of the luminaire into a CASAMBI ecosystem possible
Various functions like scene control, tunable white, dalight-dependant lighting control or SITECO HCLlive can be realized by combination with corresponding system components
Regardless of the switch range used - push button interface for the integration of on-site push buttons or switches
Optional integration of additional SITECO luminaires that can be integrated into a CASAMBI ecosystem
Operating and commissioning via CASAMBI APP
Casambi for IOS:
Https://apps.apple.com/de/app/casambi/id731859317?platform=iphone
Casambi for Android:
Https://play.google.com/store/apps/details?id=casambi.ambi&gl=DE

Configuration & data sheets

  • wireless networking of Rondel 21 and SITECO Connect Wireless system components with Bluetooth® 4.2 (CASAMBI)
  • every luminaire/push button interface/HCLlive operating panel/external controller is called 'node'
  • maximum 64 nodes possible per system; larger system sizes possible on request
  • commissioning and operation (ON/OFF/dimming, scene selection, etc.) possible with CASAMBI APP
  • SITECO HCLlive: colour temperature is controlled automatically depending on the time of day, plus daylight-dependent lighting control; SITECO HCLlive control panels enable intuitive and self-explanatory operation by the user
  • connection to SITECO Connect 11 via gateway possible on request

Results

RONDEL Flat, direct distribution, Bluetooth® Mesh 4.2, for surface-mounted

Order No.: 5MD530CL18TW GTIN (EAN): 4058352408407
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
2700..6500KCRI > 801710lm22W82lm/WBluetooth® Mesh 4.21.3
Show all details
Tender textData sheet (PDF, full)Complete download list

RONDEL Flat, direct distribution, Bluetooth® Mesh 4.2, for surface-mounted

Order No.: 5MD530CL18TWGTIN (EAN): 4058352408407

Colour temperature2700..6500K
Colour renderingCRI > 80
Luminous flux1710lm
Connected load22W
Luminous efficacy82lm/W
ControlBluetooth® Mesh 4.2
Wt. (kg)1.3
Show all details

Optional accessories

Articlepush button interfacePU1 pc.Wt. (kg)0.1Order No.: 5LZ980100GTIN (EAN): 4058352398517Show all details
Articlecontroller, local control - self-sufficient standalone sensors, wireless networkingPU1 pc.Wt. (kg)0.2Order No.: 5LZ980301GTIN (EAN): 4058352398593Show all details
Articlecontroller, local control - self-sufficient standalone sensors, wireless networkingPU1 pc.Wt. (kg)0.1Order No.: 5LZ980300GTIN (EAN): 4058352398579Show all details
