Silica® 21
The Silica® 21 offers maximum flexibility in use and is suitable for all mounting situations thanks to its modular design. It is the ideal basis for a smart office through flexible expansion with intelligent sensors, for example for room data acquisition with an open interface. As a sustainable luminaire thanks to easily exchangeable components, the Silica® 21 is the perfect solution for individual projects thanks to the modular principle.
Our open solution: modular, networked, adaptable and open in design
ELDACON® P - with prismatic optics
Intro to Productfamily
Data
Article office luminaire
Light emission direct/indirect distribution
Beam angle extremely wide distribution
Net luminous flux 5740lm to 14780lm
Colour temperature 2700…6500K; 3000K; 4000K
Control DALI DT8; DALI 2
Protection rating IP20
Insulation class insulation class I (protective earthing)
Specials
ELDACON® P - progressive prism system: with excellent glare control at high luminous flux levels thanks to a new and patented micro-lens/shield structure: only requires half the luminous area and creates twice as much light
Configuration & Datasheets
- please order wire suspension and connecting cable separately (wire suspension in pairs, 1 set required per luminaire); wire suspension with height adjustment, 1x per set with ceiling canopy and 1x with ceiling sleeve
- for suspension height > 1.2m: please order the corresponding number of connecting cables and supplementary wires separately
- for continuous row: please order the required number of luminaire connectors and through-wiring kits separately
Results
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA47WGTIN (EAN): 4058352582503
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 43.7W | 135lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA37WGTIN (EAN): 4058352605332
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 48.7W | 121lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TAT7WGTIN (EAN): 4058352685600
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB49WGTIN (EAN): 4058352582510
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 53.4W | 138lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB39WGTIN (EAN): 4058352605431
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 60.7W | 122lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TBT9WGTIN (EAN): 4058352685679
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC4DWGTIN (EAN): 4058352582527
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14780lm | 105.5W | 140lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC3DWGTIN (EAN): 4058352605530
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 119W | 124lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TCTDWGTIN (EAN): 4058352795958
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DA47BGTIN (EAN): 4058352605356
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 43.7W | 135lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DA37BGTIN (EAN): 4058352605301
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 48.7W | 121lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TAT7BGTIN (EAN): 4058352685563
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DB49BGTIN (EAN): 4058352605462
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 53.4W | 138lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DB39BGTIN (EAN): 4058352605394
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 60.7W | 122lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TBT9BGTIN (EAN): 4058352685624
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DC4DBGTIN (EAN): 4058352605554
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14780lm | 105.5W | 140lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DC3DBGTIN (EAN): 4058352605493
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 119W | 124lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TCTDBGTIN (EAN): 4058352795934
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA47SGTIN (EAN): 4058352605370
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5910lm | 43.7W | 135lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA37SGTIN (EAN): 4058352605318
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5910lm | 48.7W | 121lm/W | DALI 2 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TAT7SGTIN (EAN): 4058352685587
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 5740lm | 56.5W | 102lm/W | DALI DT8 | 1204 | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB49SGTIN (EAN): 4058352605479
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7390lm | 53.4W | 138lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB39SGTIN (EAN): 4058352605417
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7390lm | 60.7W | 122lm/W | DALI 2 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TBT9SGTIN (EAN): 4058352685648
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 7170lm | 70.8W | 101lm/W | DALI DT8 | 1504 | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC4DSGTIN (EAN): 4058352605578
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14780lm | 105.5W | 140lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC3DSGTIN (EAN): 4058352605516
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14780lm | 119W | 124lm/W | DALI 2 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TCTDSGTIN (EAN): 4058352796733
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 80 | 14340lm | 141.4W | 101lm/W | DALI DT8 | 3004 | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA47WGTIN (EAN): 4058352582503
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 43.7W |
| Luminous efficacy | 135lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DA37WGTIN (EAN): 4058352605332
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 48.7W |
| Luminous efficacy | 121lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TAT7WGTIN (EAN): 4058352685600
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB49WGTIN (EAN): 4058352582510
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 53.4W |
| Luminous efficacy | 138lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DB39WGTIN (EAN): 4058352605431
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 60.7W |
| Luminous efficacy | 122lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TBT9WGTIN (EAN): 4058352685679
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC4DWGTIN (EAN): 4058352582527
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 105.5W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
Order No.: 51MX33DC3DWGTIN (EAN): 4058352605530
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 119W |
| Luminous efficacy | 124lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, traffic white (RAL 9016)
Order No.: 51MX33TCTDWGTIN (EAN): 4058352795958
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DA47BGTIN (EAN): 4058352605356
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 43.7W |
| Luminous efficacy | 135lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DA37BGTIN (EAN): 4058352605301
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 48.7W |
| Luminous efficacy | 121lm/W |
| Control | DALI 2 |

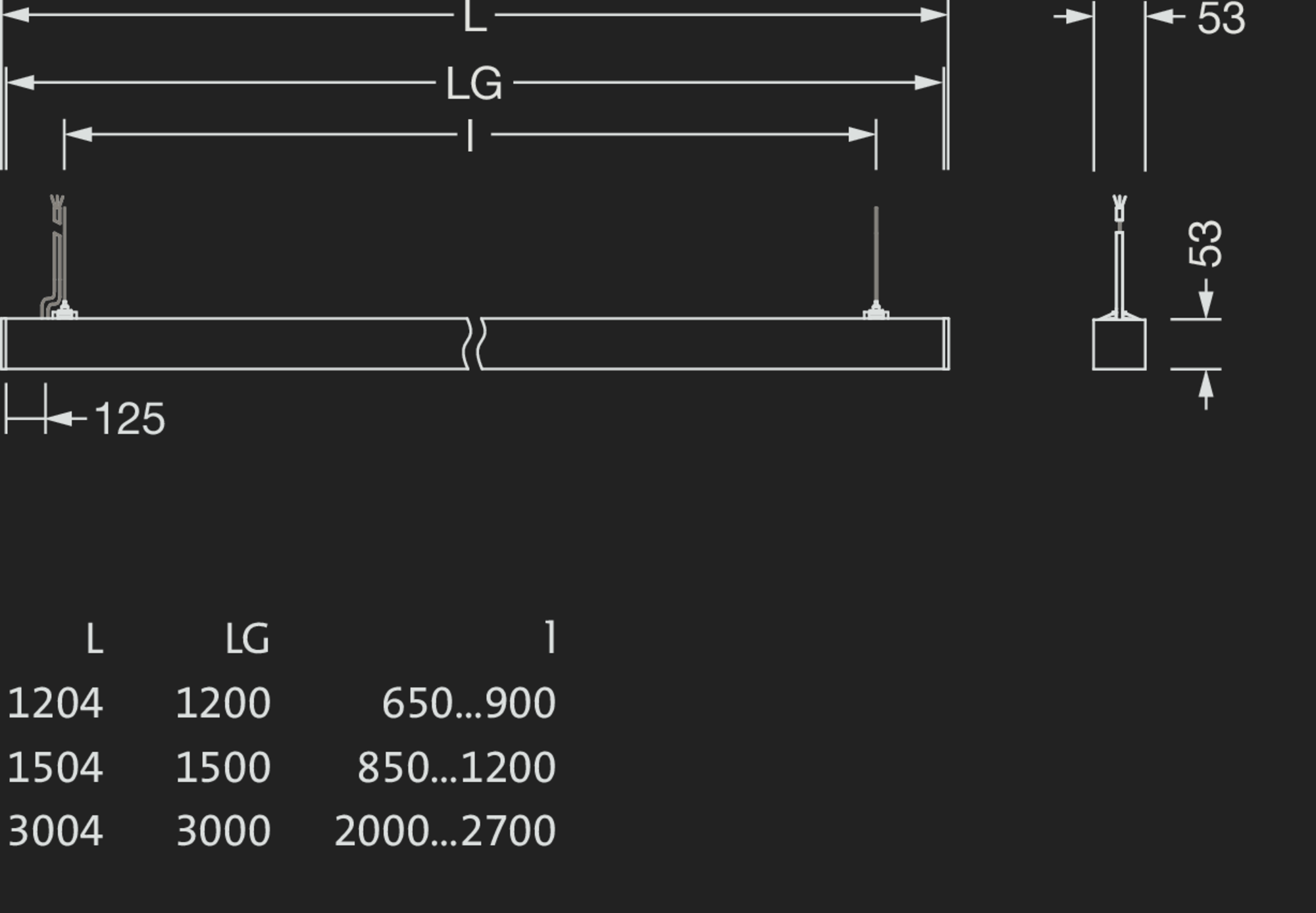

| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TAT7BGTIN (EAN): 4058352685563
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DB49BGTIN (EAN): 4058352605462
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 53.4W |
| Luminous efficacy | 138lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DB39BGTIN (EAN): 4058352605394
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 60.7W |
| Luminous efficacy | 122lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TBT9BGTIN (EAN): 4058352685624
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DC4DBGTIN (EAN): 4058352605554
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 105.5W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, jet black (RAL 9005)
Order No.: 51MX33DC3DBGTIN (EAN): 4058352605493
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 119W |
| Luminous efficacy | 124lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, jet black (RAL 9005)
Order No.: 51MX33TCTDBGTIN (EAN): 4058352795934
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA47SGTIN (EAN): 4058352605370
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 43.7W |
| Luminous efficacy | 135lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DA37SGTIN (EAN): 4058352605318
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5910lm |
| Connected load | 48.7W |
| Luminous efficacy | 121lm/W |
| Control | DALI 2 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TAT7SGTIN (EAN): 4058352685587
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5740lm |
| Connected load | 56.5W |
| Luminous efficacy | 102lm/W |
| Control | DALI DT8 |
| L (mm) | 1204 |
| Wt. (kg) | 3.0 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB49SGTIN (EAN): 4058352605479
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 53.4W |
| Luminous efficacy | 138lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DB39SGTIN (EAN): 4058352605417
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7390lm |
| Connected load | 60.7W |
| Luminous efficacy | 122lm/W |
| Control | DALI 2 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TBT9SGTIN (EAN): 4058352685648
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7170lm |
| Connected load | 70.8W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 1504 |
| Wt. (kg) | 3.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 840, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC4DSGTIN (EAN): 4058352605578
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 105.5W |
| Luminous efficacy | 140lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, metallic grey (RAL 9006)
Order No.: 51MX33DC3DSGTIN (EAN): 4058352605516
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14780lm |
| Connected load | 119W |
| Luminous efficacy | 124lm/W |
| Control | DALI 2 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, 2700..6500K, UGR ≤ 19, DALI DT8, metallic grey (RAL 9006)
Order No.: 51MX33TCTDSGTIN (EAN): 4058352796733
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14340lm |
| Connected load | 141.4W |
| Luminous efficacy | 101lm/W |
| Control | DALI DT8 |
| L (mm) | 3004 |
| Wt. (kg) | 5.5 |
Mandatory accessory
| Order No.: 59MX30DH20WGTIN (EAN): 4058352606032 | Show details |
| Order No.: 59MX30DJ20WGTIN (EAN): 4058352606056 | Show details |
| Order No.: 59MX30DH20SGTIN (EAN): 4058352606025 | Show details |
| Order No.: 59MX30DJ20SGTIN (EAN): 4058352606049 | Show details |
| Order No.: 59MX300020XGTIN (EAN): 4058352606001 | Show details |
| Order No.: 59MX300040XGTIN (EAN): 4058352606018 | Show details |
| Order No.: 59MX30DL20XGTIN (EAN): 4058352606063 | Show details |
| Order No.: 59MX30DL40XGTIN (EAN): 4058352606070 | Show details |
Optional accessory
| Order No.: 59MX700V40XGTIN (EAN): 4058352606087 | Show details |
| Order No.: 59MX70DL10XGTIN (EAN): 4058352606094 | Show details |
| Order No.: 59MX70DL20XGTIN (EAN): 4058352606100 | Show details |
| Order No.: 59MX70DL30XGTIN (EAN): 4058352606117 | Show details |
